Description
Description

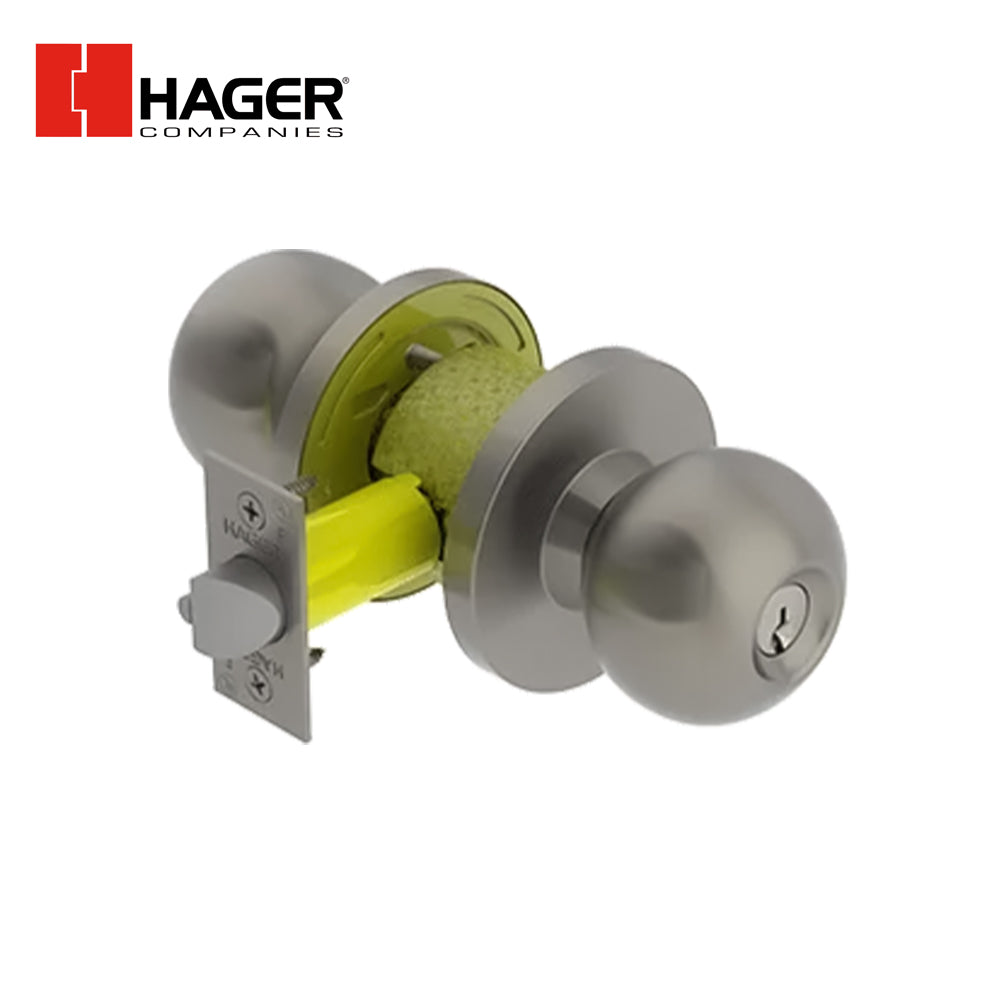

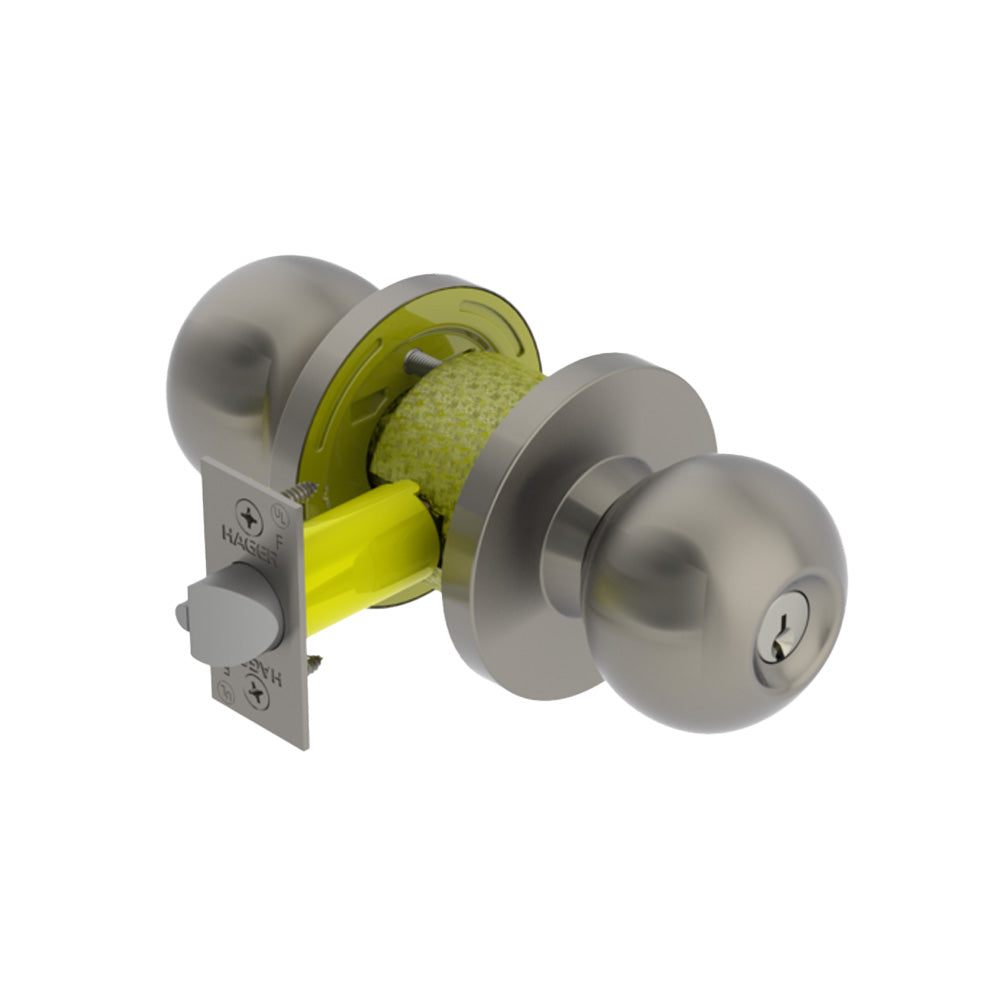

HAGER - 3580 - Storeroom Cylindrical Lock with 2-3/4" Backset and Keyed Different - ASA strike - Grade 2 - Satin Stainless Steel
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | Storeroom (F86) |
| Knob style | APL-Apollo |
| Product Type | Cylindrical Lock |
| Application | Standard Duty Commercial |
| Door Thickness | 1-3/8" - 1-3/4" (35 mm - 45mm) |
| Strike | 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike |
| Product Material | Zinc |
| Keyway | Schlage C - Standard, other keyways optional |
| Keying | Keyed Different |
| Cylinder Material | Brass |
| Rose Diameter | 3-11/32" (85 mm) |
| Knob/Lever Size | 2-1/4" |
| Latch Throw | 1/2" Throw |
| Strike Type | ASA Strike |
| Latch Corner | Square and Round |
| Exposed Trim | Wrought Brass, Bronze, and Stainless Steel |
| Lever Options | Archer, August and Withnell |
| Notes | No exposed mounting screws Non-handed |
| Lock Chassis | Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty |
| Included Components | (2) Operating Keys |
Certifications:
- BHMA Certified ANSI A156.2, Series 4000 Grade 2
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- ANSI A250.13 Severe Windstorm Component
- UL10C Positive Pressure Rated
- Miami Dade County, FL NOA #17-1226.23
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
- Deadlocking latchbolt prevents manipulation when door is closed
Backsets:
- 2-3/4" (70mm)
- 2-3/8" (60mm)
- 3-3/4" (94mm)
- 5" (128mm)
