Trans-Atlantic - DL-LSV Series - Commercial Cylindrical Lever - Gra...
Description
Description

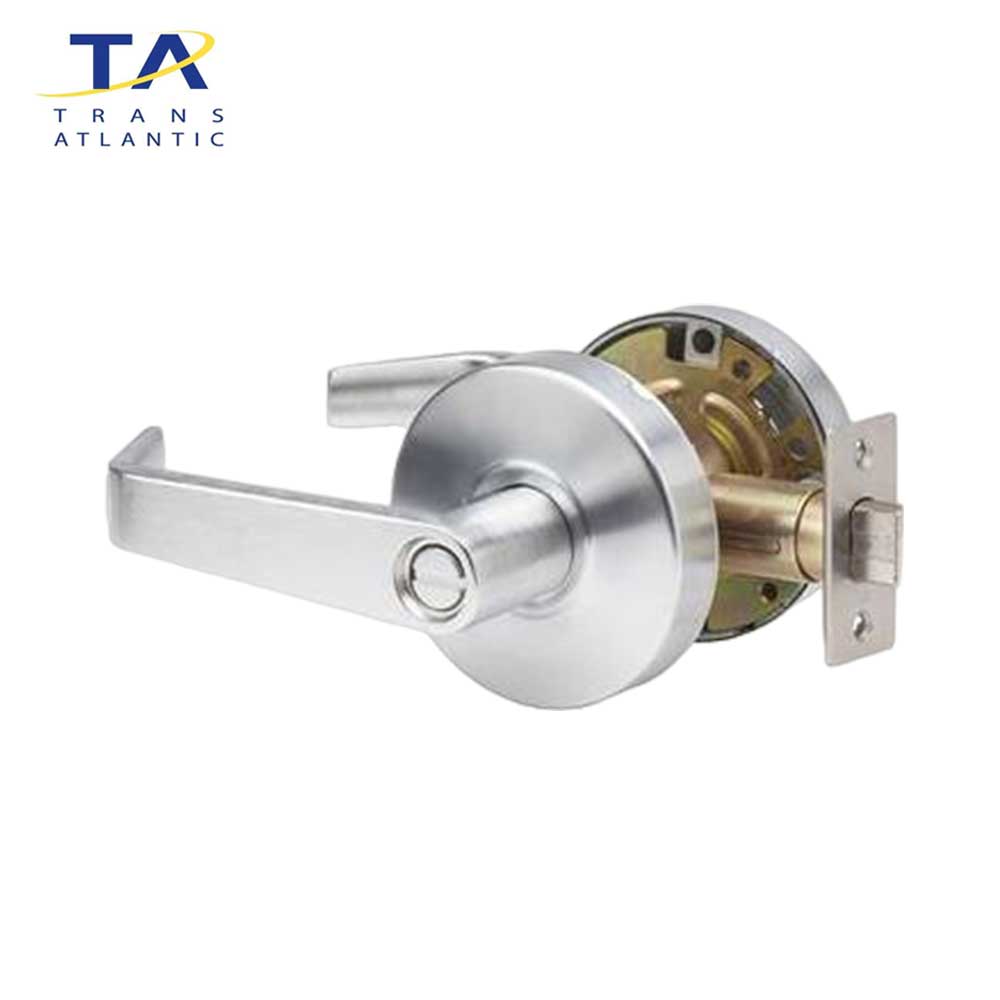

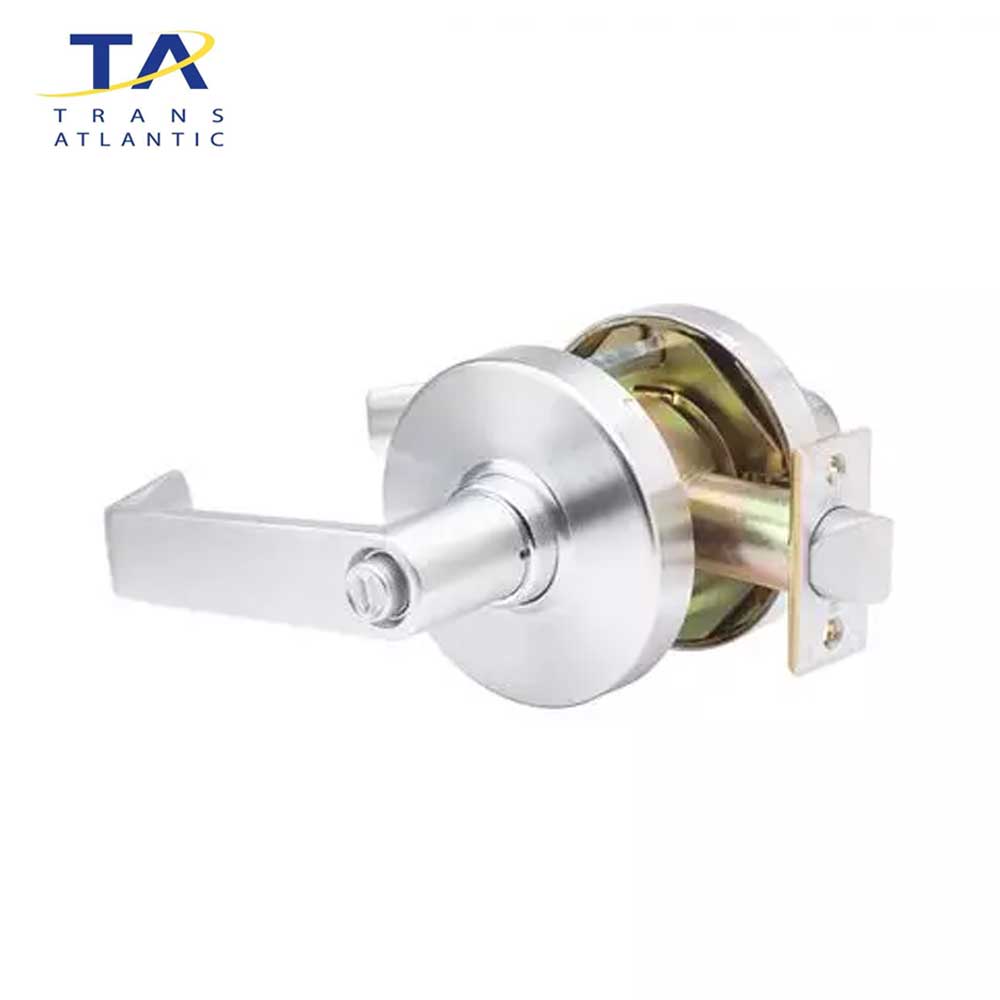

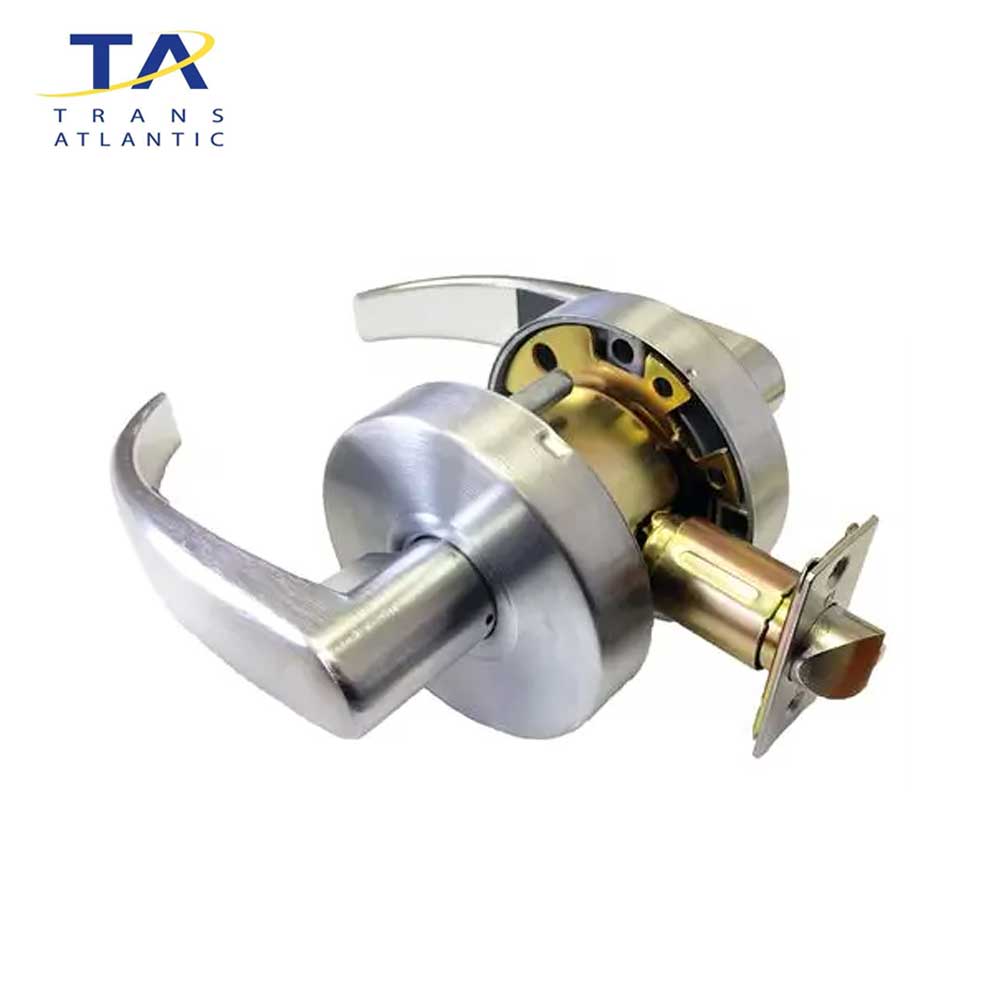

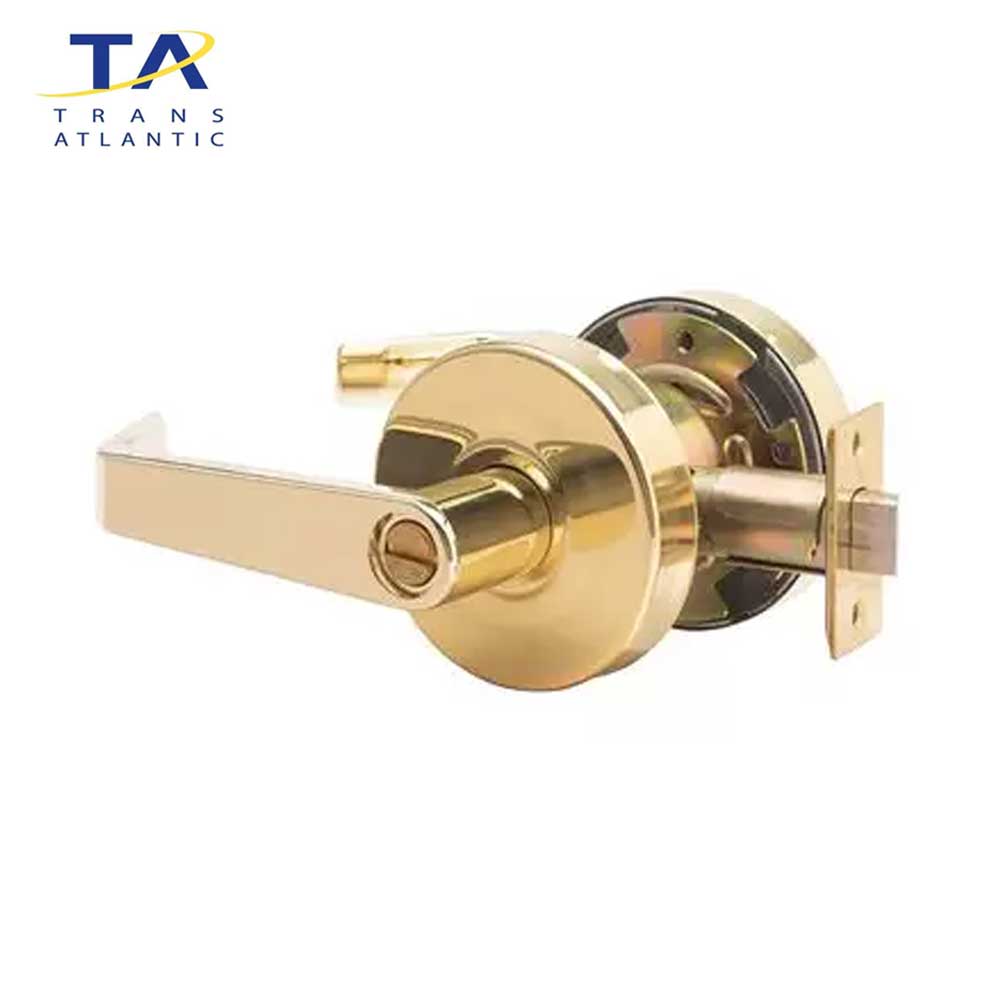

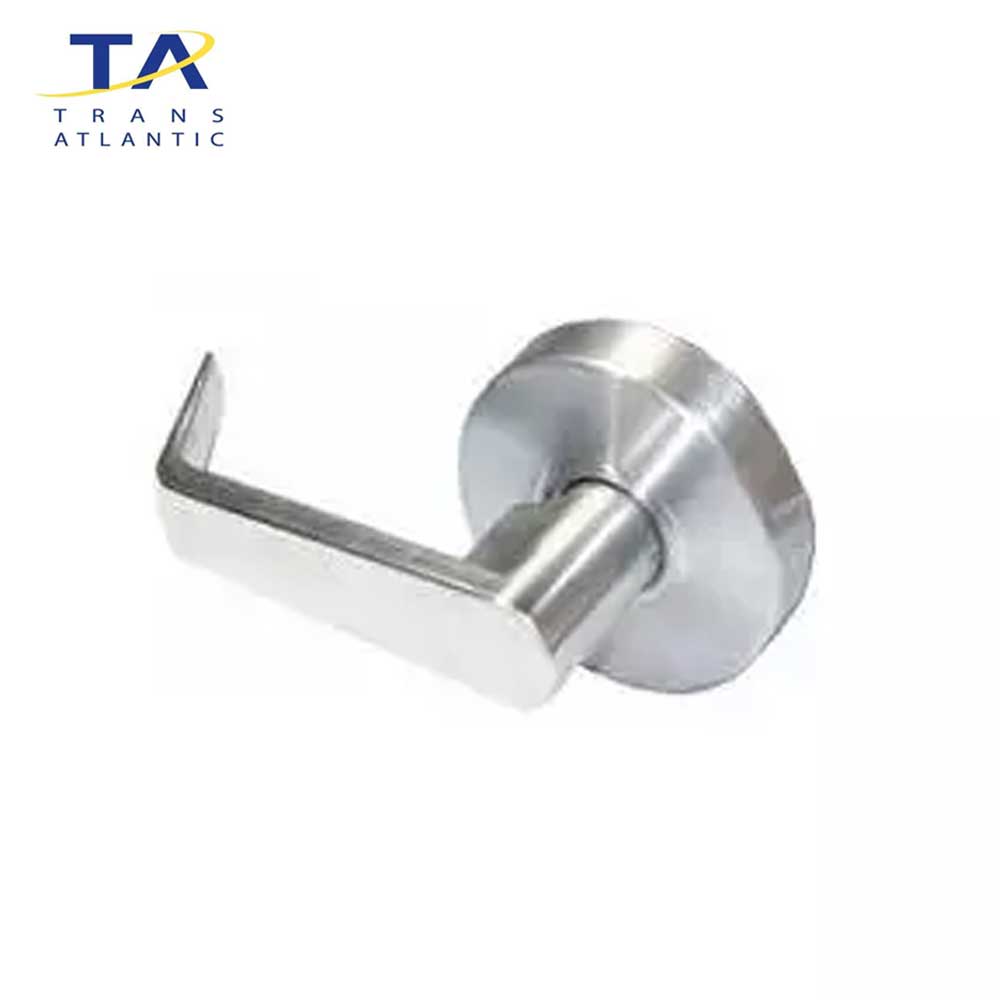

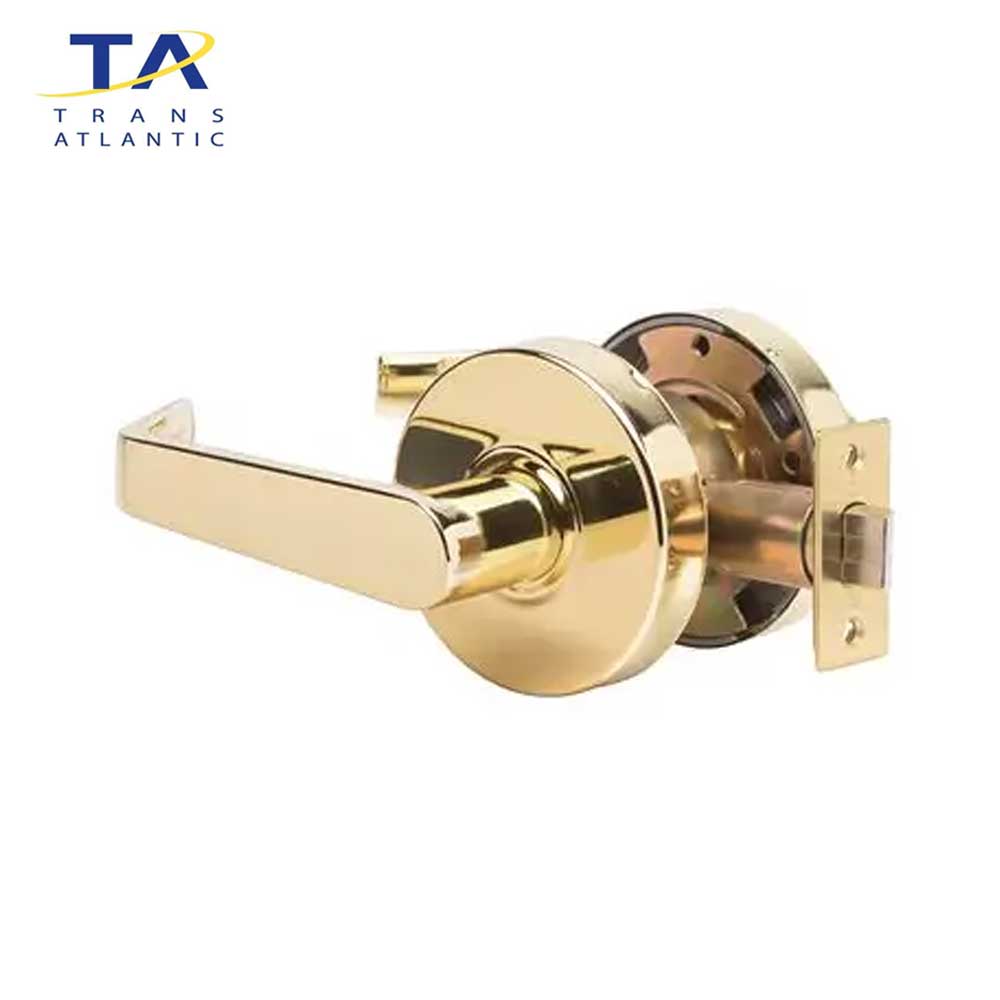

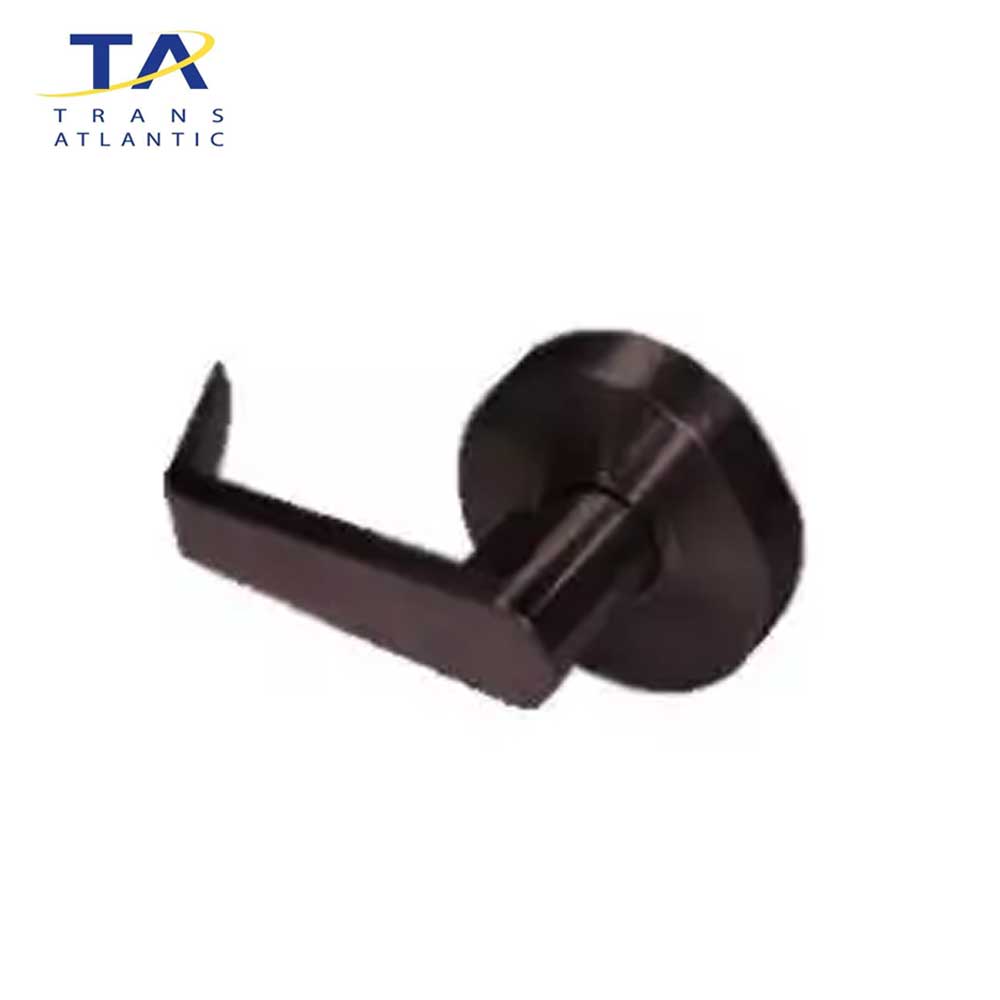

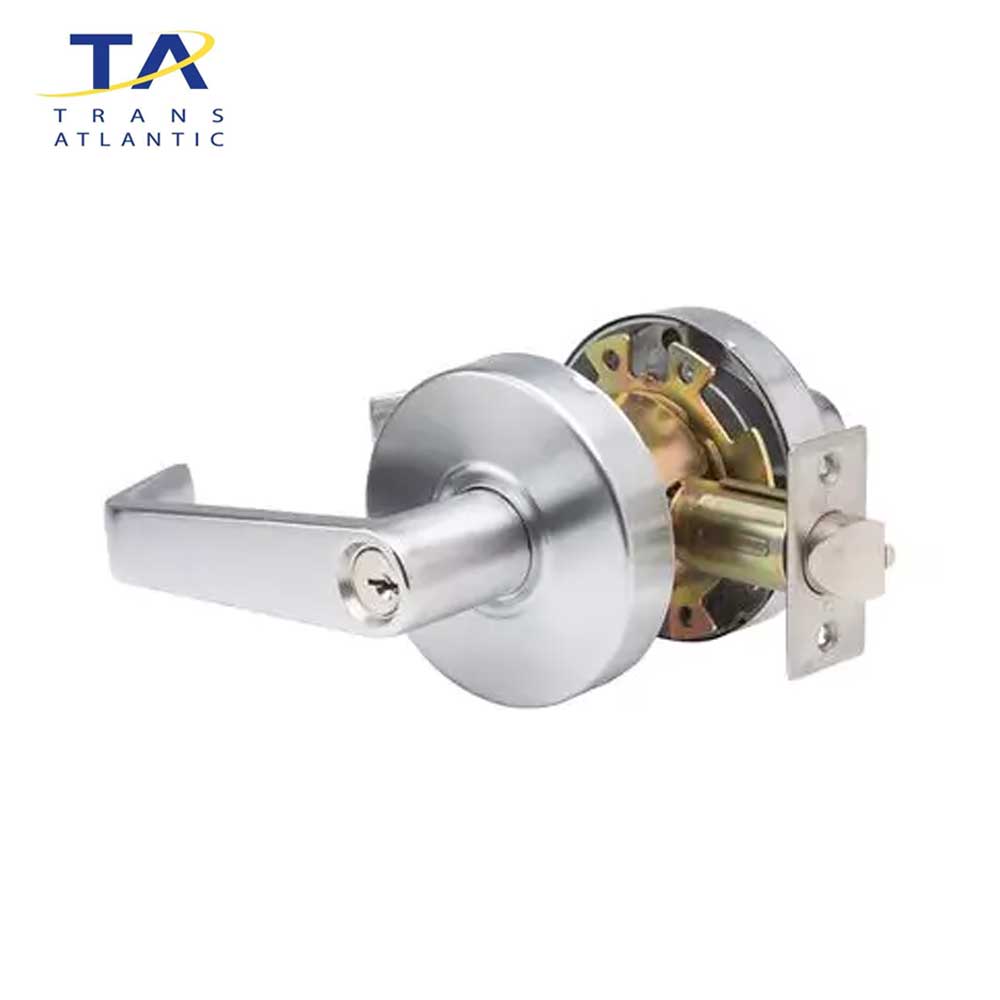

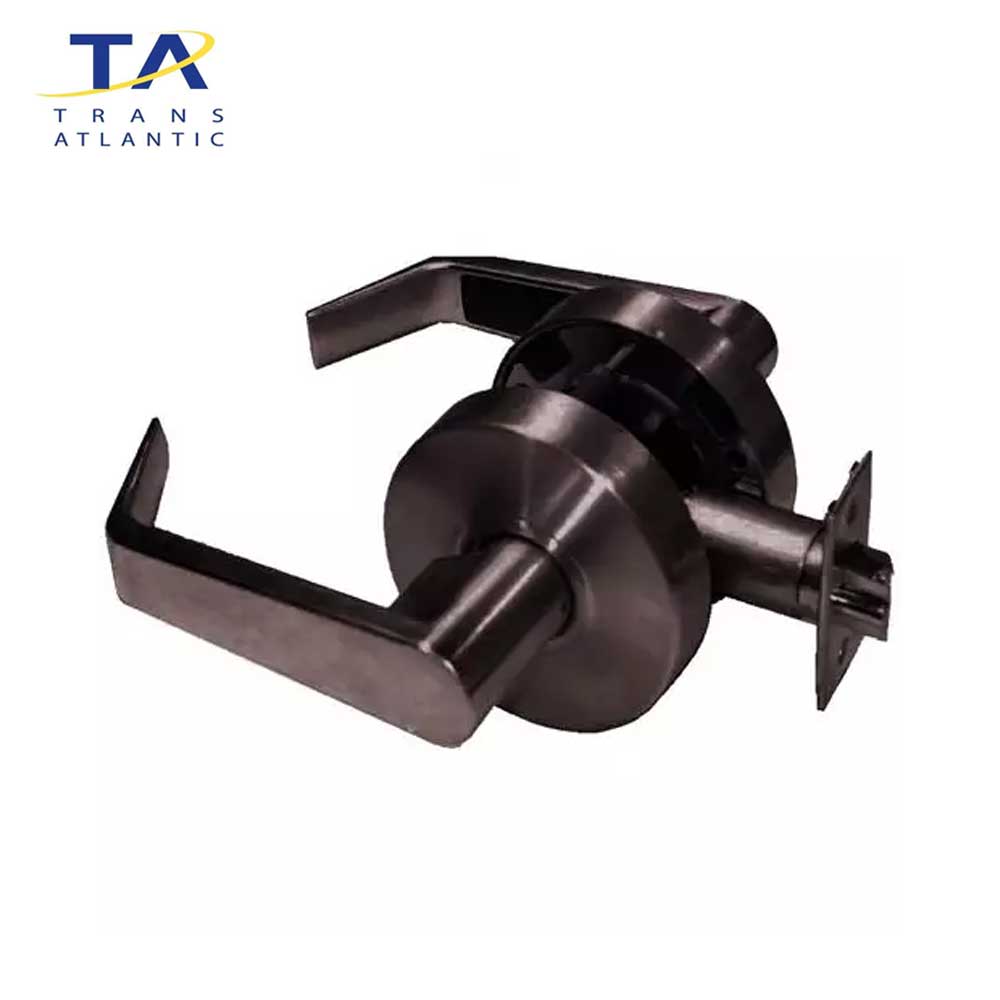

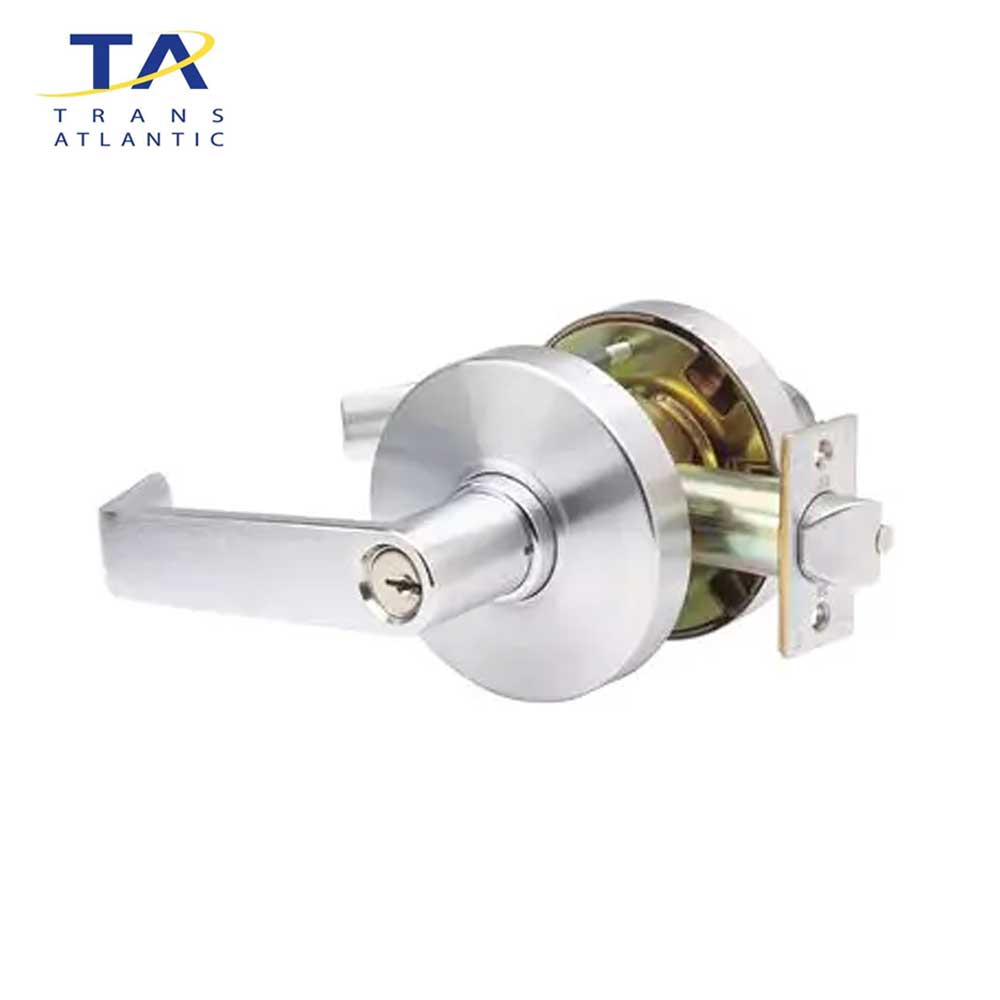

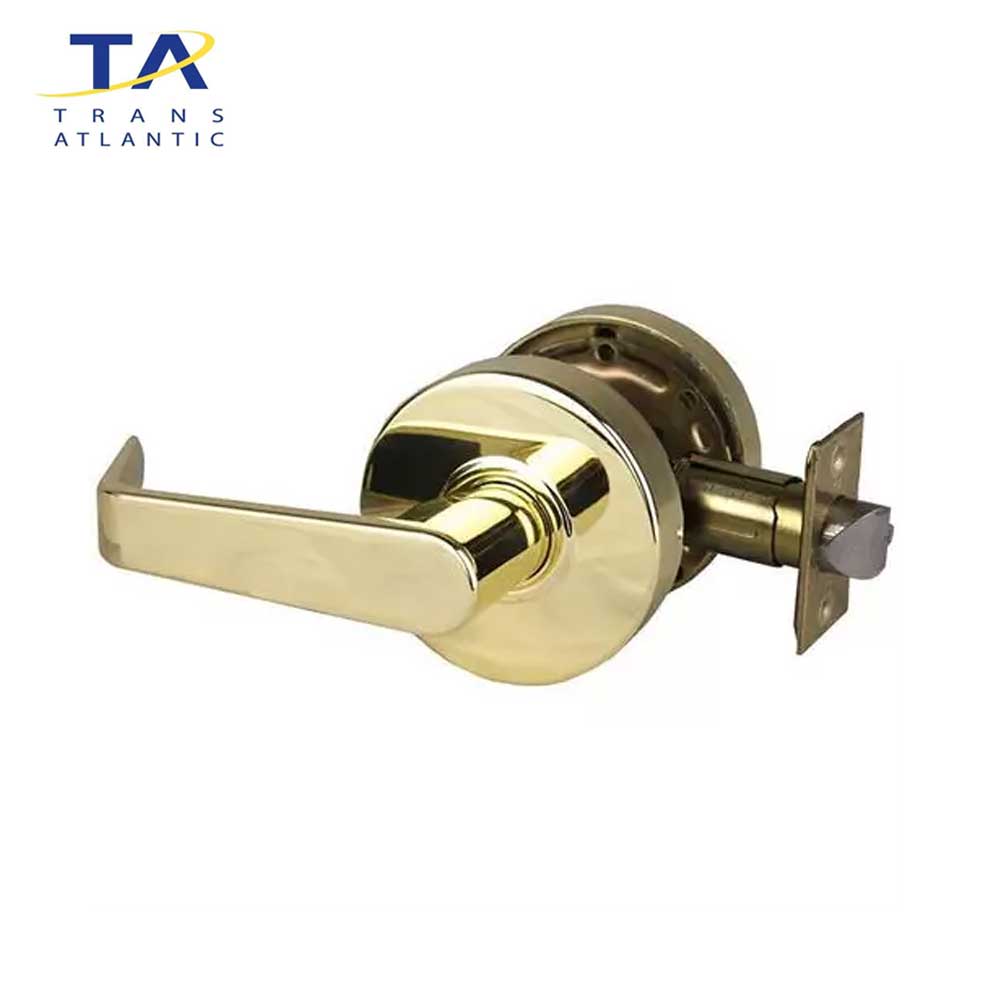

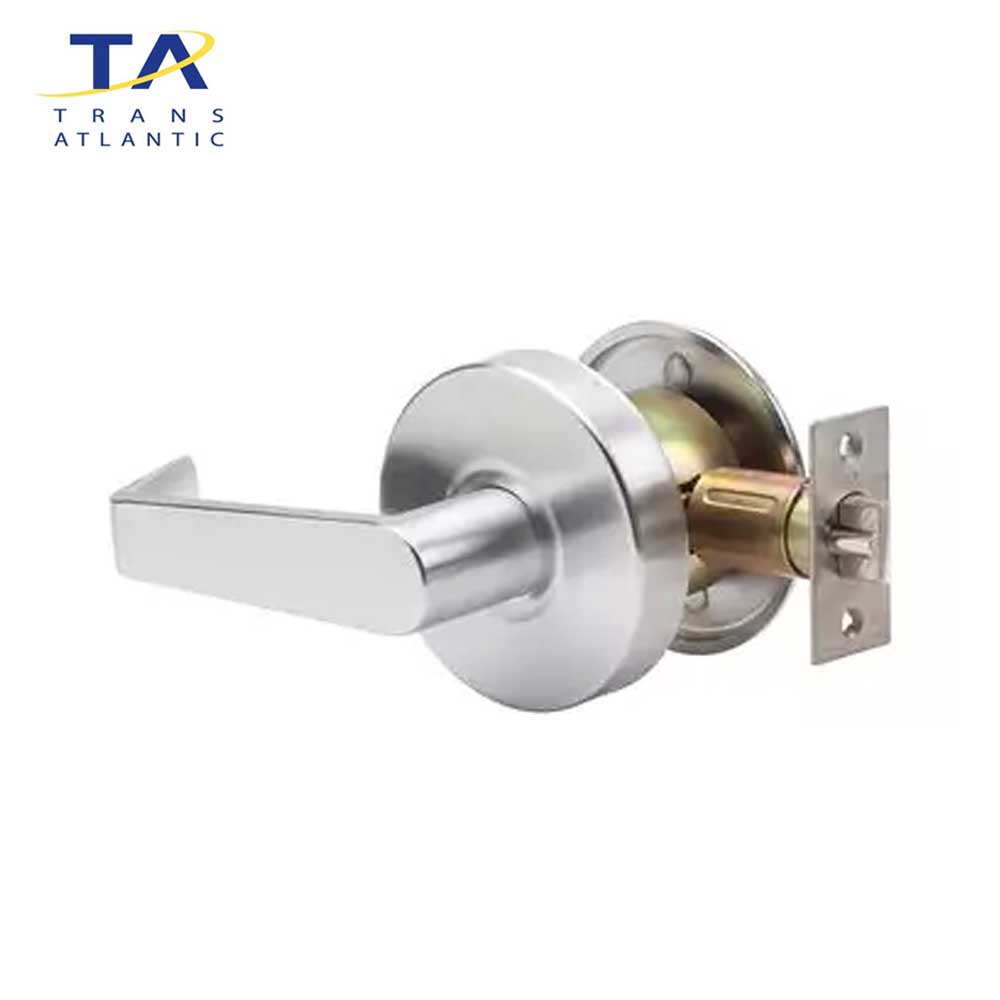

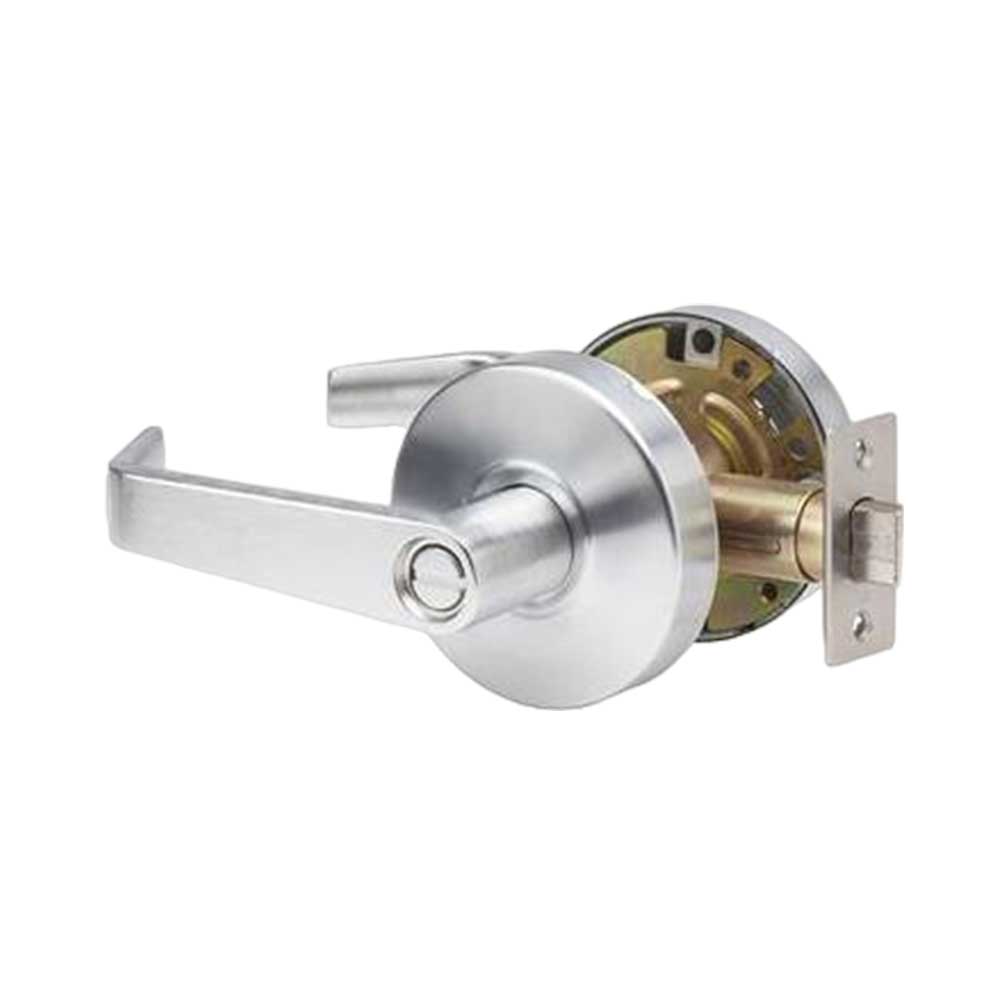

Trans-Atlantic - DL-LSV Series - Commercial Cylindrical Lever - Grade 2
The DL-LSV series cylindrical leverset are designed for use on all standard duty grade 2 light commercial and residential applications. The DL-LSV series is also ADA compliant. Solid zinc diecast.
Specifications:
- Door Thickness: 1-3/4” - 2”
- Backset: 2-3/4” - face 1-1/8”- 2-1/4”
- Cylinder: Schlage “C” keyway
- Keying: Schlage 6 pin keyed
- Key: 2 six pin nickel plated
- Certification: UL listed ANSI A156.2 Grade 2
- Latch: 1/2" projection stainless steel 3 hour UL
- Bore: 2-1/8” hole retrofits all cylindrical locksets
- Strike: ANSI 1-1/4” - 4-7/8” strike
- EXBS5: Extension for 5" bracket
- Clutch Lever Style: Saturn Style, Sparta Style
- Thrubolts are removable
- Non-handed and reversible
- Vandal Resistant: Clutch free wheeling mechanism option
- Warranty: Lifetime mechanical. 10 year finish.
- Finishes: US3, 10B, 26D
Available Options:
- CL - Clutch function - Lever rotates without unlatching lock (only Saturn Style)
- IC - Small format Figure 8 Interchangeable Core NOT included
- DL-DLUL238 - 2-3/8" backset, UL Deadlatch
- DL-SLUL238 - 2-3/8" backset, UL Springlatch
- DL-TAO13 - 1-1/8" 2-3/4" "T" Strike
- DL-EXBS5: Extension for 5" backset
- DL-LSV53DB751 - Combo, Single Cylinder
- DL-LSV53DB760 - Combo, Double Cylinder
- 2 keys per cylinder
- KD: Keyed Different
- KA: Keyed Alike
- KA2: Keyed Alike; groups of 2
- KEYWAYS: SC6, AR5, KW1
