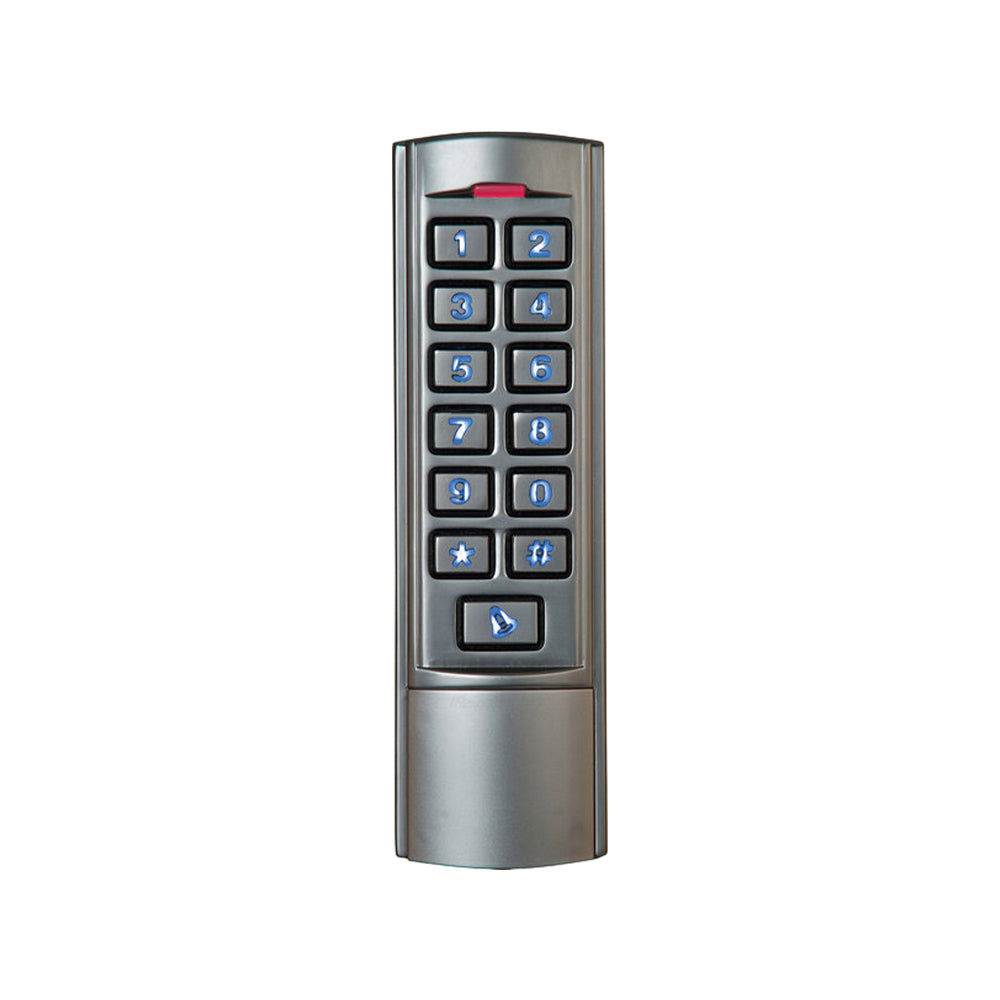

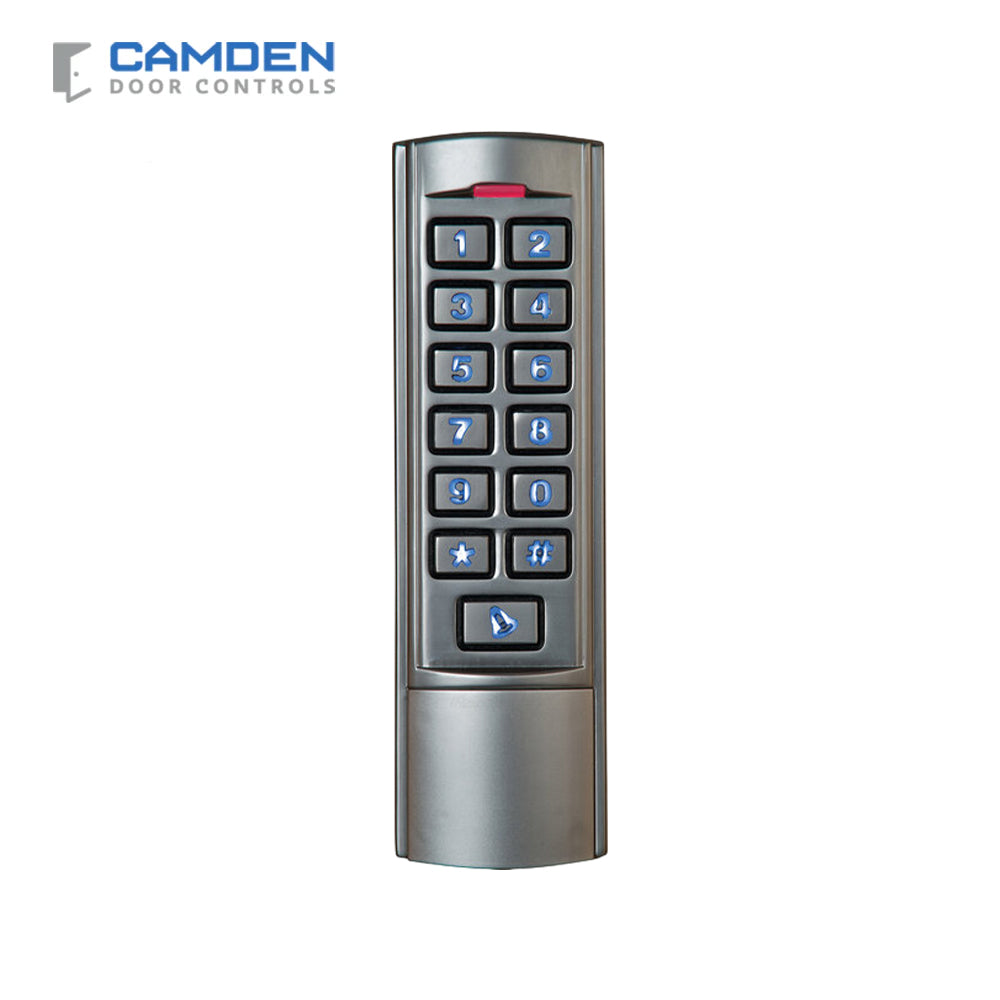

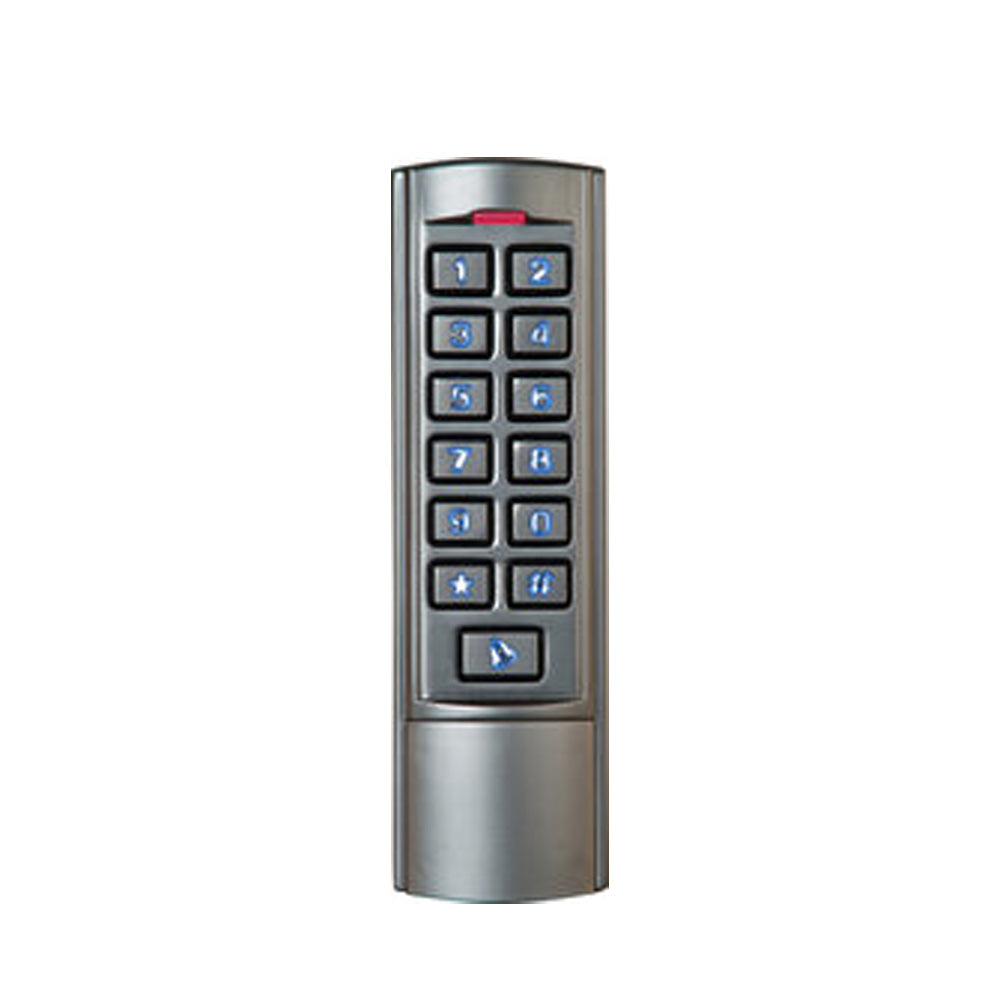

Camden CV-110SPK Vandal & Weather Resistant Standalone PROX Reader & Keypad - 2000 Users - 12 VDC
Camden CV-110SPK is a slim-line single door multifunction standalone keypad that supports up to 2000 users with a Card, 4 digit PIN, or a Card + PIN option. The electronics are fully potted so the unit is waterproof and conforms to IP68. The built-in prox. card reader supports 125KHZ EM cards. The CV-110SPK offers a 26 bit Wiegand input and output allows the unit to also operate as a dual credential (prox. reader and keypad) access control system device.
Features:
- Up to 2,000 users - cards or tags
- Backlit Keys
- Zinc Alloy electroplated anti-vandal construction
- Weatherproof, IP68 rating
- Fully programming from keypad
- Adjustable door output time, alarm time, door open time
- Low power consumption
- Anti-tampler, built-in light dependent resistor
- Look output short circuit protection
- 8 bit burst (keypad), 26 bit (reader) Wiegand output, for integration with access control systems
- 3 year warranty
Specifications:
| Voltage | 12 VDC |
| Users | 2,000 |
| Reader Format | EM Format |
| Current Draw | 60 mA |
| Contact Type | (1) Form 'C' |
| Contact Rating | 3 A @ 30 VDC |
| Alarm Output | 20 mA |
| Protection | IP68 Rated |
| Door Delay Time | 0 to 99 Seconds |
| Alarm Time | 0 to 3 minutes |
| Wiegand Interface | 8 bit burst for PIN codes 26 bit for cards |
| Temp Range | -49°F to 140°F (-45°C to 60°C) |
| Dimensions | 5-7/8”H x 1-3/4”W x 1”D (150mm x 44mm x 25mm) |
