CGDI GODIAG GT107+ DSG Plus Gearbox Cables 7-in-1 Set for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250 Compatiable with CG FC200

CGDI GODIAG GT107+ DSG Plus Gearbox Cables 7-in-1 Set for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250 Compatiable with CG FC200

GT107+ Introduction:

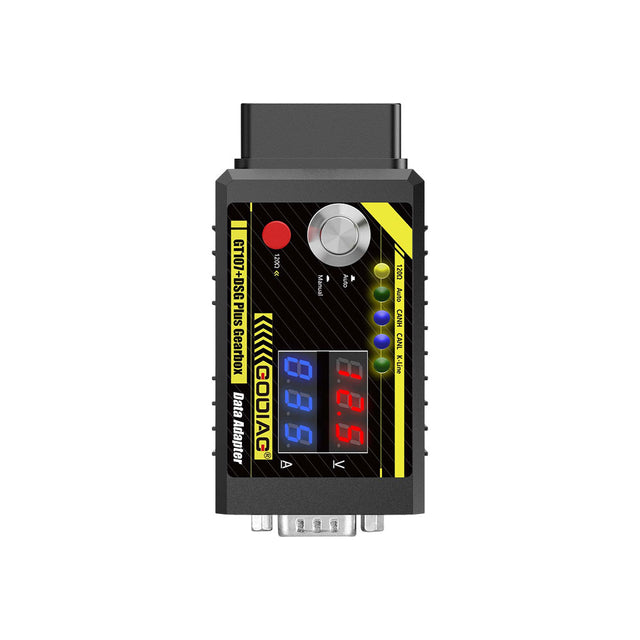

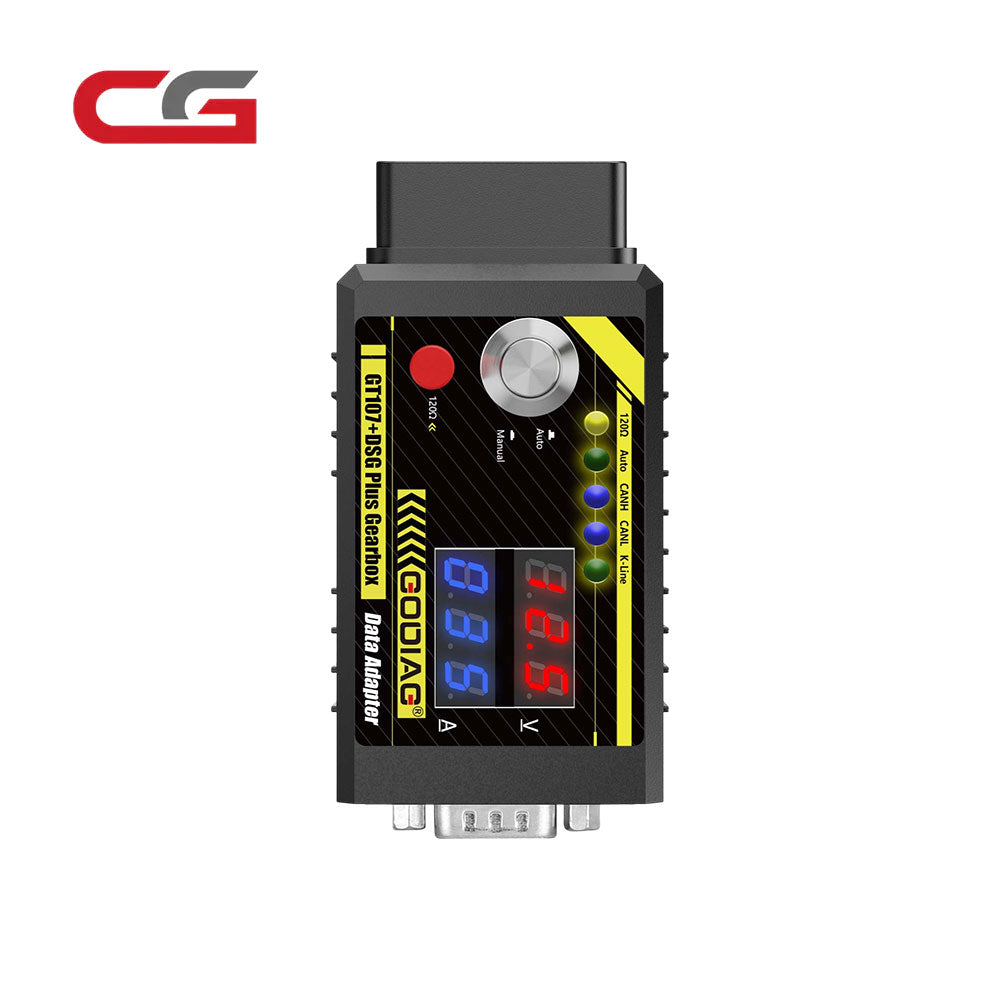

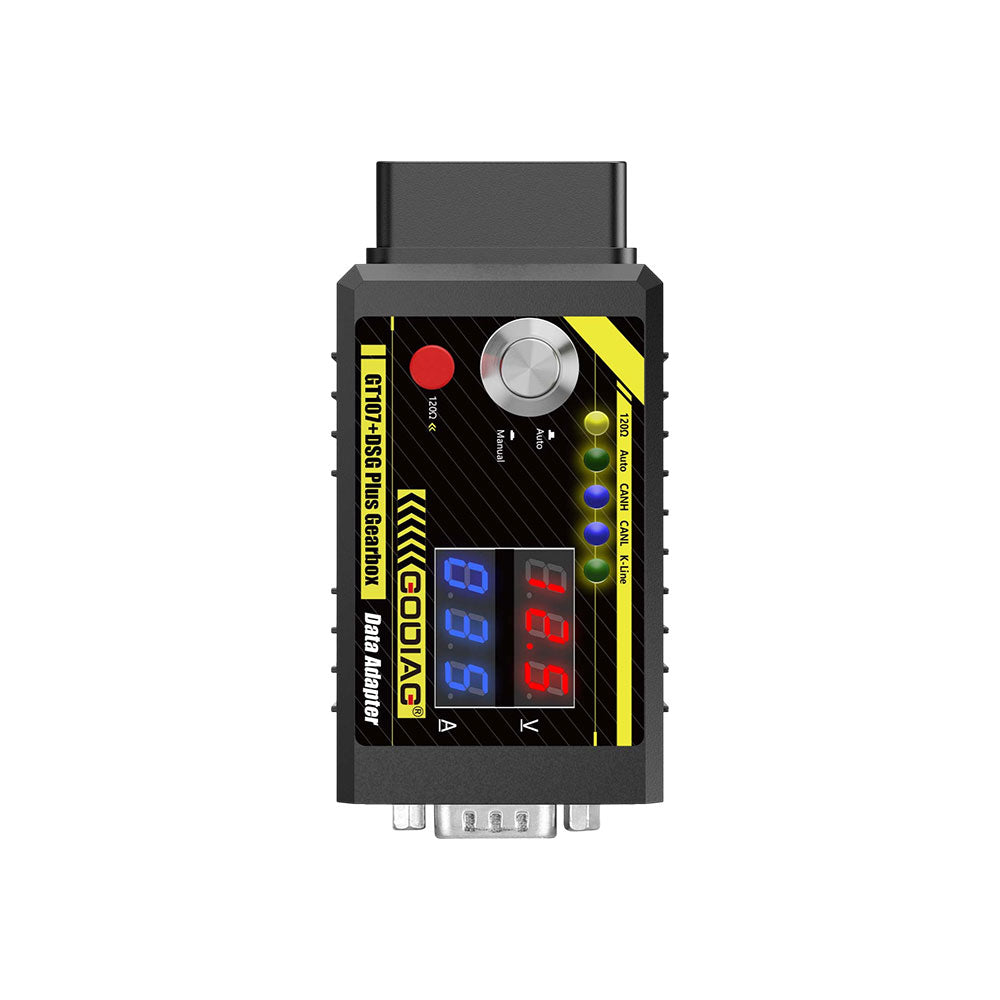

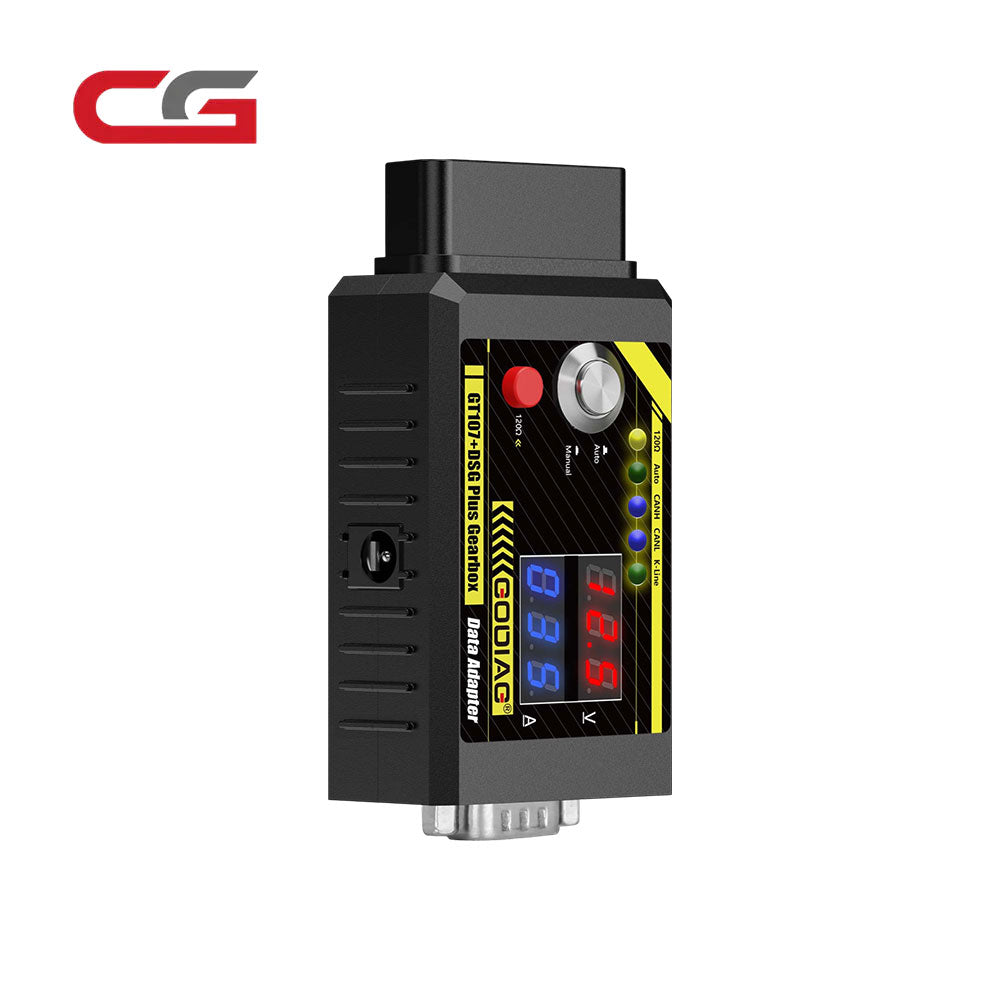

GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, Fox-Flash, Xhorse Multi Prog, Autel IM508, IM608 and Kessv2, etc.

This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose "Auto", and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500, you can also choose "Manual".

Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

Product Introduction:

• GODIAG GT107+ is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, Autel etc.

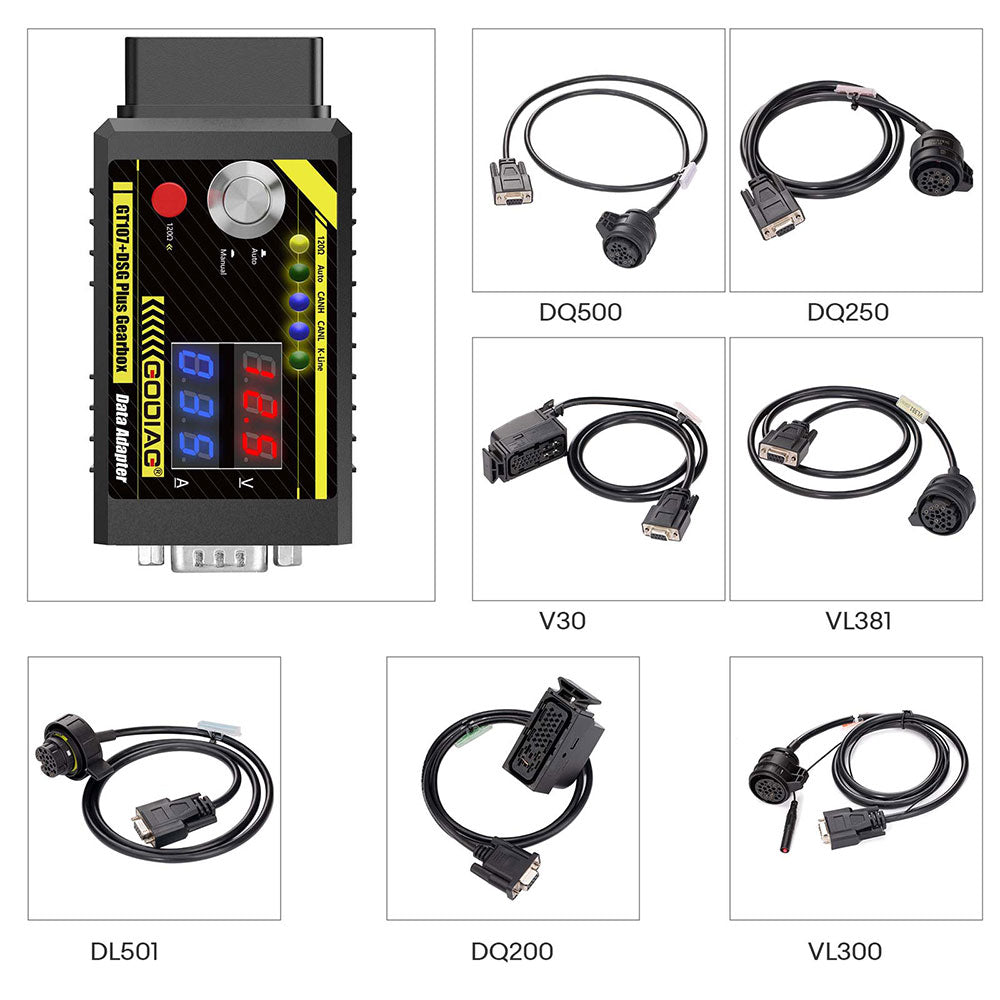

• GODIAG GT107+ Gearbox Cable 7-in-1 Set for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250.
• Compatiable with CG FC200.

Product Features:

• The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW.
• Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.
• The current display can display the current working current of the gearbox ECU, which is used to judge the working condition of the gearbox ECU.
• The communication indicator can display the current CANbus K-Line communication status.
• Manual and automatic power switch, 120 ohm switch. There are boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.
• Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
• Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.

Connection Diagram and Operation:

GODIAG GT107+ with Gearbox Cable 7-in-1 Set Used with CG FC200 on DQ200

Easy Operation:

• Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
• Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)
• GODIAG GT107 + analog ignition switch is in "automatic" mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in "manual" mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU. (Note: please select the "automatic" or "manual" analog ignition mode, according to the mode required by the device for reading and writing data)
• Connect PCMFlash, PCMTuner, J2534passthru.
• Perform data reading and writing operations.

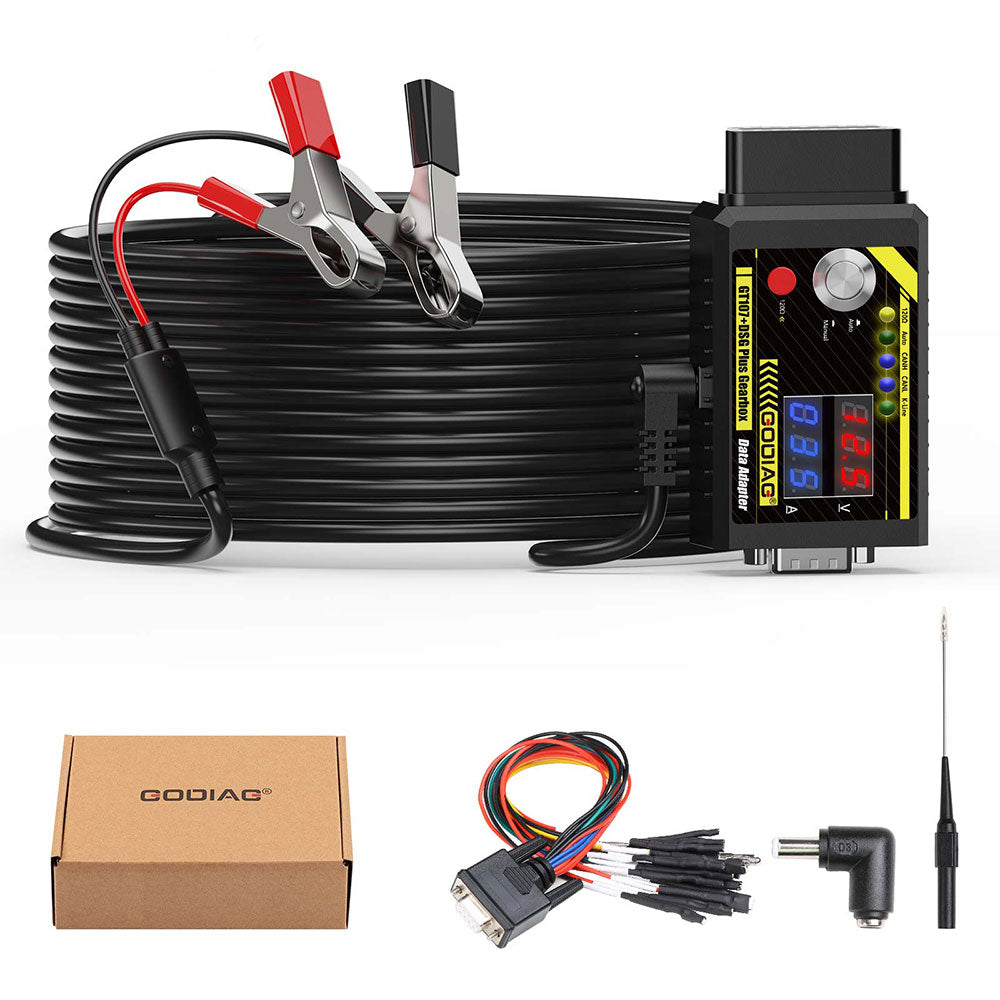

Package Includes:

• 1pc x Godiag GT107+ ECU Prog AD.

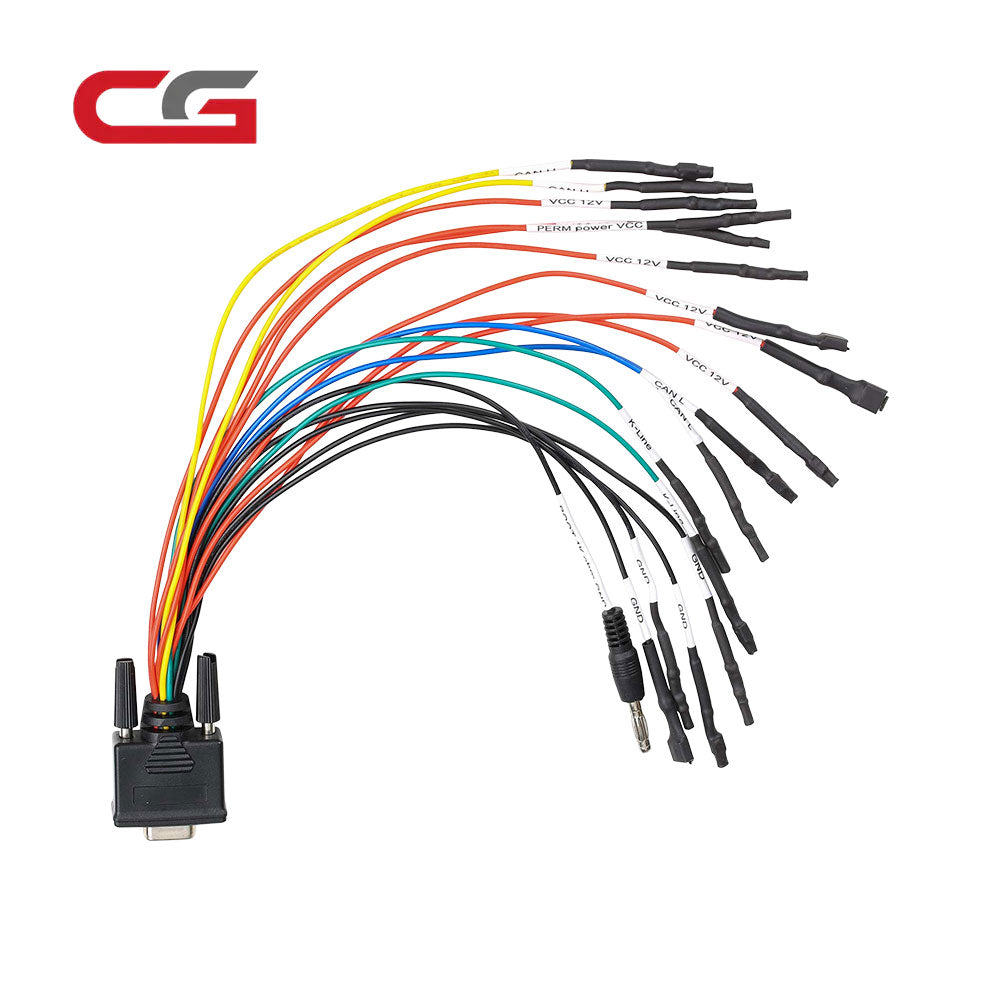

• 1pc x DB9 DSG Gearbox Universal Conversion Jumper.
• 1pc x Power Cord with Battery Clips.
• 1pc x Probe.
• 1pc x DC power adapter(5.5*2.1mm female to 5.5*2.5mm male).
• 1pc x Manual.

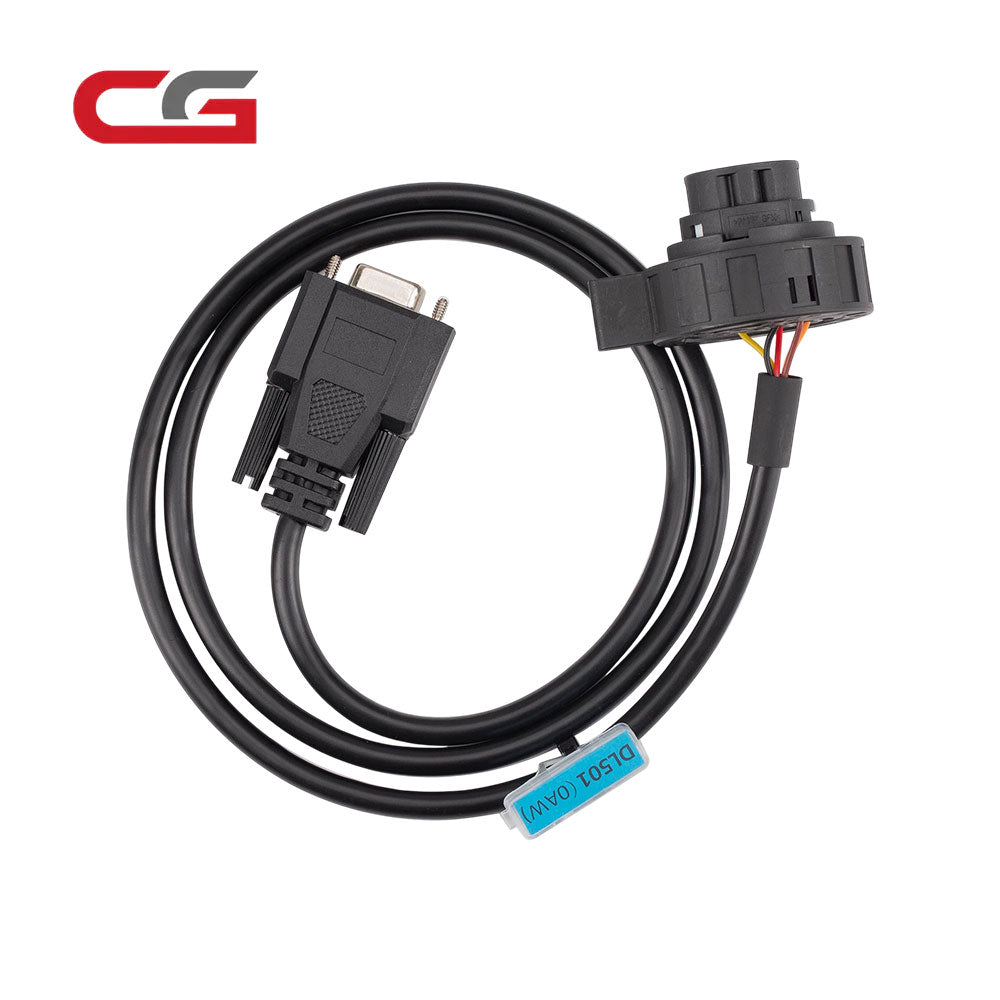

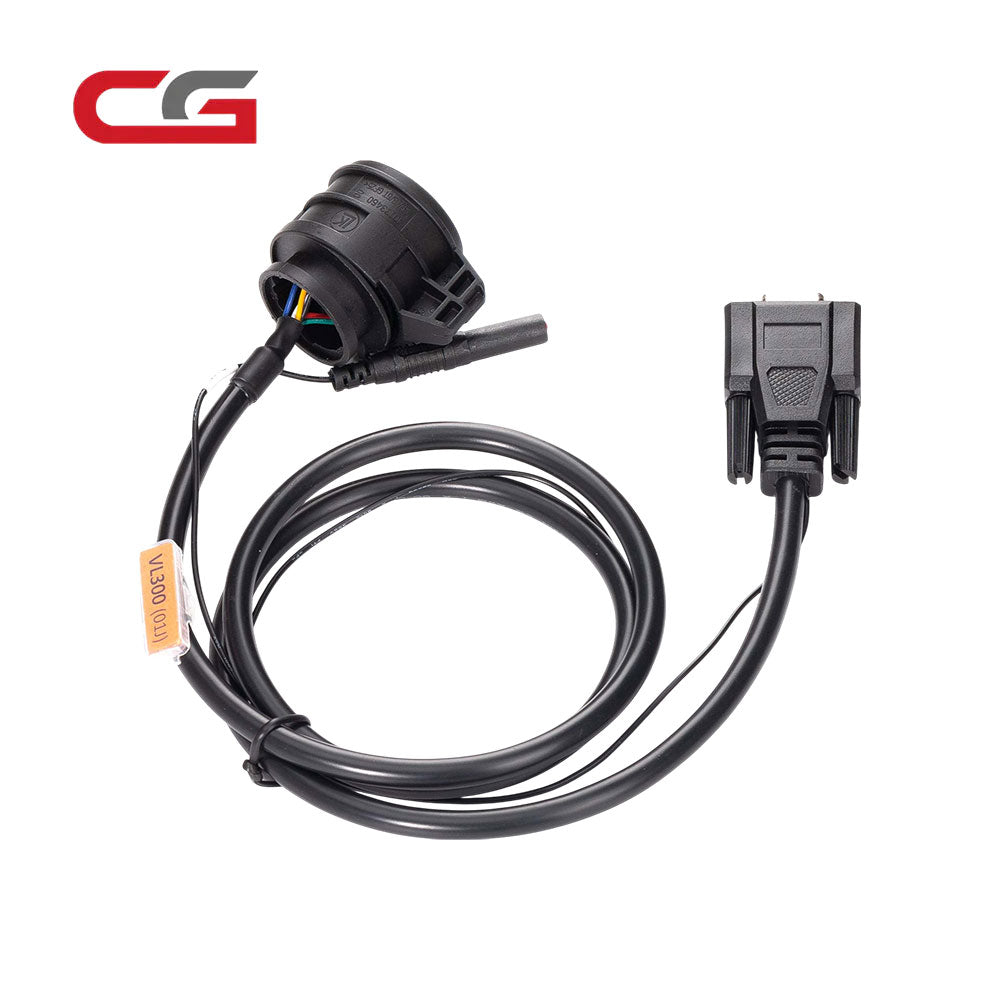

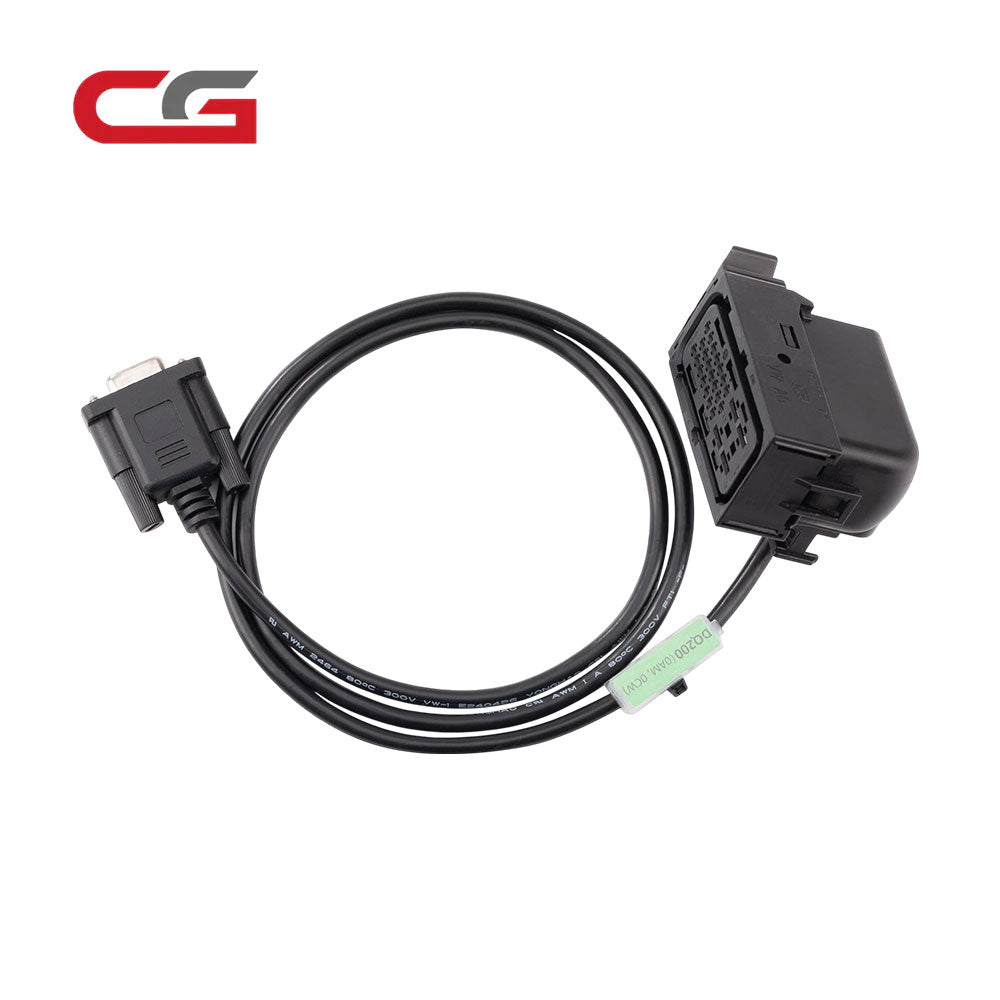

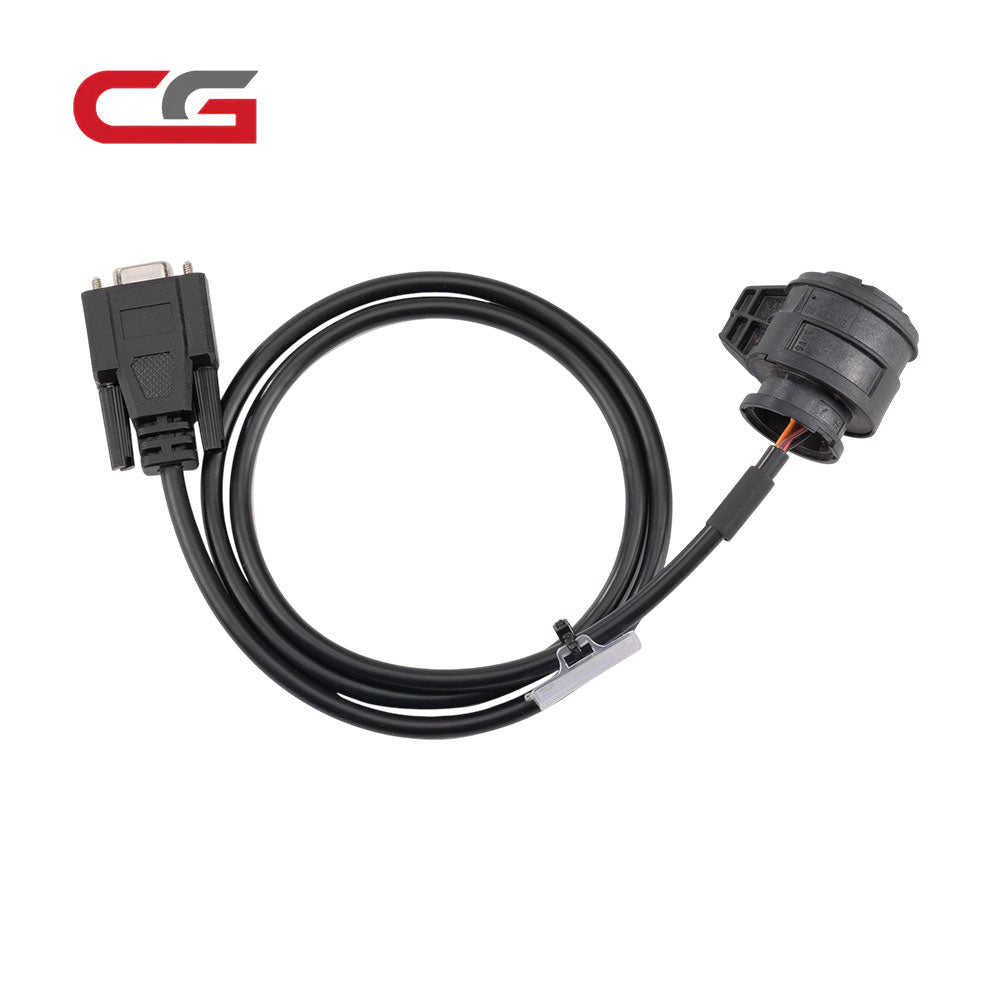

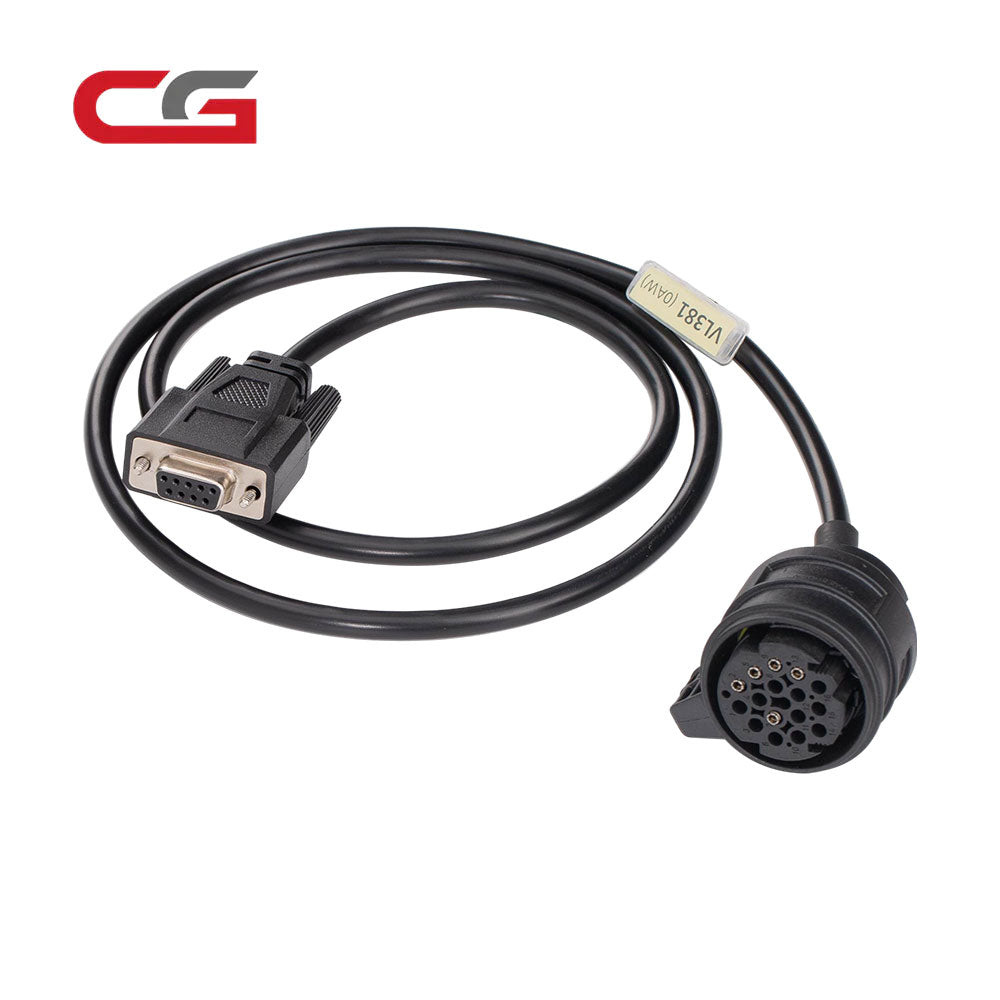

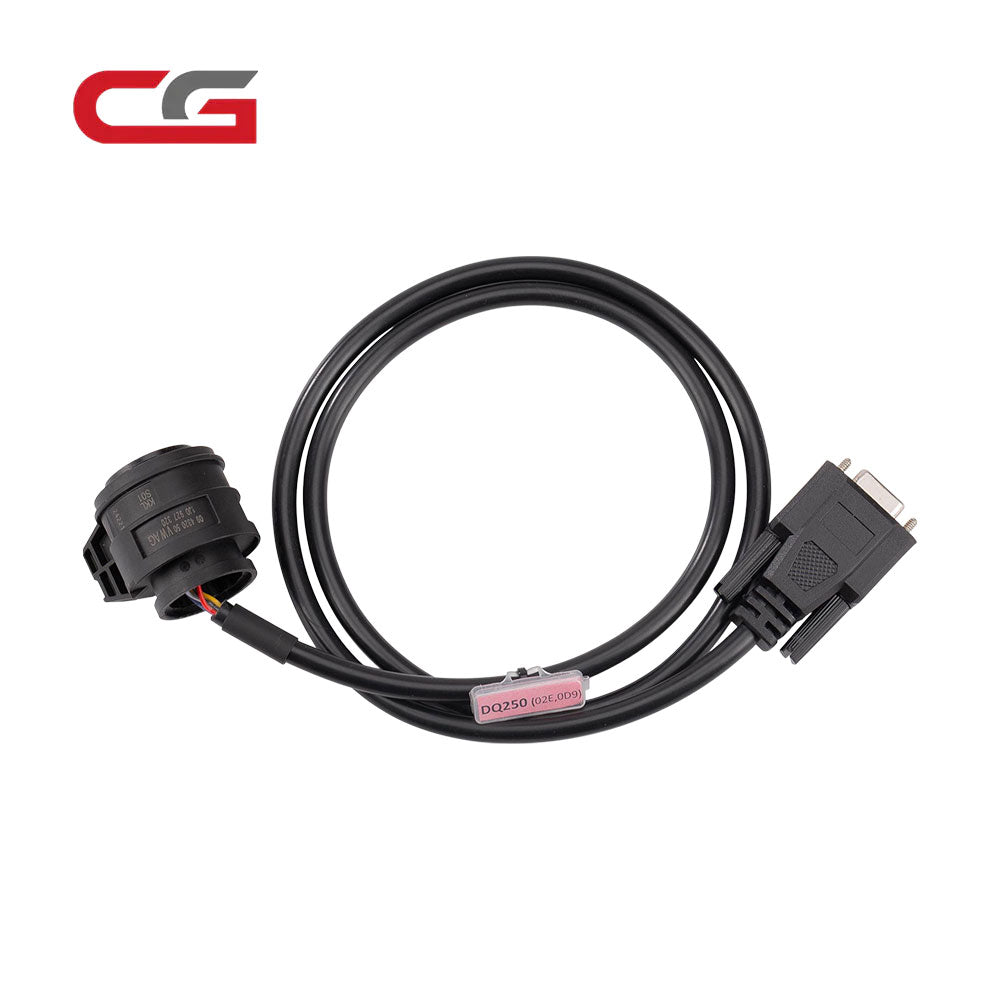

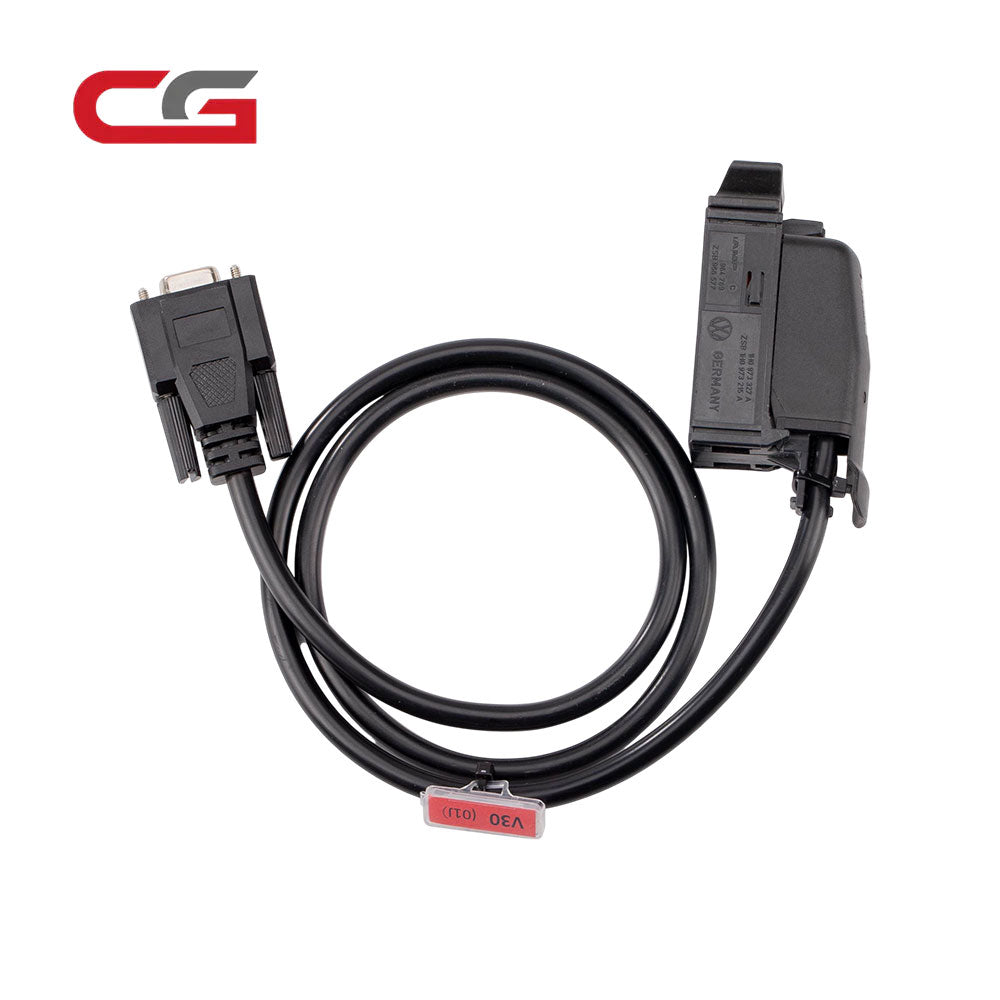

• 1set x Gearbox Cables 7-in-1 for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250.
