KeyInCode KIC2500-KWB-EC Wall Mount Single-Door Wi-Fi Edge Controller
Description
Description

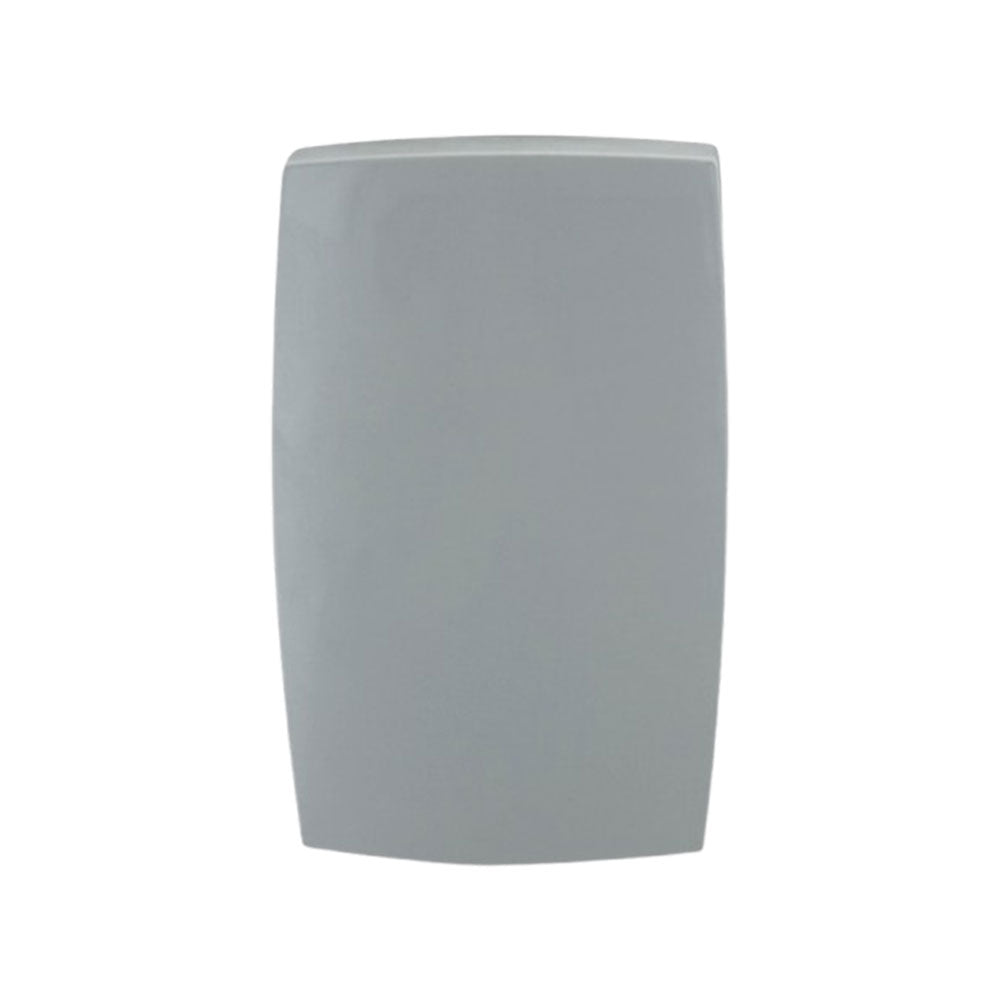

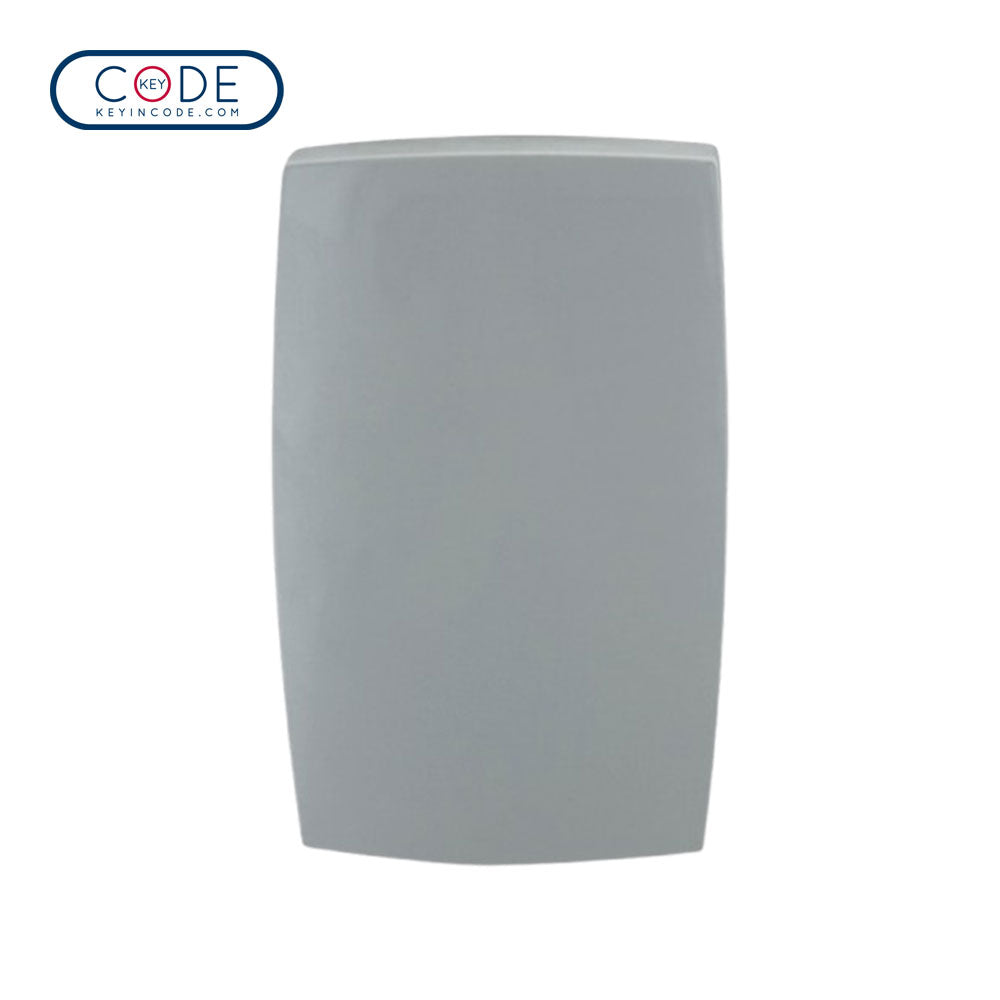

KeyInCode KIC2500-KWB-EC Wall Mount Single-Door Wi-Fi Edge Controller
The KIC2500 series is a Wi-Fi enabled edge controller & reader combo, removing the need for a separate controller and dedicated hard wiring. Modular by design, this wall or door mounted keypad can be powered via a 12v transformer or 4 x AA batteries. Connect multiple types of locking mechanisms including electric strikes, mag locks, intercoms, lockers and more.
Specifications:
| Users (PINs & Cards) | Up to 3,275 |
| Credential Compatibility | PIN, Cards (MIFARE & Prox), SimpleAccess Bluetooth credentials |
| Audits | Continuously updated and stored in SimpleAccess cloud. Up to 4,000 events stored when offline. |
| Reader Compatibility | Access Reader compatible with Wiegand output protocols and 12VDC outputs |
| Visual Communications | Optional indicator output signal for duration of door open event |
| Electronic Door Lock Compatibility | Electric locking mechanisms up to 750 mA @ 12 VDC |
| Request to Exit (REX) | Compatible with normally open REX switches |
| Passage Modes | On/Off modes and scheduled |
| Schedules | Up to 28 Lock Schedules (weekly lock/unlock) Up to 40 User Access Schedules (e.g. M-F, 9-5) Up to 20 Access Exception / Holiday Schedules Passage Mode Schedules (alternate between passage and auto-lock) |
| Programming | Wirelessly via TrueSecure app or SimpleAccess cloud |
| Wi-Fi Communication | 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n). Port: 443 |
| Security (Wi-Fi) | WEP, WPA, WPA2, and WPA3 supported |
| Operating Temperature | -31 F (-35 C) to 151 F (66 C) |
| Power Supply | External power supply input (12 VDC) |
| Reader Output at 12 VDC | 10.12 to 13.13 VDC |
| Standby Current Draw | 346 mA at 12 VDC (includes 200 mA reader) |
| Form C Relay Current Draw | 35 mA at 12 VDC |
| Total Available Output Current | 750 mA |
| Dimensions | 4.5 in W x 2.75 in H x 1.75 in D (11.43 cm W x 7 cm H x 4.45 cm D) |
| Weight | 8 oz (0.23 kg) |
| Certifications | FCC Part 15 Parts A & B, ANSI/NFPA 725.121 (For full certification details, see the Installation Manual) |
