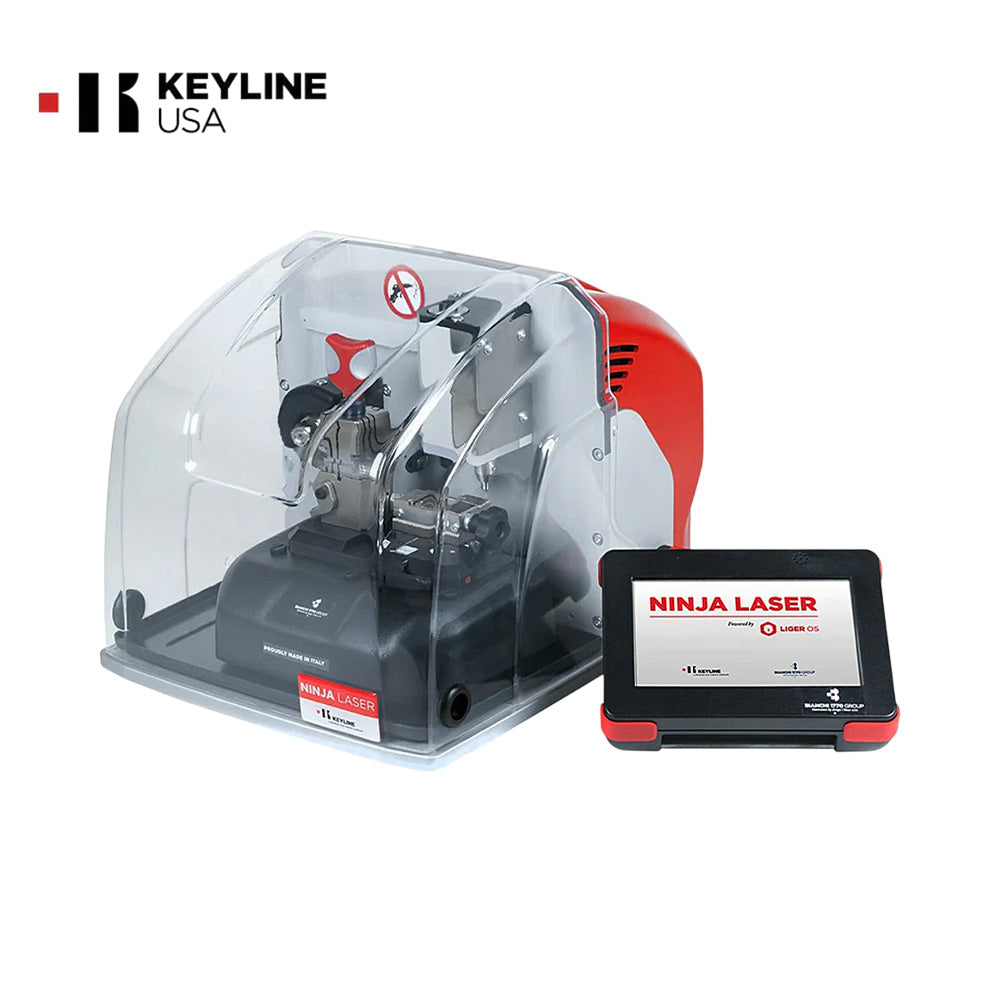

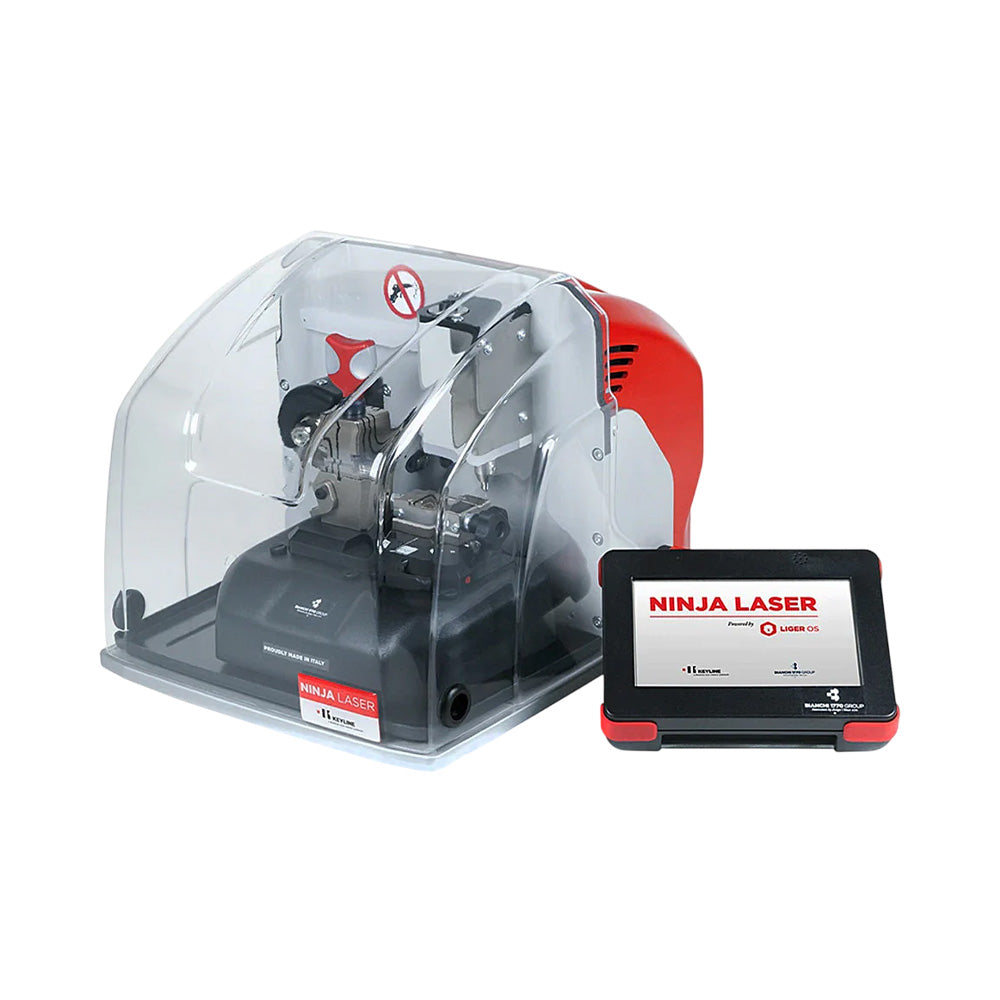

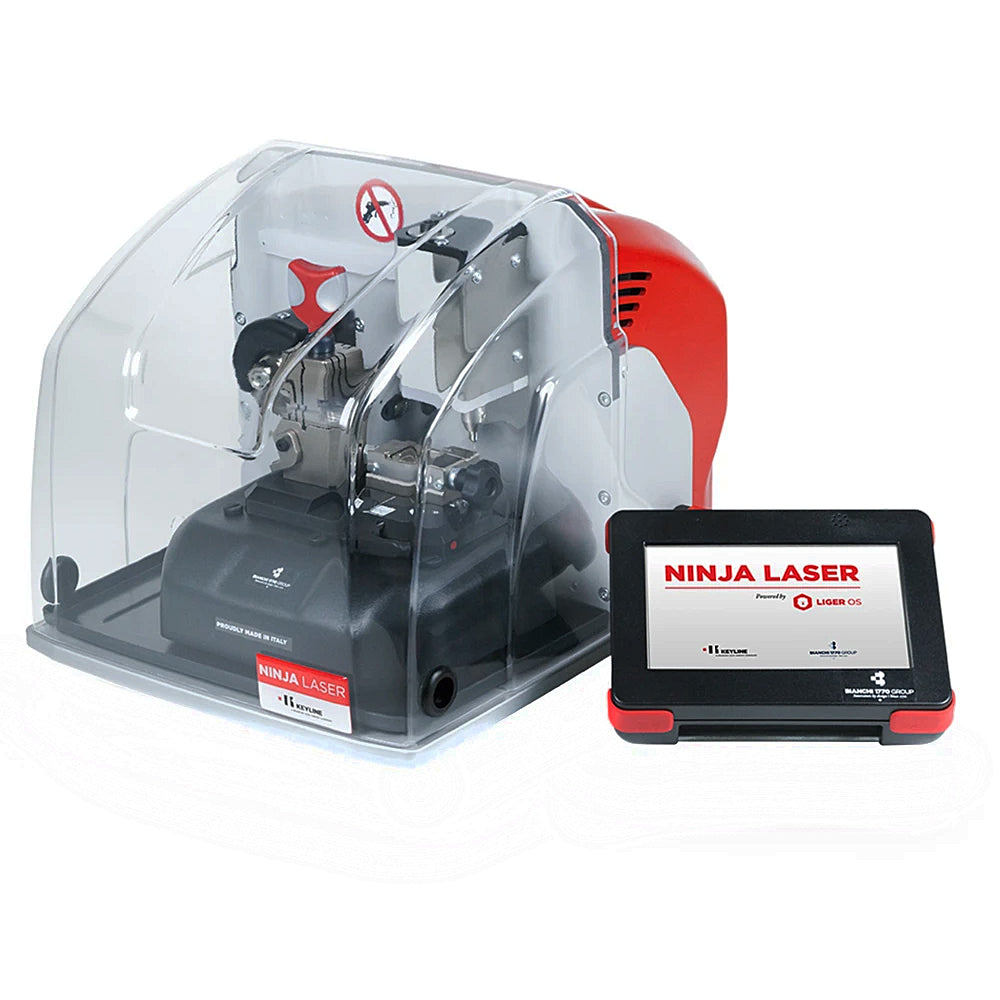

Keyline Ninja Laser Edge-Cut and HS Code Cutting Machine
Ninja Laser combines the mechanical and electronic precision to guarantee unique key cutting performances and quality through two different technologies: a double speed prismatic cutter and an end milling cutter to cut with maximum efficiency door and automotive edge cut keys, laser keys and Tibbe keys by code, decode or depths.
Ninja Laser is designed to better meet the requirements of the professional thanks to the mixture of these two technologies, which allows the combination of maximum cutting precision together with exceptional performance, at the same time guaranteeing extended use of the parts of the key cutting machine.
One of the highlights of the Ninja Laser is the AC jaw that combines in one unique solution one clamping system to cut most of the laser keys in the market. This innovation expands the wide range of jaws - from the four sided functional one for door and automotive edge cut keys to the Tibbe systems - and makes Ninja Laser the standard key cutting machine to duplicate every model of automotive keys, as well as edge cut door keys, present in the market. The modern and functional design guarantees maximum ergonomics to assure the use of Ninja Laser in all work places.
The Liger software developed by Keyline stands out for its capacity to process every cutting system and easily receive software updates. Complex operations are made extremely simple and intuitive thanks to the modern color interface, which is simple and easy to learn. Ninja Laser is standard equipped with a USB port, LAN ports and serial ports.
Specifications:
| Power Supply (Machine) | 110V 60 |
| Cutter | Flat Key Side: Widia ø 63 mm Laser Key Side: End milling cutter ø 2.5 mm |
| Motor | Flat Key Side: Asynchronous, 0.18 kW Laser Key Side: DC electronic motor |
| Key Reading Systems | Electric contact |
| Absorption | 250W (35W in stand-by) |
| Dimensions | 340 mm (W) x 415 mm (D) x 300 mm (H) |
| Lighting | LED-lighted cutting bay |
| Movements / Axes | 2 stepper motor-operated axes |
| Cutter Speed | Flat Key Side: 1500-3000 rpm (variable) Laser Key Side: 6000 rpm |
| Gauge | Automatic gauge unlock through axe movement |
| Electronic Equipment | ARM Cortex-A8 CPU, 256 MB RAM, 1 GB NAND memory, high-resolution axis control |
| Jaws | Flat Key Side: 4 faces (optional jaws available) Laser Key Side: Jaw AC (A, B, C, D, H available) |
| Weight | 44.1 lbs |
| Power Supply (Console) | DC 24V (fed by key cutting machine) |
| User Interface | 7" industrial color touchscreen, 16:10, 800x480 px, VGA, quick duplication button |
