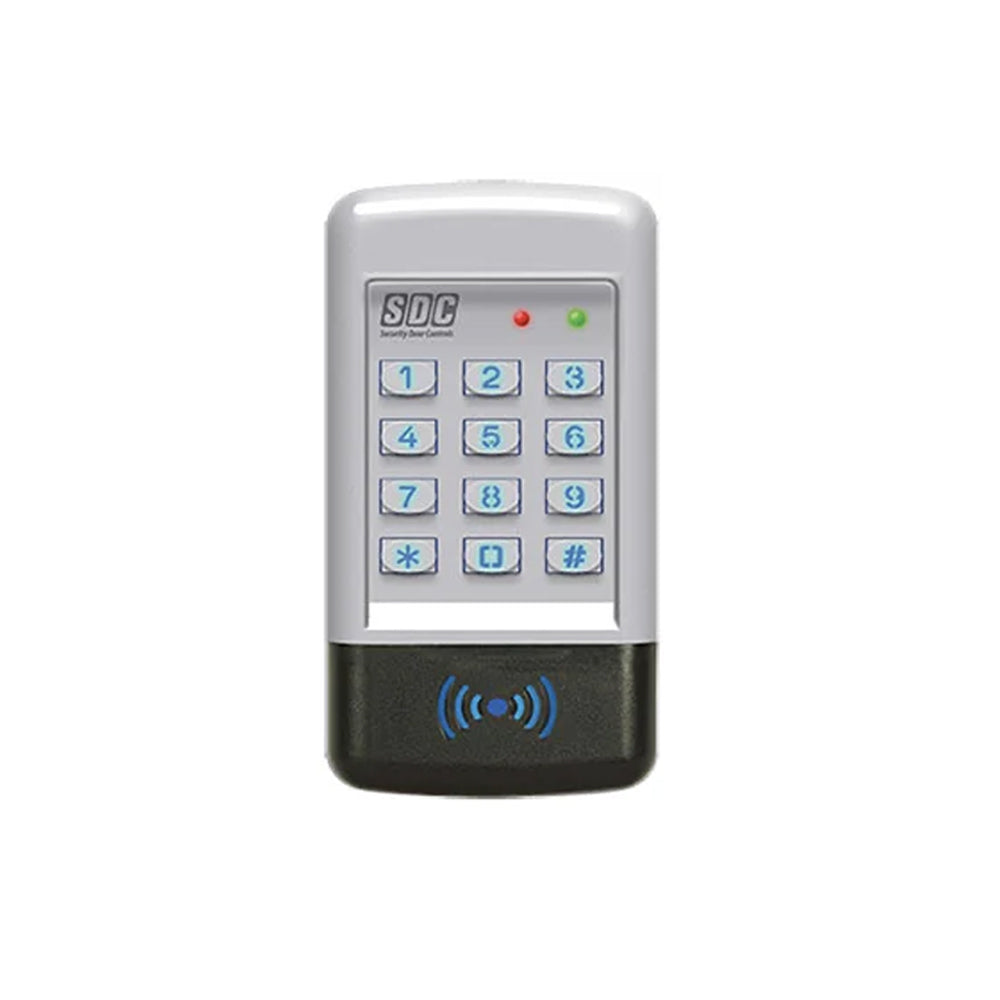

SDC - 920P - Indoor/Outdoor Self-Contained Keypad with Integrated Proximity Reader - 12/24V AC/DC
SDC’s 921P models are indoor/outdoor standalone digital keypads with proximity reader and controller (two-piece configuration), designed to control access of a single entry point with up to 500 users. Each user is assigned a proximity card and/or a personal identification number (PIN). Presentation of a proximity card or keypad entry of a code activates one or both of the output relays which releases an electric door lock. 920P models add HID proximity reader capability to the keypad.
Features:
- Weather Resistant
- Heavy Cast Vandal Resistant Housing
- Heavy Cast Metal Blue Backlit Keys
- Keypad programmable
- 500 Users, 4-6 digit PIN codes
- 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
- Assign entry PINs to relays 1 and/or 2
- LED Status: Access, lockout
- Tactile keys with loudness selectable audible volume for key depression or output activation
- Timed anti-passback, anti-tailgate
- Keypad tamper lockout
- Request-to-Exit/Enter input
- Choice of door sense/relay inhibit input functions: Forced entry, Door ajar, Inhibit relay 1 or 2, Auto relock when door closes
- Choice of 2 solid states outputs functions: Alarm shunt, Forced entry, Door ajar, Tamper lockout, Keypad active
Specifications:
- Keypad Construction: Die Cast Metal
- Input: 12/24V AC/DC
- Output: Relay 1 - SPDT 5 Amps @ 30VDC. Relay 2 - SPDT 2 Amps @ 30VDC. Outputs 3 & 4 100mA @ 30VDC
- Current: 30mA Typical, 150mA Maximum
- Wiring: 6” Pigtail
- Operating Temparature: -4ºF to +140ºF (-20ºC to +60ºC)
- Operating Humidity: 5% to 95% Non-Condensing
- Dimensions: 3”W x 53/4”H x 17/16”D (11/2” Wall Projection)
