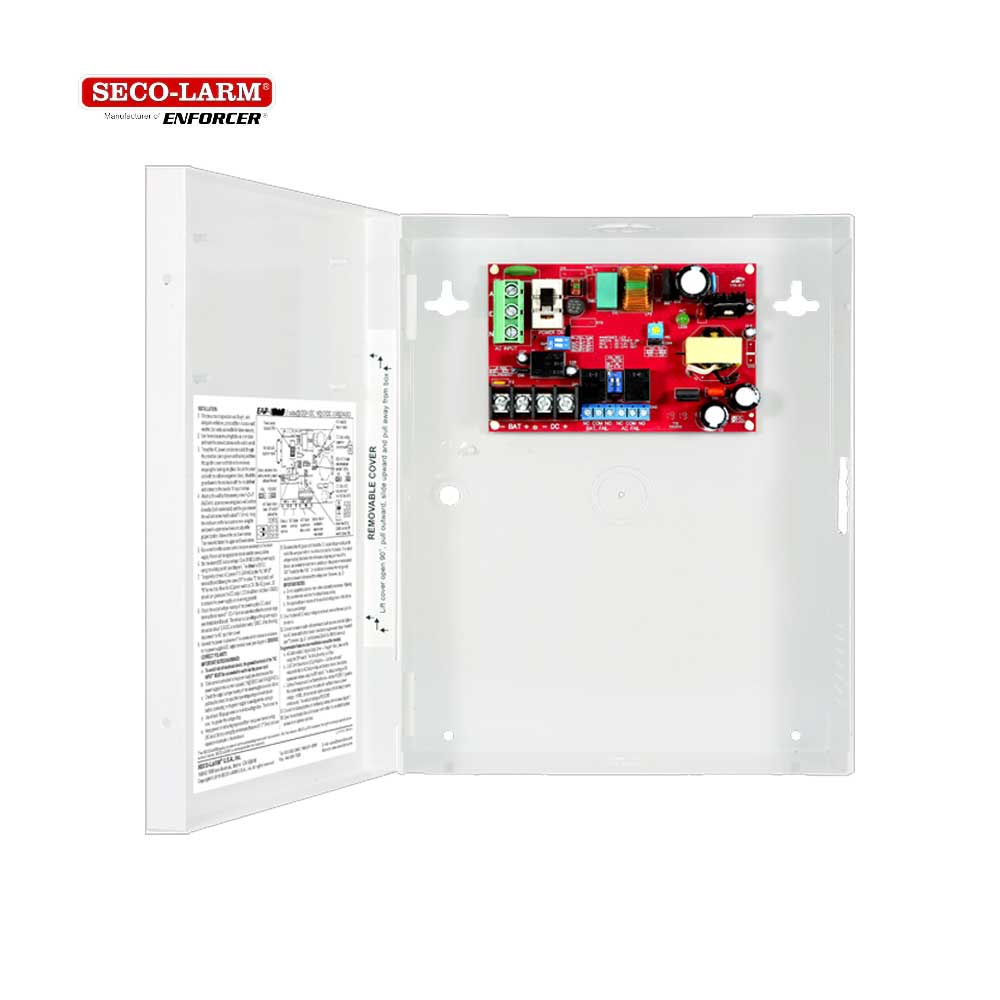

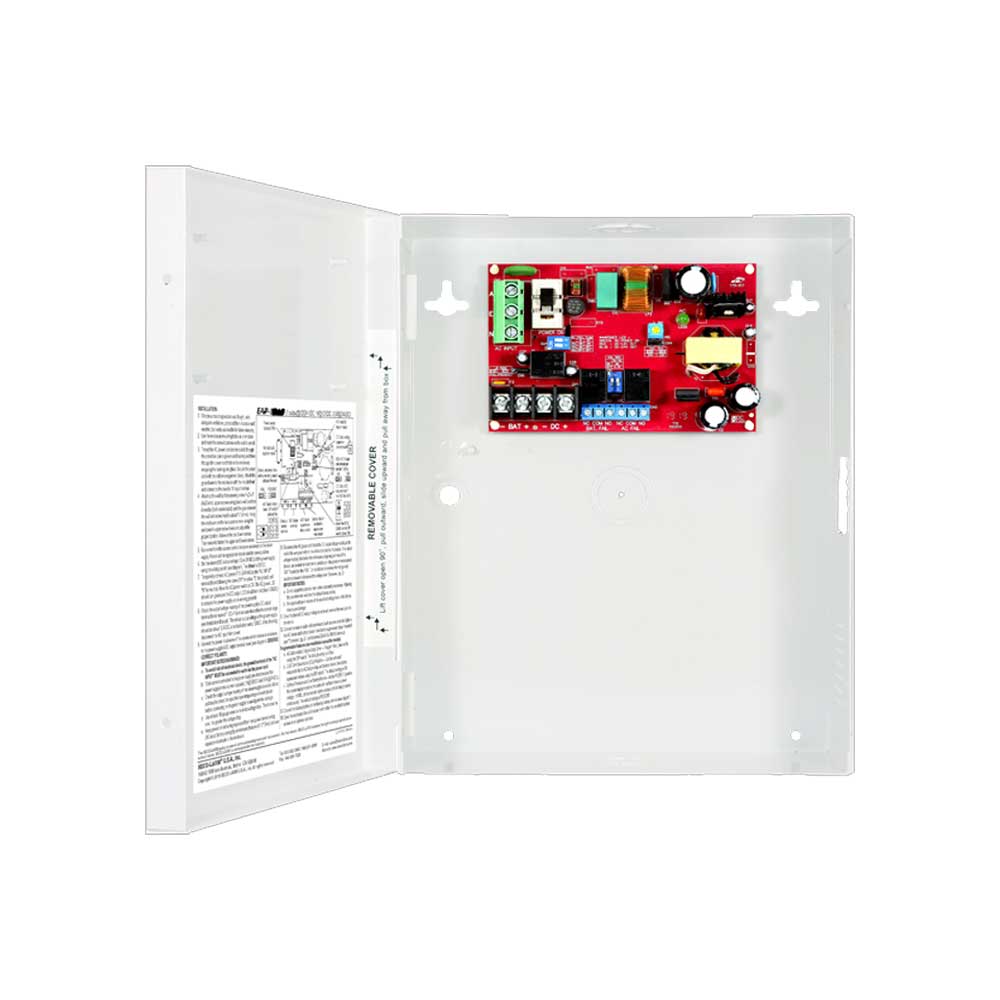

SECO-LARM EAP-1D1Q Access Control Power Supply
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
SECO-LARM EAP-1D1Q Access Control Power Supply
Description
Description
SECO-LARM EAP-1D1Q Access Control Power Supply
Features:
- Input 110~240 VAC, fused at 3.15A
- Filtered and electronically regulated output
- AC Input and DC output LED status indicators
- Adjustable output voltage to compensate for voltage drop
- AC power failure supervision relay
- Overcurrent fuse-protected AC input
- Automatic shutdown for overcurrent / short-circuit protection
- 12/24 VDC Outputs, field selectable
- Battery failure / low battery supervision relay
- Built-in back-up battery charger (Batteries not included)
- Automatically switch to backup battery if AC fails
- Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
- Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch
Enclosure:
- Heavy-duty steel case with removable cover for easy access to connections
- Ventilation holes to prevent heat buildup
- Room for one 7Ah battery or two 4AH batteries (Batteries not included)
- Knockouts for power connections and optional cam lock
- Dimensions: 73/4 “x101/16“x39/16” (197x255x91 mm)
Specifications:
| Weight | 4-lb 1.8-oz (1866g) |
| Dimensions | 7-3/4″x10-1/16″x3-9/16″ (197x255x91 mm) |
| Input Voltage | 110~240VAC |
| Output Voltage | 12 or 24VDC selectable via DIP switch |
| Adjustable Output Voltage Range | 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch |
| Number of Outputs | 1 |
| Total Supply Current | 1A@12/24 VDC |
| Input Fuse Rating | 3.15A ( glass fuse, AC) |
| LED Status Indicator | AC input (Green), 12VDC Output (Red), 24VDC Output (Blue) |
| End-of-Line Resistor (EOL) | Selectable ON (2.2k3) or OFF, 3A@24VDC dry relay output |
