Cal-Royal - CRCODE202 - Storeroom Mechanical Push Button Lever Lock...
Description
Description

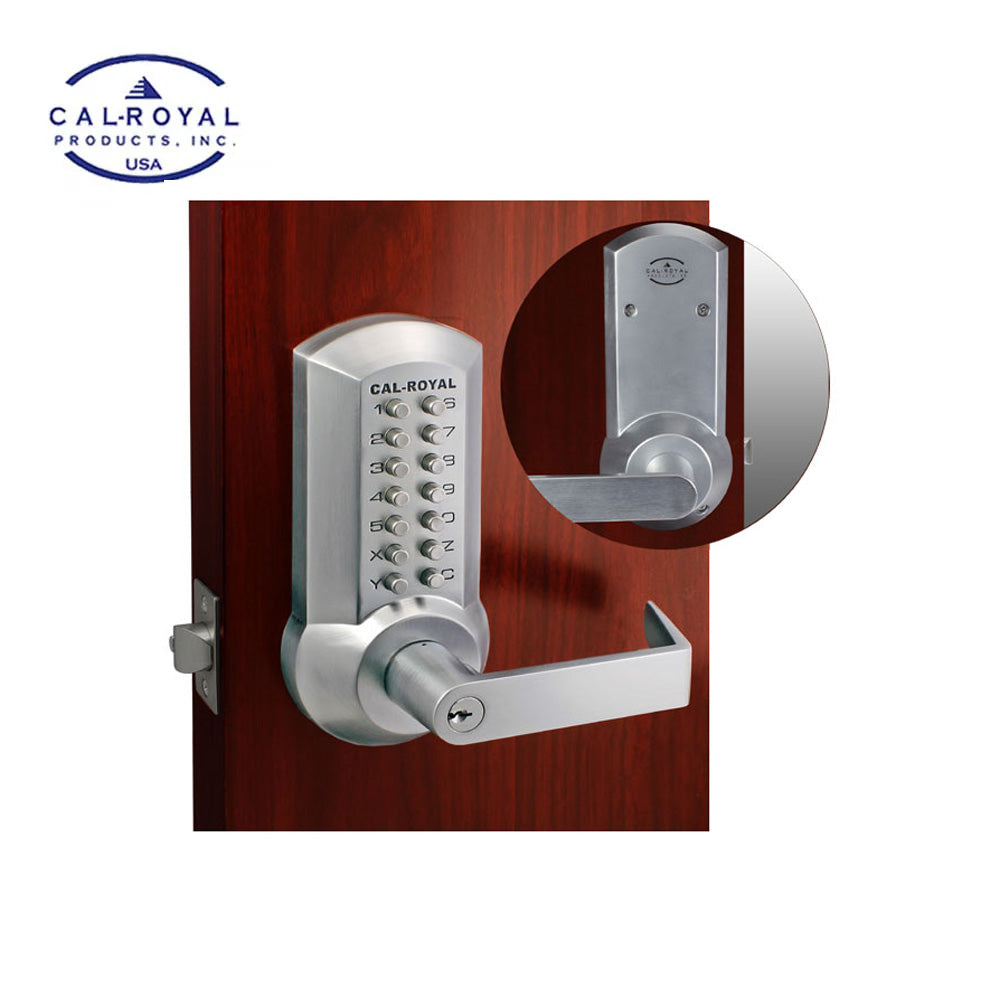

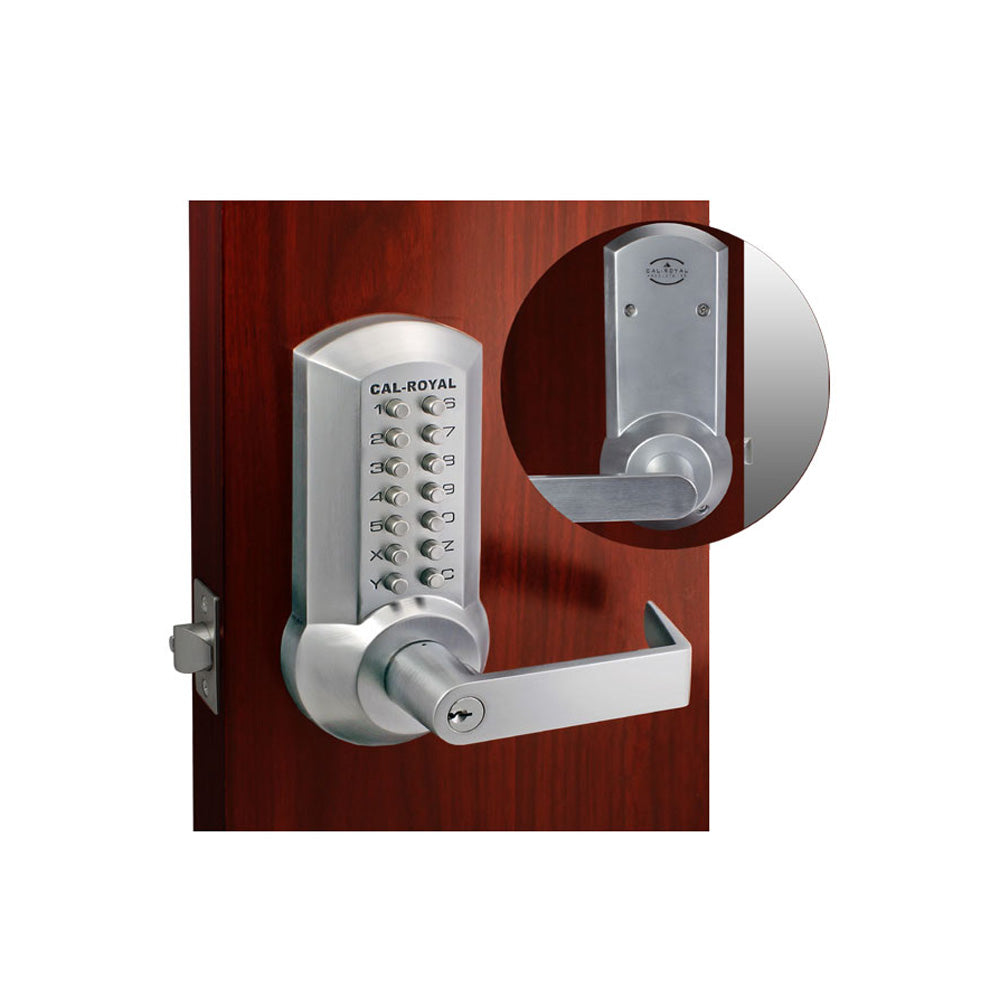

Cal-Royal - CRCODE202 - Storeroom Mechanical Push Button Lever Lock with Key Override and Exit Trim - Grade 2 - US26D - Satin Chromium Plated (626)
Mechanical Stand Alone Push Button Lock with Breakaway Lever Feature
Function: Latch bolt operated by lever from either side, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever. Default Function: Storeroom, Optional Function: Passage Mode.
- Meets ADA requirements specially designed for Barrier Free Application.Conforms with ANSI A156.2, Series 4000 GRADE 2.
- Easy installation covers 161 prep (2-1/8" hole).
- 1 - 12 Digit Code.
- Single Code User.
- Key Override.
- Easy on-the-door code change without removing the lock.
- Code-Free Option (Passage).
- Breakaway Lever Design.
- Clutch-Free mechanism.
- Weather-Resistant.
- Non-Handed.
- More than 8000 non-sequential possible code combinations.
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings.
Specifications:
| Function | Storeroom |
| Backset | 2-1/4" x 1-1/8" for 2-3/4" |
| Door Thickness | 1-3/8" - 2-1/4" |
| Strike | 1-1/4" x 4-7/8" |
| Latch Faceplate | 2-1/4" × 1-1/8" |
| Keyway | "C" keyway standard |
| Cylinder | 6-pin solid brass |
| Door Handing | Non-Handed. Easily field reversible handing. |
| Finish | US26D - Satin Chromium Plated (626) |
| Trim | Thru-bolted assembly through door with separate spring cage for each lever |
| Certification | Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements |
Download:
