Cal-Royal - SC8465 - Heavy Duty Storeroom SC Series Mortise Lock wi...
Description
Description

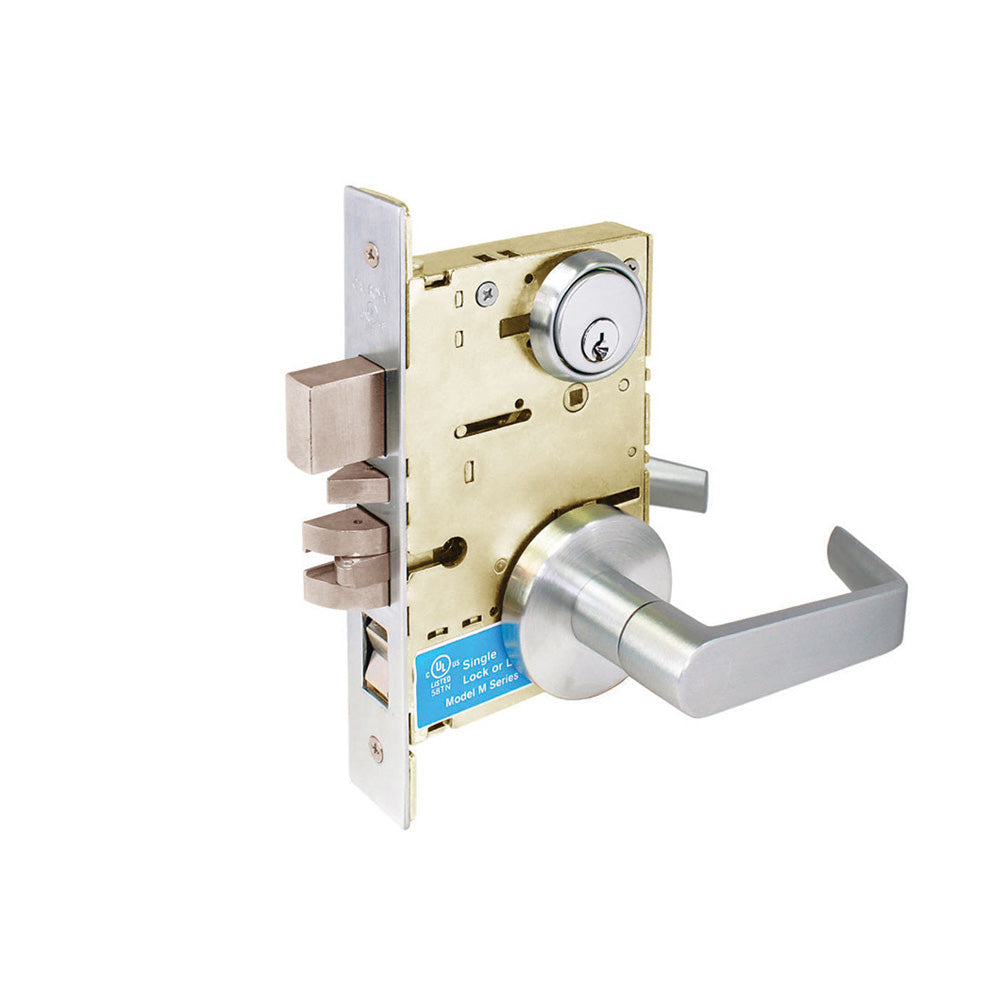

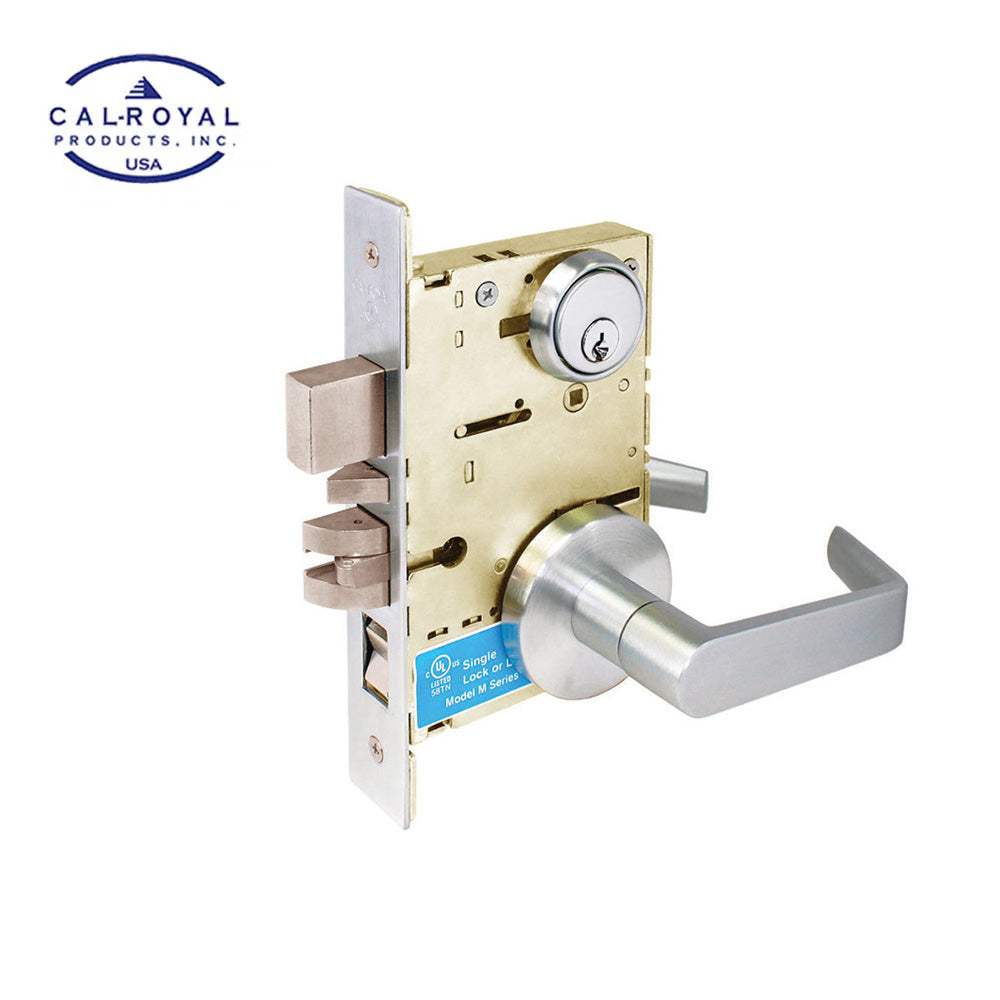

Cal-Royal - SC8465 - Heavy Duty Storeroom SC Series Mortise Lock with SS Lever and 2 3/4" Backset - Grade 1 - US26D - Satin Chromium Plated (626)
Features:
- Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims.
- Fully reversible design.
- No exposed mounting screws on the outside and inside trims.
- The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged.
- Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles.
Specifications:
| Function | F07 - Storeroom |
| Door Thickness | 1-3/4" (44.5mm) standard |
| Handing | Field Reversible |
| Backset | 2-3/4" (70mm) |
| Strike | Brass or stainless steal strike: ANSI Standard A115.1; curve lio with dust box |
| Cylinder | 6-pin solid brass "C" keyway |
| Deadbolt | 1" (25.4mm) throw; hardened stainless steel |
| Faceplate | Brass or stainless steel; 8" x 1 7/32" (203mm x 31.3mm); ANSI Standard A115.1 |
| Latch Bolt | 3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue |
| Trims | Sectional Trim, SS Lever |
| Fire Rated | 3-hour fire door |
| Certifications | ANSI / BHMA A156.13 Grade 1. Meets ADA, UL/cUL Listed |
| Finish | US26D - Satin Chromium Plated (626) |
Download:
