Trine - TRE-4100-10B - Electric Strike 4100 Series 4-7/8 x 1-1/4 Faceplates for Cylindrical and Mortise Locks Fail Secure - 12/24 VDC/AC - 613 (Oil Rubbed Bronze-10B)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Trine - TRE-4100-10B - Electric Strike 4100 Series 4-7/8 x 1-1/4 Fa...
Description
Description

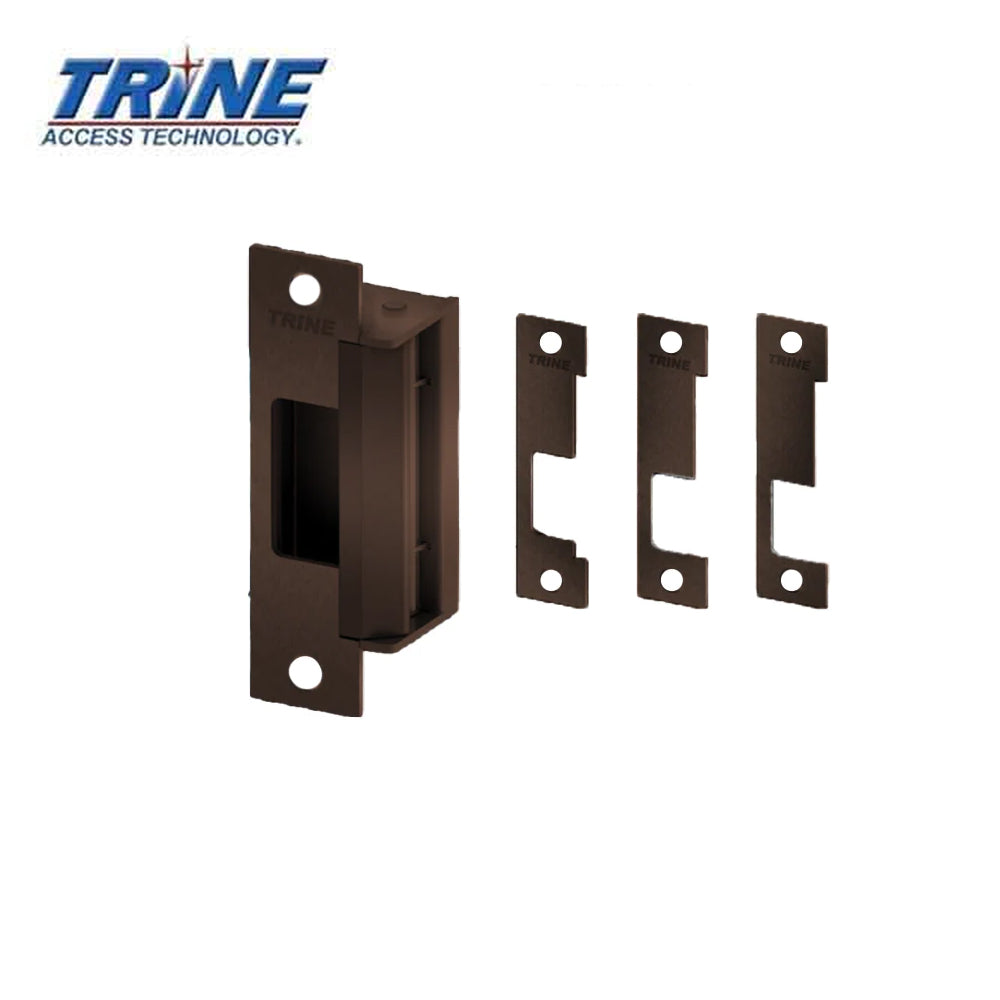

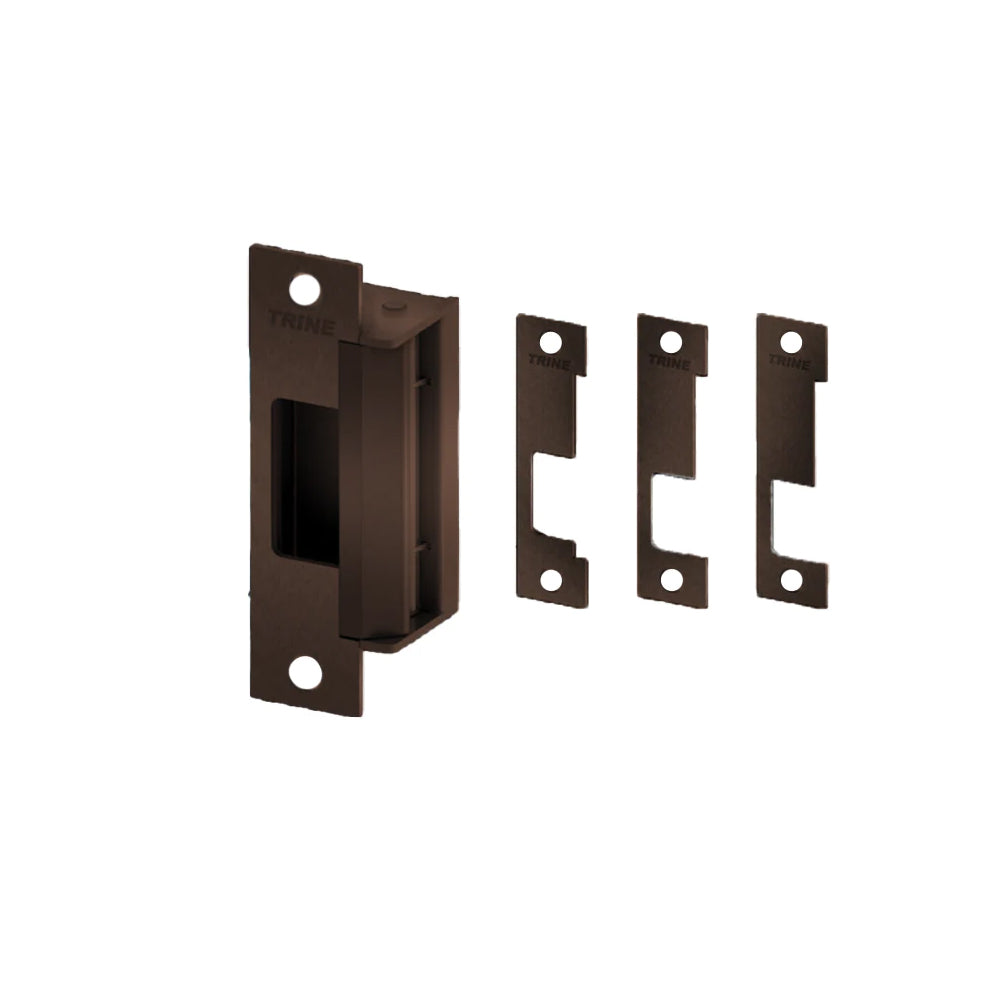

Trine - TRE-4100-10B - Electric Strike 4100 Series 4-7/8" x 1-1/4" Faceplates for Cylindrical and Mortise Locks Fail Secure - 12/24 VDC/AC - 613 (Oil Rubbed Bronze-10B)
Features
- BHMA Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
- Four popular faceplates included -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
- 1 - 3/8” Shallow backset -- the 4100 low profile electric strike can be used in 2” fire rated frames with 1/2” sheetrock ingress
- Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
- The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
- Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
- Patented # US20110241361
- Cutout Specification A115.1 (with Slight Jamb Modification)
Product Specifications:
| Vendor | Trine Access Technology |
| Manufacturer | Trine |
| SKU | 4100 US10B |
| UID | TRI1004100US10B |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| Limited Warranty | 1 Year |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12VACDC/24VACDC |
| Amp Draw | .21-.42 / .24-.114 |
| Keeper Size | 3/4 In. |
| Configuration | Centered |
| Faceplate Size | 4-7/8 In. X 1-1/4 In. |
| Switch Type | None |
| Product Type | Electric Strikes |
