Trine - 4300 Electric Strike for Cylindrical Locks and Deadlatches ...
Description
Description

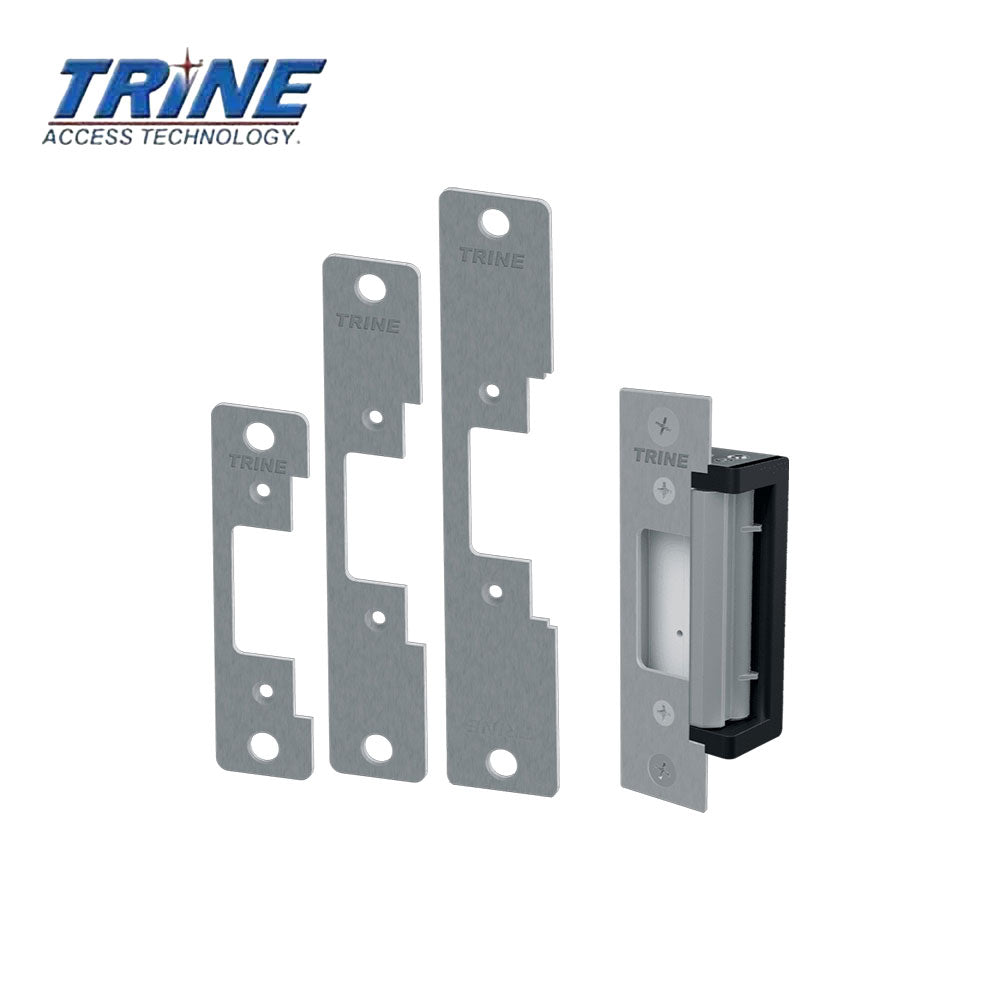

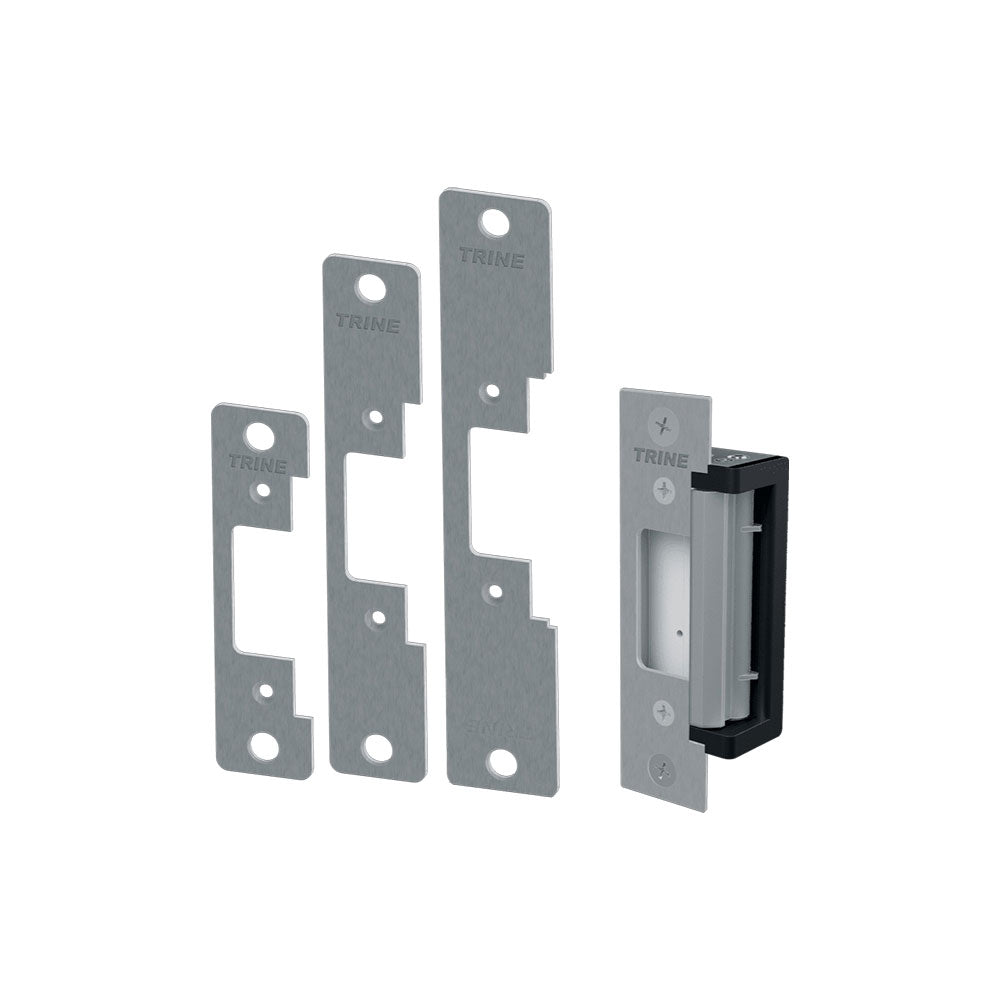

Trine - 4300 Electric Strike for Cylindrical Locks and Deadlatches with 4 Faceplates - Grade 1
Includes the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.
Features:
- 1/4" Horizontal Adjustment - The 4300 has a great 1/4" horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
- Four popular faceplates included - including the 4 most used faceplates for cylindrical locks and deadlatches.
- 1-1/16" Shallow backset - the electric strike solves depth problems, as with glass store fronts.
- Low Current Draw - .240 Amp at 12DC makes it very PoE Friendly 12 and 24DC : 12 through 24 AC. All the low voltage and amperage flexibility you need.
- The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
- The 4300 electric strike latch solves the auxiliary latchpin problems many other electric strikes run into.
Electric Strike Standards:
- WH recognized for UL1034 Burglary Resistant.
- WH recognized for UL294 (6th Edition) listed.
- ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
- Grade 1 electric strike.
Specifications:
| Brand | Trine |
| Usage | Standard Duty |
| Fire Rating | Non-Fire-Rated |
| ANSI Grade | ANSI Grade 1 |
| Lock Type Compatibility | Cylindrical Lock, Deadlatch |
| Pull strength - lbs | 1000 - 1500 LBS |
| Voltage | 12-24VAC/DC |
| Endurance | 500,000 cycles |
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70ft/lbs |
| Backset | 1-1/16" |
| Finish | US32D - Satin Stainless Steel (630) |
