Autel MaxiTPMS TS900 Comprehensive TPMS Diagnostics and Wireless Touchscreen Tablet
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Autel MaxiTPMS TS900 Comprehensive TPMS Diagnostics and Wireless Touchscreen Tablet

  • Product SKU: AUTEL-TS900
  • Order within

    and choose FedEx 2Day® Shipping

Autel MaxiTPMS TS900 Comprehensive TPMS Diagnostics and Wireless Touchscreen Tablet

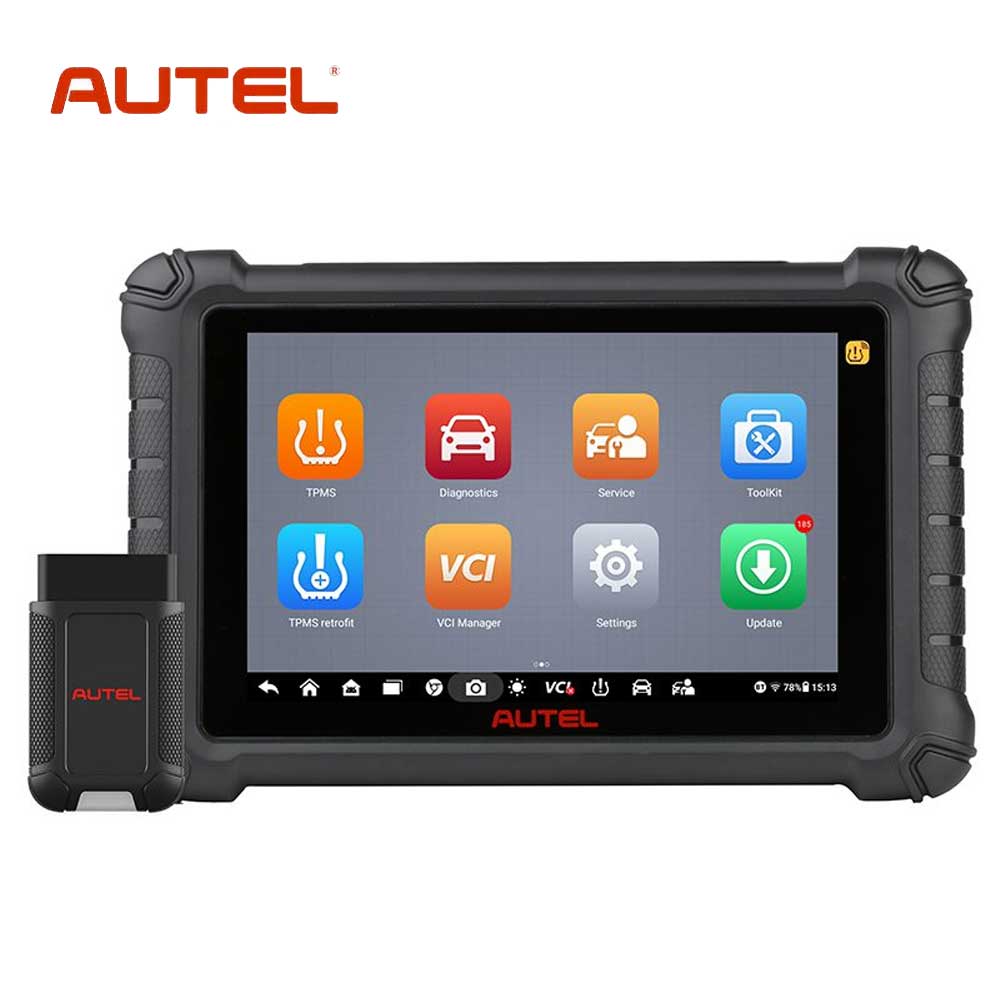

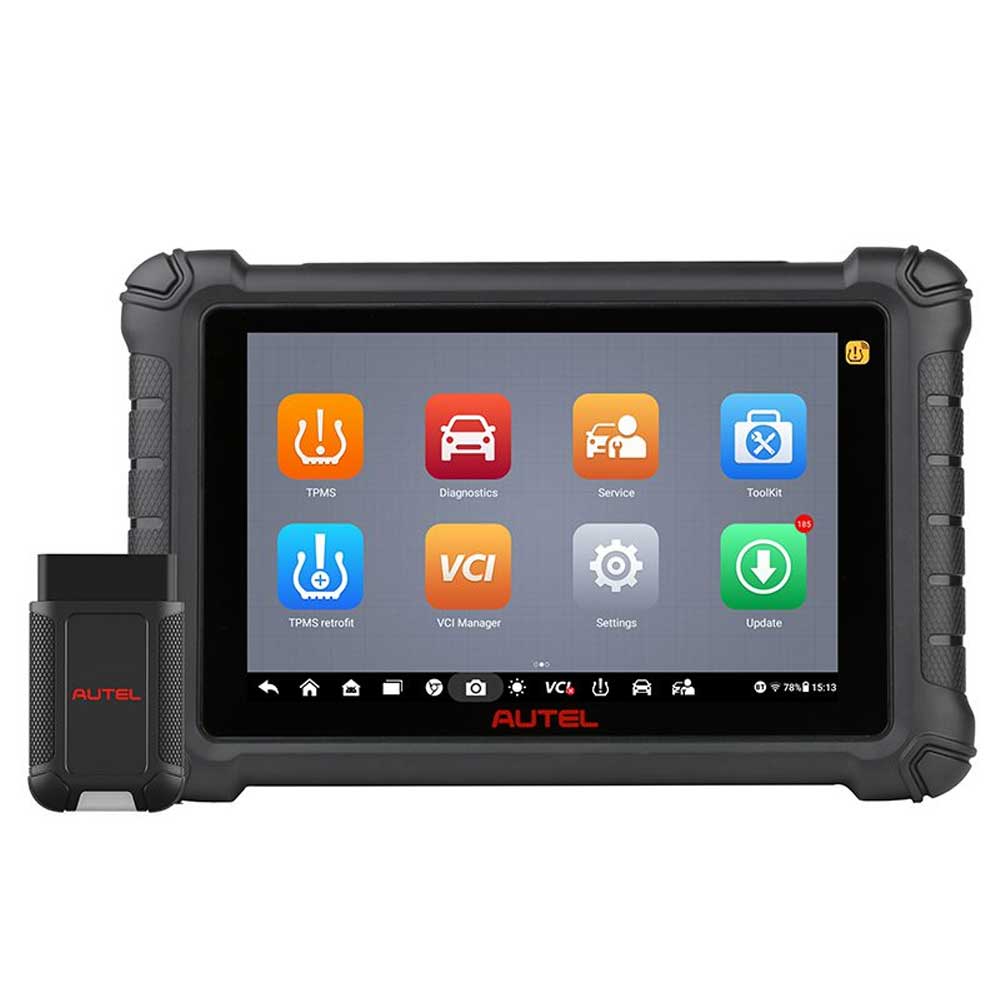

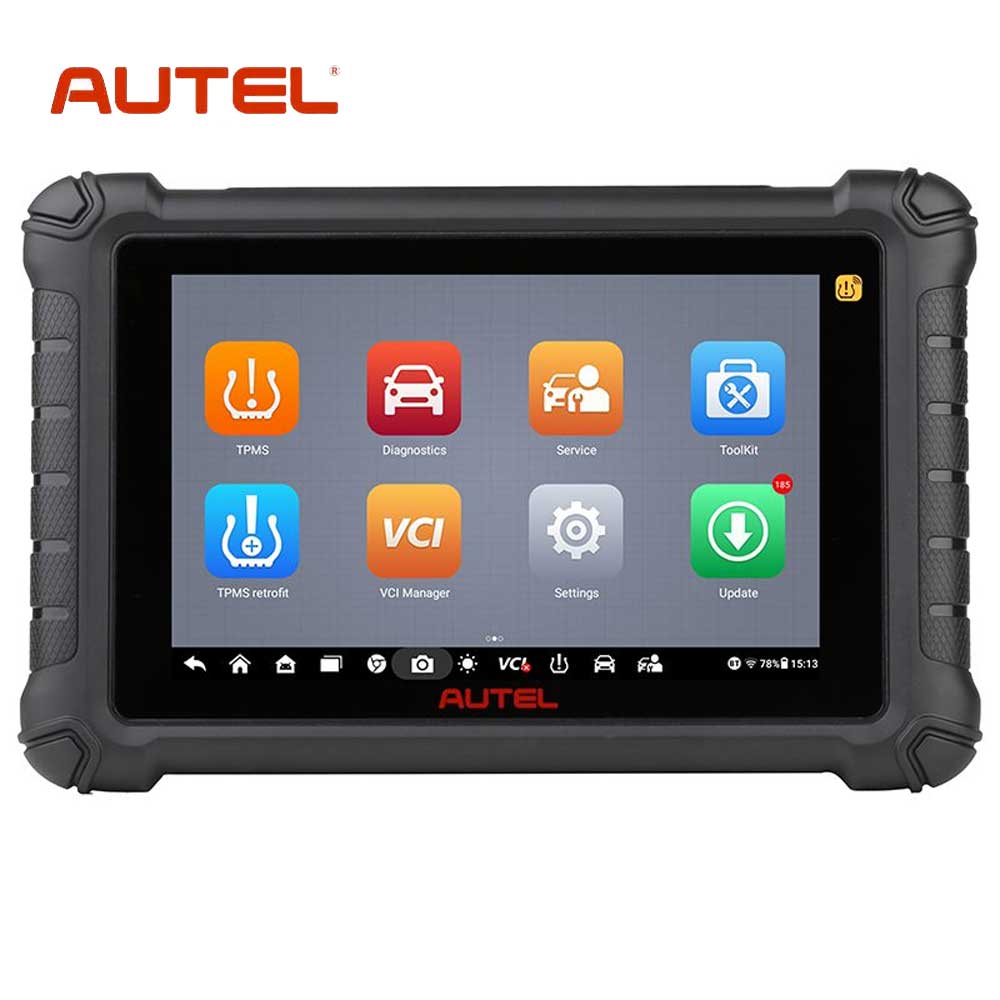

The TS900 offers advanced diagnostics, comprehensive TPMS, and an extensive one-touch service menu. The MaxiTPMS TS900 is an 8-inch TPMS, Diagnostics and Service, touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel Bluetooth-TPMS sensors (BLE-A001), preprogrammed for Tesla models and programmable for BLE-equipped vehicles. Diagnostic functions include all systems Pre/Post Scans, bi-directional Active Tests, and Special Functions. Quickly execute 38-plus service functions. TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory and runs on Android 11.

  • Comprehensive coverage for TPMS
  • Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
  • Industry-leading Relearn-by-OBD vehicle coverage.
  • Compatible with 315MHz, 433/434MHz and 2.4GHz (BLE) frequency TPMS sensors.
  • Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
  • Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
  • Extensive Service Menu with direct access to over 38+ maintenance services.
  • Supports the latest communication protocols, including CAN FD/DoIP.
  • Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
  • Auto-VIN technology automatically identifies vehicle make, model, and year.
  • 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
  • 64GB onboard memory for fast processing and access to the software.
  • Android 11 operating system for fast boot-up and operation speed.
Item Description
Tablet Recommended Use Indoor
Operating System AndroidTM 11
Processor Quad-Core (1.8 GHz)
Memory 4 GB RAM & 64 GB ROM
Display 8-inch LCD screen with 1280 x 800 resolution
Rear Camera 8 MP

• Wi-Fi
• USB 2.0, Type C
• BT
• Mini SD Card (supports up to 64 GB)

Sensors Ambient light sensor for brightness auto changing
Audio input/output Input: N/A
Output: buzzer
Power and Battery • 3.7 V/7700 mAh lithium-polymer battery
• Charges via 5 V DC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/3 A
Power Consumption Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50 °C (32 to 122 °F)
Storage Temp. -10 to 60 °C (14 to 140 °F)
Operating Humidity 5% to 95% non-condensing
Dimensions (W x H x D) 1259.87 mm (10.23”) x 168.98 mm (6.65”)  x 33.60 mm (1.32”)
Net Weight 998 g (2.2 lbs)

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM,

ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN),

SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD

V150 Communication BR + EDR
Wireless Frequency 2.4 GHz
Input Voltage Range 8 to 30 V DC
Supply Current 150 mA @ 12 V DC
Operating Temp. 0 to 50 °C (32 to 122 °F)
Storage Temp. –10 to 60 °C (14 to 140 °F)
Dimensions (L x W x H) 77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”)
Weight 51.5 g (0.11 lbs)
  MaxiTPMS TS900 MaxiTPMS TS608 MaxiTPMS ITS600/ ITS600 PRO MaxiTPMS TS508WF
TPMS Function
Easy Vehicle Identification Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/  Manually Select&Input Auto-VIN/ Auto-Scan/ Manually Select&Input Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/  Manually Select&Input Manually Select
Active&Programming&Relearn BLE TPMS Sensors × ×
Active&Programming&Relearn RF(315/ 433MHz) TPMS  Sensors
TPMS Diagnostics Enhanced TPMS status screen Enhanced TPMS status screen Enhanced TPMS status screen TPMS status screen
Relearn Procedure 4 Methods 4 Methods 4 Methods 4 Methods
Autel RF TPMS Sensor Batch Programming Up to 20 Sensors Up to 16 Sensors Up to 20 Sensors Up to 16 Sensors
Programming Methods 4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only
4 Methods
MX-Sensors Only
Check MX-Sensor Information (ID, Battery, etc.)
Tire Pressure Placard Value Reset
Read/Clear Codes for TPMS System
Test Report View On PC
Diagnostic function
All System Diagnostics ITS600: OLS, SAS, BMS, EPB
ITS600 PRO: All System Diagnostics
 All Maintenance Service 38+ Service Functions 36 Service Functions ITS600: 4 Service Functions
ITS600 PRO: 36 Service Functions
Battery Analysis × × ×
Connection Bluetooth VCI-150 Bluetooth MaxiVCI-Mini Bluetooth VCI-200 OBD II Cable
Screen 8-inch Touchscreen
1280*800 Pixel
7-inch Touchscreen
1024*600 Pixel
5.5-inch Touchscreen
1280*720 Pixel
2.8-inch Display
320*240 Pixel
Battery 7700mAh 5000mAh 5000mAh 3000mAh
Processor Quad-Core (1.8 GHz) Quad-Core (1.6 GHz) Quad-Core (1.5 GHz) /
Memory 64G ROM/ 4G RAM 64GB ROM / 1GB RAM 64GB ROM / 1GB RAM /
Camera 8.0MP / 8.0MP /
Operation system Android 11 Android 4.4.2 Android 9.0 Easy Tool Navigation
