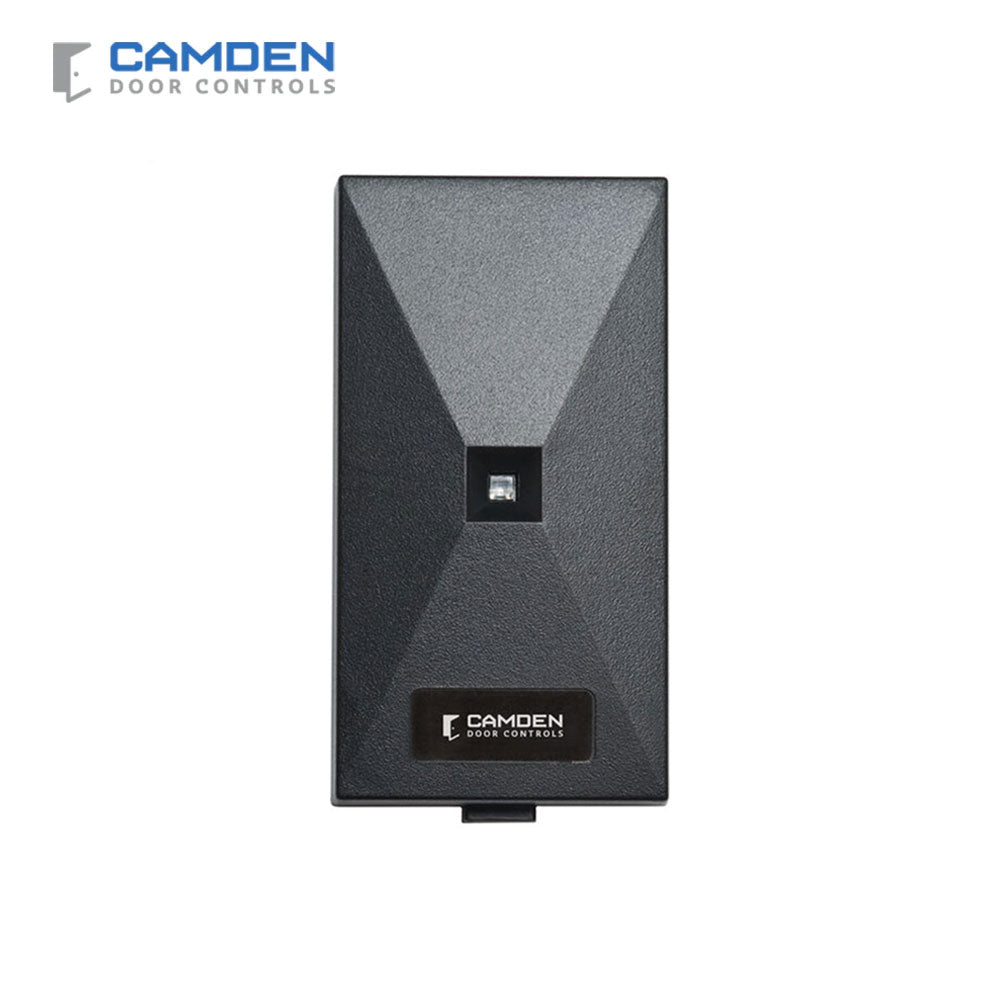

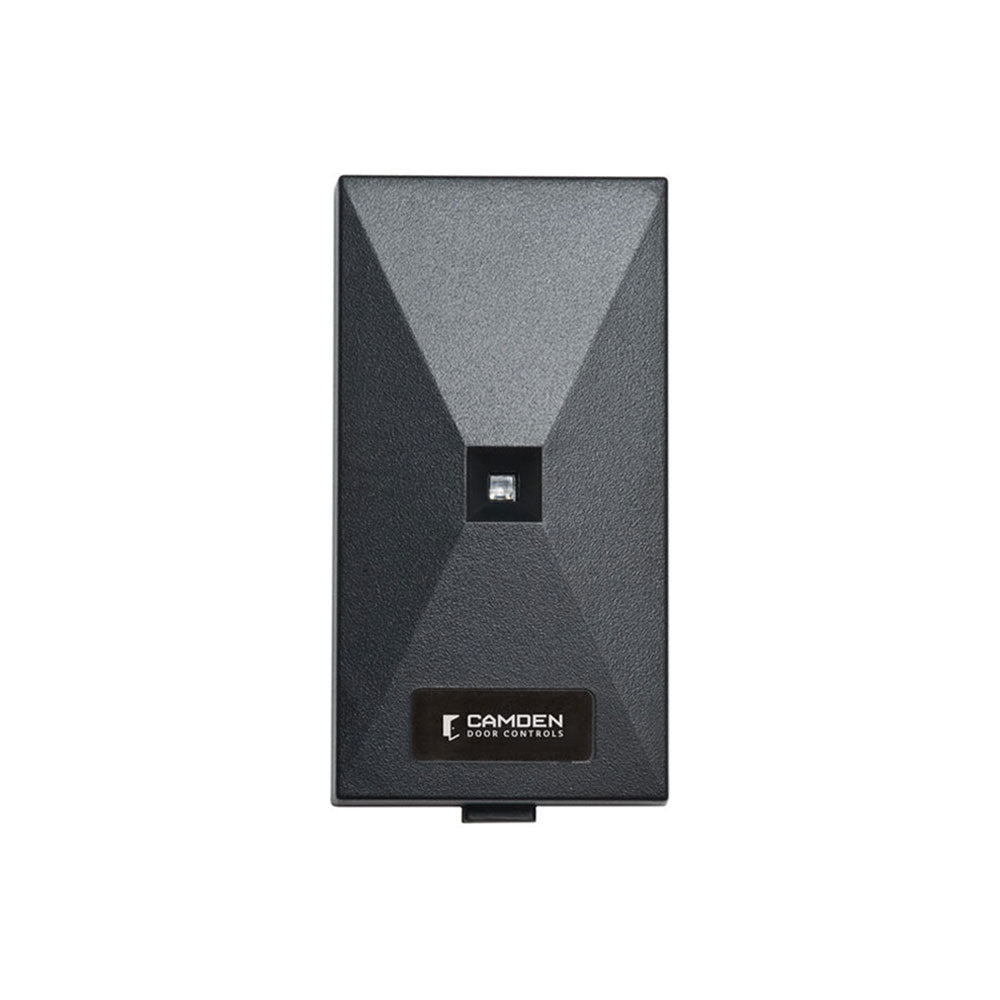

Camden CV-7400 Narrow Compact HID/AWID Protocol Proximity Reader
Description
Description
Camden CV-7400 Narrow Compact HID/AWID Protocol Proximity Reader
The CV-7400 from Camden Door Controls is MPROX consists of two parts; a vandal and weather resistant mullion mount proximity reader and a small programmer/controller which is installed on the secure side of the facility. The system has a capacity of 999 users. Cards and fobs can be individually or batch enrolled/deleted. All programming is done through the controller and reader - there is no need for computers or software to enroll or delete cardholders.
Features:
- Bluetooth (BLE) configuration via smartphone app for fast, cable-free setup
- 2,000 user capacity suitable for small to mid-scale access systems
- Multi-format Wiegand support (26, 30, 34, 37-bit) for broad reader compatibility
- Built-in 433 MHz key fob receiver compatible with CX-TXM-2 two-button transmitters
- Encrypted rolling code with AES-128 protection for secure wireless transmission
- Anti-passback functionality to prevent credential misuse
- Common alarm relay to trigger external devices (sirens, lights, controllers)
- Sensor input support for door position switches or vehicle loop detectors
- Form C relay outputs supporting fail-safe or fail-secure electric locks
- Configurable relay modes: timed, momentary, or bi-stable/latching
- Five configurable operator security levels for flexible system management
- DIN rail mount design for easy panel installation
- Wide operating temperature range for indoor and outdoor installations
Specifications:
| Read Range | 4" - 5" |
| Programming Method | BLE Smartphone App |
| User Capacity | 2,000 users |
| Reader Inputs | 2 |
| Reader Outputs | 2 |
| Reader Input Types | Wiegand 26, 30, 34, 37 bit |
| Receiver Frequency | 433 MHz |
| Encryption | Encrypted rolling code with AES-128 |
| Operator Security Levels | 5 |
| Relay Output Types | Timed (1-180 seconds), Momentary, Bi-stable / Latch |
| Relay Type | Form C |
| Contact Rating | 1A @ 30 VDC |
| Alarm Relay | Common alarm relay |
| Sensor Inputs | Door position switch or vehicle loop detector |
| Voltage | 12 VDC |
| Current Draw | < 100 mA |
| Mounting | DIN Rail |
