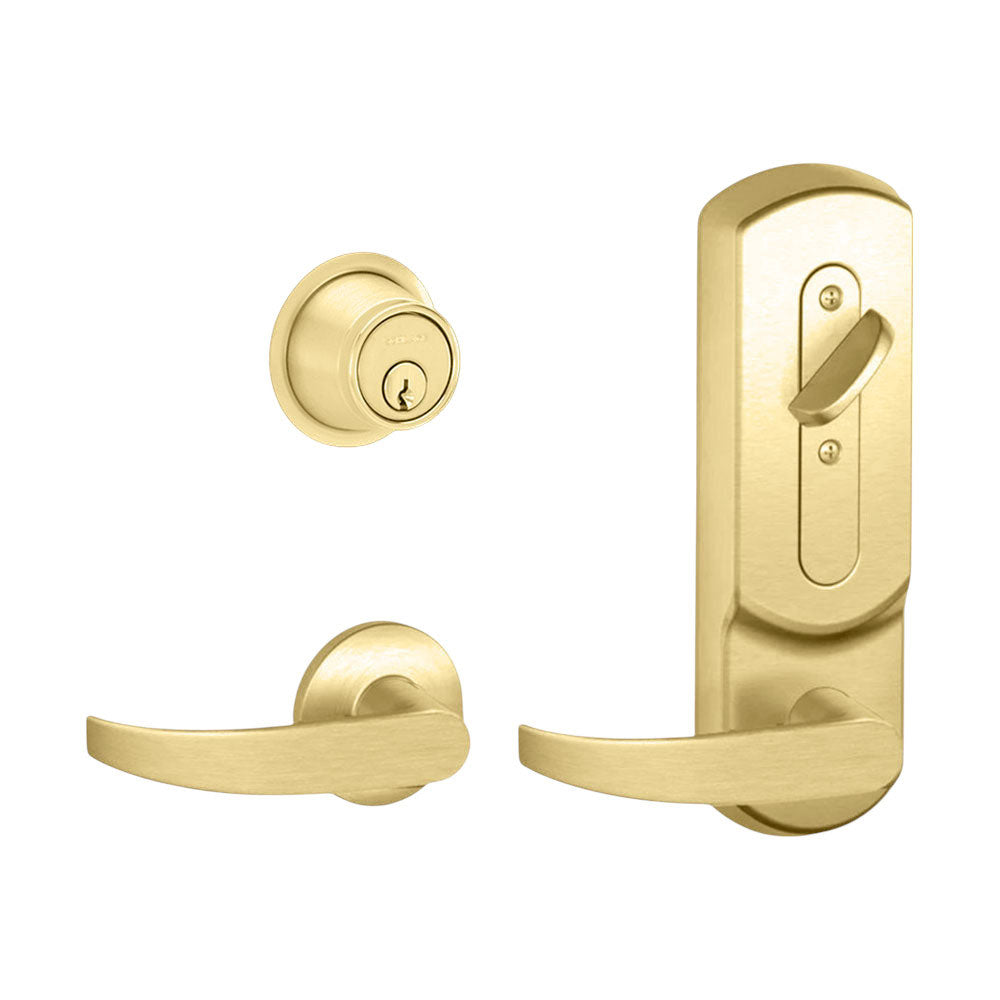

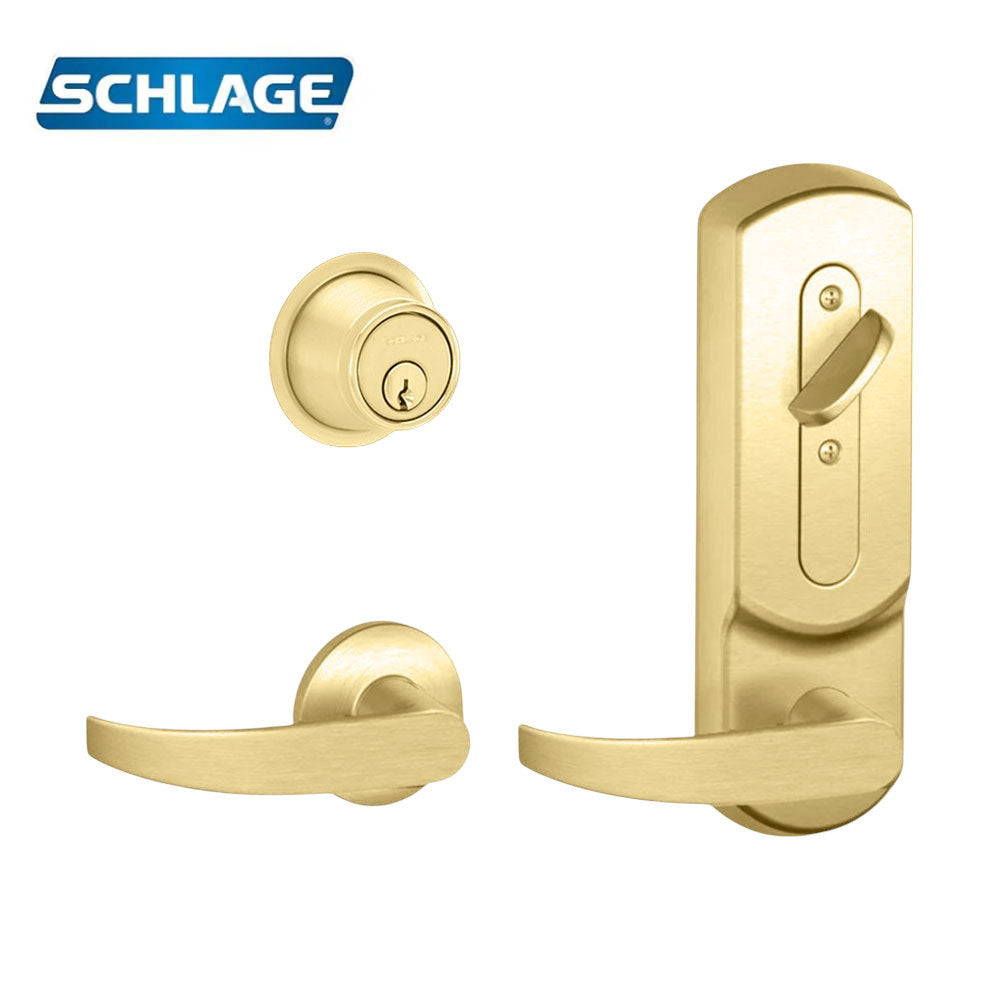

Schlage - CS210-B500PD - Entrance Single Locking Interconnected Lock Conventional 6-pin Cylinder with 1 3/4" Door Thickness - Right Handed - Grade 2 - US3 - Bright Polished Brass (605)
The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. Eighteen lever designs, two outside deadbolt designs and two inside escutcheon designs - each in a choice of seven finishes - ensure the right aesthetics for whatever type of project. The adjustable escutcheon allows each lock to easily support either 4" or 5-1/2" door preps, eliminating any job-site surprises.
Features and Benefits:
Security:
- Exceeds ANSI/BHMA Grade 2 requirements
- UL listed 3-hour door
Function availability and compatibility:
- Entrance function
- Field configurable for 4" or 5-1/2" door prep
- Compatible with interchangeable core and standard cylinders
Aesthetics:
- 18 lever styles
- 2 deadbolt and escutcheon designs
- 7 available finishes
- Suites with F Series and S Series tubular locks
Certifications:
- Meets BAA (Buy American Act)
- Tested and certified under ANSI/BHMA A156.12, Grade 2
- 3 hour UL fire rating
- Meets ADA requirements
Specifications:
| Category | Mechanical Locks |
| Model | CS210-B500PD |
| Product Type | Interconnected Locks |
| Series | CS210 Series |
| Grade | Grade 2 |
| Pins | 6 |
| Keying | Keyed Different |
| Handing | Right Handed |
| Door Thickness | 1-3/4" |
| Cylinder Type | Standard Conventional Cylinder |
| Backset | 2-3/8" to 2-3/4" Adjustable |
| Std. Latch Type | Combination Latch and Bolt |
| Function | 210-Entrance Single Locking |
| Strike | 1-1/8" x 2-3/4", Square corner (deadbolt) and 1-5/8" x 2-1/4", Square corner, full lip, No Box |
| Latch | 1" x 2-1/4" dual option faceplate (square corner standard, round corner included in package) |
| Fire Rating | UL/cUL listed up to 3 Hours |
| Commercial/Residential | Commercial |
| Substrate | Zinc and Steel |
| Electronic | No |
| ANSI Function | F95 - Entrance |
| Finish | US3 - Bright Polished Brass (605) |
