Cal-Royal - A7700EO36 - Rim Exit Device with Fire Rated and 36"...
Description
Description

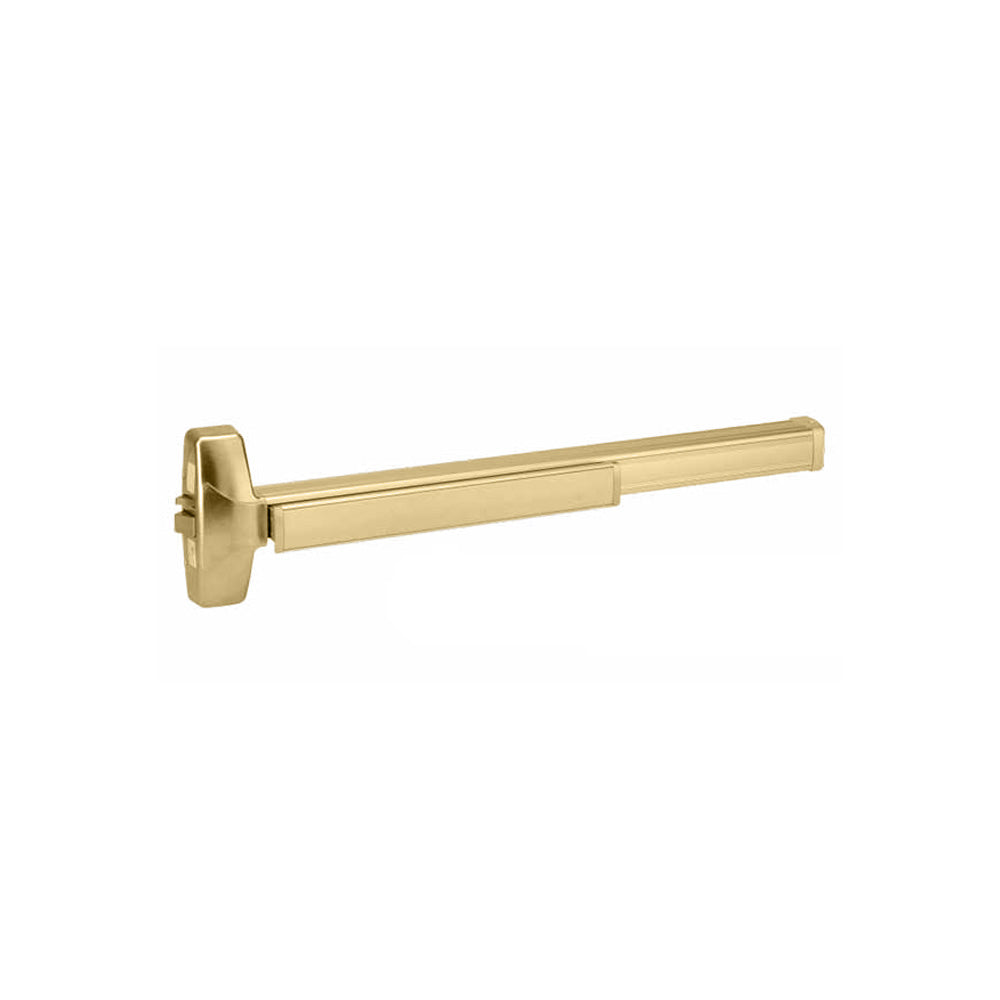

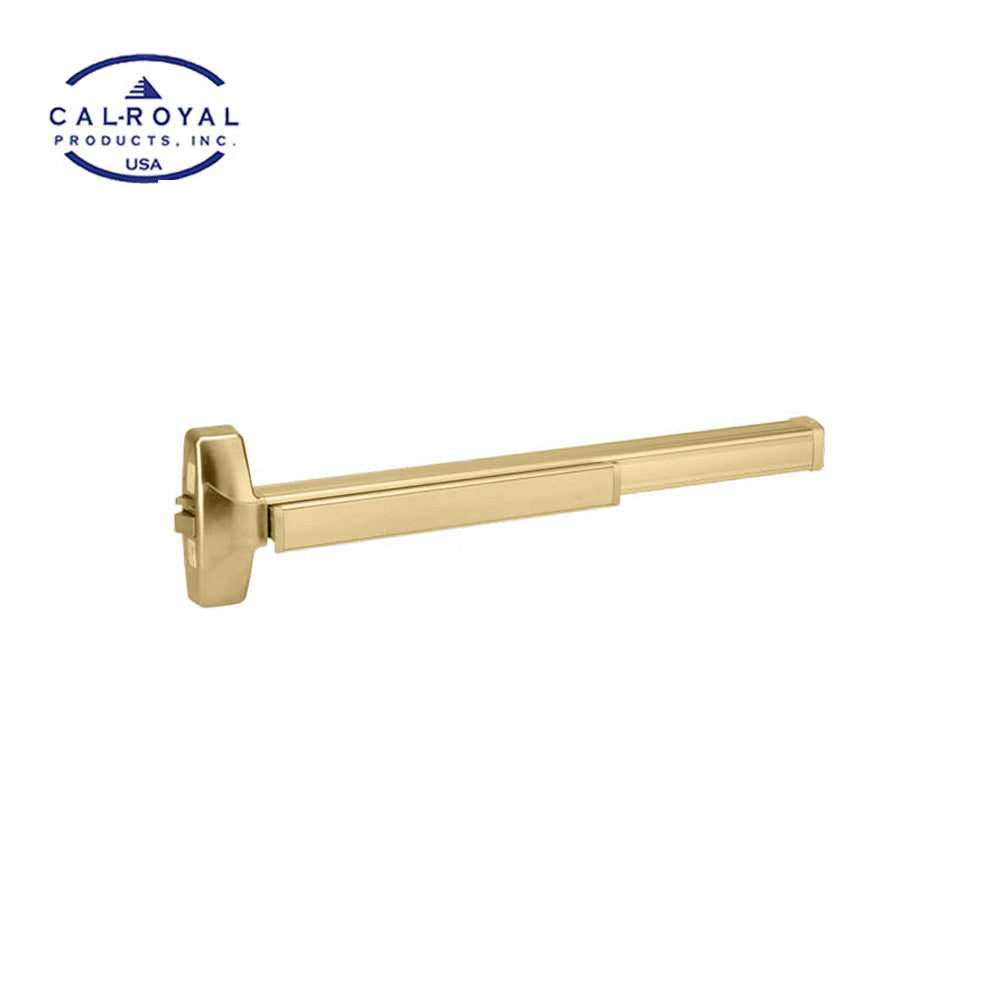

Cal-Royal - A7700EO36 - Rim Exit Device with Fire Rated and 36" Door Width - US3 - Bright Polished Brass (605)
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
| Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out |
| For Doors | 1-3/4" thick standard optional 2-1/4" thick. 4-1/2" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumbpiece, and escutcheon trim. 2-3/4" backset |
| Mounting | Furnished with wood and machine screws. Thru bolts are included and standard packaging on fire-rated devices |
| End Cap | Brass, Bronze, or Stainless Steel construction |
| Handing | Non-handed, center hub for 2-3/4" backset |
| Latch Bolt | Stainless steel 3/4" throw with an anti-pick feature |
| Spring | Stainless steel throughout |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge extruded aluminum body with stainless steel push pad |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices |
| Mullion | Available |
| UL and ULC Listed | A7700 Series for panic. AF7700 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hours fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes |
| Strike | 938 packed standard |
| Finish | US3 - Bright Polished Brass (605) |
Download:
