TOPDON Phoenix Max Automotive Diagnostic Scanner with Phoenix Scope, HDCKIT and Free BT600 Battery Tester

TOPDON Phoenix Max - Newest Cutting-Edge Automotive Diagnostic Scanner with Phoenix Scope, HDCKIT and Free BT600 Battery Tester

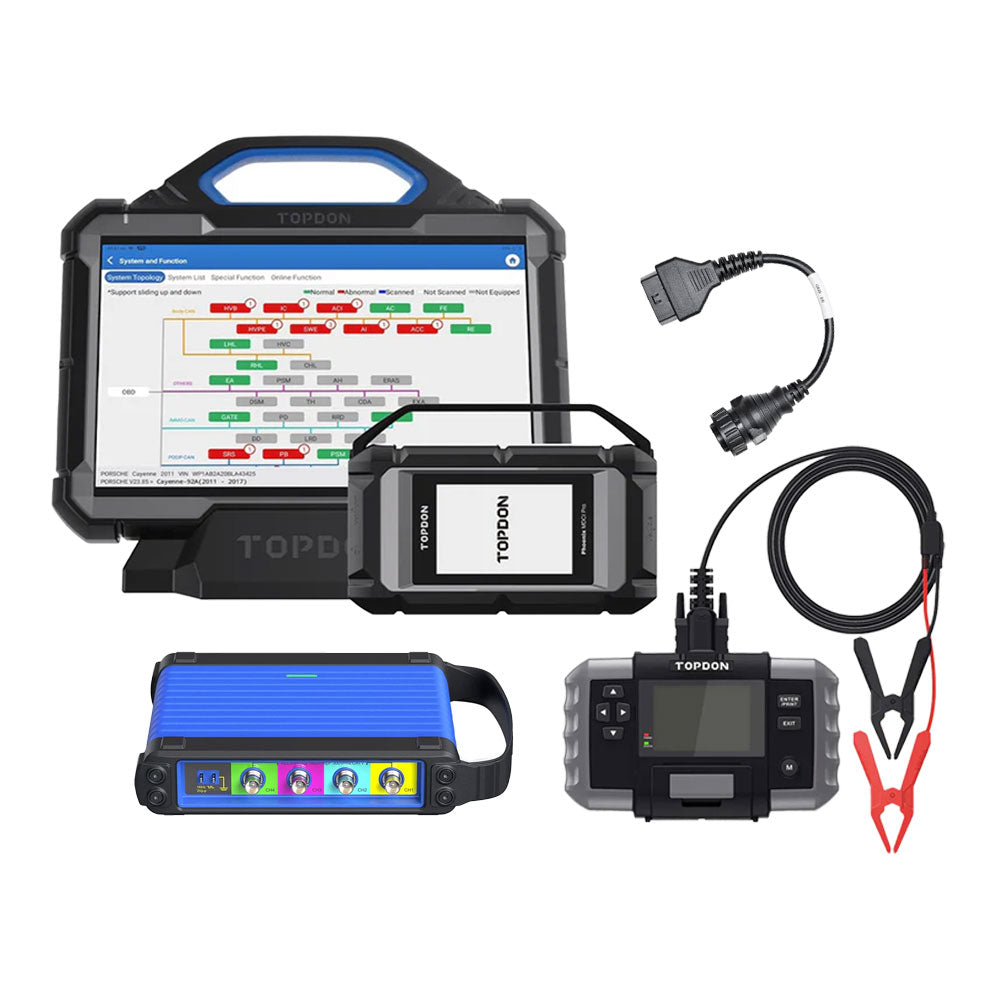

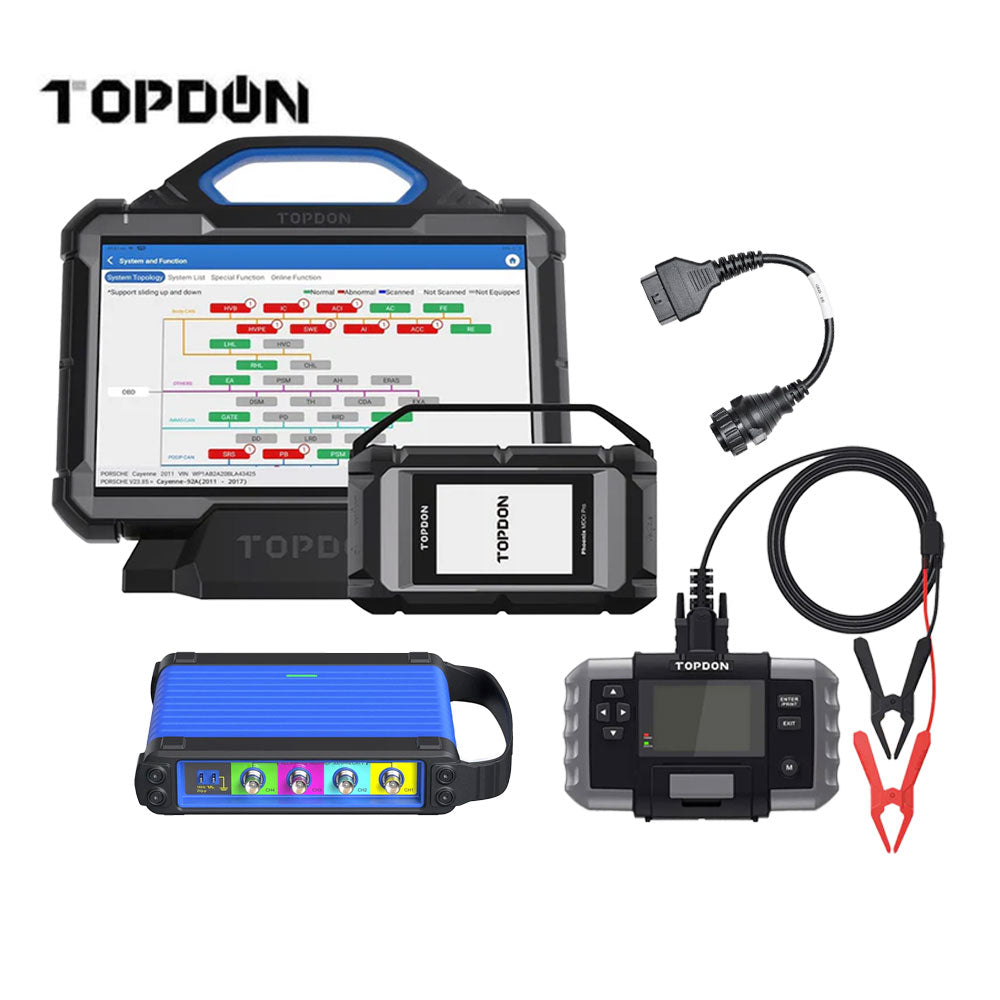

Includes:

• TOPDON PHOENIX MAX - Newest Cutting-Edge Automotive Diagnostic Scanner
• TOPDON PHOENIX SCOPE Quickly Diagnose Issues with Automotive Electronics and Wiring
• TOPDON HD Non-16 Pin Cable Kit
• TOPDON BT 600 - Advanced Battery Tester for 12V and 24V Systems with a 3.5 Inches Color Screen

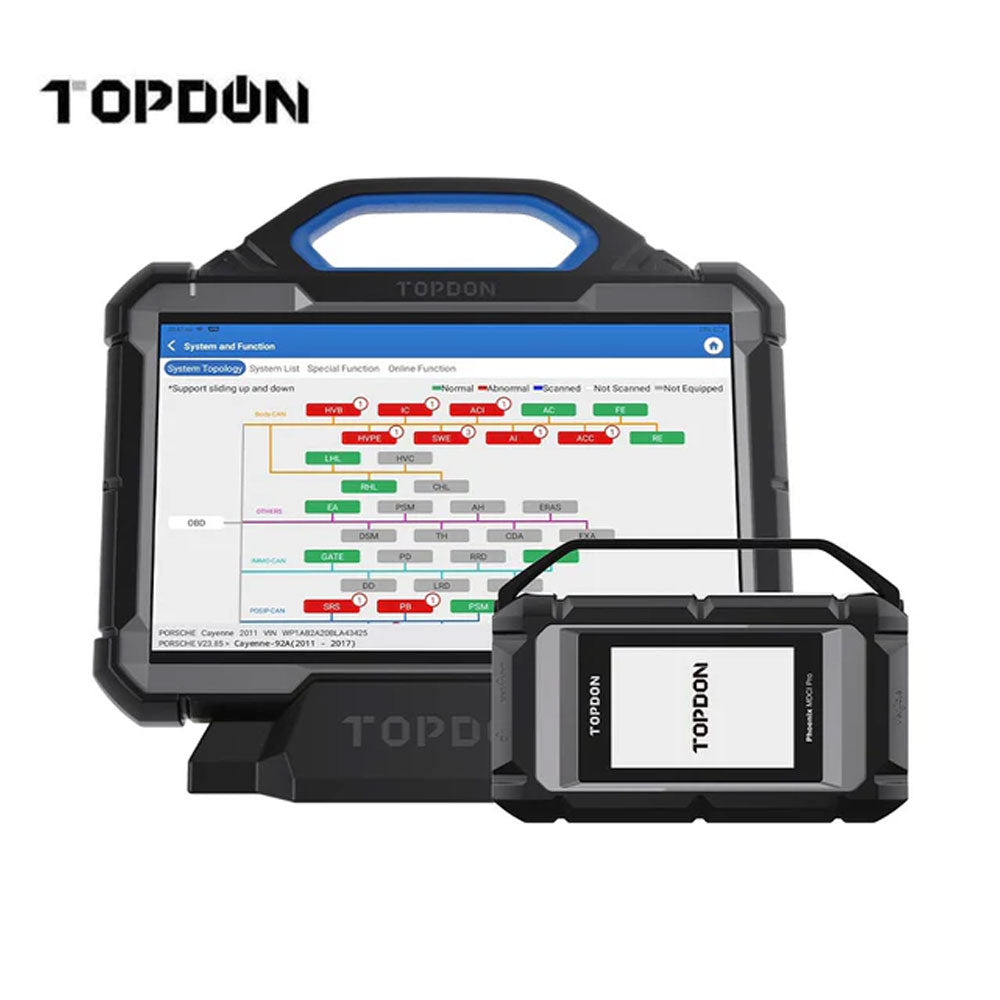

TOPDON PHOENIX MAX - Newest Cutting-Edge Automotive Diagnostic Scanner

The Phoenix Max is TOPDON's newest cutting-edge automotive diagnostic scanner. With a 13.3" screen, this all-in-one tool offers a wide array of functionalities that will expand any technicians' capacity to complete even more jobs. The Phoenix Max includes ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles with optional add-on software.

Features:

• Cloud-based Programming and Online Coding
• Access the FCA Gateway to Work on the Most Modern Vehicles and Adjust Protected Functions
• Supports ADAS Calibration and Battery Testing, and HD Diagnostics with Additional Purchase
• Features Topology Mapping
• MDCI Pro is equipped with J2534, CanFD, DoIP, D-PU, and RP1210 Protocols
• Heavy-Duty Cable Add-On(*Additional Accessories Available For Purchase)

Specifications:

• Memory: 8GB RAM & 256GB ROM
• Battery Capacity: 18600mAh，3.8v
• System: Android 9.0
• Screen Size: 13.3 inches
• Screen Resolution: 1920x1200
• Wi-Fi: Supports 2.4GHz & 5GHz dual frequency
• Camera: Rear13 Megapixels
• Dimension: 14.33*11.22*3.23 inches (364*285*82 mm)

Packing List:

• Phoenix Max
• MDCI Equiped with MegaCan, CanFD, and J2534 Protocols
• OBDII Extension Cable
• Cigarette Lighter Cable
• Type-C to USB Cable
• Battery Clamps/Cable Set
• Power Adaptor
• User Manual
• Password Envelope
• Non-16pin Adaptor Cable Kit

Warranty & Updates:

• Two Years Warranty to Use with Passenger Car
• One Year Warranty to Use with Commercial Vehicles
• Two Years of Updates

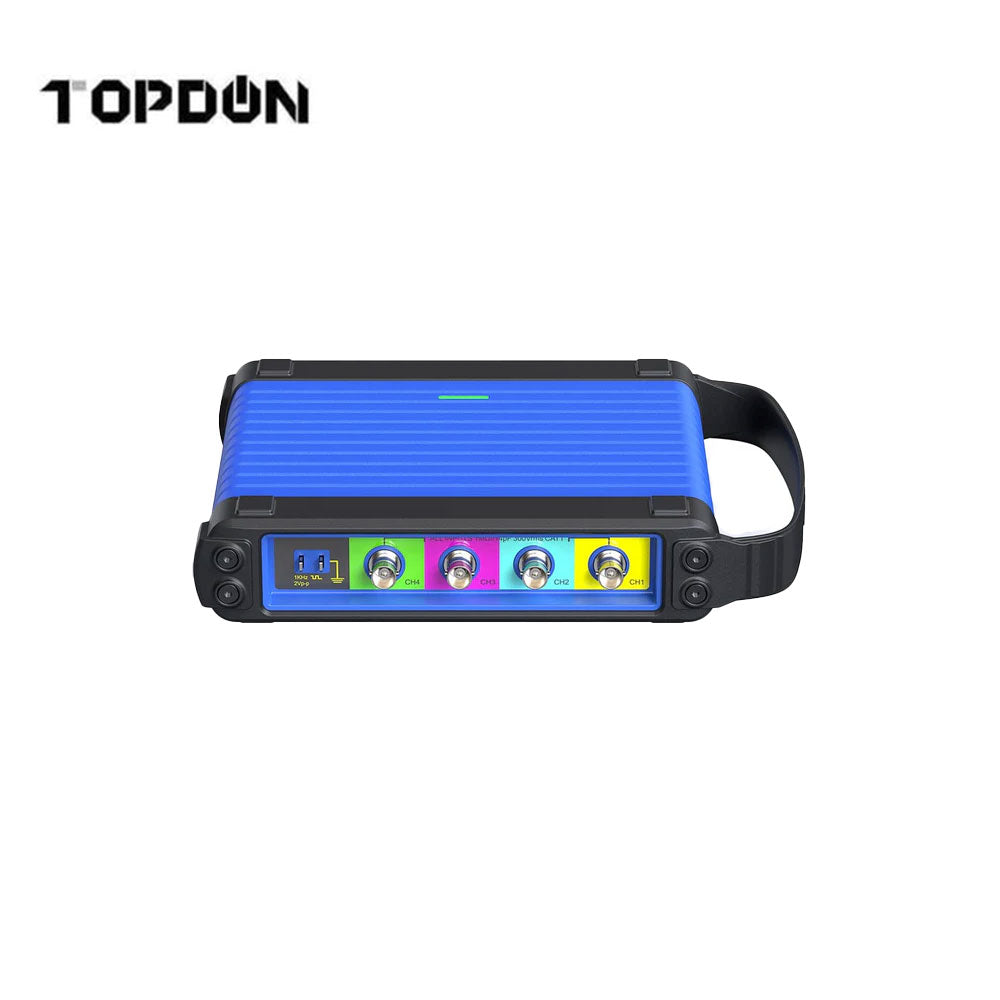

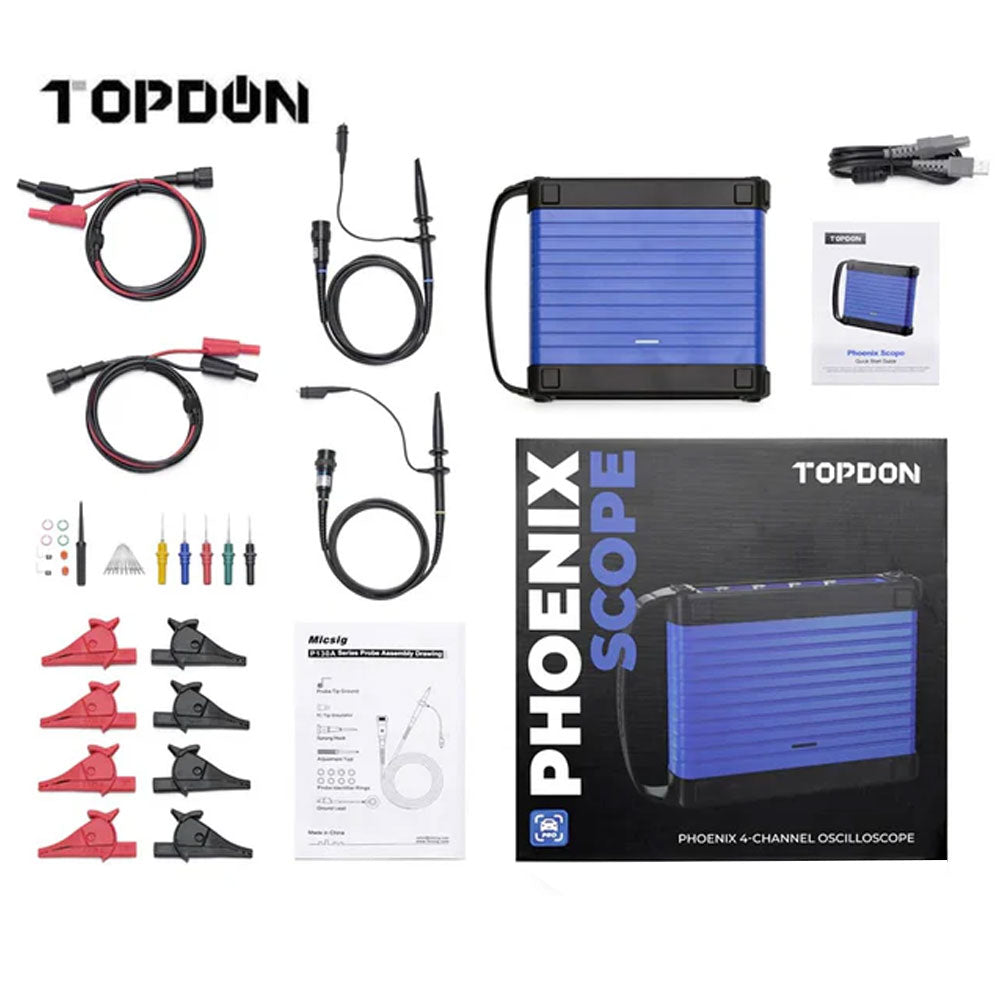

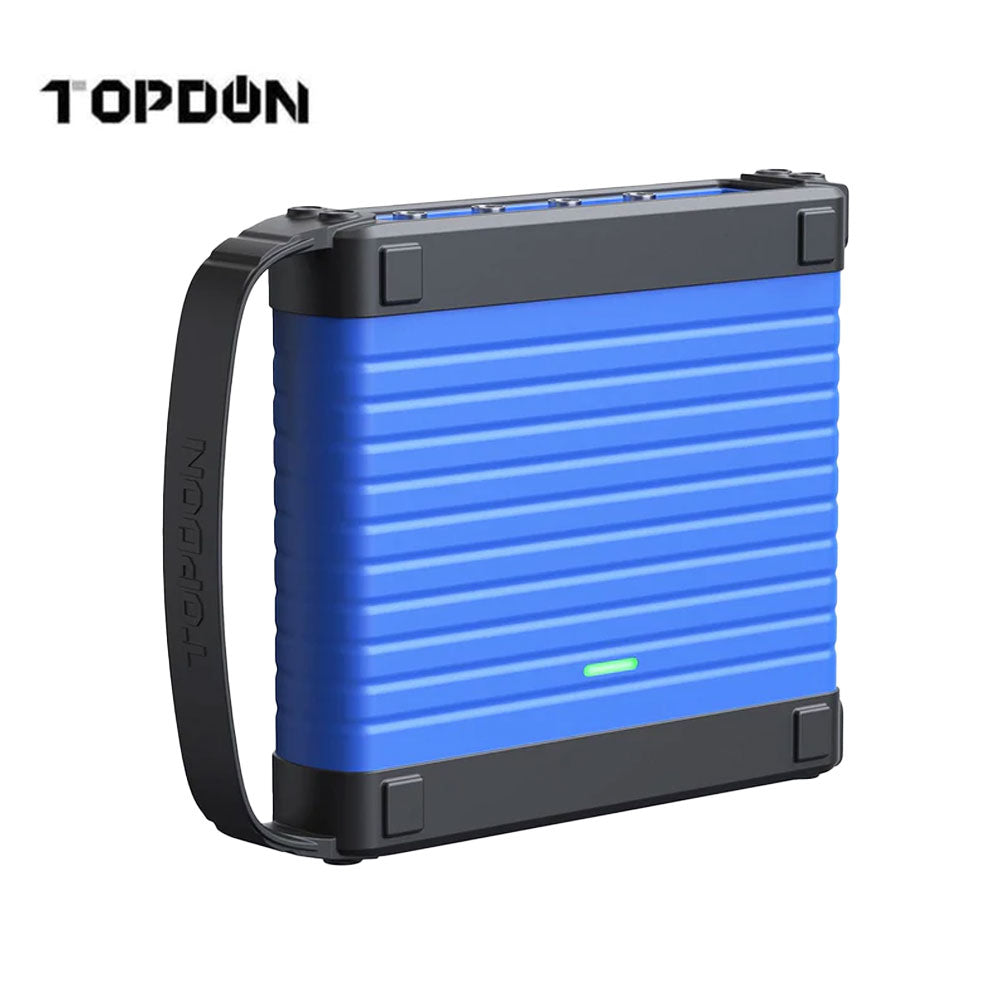

TOPDON PHOENIX SCOPE Quickly Diagnose Issues with Automotive Electronics and Wiring

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

Features:

23 types of automatic measurements

Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.
Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.

High memory depth

With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.

Special fast storage function

Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.

Convenient cursor operation

You can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%.

Soft Keyboard Input

When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.

Customizable And Loadable System Settings

Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.

Waveform Recording And Playback

The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.

Supports Mathematical Operations On Waveforms

This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.

Supports A Variety Of Automotive Tests

This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.

Specification:

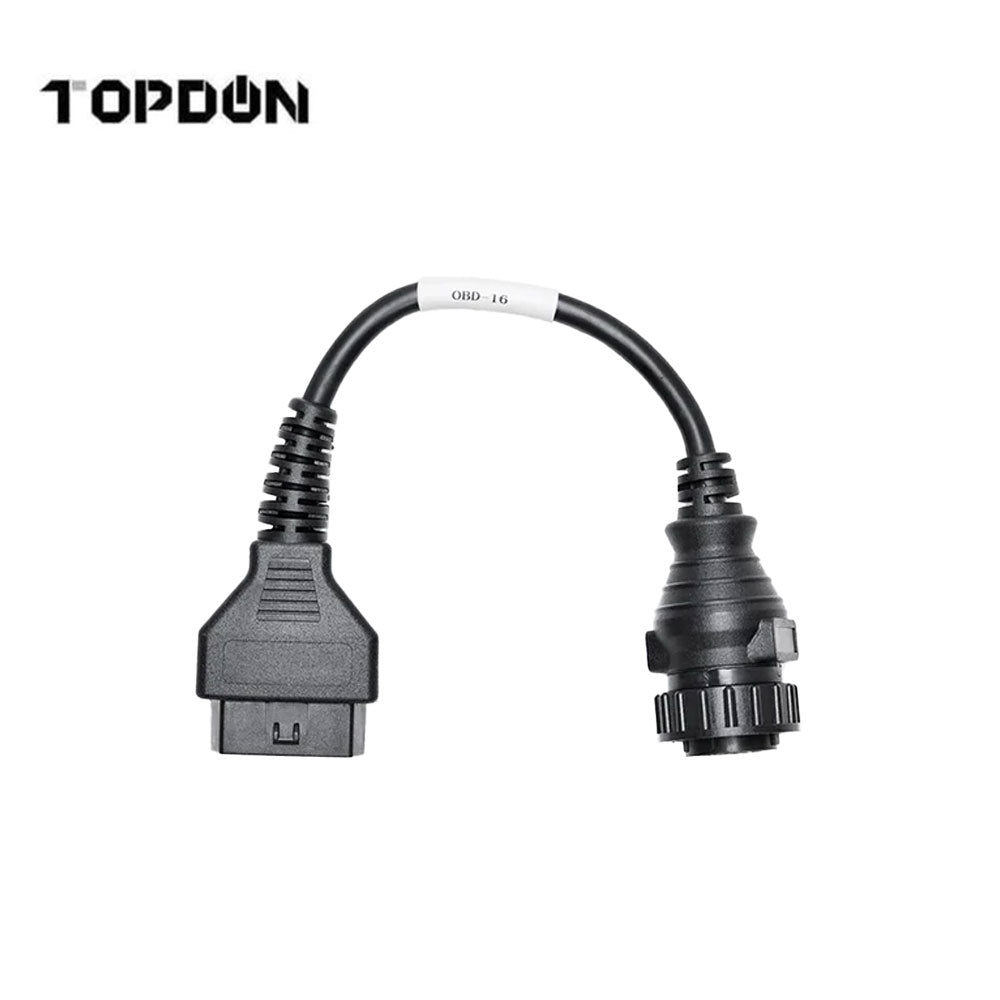

TOPDON HD Non-16 Pin Cable Kit

Non-16 pin cable for TOPDON scanners suitable for heavy-duty vehicles that do not support 16-pin connectors.

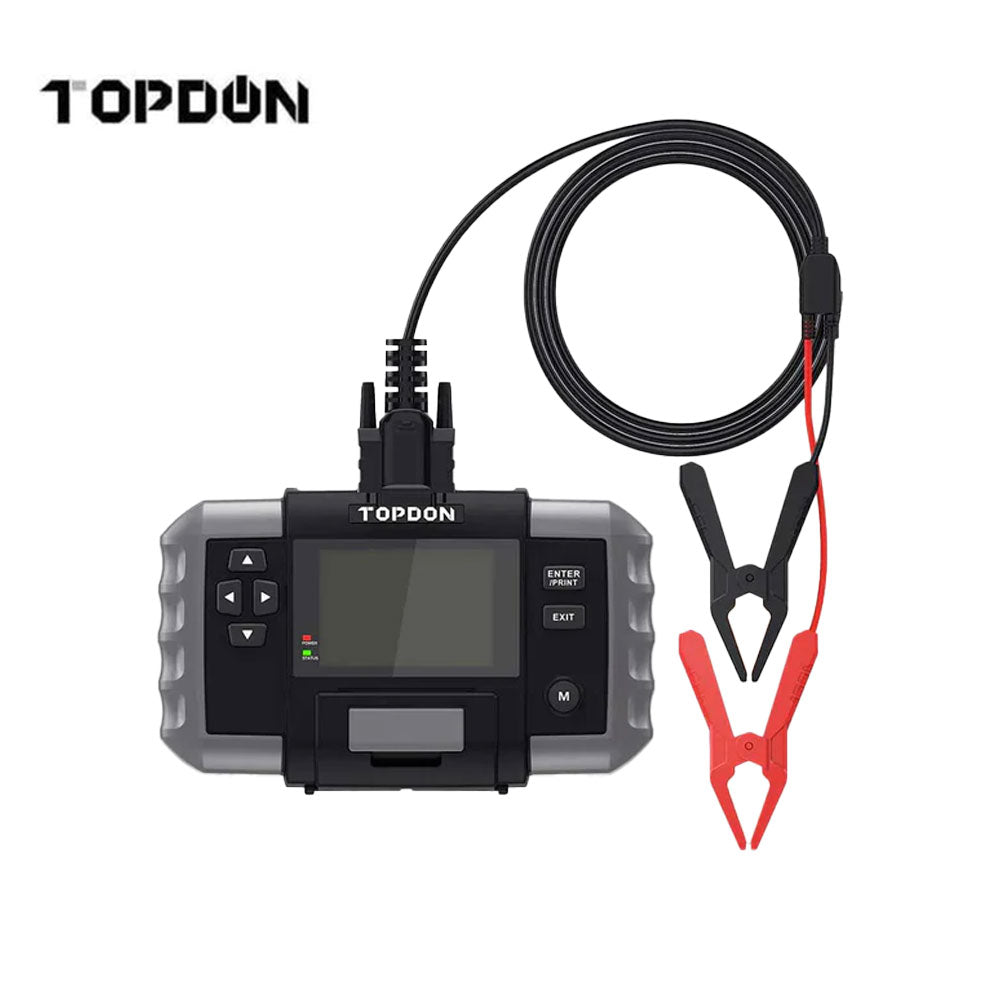

TOPDON BT 600 - Advanced Battery Tester for 12V and 24V Systems with a 3.5 Inches Color Screen

The BT600 is an advanced battery tester for 12V and 24V systems. With a 3.5 inches color screen and a built-in thermal printer, this tool offers the ultimate solution for accurate, fast, and convenient testing. It allows you to easily view the battery's condition and print test reports in real-time. The BT600 adopts a cutting-edge conductivity testing technology and includes reverse polarity protection to prevent improper connections. This multifunctional tool can measure the actual Cold Cranking Amp capacity of the car’s battery, its state of health, and quickly analyze the starter and charging systems.

Features:

Improved Design For Even More Convenience

• With the BT600, you get a top-notch battery tester with an improved display. Now you can see all test results on a 3.5 inches Color Screen!

Print Test Reports In Real-Time

• Its Built-In Thermal Printer allows users to print reports immediately after performing battery tests. All you will need is printer paper!

Safety Above Everything

• The device come with premium large, reinforced, smoke-free, spark-free copper clamps. Its reverse polarity protection will prevent battery damage, saving you money from repair and replacement.
• Providing unmatched safety, the BT600 also impedes overheating and electrical shock.

Your Ultimate Source For Precise Battery Data

• Due to its cutting-edge conductivity testing technology, the BT600 displays accurate and complete test results in seconds.
• This multifunctional tool performs a wide variety of tests, including: battery tests, cranking tests and charging tests.

Expanded Capabilities To Test Even More Vehicles

• Supporting charging tests and cranking tests for 12V & 24V Lead-Acid batteries, performing battery tests on 12V batteries. This tester enables professionals to test passenger cars and heavy-duty. With the BT600, technicians will be able to complete even more jobs.

Specification:

• Working Voltage: DC 9V~30V
• Cable Length: 1.8m (70.9’’)
• Working Temperature: -10℃ to 55℃ （14°F to 131°F)
• Storage Temperature: -20℃ to 70℃ (-4°F to 158°F）
• Product Dimensions: 21.79×13.39×5.69cm (8.58×5.27×2.24’’)
• Weight: 550g (19.4 oz)
• Protection: Reverse Polarity Protection

Packing List:

• BT600
• Battery Test Cable
• User Manual
• 3 Rolls of Printer Paper
• Mini USB Cable
• Carrying Bag

Download:

• BT600 User Manual

Warranty:

• Warranty Continues with Customer's Subscription
• 2 Years of Free Software Upgrades
