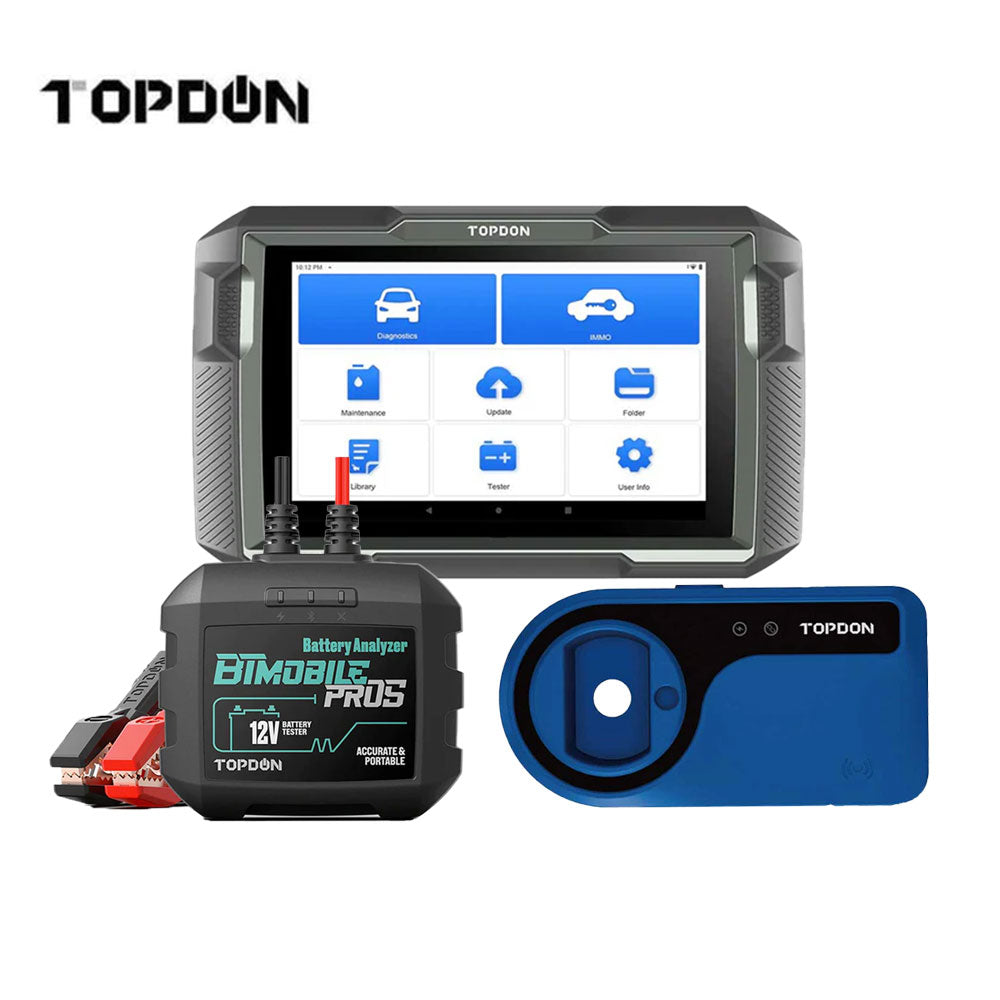

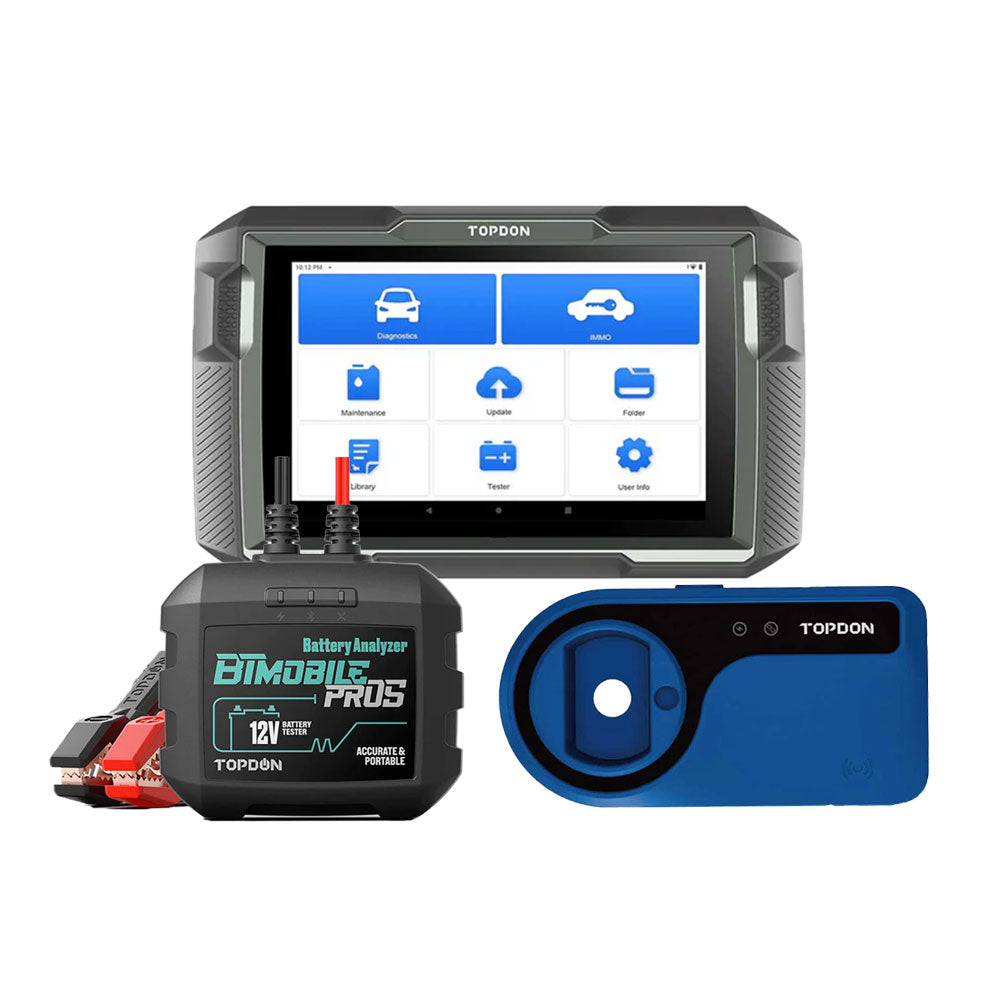

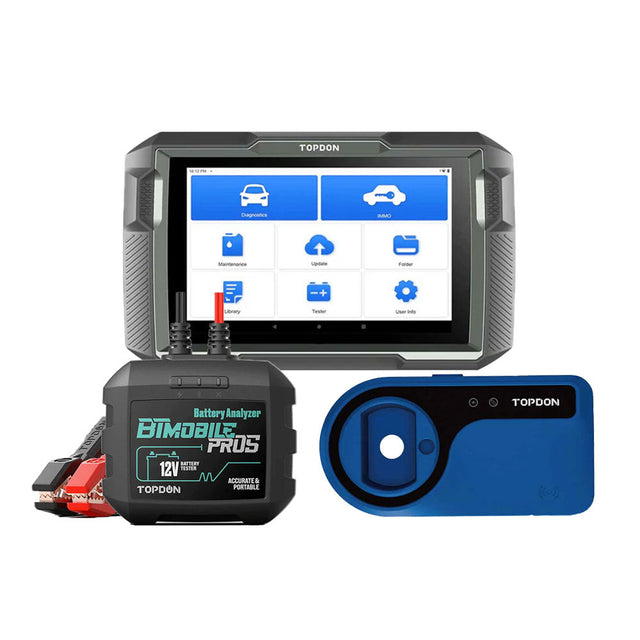

TOPDON UltraDiag 8" Scan Tool and Key Programming Device with Free T-Dart and BTMobile Pros

TOPDON UltraDiag 8" Scan Tool and Key Programming Device with Free T-Dart and BTMobile Pros

Includes:

• TOPDON - UltraDiag 8" Scan Tool and Key Programming Device with Bi-Directional Controls
• TOPDON BTMOBILE PROS - Advanced-Level Wireless Battery Starting and Charging System Analyzer for 12V Batteries
• TOPDON T-Darts - Key Programming RFID Chip Device

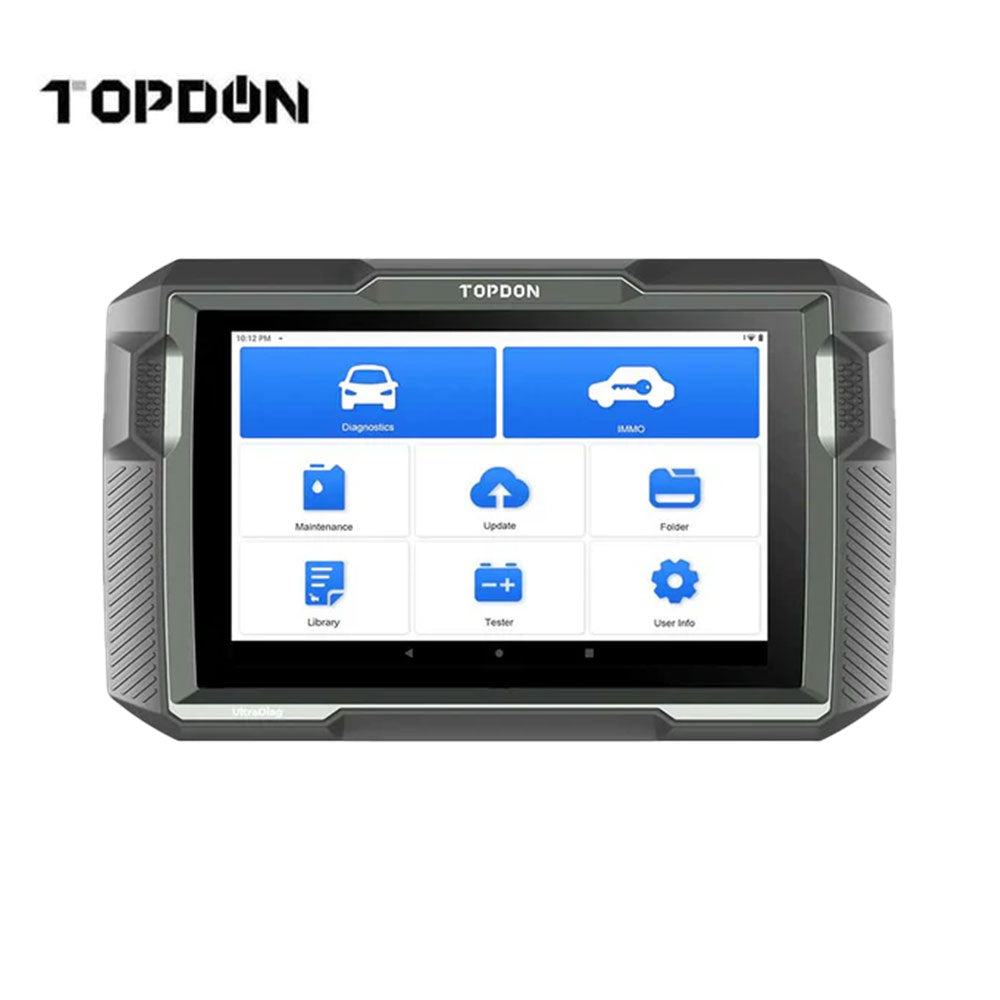

TOPDON - UltraDiag 8" Scan Tool and Key Programming Device with Bi-Directional Controls

The TOPDON UltraDiag is a well-rounded diagnostic tool with added key programming features. The UltraDiag is capable of performing full OBD2 capabilities, accessing 8 commonly used maintenance services, and supports full-system diagnostics for 60+ car brands all over the world. Stepping into more advanced functions, the diagnostic scanner includes features such as the Repair Data Library to quickly get started on auto repair jobs and bidirectional controls to locate the faulty parts accurately.

This powerful tool can act as key matching tool to work on car keys and immobilizer systems. Functions include PIN reading, key learning, remote control learning, and all keys lost. These key programming functions add versatility to open many new streams of revenue. The perfect tool for repair shops and locksmiths.

Features:

• Full System Diagnostics for 60+ Brands: Get a complete diagnostic report on over 60 different car brands with the UltraDiag scanner. This powerful tool lets you perform a comprehensive scan through all vehicle systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning. You'll have access to all the information you need to get your vehicle running smoothly again. No more guesswork - the UltraDiag scanner provides you with the complete picture of your car's health.
• Pro-Level OBD2 Code Reader: With the comprehensive OBD2 code reader, you can quickly identify and resolve issues related to your vehicle's emissions system. The UltraDiag supports a range of key functions, including DTC lookup, live data, freeze frame data, and more. Whether you're a professional mechanic or a DIY enthusiast, the UltraDiag is the perfect tool for enhanced emissions diagnostics.
• Effortlessly Program Your Vehicle Keys: Unlock the full potential of your UltraDiag with our key programming add-on. Compatible with over 40 vehicle brands, this upgrade provides a range of functions such as Number of Keys, PIN Reading, Key Learning, Remote Control Learning, Delete Keys, and All Keys Lost. With this powerful key programming tool, you can tackle a wide range of automotive locksmithing jobs with ease.
• Repair Data Library: Upgrade your vehicle diagnosis skills with the UltraDiag! Our OBD2 DTC Repair Guide provides a comprehensive guide to fault codes and repair guidance. With service bulletins and DLC location guides, repairs are easier than ever. Plus, our warning light library offers solutions to dashboard warnings. Trust the UltraDiag for all your vehicle diagnostic needs!
• DTC Repair Guide: Maximize your diagnostic capabilities with TOPDON's UltraDiag and its DTC Repair Guide. Easily diagnose issues with your vehicle and receive guidance on repairs with the tool's fault code definitions for all systems. This includes dashboards and air conditioning systems. Compatible with Chrysler/Dodge/Jeep/Fiat 2010-2014 and expanding with continual updates, the UltraDiag is the must-have tool for any technician or DIY enthusiast.

• Bidirectional Control: The UltraDiag scanner can get access to vehicle-specific subsystems and component parts that drive the actuators to perform a specific function. This determines the integrity of the system or parts, allowing users to analyze and locate faulty parts more accurately. Bidirectional control includes fuel injectors, coolant pumps, windows, windshield wipers, and more.
• 8 Reset Functions: The UltraDiag offers the 8 most commonly used reset functions of passenger vehicles: Oil Resets, Throttle Adaptation, EPB Resets, Steering Angle Resets, DPF Regeneration, ABS Bleeding, BMS Resets, and Airbag Resets.
• AutoVIN and AutoScan: Streamlined for More Convenience: The UltraDiag comes with AutoVIN and AutoScan functions to streamline your repair progress and save diagnostic time. AutoVIN automatically identifies vehicle information such as make, model, and year of manufacture. AutoScan detects all vehicle systems and retrieves DTCs easily.
• Vehicle Coverage Lookup: Enter the vehicle information and function you would like to perform on a car. The Vehicle Coverage Lookup function can check whether the device is applicable to your vehicle. The Lookup Coverage supports 60+ brands.
• VCI Bluetooth Wireless Diagnostics: The UltraDiag comes with a magnetic VCI that attaches to the back of the tablet for easy storage. Connecting the VCI to the vehicles via Bluetooth gives users ultimate flexibility in diagnosis.
• Improved Hardware for Convenience and Performance: The UltraDiag features a long-lasting 10000mAh battery to save technicians from repeated recharges throughout the day. Android 11.0 makes for faster user interface and processing.
• Equipped with a USB-Type A port, users can connect the VCI to the tablet for more reliable data transfers when working on immobilizer systems.
• The HDMI port allows users to project the diagnostic process for demonstration and analysis purposes. The TF card expansion slot supports up to 128G of additional storage.
• Optional Battery Testing Capability: Users can pair the UltraDiag with TOPDON’s latest battery analyzer, the BTMobile ProS to monitor a car battery’s health wirelessly. This pairing turns the UltraDiag into a hi-tech battery testing tool.

Ultradiag Tablet Technical Specifications:

• Operating System: Android 11.0
• Storage Capacity: RAM 2G & ROM 32G
• Screen: 8 inches, 1280*800 Resolution

• Connectivity: Bluetooth 5.0/SPP USB Wi-Fi
• Camera5 megapixels
• Battery Capacity: 10000mAh
• Ports: USB Type-A/USB Type-C/RJ45/HDMI/DC Charging Port
• Input Voltage: 12V DC
• Dimensions (L x W x H): 255*155*50 mm (10*6.1*1.97 in.)
• Working Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: 0°C to 50°C (32°F to 122°F)

Vci Technical Specifications:

• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Working Voltage: 9～18 V
• Working Current: ≦100 mA
• Dimensions: 84*50*27 mm（3.3*2.0*1.1 inch

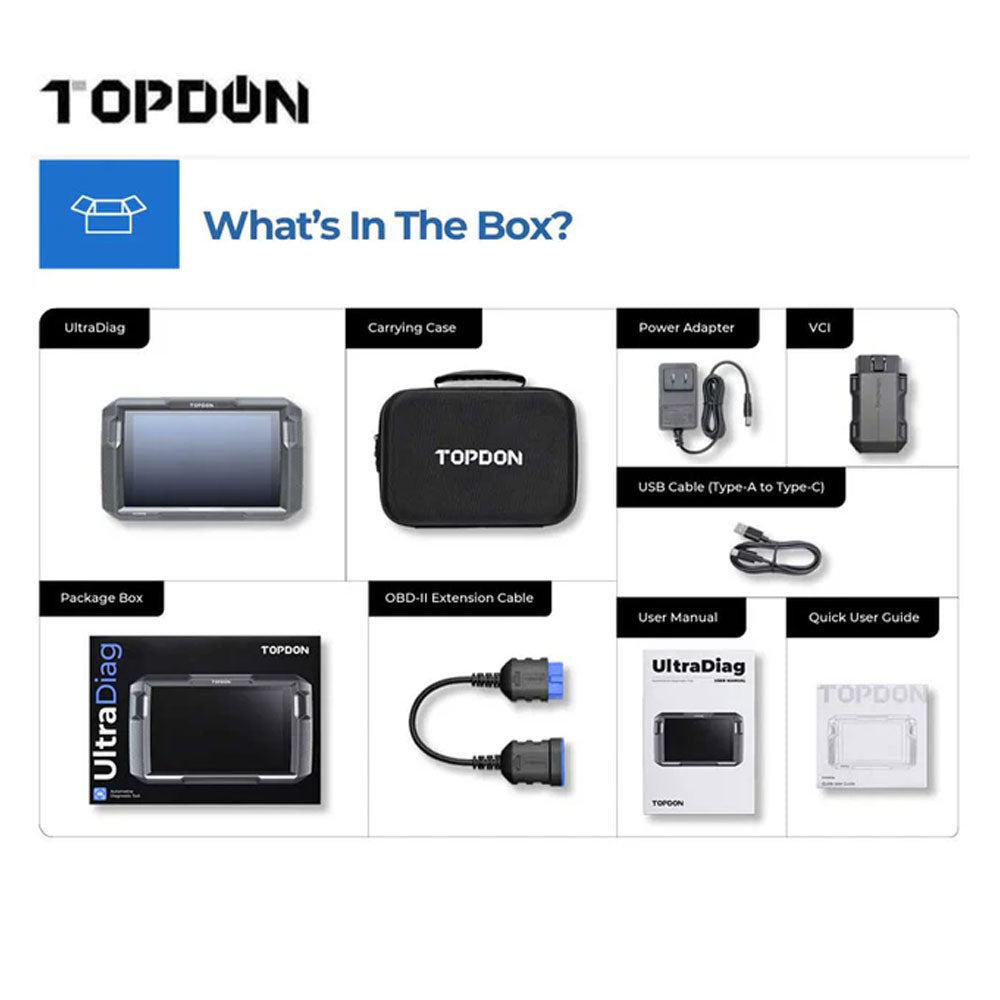

Package List:

• UltraDiag Tablet *1
• UltraDiag VCI *1
• Power Adapter *1
• OBD-II Extension Cable *1
• USB Cable (Type-A to Type-C) *1
• Quick User Guide *1
• User Manual *1
• Carrying Case *1
• Package Box *1

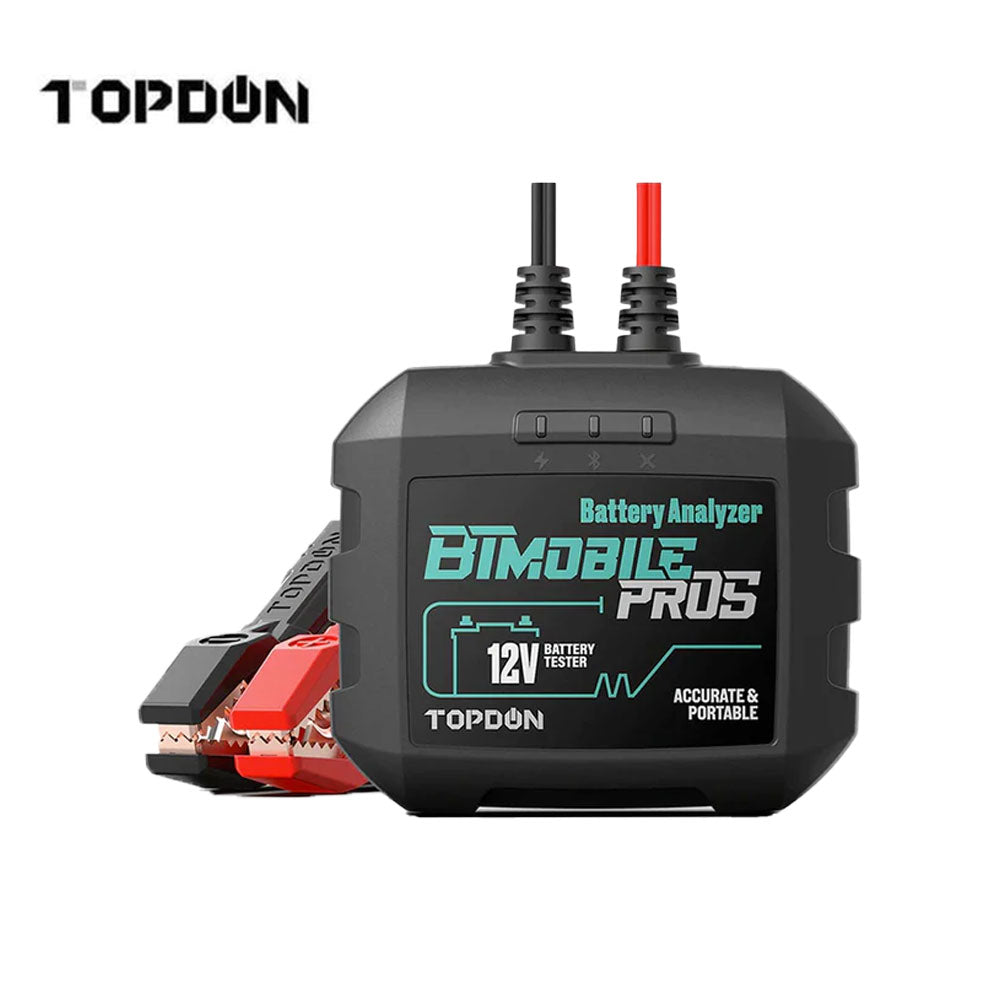

TOPDON BTMOBILE PROS - Advanced-Level Wireless Battery Starting and Charging System Analyzer for 12V Batteries

The BTMobile Pros is an advanced-level wireless battery starting and charging system analyzer for 12V batteries. Designed for professional technicians, this tool provides accurate test results in less than a minute, improving your shop’s productivity and reducing downtime. With its dual Bluetooth connection and wider compatibility, this device offers power and flexibility. The BTMobile Pros is compatible with the Phoenix Series, allowing professionals to turn their diagnostic scanners into battery testing tools to expand their capabilities even more.

FEATURES

• Turns Your Diagnostic Scan Tool Into a Battery Tester

• Compatible to Phoenix Line of Diagnostic Scanners
• 3 LED Indicators
• Battery, Cranking, and Charging Tests
• Tablet Compatibility
• Dual Bluetooth 3.0/4.0
• Test Voltage: 12V
• Test Range: 100~2000CCA
• Test Multiple Battery Types (Regular Flooded, AGM, EFB, and GEL)
• Test Standards: CCA, BCI, CA, MCA, JIS, DIN, and More
• Multilingual Menu
• Supports 12V & 24V Batteries
• Ideal for Cars, Light Trucks, RVs, Motorcycles, ATVs, Boats, and More

SPECIFICATIONS

• Working Temperature: -20°C~65°C (-4°F~l40°F)
• Storage Temperature: -2o·c~1o·c (-4°F~1s8°F)
• Dimensions: 3.94 x 3.42 x 1.18 inches
• Weight: 260 g (9.17 oz)

Package List:

• BTMobile Pros
• Carrying Case
• User Manual

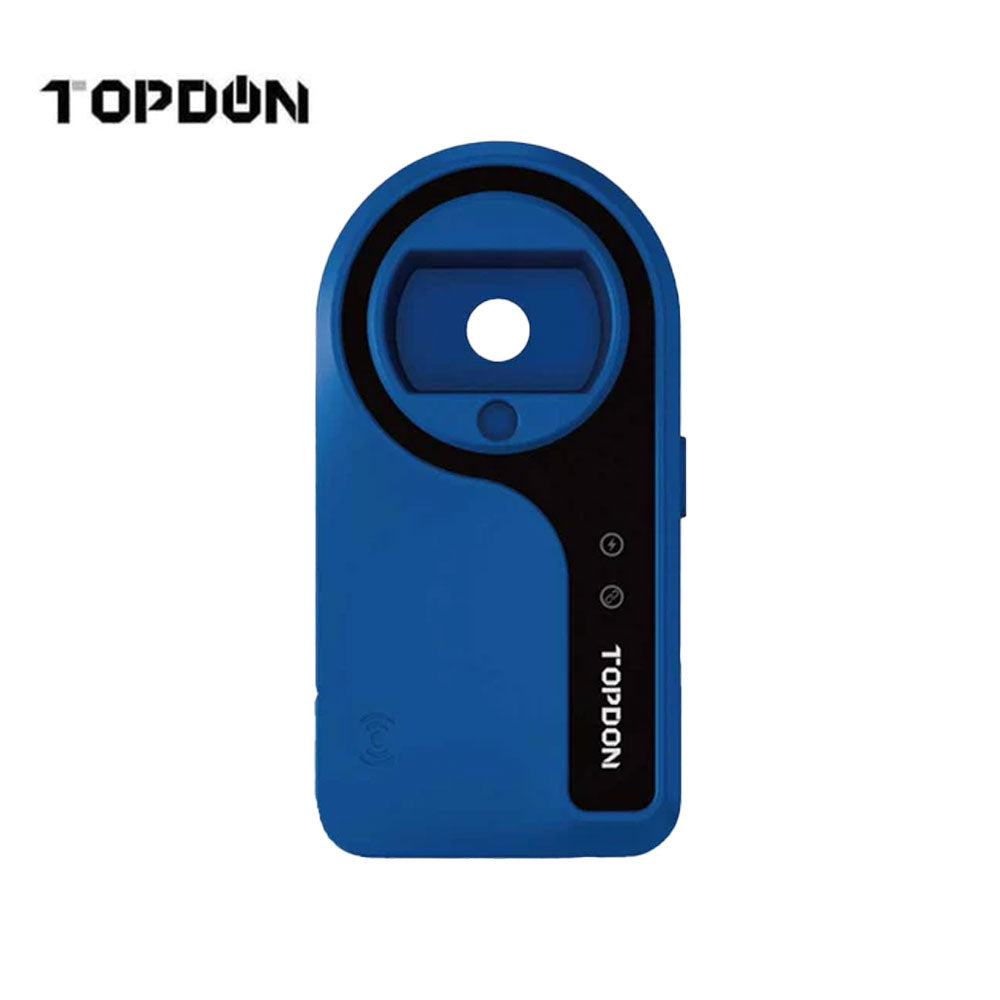

TOPDON T-Darts - Key Programming RFID Chip Device

With the T-Darts, technicians and key specialists unlock a new dimension of analysis and programming. The T-Ninja Pro supports chip recognition and frequency detection when used together with the T-Darts, a TOPDON-designed Transponder & Remote Tester Tool, enables users to perform key programming for mainstream automobiles available on the global market. Get excellent coverage with the T-Darts, covering over 100 different transponder chips. The T-Darts also features outstanding practicality, with Bluetooth connectivity, lengthened RF detection range, and the option to run on four AAA batteries. Pairing the T-Darts and T-Ninja Pro gives professionals all the versatility and capabilities they would need to turn profits and maximize efficiency. We will continue to upgrade and unlock more features in the future.

Features:

• T-Darts allows either USB or Battery powered function
• T-Darts Supports Transponder Chips
• Supports 100+ Transponder Chips
• T-Darts identifies Radio Frequency of each Vehicle Remote (300-320Mhz, 430-434Mhz, 868Mhz, 902-915Mhz)
• Can connect directly to phones
• BlueTooth Connectivity
• Can Incorporate 4 Triple A Batteries

Specifications:

• Dimensions: 139.5*72*28.2 mm (5.5*2.83*1.1 in.)
• Weight: 100g
• USB Port: Type-C F
• requency Detection: 300-320; 430-434; 868, 902-915 Mhz

Standard Detection Range: 1-10 cm

Package List:

• 1 * Quick Guide
• 1 * USB Type-C Cable
