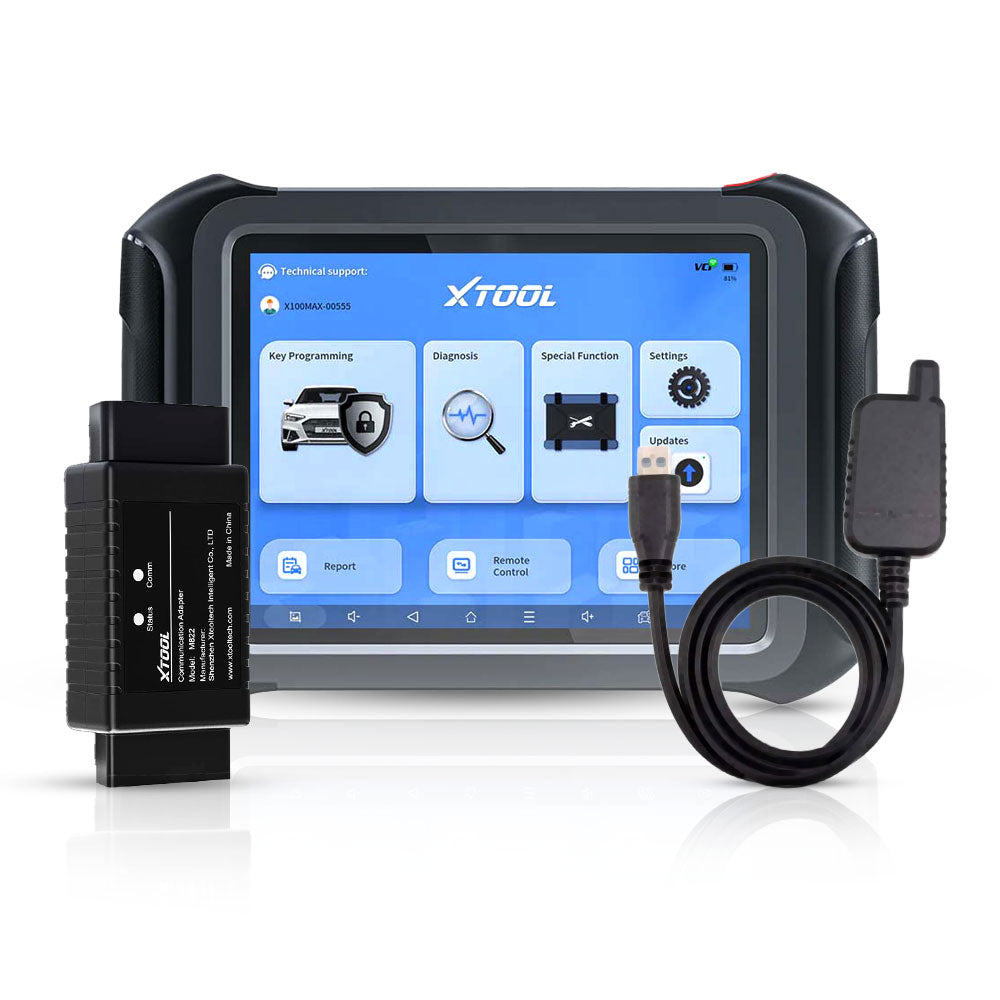

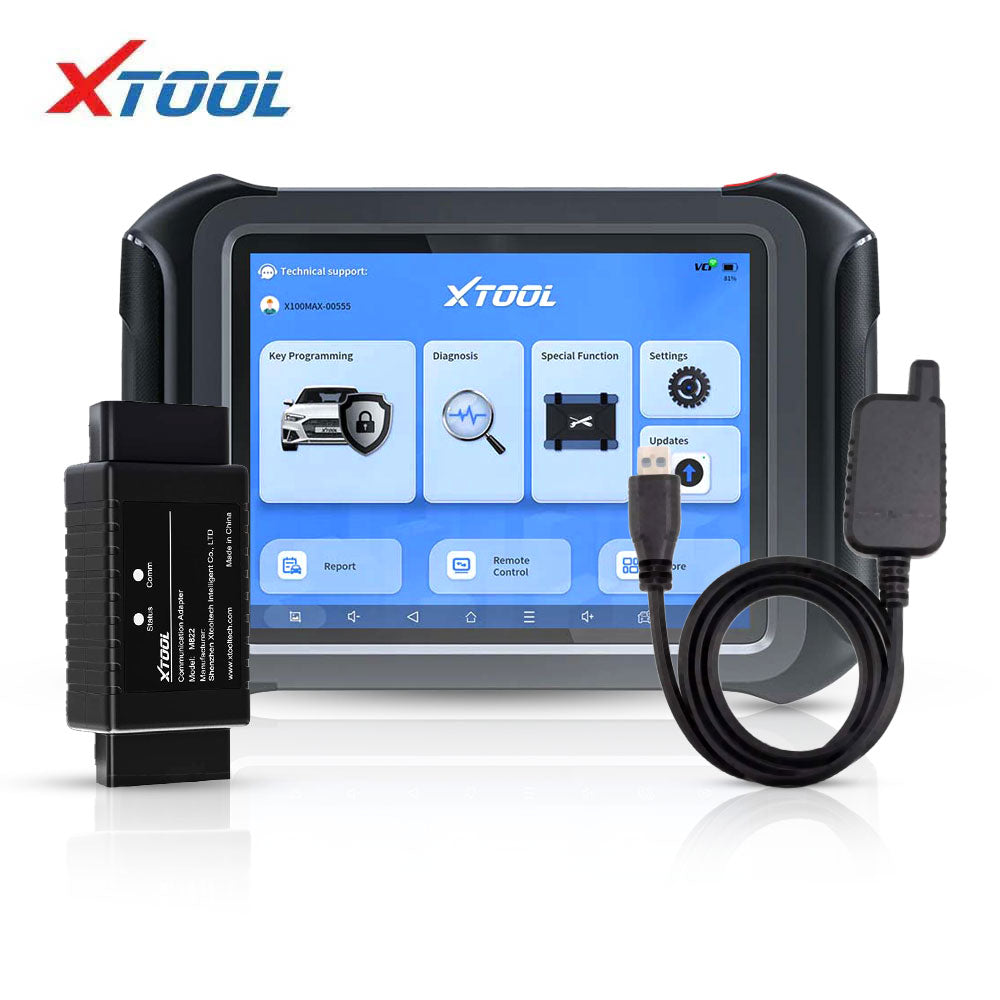

XTOOL X100 MAX2 Key Programming and Diagnostic Tool with AnyToyo SK1 Toyota Smart Key Emulator and M822 Adapter

XTOOL X100 MAX2 Key Programming and Diagnostic Tool with AnyToyo SK1 Toyota Smart Key Emulator and M822 Adapter

Includes:

• X100 MAX2 - Key Programming and Diagnostic Tool
• PCB (SK1) Toyota 8A Smart Key Emulator
• M822 Adapter

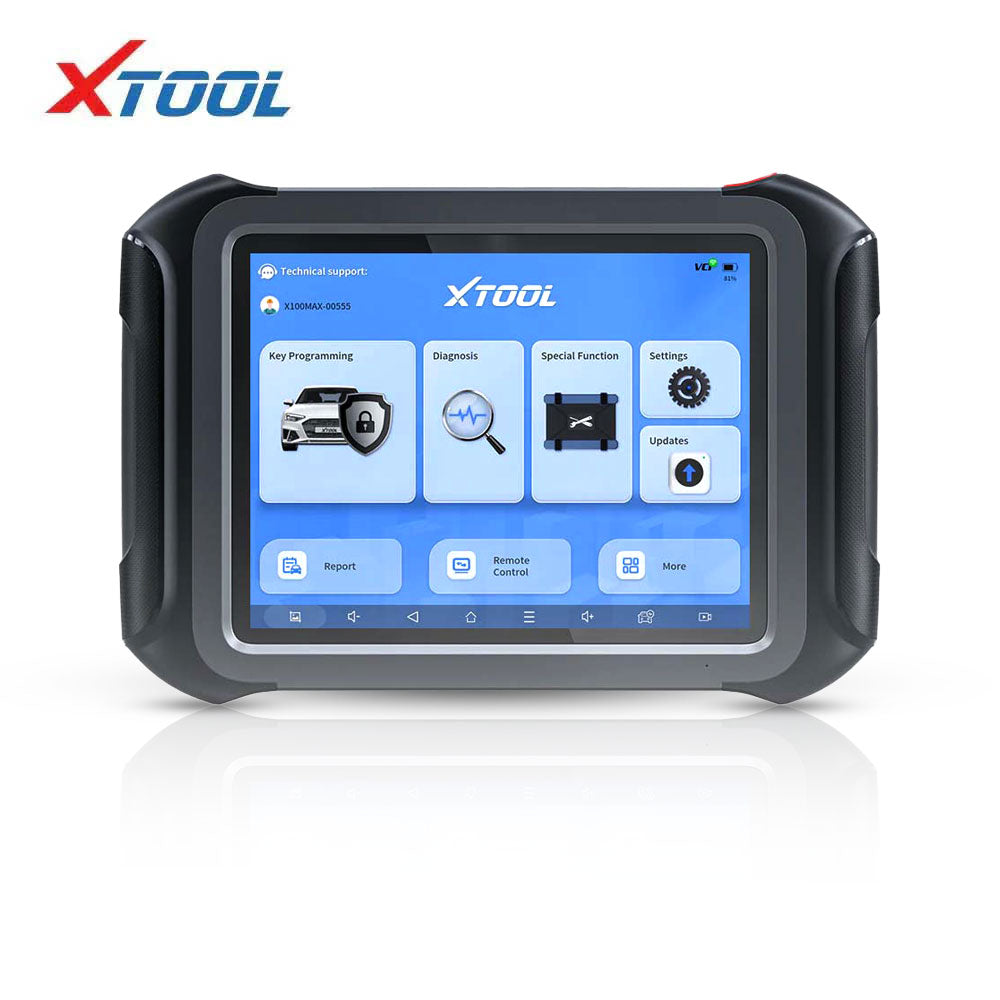

XTOOL - X100 MAX2 - Professional Key Programming and Diagnostic Tool with J2534

The XTOOL X100MAX 2 is the ultimate key programming and diagnostic tool for workshops, mechanics, and locksmiths. Combining powerful IMMO/key programming functions, advanced ECU programming, and comprehensive diagnostics, this all-in-one device ensures fast, precise, and reliable vehicle maintenance.

Features:

• Advanced IMMO and Key Programming with KC501
• J2534 ECU Programming, Offline Programming and ECU Coding
• Dealer-Level All-System Diagnostics
• 42+ Maintenance Services
• Full Bi-Directional Control
• FCA AutoAuth
• Topology Mapping for Enhanced Diagnostics
• ECU Coding and Flashing Hidden Features
• Guided Functions for Specific Brands
• CAN FD and DoIP Protocols
• Additional Features

Advanced IMMO and Key Programming with KC501:

• Key fob programming: Program key fobs for a wide range of vehicles.
• Reading and writing car keys and key chips: Efficiently read and write car keys and chips.
• Handling all-keys-lost scenarios: Ideal for locksmiths and auto technicians to resolve all-keys-lost issues.
• Perfect for a wide range of vehicles: Suitable for multiple vehicle brands and models.

J2534 ECU Programming, Offline Programming and ECU Coding:

• J2534 Pass-Through Programming: Seamlessly integrates with OEM software to replace ECUs, update firmware, and resolve software-based issues.
• Offline ECU Programming: Reflash ECU modules without relying on an internet connection.
• ECU Coding: Customize and match vehicle components, unlock hidden features, and activate/deactivate functionalities like adaptive lighting or comfort settings.

Dealer-Level All-System Diagnostics:

• OE-level diagnostics: Perform diagnostics for all available modules in the vehicle.
• Read and clear fault codes: Retrieve and clear any fault codes for efficient troubleshooting.
• View live data and graphs: Access live data and graphical information for a more in-depth analysis.
• Freeze-frame analysis: Capture vehicle data at the moment of the fault for precise diagnostics.

42+ Maintenance Services:

• Oil Reset, EPB, BMS, SAS Calibration: Reset key maintenance features to restore optimal functionality.
• DPF Regeneration, ABS Bleeding, Throttle Relearn: Perform essential vehicle functions with ease.
• Injector Coding, Key Programming, and more: Complete various service tasks for comprehensive maintenance.

Full Bi-Directional Control:

• Active tests: Run tests to verify component functionality, including fuel pumps, windows, doors, fans, and more, improving diagnostic accuracy.

FCA AutoAuth:

• Secure access: Compliant with FCA security protocols, ensuring safe and effective access for Chrysler, Dodge, and Jeep vehicles.

Topology Mapping for Enhanced Diagnostics:

• Clear visual overview: Visualize vehicle systems and their interconnections for faster, intuitive diagnostics.

ECU Coding and Flashing Hidden Features:

• Unlock hidden functionalities: Customize vehicles for various brands like VW, Audi, Skoda, Benz, BMW, Mitsubishi, and more.
• Personalized settings: Adapt engine and transmission settings to suit customer preferences.
• System optimizations: Perform optimizations for enhanced vehicle performance.

Guided Functions for Specific Brands

• Step-by-step instructions: Simplify complex diagnostics with guided functions for brands like VW, Audi, Skoda, and Seat.
• No security codes needed: Get straight to diagnostics without manually inputting security codes or channel numbers.

CAN FD and DoIP Protocols:

• CAN FD Protocol: Enable faster diagnostics for GM MY2020+ vehicles for more efficient troubleshooting.
• DoIP Protocol: Support high-speed data transmission for modern vehicles like BMW, Jaguar, and Land Rover.

Additional Features:

• Multi-Language Support: Available in 14+ languages, including English, Spanish, French, German, and Arabic.
• Auto VIN and Auto Scan: Automatically identify vehicle details for quicker diagnostics.
• Report Print and Share: Generate professional diagnostic reports for easy sharing with clients.
• Two Years of Free Updates: Stay current with the latest software and vehicle models.
• Lifetime Technical Support: Access dedicated support for troubleshooting and questions.

Hardware Excellence:

• Android 10 OS: Smooth operation and compatibility with modern apps for seamless use.
• 9.7" Display: High-resolution 1024x768 screen for clear visuals and easy navigation.
• 6400mAh Battery (7.4V): Equivalent to 12,800mAh (3.7V), ensuring long-lasting performance.
• 4GB + 128GB Memory: Ample storage for diagnostics, software, and updates.
• 8MP Rear Camera: Capture detailed images for in-depth inspections.
• Faster AUTO VIN: Quickly identify vehicles for more efficient diagnostics.

Optional Accessories:

• KS-1 Adapter: Adds advanced smart key programming for Toyota and Lexus vehicles.
• M822 Box: Handles lost key and advanced key programming for Mercedes-Benz vehicles.

Warranty and Updates:

• 2-Year Free Updates: Stay ahead with the latest features and compatibility enhancements.
• 2-Year Warranty: Peace of mind with long-term reliability.

XTOOL - M822 Adapter for Toyota/Mercedes Benz All Key Lost Programming

With M822 Adapter, you can save as much as 65% of the calculation time on the process, or save you from plugging the key emulator in and out for hundreds of times.

Features:

• All Keys Lost
• OBD Interface OBD, OBDII, EOBD, CAN
• Work with KC501 KC100 KS-1

Tools You Need:

• XTOOL Tablet (Take X100 PADS as example)
• Main Cable and OBD2-16 Connector
• M822 Communication Adapter
• Toyota 8A Specialized Wiring Harness
• KC100 Key Programmer
• KS-1 Toyota Key Emulator
• Network Connection

Models Supported:

For Toyota:

• 2014~2019
• For Toyota Levin
• For Corolla
• For RAV4
• For Prado
• For Land Cruiser
• For Camry
• For Highlander
• For Reiz
• For Sienna
• For Hiace
• For Hilux
• For Crown Kluger
• For Aygo with IMMO box F3-F4-K6-S6

Note:

This is not compatible with American models with "H" Chip blade keys. For these models, please use the Reset IMMO function that is supported on X100PAD2/X100PAD3/X100PAD3 SE/X100MAX/IK618/D8/D8 B-T/IP616/IP819/IP819TP/A80/A80 PRO/A80 PRO MASTER/PS90/D9/D9 PRO.

Connection Method:

• Connect VIA OBD:
• Connect KC100/KC501 to the device via USB and prepare a KS-1
• Connect the device (or VCI box) with the M822 Adapter using the main cable.
• Connect the for Toyota cable to the car using OBD port.
• Take the battery clip from the car out and use the battery clip to connect the cable to the battery.
• Take out the fuse from the fuse box then plug the cable into it.
• Find the 12V DC male port from the for Toyota cable and connect it to the 12V
• DC female port from the main cable.

Note: For different models, the connection method might not be same. Sometimes an extend cable is needed, and the fuse might be different. Please check XTOOL tablets for detailed wiring diagram when connecting to vehicle and fusebox.

• Connect on bench:
• Connect KC100/KC501 to the device via USB and prepare a KS-1
• Connect the immobilizer to the for Toyota bench cable.
• Connect the main cable and the for Toyota bench cable via M822 adapter.
• Connect the 12V DC adapter to the main cable.

M822 Adapter needs to be used with advanced XTOOL Key Programming Devices eg: X100 Pad3/X100 Max and KC501 Key Programmer.

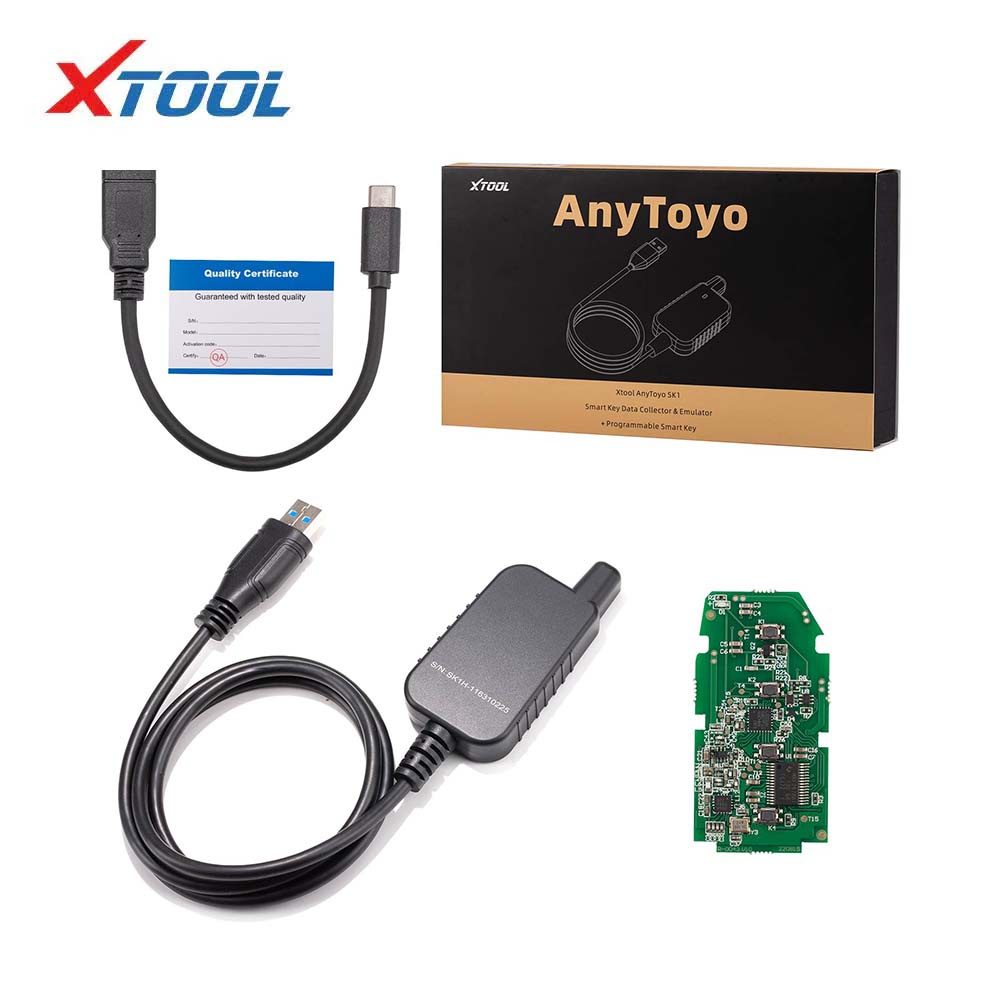

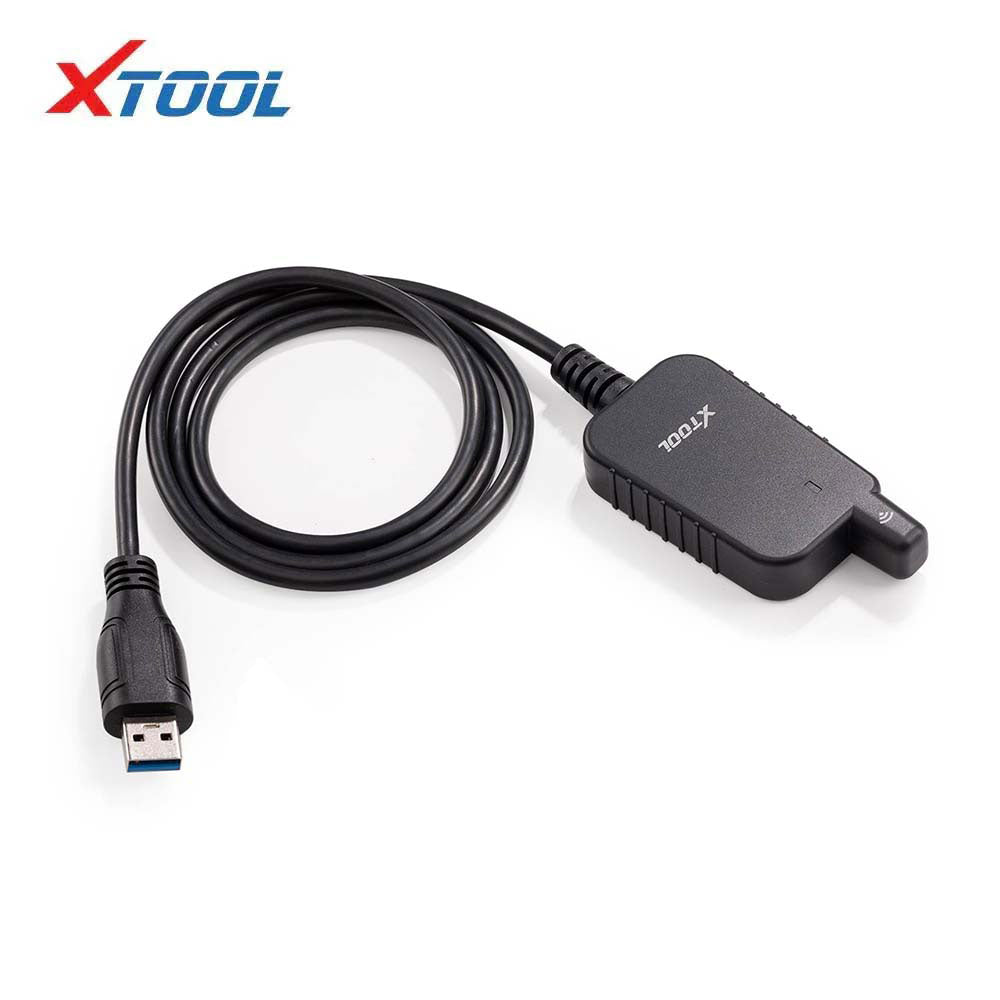

XTOOL PCB (SK1) Toyota 8A Smart Key Emulator + Toyota Data Collector

As an automotive professional, you know that dealing with lost or damaged smart keys for 2013+ Toyota models can be a costly and time-consuming process. That's why the XTOOL AnyToyo SK1 Smart Key Emulator for the AutoProPad is a must-have tool for your business. Not only does it save you time and money, but it also adds convenience to your service offerings.

Included:

• AnyToyo SK1 Smart Key Emulator
• AnyToyo 8A-Universal Smart Key PCB

Parameters:

• Port: USB 3.0
• Frequency: 315/433 MHz (RF) / 125 KHz (LF)

Functions:

• Add key
• All keys lost
• Emergency start
• Frequency and key type reading

Features:

• Bench-free, pincode-free, OBD-free
• Protects original data in smart box, still supports OEM key matching after copying keys
• Open-source smart key, can be used with other programmers
• OEM-level key chip with excellent compatibility

Compatible Vehicles: Toyota/Lexus 2013-2022 with 8A smart key

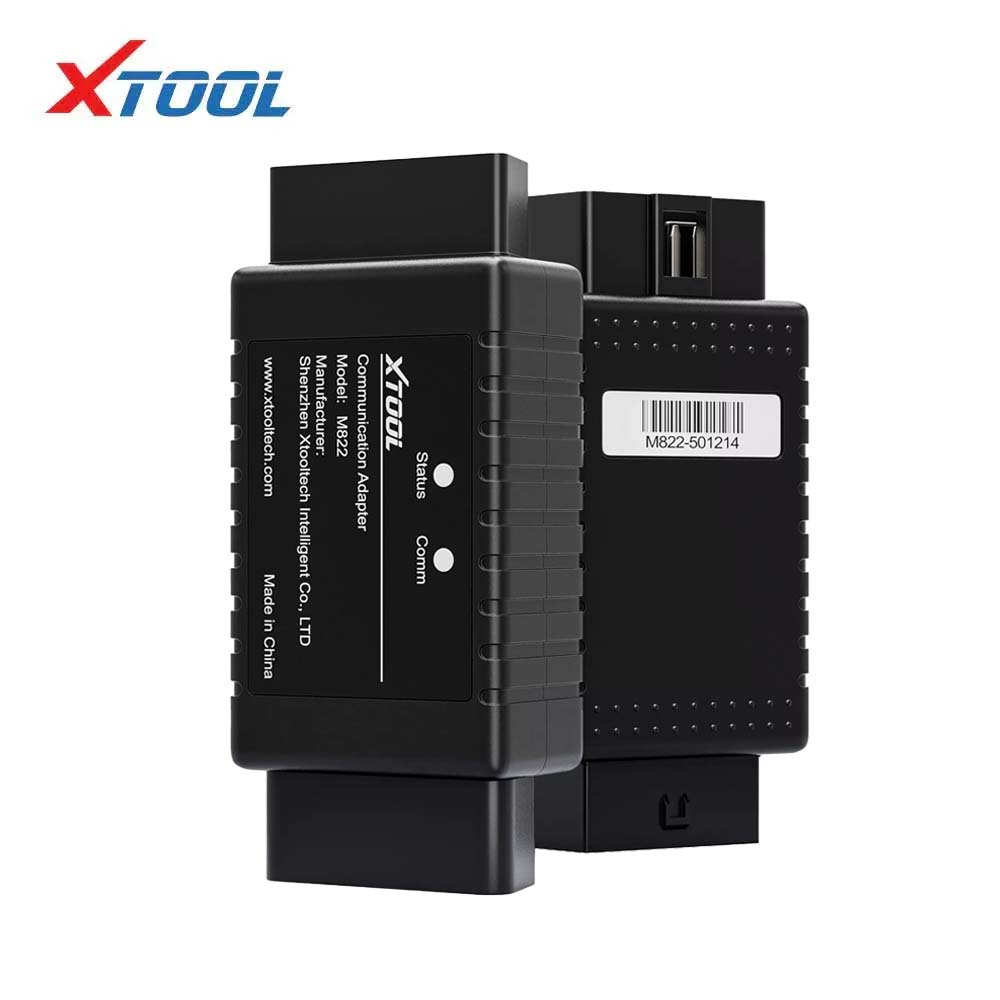

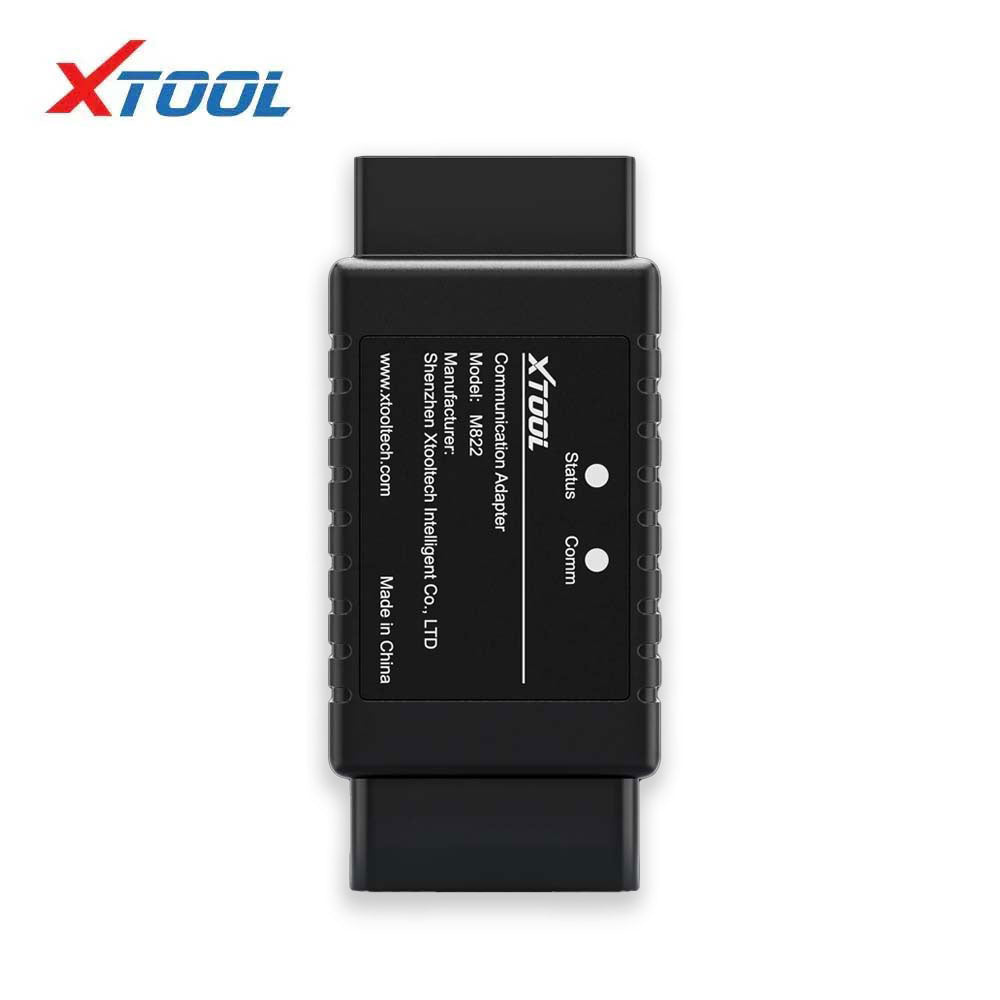

M822 Fit For Mercedes-Benz All Keys Lost

• OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables. *Caution: Don't connect to the OBD port on the car directly.
• Status Light: Shows the power status of the adapter. When the red lights are on, that indicates the power is on.
• Comm Light: Shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.
• DB15 port: Used to connect to the main cable of XTOOL tablets.

*Note: Before connected to M822 Adapter, please disconnect the OBD2-16 connector from the main cable.

XTOOL PCB (SK1) Toyota 8A Smart Key Emulator + Toyota Data Collector

As an automotive professional, you know that dealing with lost or damaged smart keys for 2013+ Toyota models can be a costly and time-consuming process. That's why the XTOOL AnyToyo SK1 Smart Key Emulator for the AutoProPad is a must-have tool for your business. Not only does it save you time and money, but it also adds convenience to your service offerings.

Included:

• AnyToyo SK1 Smart Key Emulator
• AnyToyo 8A-Universal Smart Key PCB

Parameters:

• Port: USB 3.0
• Frequency: 315/433 MHz (RF) / 125 KHz (LF)

Functions:

• Add key
• All keys lost
• Emergency start
• Frequency and key type reading

Features:

• Bench-free, pincode-free, OBD-free
• Protects original data in smart box, still supports OEM key matching after copying keys
• Open-source smart key, can be used with other programmers
• OEM-level key chip with excellent compatibility

Compatible Vehicles:Toyota/Lexus 2013-2022 with 8A smart key
