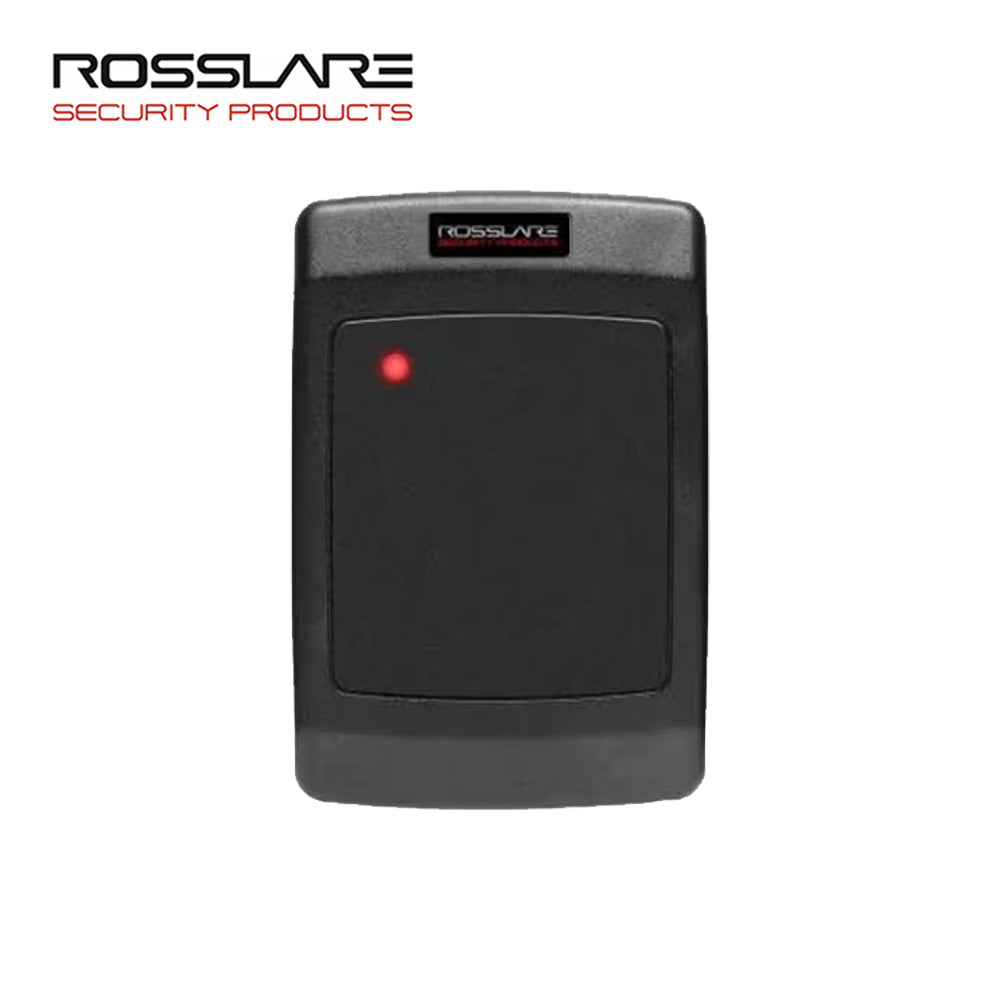

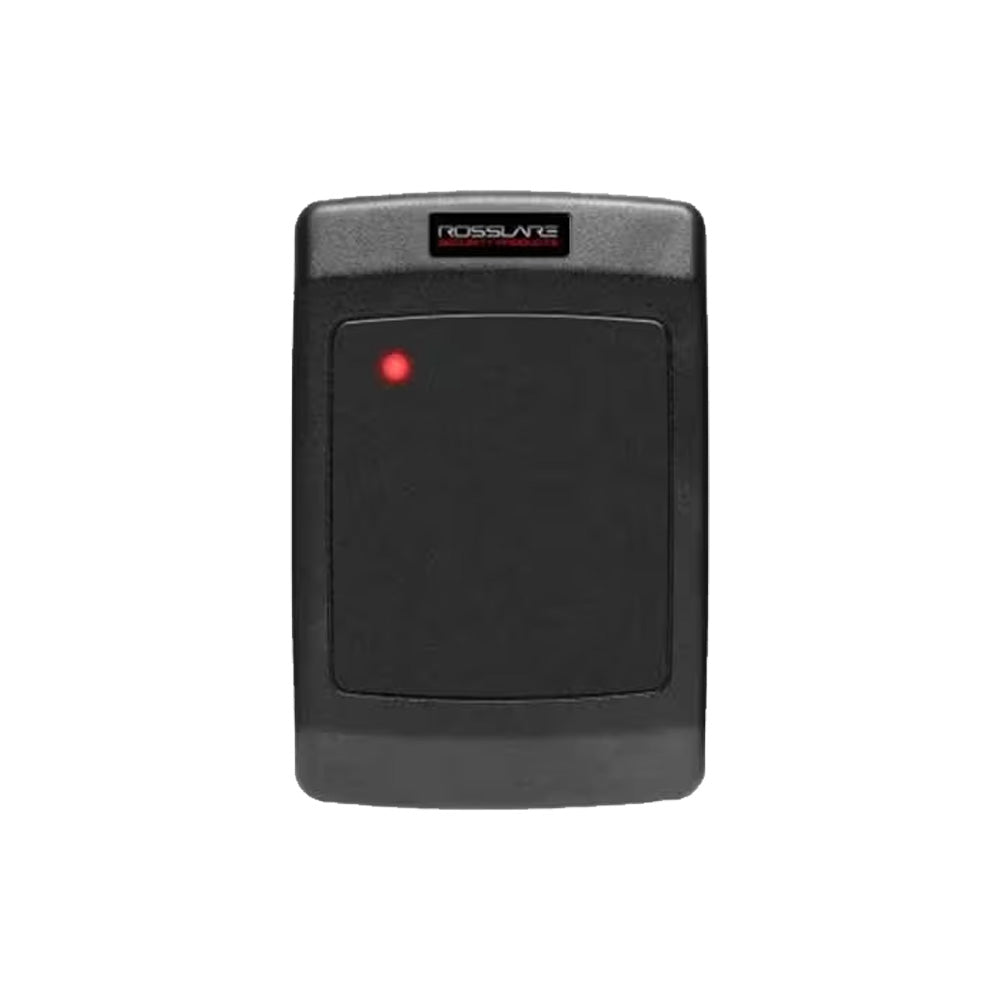

Rosslare - AY-H25B - MIFARE Classic Contactless Smart Card Reader
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Rosslare - AY-H25B - MIFARE Classic Contactless Smart Card Reader
Description
Description
Rosslare - AY-H25B - MIFARE Classic Contactless Smart Card Reader
Rosslare's AY-H25B is a reliable reader capable of reading MIFARE Classic EV1 smart card Contactless cards utilizing any standard access control system. With 7 selectable output formats, it is suited to most existing systems by reading only the required information from the card. The AY-H25B reader is fully potted, sealed, and made of rigid, UV resistant poly-carbonate housing, which make them highly suitable for outdoor use. This reader is a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard. The AY-H25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems.
Features:
- Incorporates the ISO-14443A MIFARE Classic EV1 ID Format Protocol.
- Read range between of 6 to 7 cm (2.4 to 2.8 in.).
- Programmable output formats including standard Wiegand 26-Bit.
- Selectable LED control and buzzer control functions.
- Made of tough Polycarbonate plastic for improved performance in all weather conditions.
- Optical back tamper detection.
- Internal buzzer.
- PC software and programming adapter (MD-08B) for easy configuration.
- Weather Resistant.
Specifications:
| Operating Voltage Range | 5-16 VDC, from a regulated power supply |
| Standby/Max Input Current | 35 mA / 55 mA |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Inputs | Programmable LED and buzzer control inputs, N.O, Dry Contact |
| Indicators | Tri-colored LED indicators |
| Output Format | Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data |
| Proximity Card Reader | MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal. |
| Max. Read Range | 70 mm (2.8 in.) |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Dimensions | 4.3 x 3.0 x 0.6 in. |
| Weight | 116.9 g (4.1 oz) |
| Device Certifications | IP65 |
