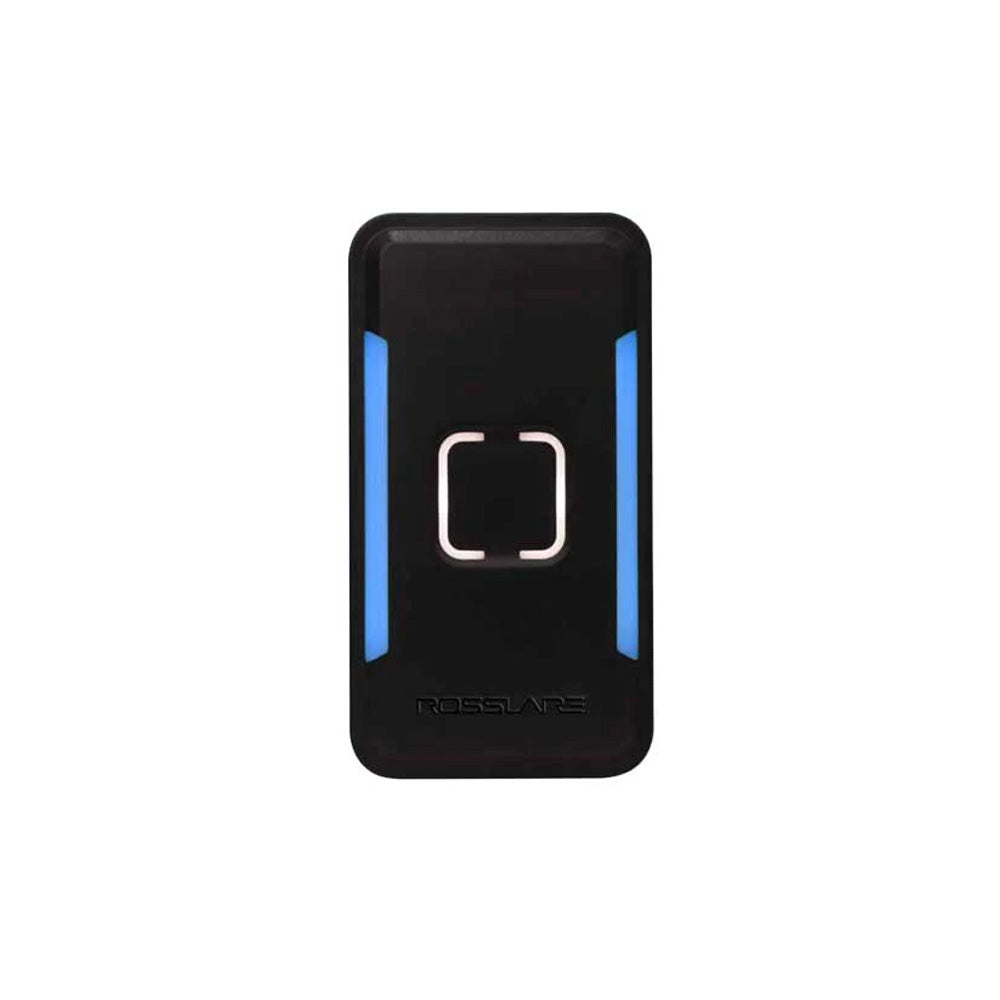

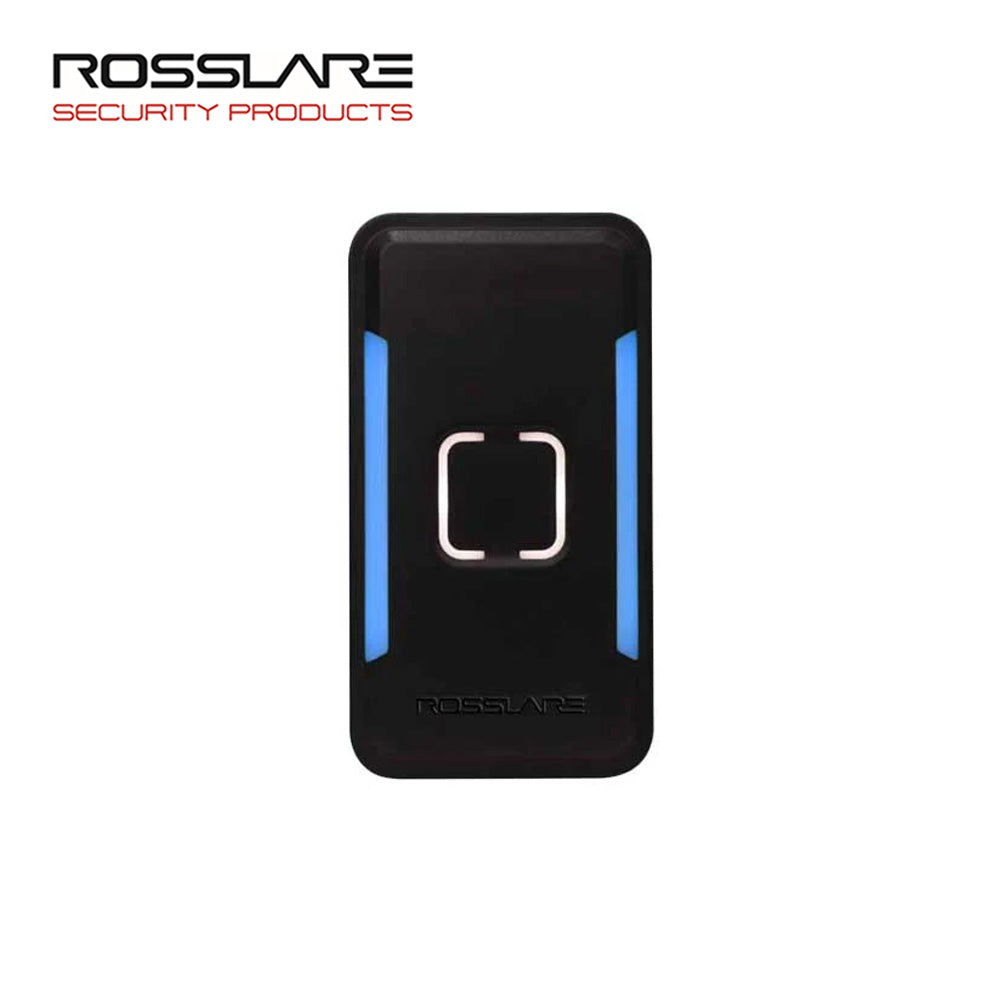

Rosslare - AY-K35 - Multi Smart Reader with Multiple Technologies Support - 125 KHz FSK and ASK - 13.56 MHz Frequency - Bluetooth and NFC
Rosslare readers are known for their reliability, high performance and attractive design. Placed in protected or unprotected areas, readers deliver credentials to the controller located at a secure location. With a broad selection to choose from, our readers are designed to fit the current and future architectural, technical and environmental needs of any organization.
Key Features:
- Supports CSN credentials types including 125 kHz (FSK & ASK), wide range of 13.56 MHz standards including MIFARE Classic EV1 Sector Read, and Bluetooth and NFC.
- Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with an extended range, up to 32 addresses.
- Fully programmable using Rosslare BLE-Admin app.
- Touch button for different functions.
- Antimicrobial technology reduces level of microbes on reader by up to 99.8%.
- IP68 Water and dust resistant, IK08 vandal resistant.
Specifications:
| Operating Voltage Range | ISO 125 kHz Proximity Multiple |
| Current at 12 VDC | Maximum: 300 mA @ 12 VDC |
| BLE Read Range | 12 m (39.3 ft) (line of sight) |
| RFID and NFC Read Range | Contactless: 13.56 MHz: 5 cm (1.97 in.), 125 kHz: 8 cm (20.32 in.) |
| LED/Buzzer Controls | Dry Contact, N.O |
| Tamper / Touch Button Output | Optical tamper, open collector, active low, max. sink current 20 mA @12 VDC, 10 mA@5 VDC. Current limit: 500 Ω series resistance |
| RFID | 125kHz ASK 125kHz FSK - supports Wiegand 26, 32, 34, 35, 37, 40, 48 bit 13.56MHz: ISO14443A (UID): MIFARE Classic EV1: Sector Read, MIFARE Ultralight Nano /Ultralight EV1/ Ultralight C, MIFARE Classic / Classic EV1 MIFARE Plus S / SE / x / EV1, MIFARE DESFire EV1, LEGIC ISO14443B (UID), ISO15693 HID, iClass, PicoPass, iCode, LEGIC ISO18092 (UID): SONY FeliCa |
| Communication and Controller Connection | Wiegand 26-64 bit, Clock & Data, and OSDP Secure Channel V2 via 11-wire Pigtail (58 cm / 22.8 in.) |
| Operating Environment | IP68, UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK09 |
| Operating Temperature Range | -35°C to 66°C (-31°F to 150°F) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.8% |
| Material Type | Tough polycarbonate plastic |
| Enclosure Dimensions (H x W x D) | 88 × 48 × 24 mm (3.46 x 1.89 x 0.94 in.) |
