Rosslare - AYC-E65BW - Convertible Ultra-Slim Piezo Mullion Backlit...
Description
Description

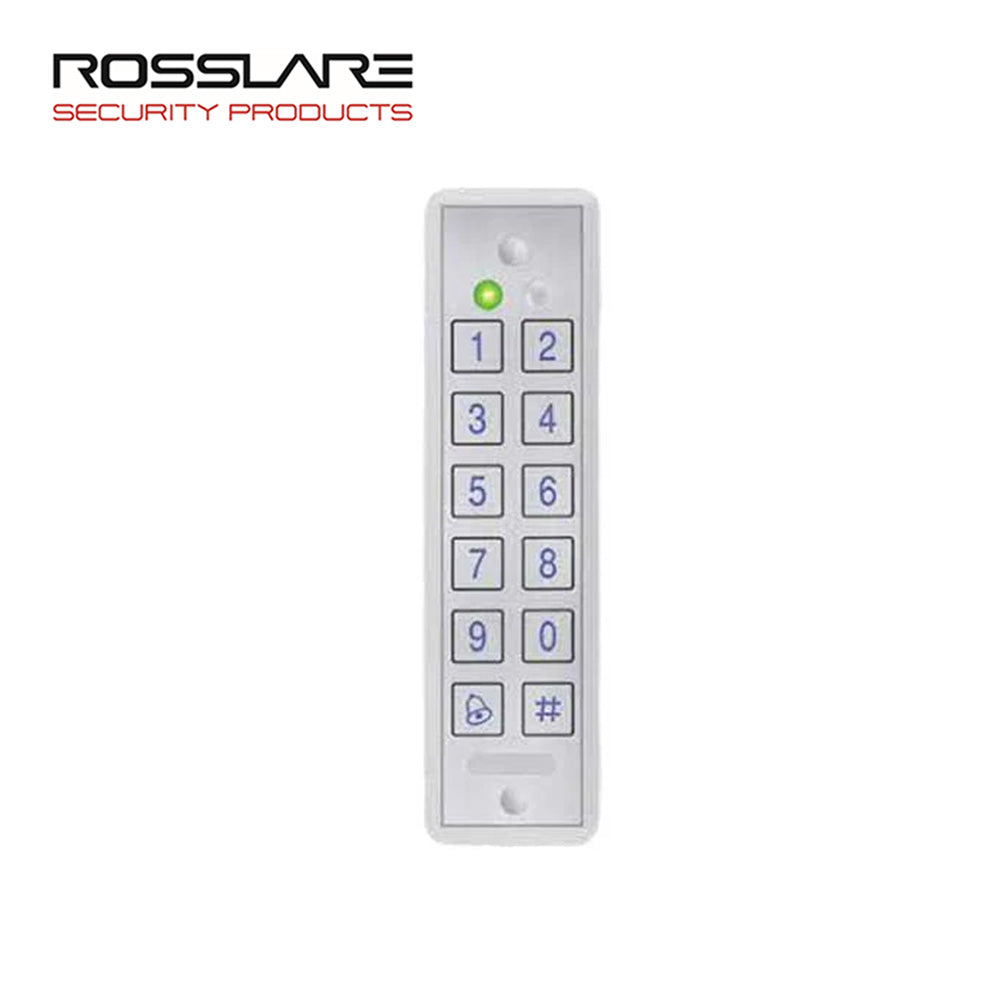

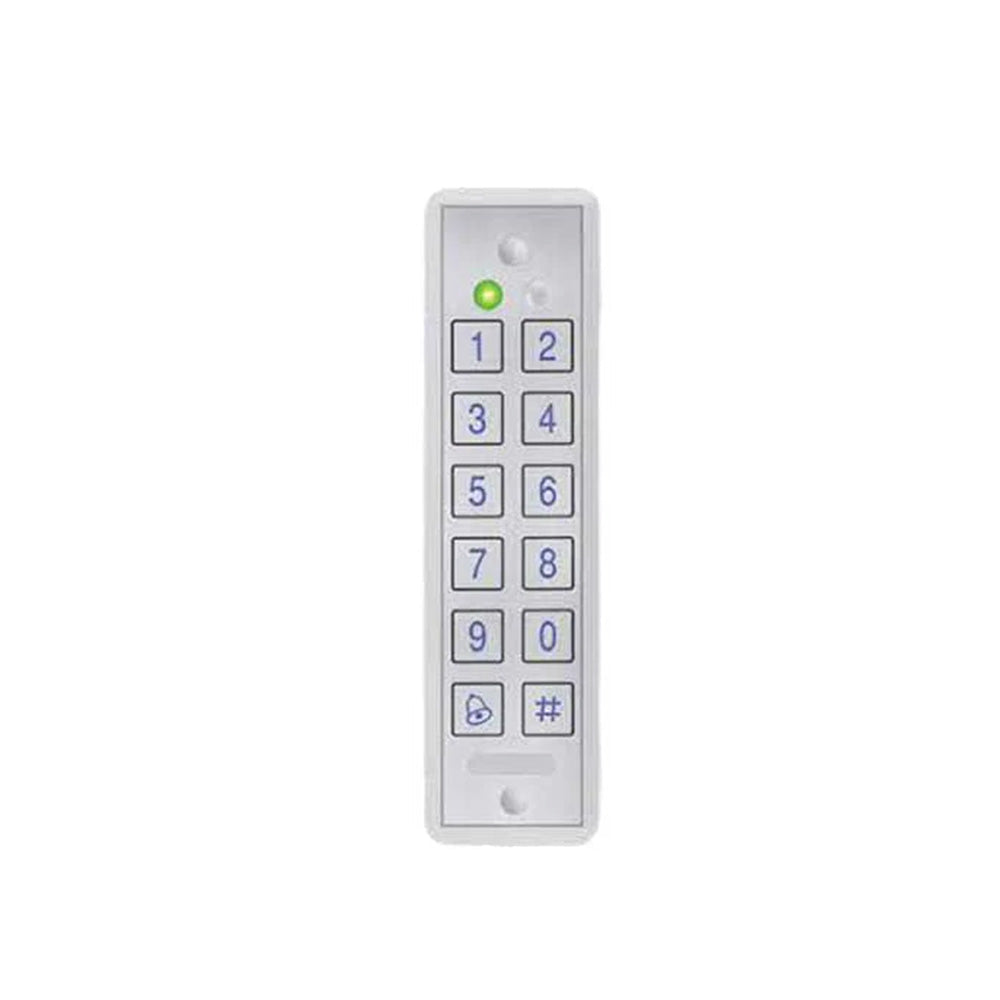

Rosslare - AYC-E65BW - Convertible Ultra-Slim Piezo Mullion Backlit Proximity and PIN Reader - White
The AYC-E65BW has a unique ultra-slim profile, smooth metallic surface and high sensitive piezoelectric keys, now combined with shiny illuminated digits and a Proximity card reader makes this unit highly attractive for all-weather PIN & Prox access applications. The AYC-E65BW offers highly attractive yet durable solution for any need. This unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-users controller when connected to the PS-x5T intelligent power supply/relay unit. This model comes with white antenna.
Features:
- Ulta-slim flush mount design.
- Built-in piezoelectric keypad for PIN code entry.
- Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, high-visibility unique illuminated piezoelectric keypad.
- Optical back tamper detection output.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User-friendly menu system based on keypad, LED, and sounder indicators.
- Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays.
Specifications:
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | 92 mA @ 12 VDC |
| Input Current Max | 105 mA @ 16 VDC |
| Proximity Card Reader | Maximum read range*: 40 mm (1.6 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Keypad | 2x6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Audio Visual | Two tri-colored LED indicators, built-in buzzer |
| LED Control | Dry contact, N.O. |
| Facility Mode | Programmable |
| Operating Temperature | -30°C to 65°C (-22°F to 150°F) |
| PIN Code Formats | 8 selectable formats, from 1 to 8 digit length PIN Codes |
| Dimensions | 155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in.) |
| Weight | 143 g (0.315 lbs) |
