Rosslare - AYC-F64 - Backlit Proximity with PIN Convertible Reader ...
Description
Description

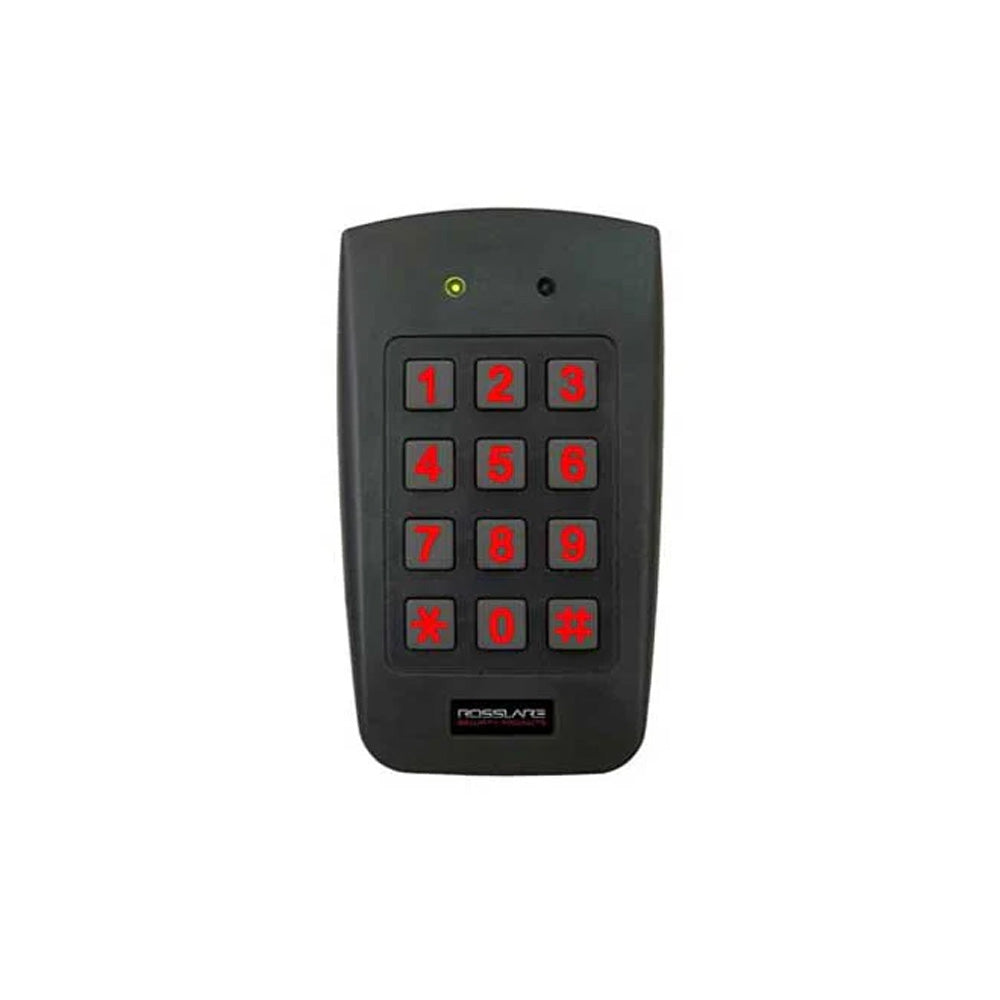

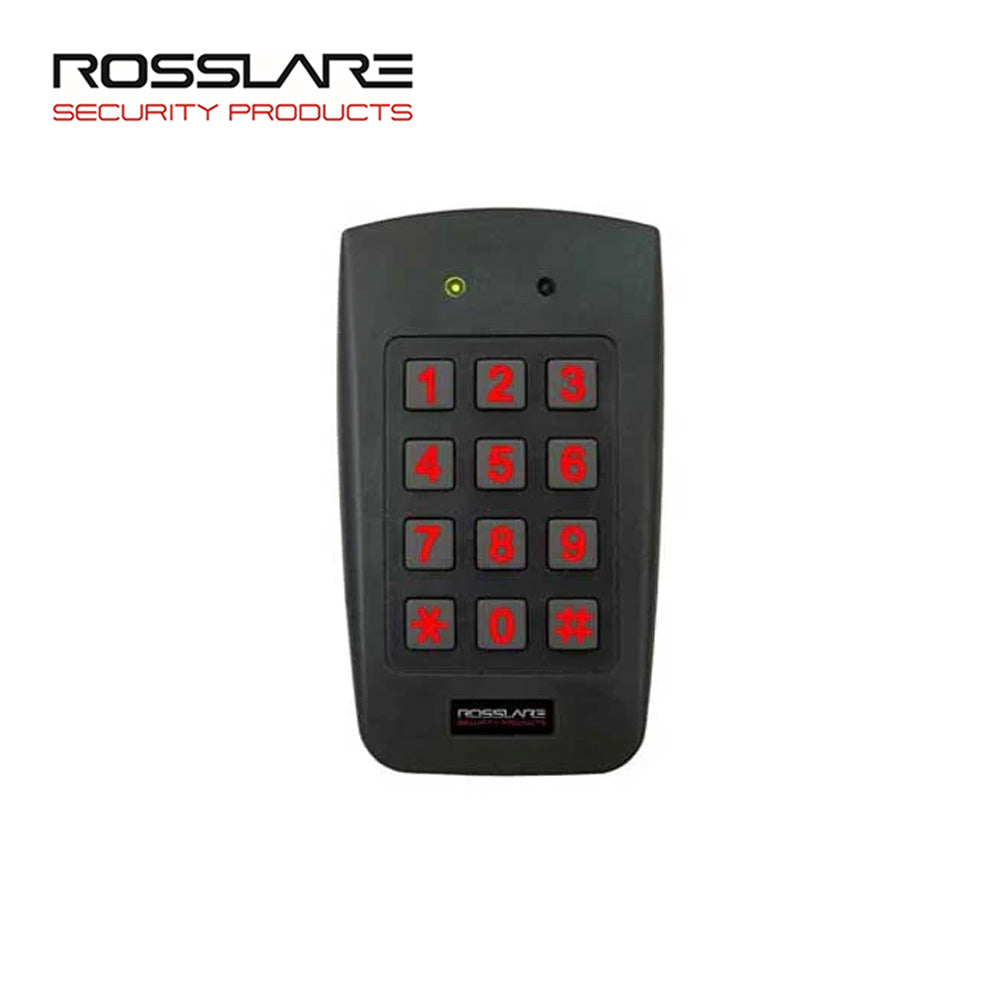

Rosslare - AYC-F64 - Backlit Proximity with PIN Convertible Reader and Controller
The AYC-F64 offers programmable PIN and proximity transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible RED backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User friendly menu, based on keypad, LED, and sounder indicators.
- Back and cover optical tamper detection and output.
- Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data).
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
- 8 selectable PIN transmission modes including options for key stream, Binary, Parity, and 3x4 Matrix.
- Supports Wiegand 26-Bit or Clock & Data transmission formats.
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN).
- 60 cm (23.6 in.) shielded interface cable.
- Meets IP65.
Specifications:
| Operating Voltage Range | 5-16 VDC |
| Input Current | 105 mA |
| Input Current Max | 140 mA |
| LED Control Input | Dry Contact N.O. |
| Proximity Card Reader | Maximum read range*: 80 mm (3.2 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards |
| Tamper | Open collector, active low, 32 mA max sink current |
| Keypad | 3x4 keys for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| Facility Code | Programmable |
| Card Read Formats | Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit length PIN codes |
| Capacity | 500 Users, dual code/card or code + card each |
| User Levels | Normal, Secure, Master |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 120 x 76 x 21 mm (4.7 x 3.0 x 0.8 in.) |
| Weight | 215 g (7.6 oz) |
Downloads:
