Rosslare - AYC-Q64B - Anti-Vandal US Single Gang Backlit Prox and P...
Description
Description

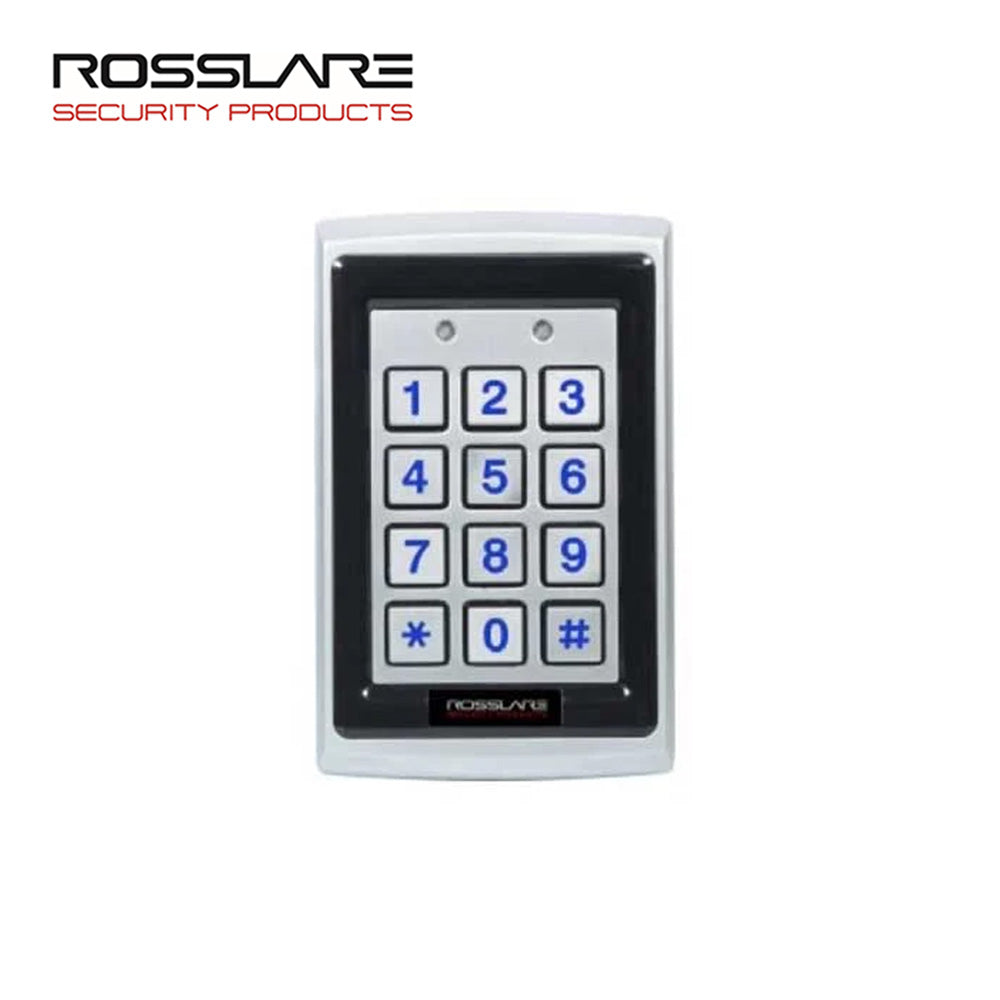

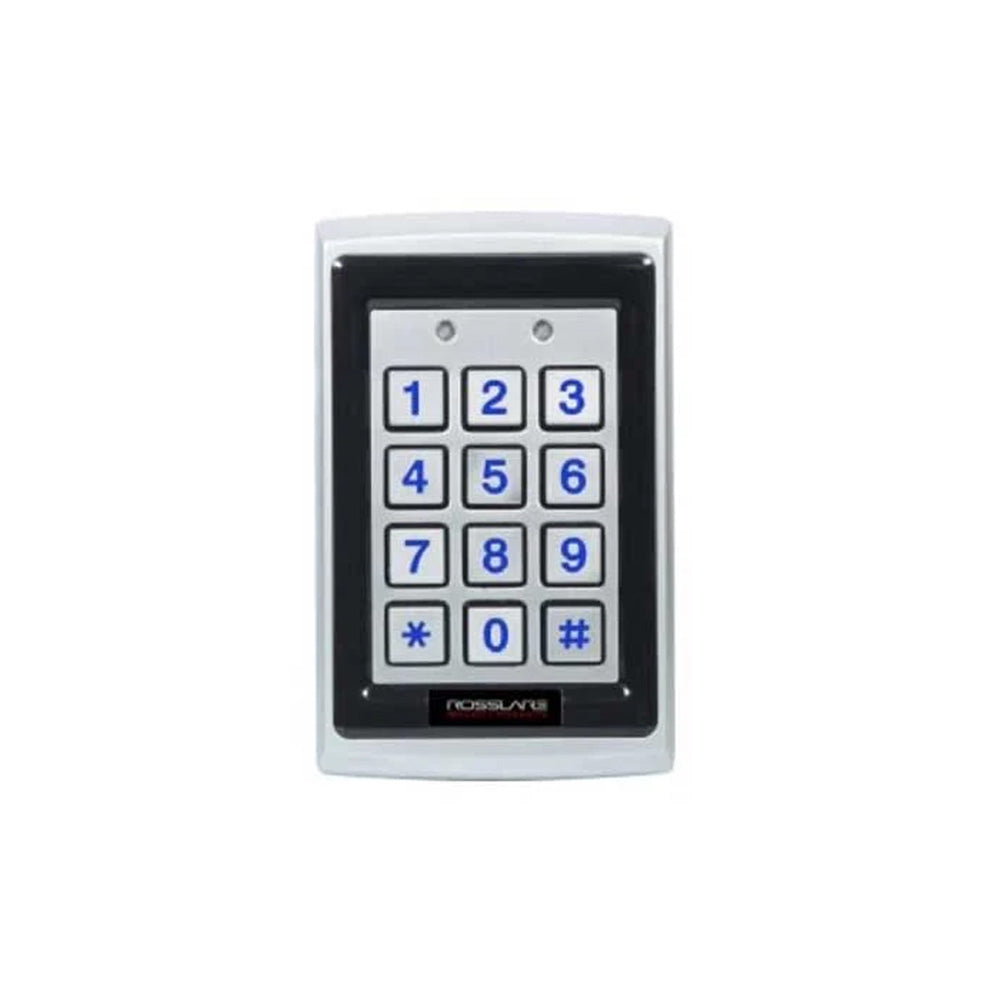

Rosslare - AYC-Q64B - Anti-Vandal US Single Gang Backlit Prox and PIN Reader - Convertible - 5-16VDC - IP65
The AYC-Q64B is part of the convertible line of readers/controllers, this unit can be operated as an outdoor backlit keypad and proximity reader that connects to any standard controller, or can convert into a fully featured, 500-user standalone controller when connected to Rosslare's PS-x25T family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN & proximity credentials are required. This attractive model features unique shiny blue illuminated metal keys on a metallic, epoxy filled, sealed housing.
Features:
- Supports 4 to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible blue backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User friendly menu, based on keypad, LED and sounder indicators.
- Back and cover optical tamper detection and output.
- Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data).
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
Specifications:
| Operating Voltage Range | 5-16 VDC from a standard controller |
| Input Current | 90 mA at 12 VDC |
| Input Current Max | 130 mA at 16 VDC |
| Max Read Range | 45 mm (1.8 in.) Modulation: ASK at 125 kHz |
| Compatible Cards | All 26-Bit EM cards |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| Keypad | 3x4 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments. |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| LED Control | Dry Contact N.O. |
| Facility Code | Programmable |
| Read Card Format | Selectable Wiegand 26-Bit or Clock & Data |
| Controller Capacity | 500 users, dual code/card or code + card each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Weight | 480 g (1.1 lb) |
| Dimensions | 120 x 76 x 21 mm (4.7 x 3 x 0.8 in.) |
