Rosslare - GC-01 - Guard Patrol Data Acquisition Reader - 3.6 VDC
Description
Description
Rosslare - GC-01 - Guard Patrol Data Acquisition Reader - 3.6 VDC

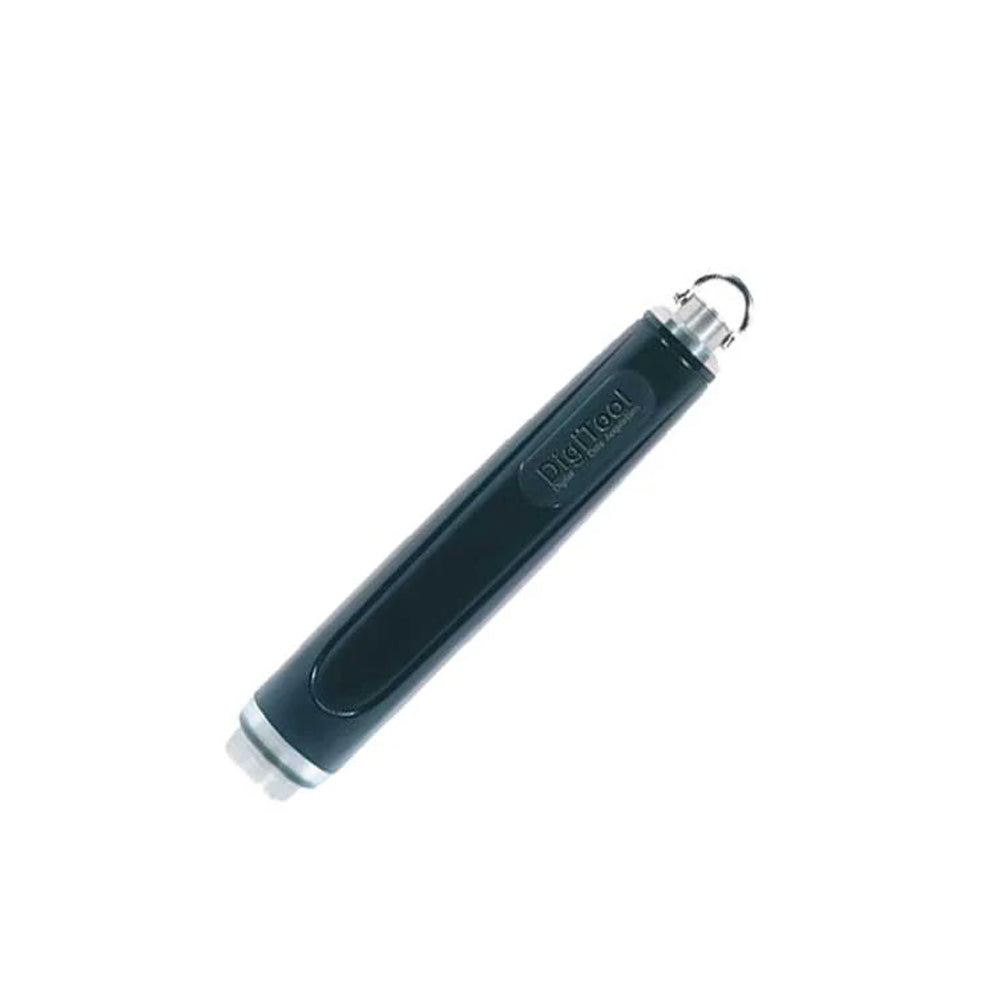

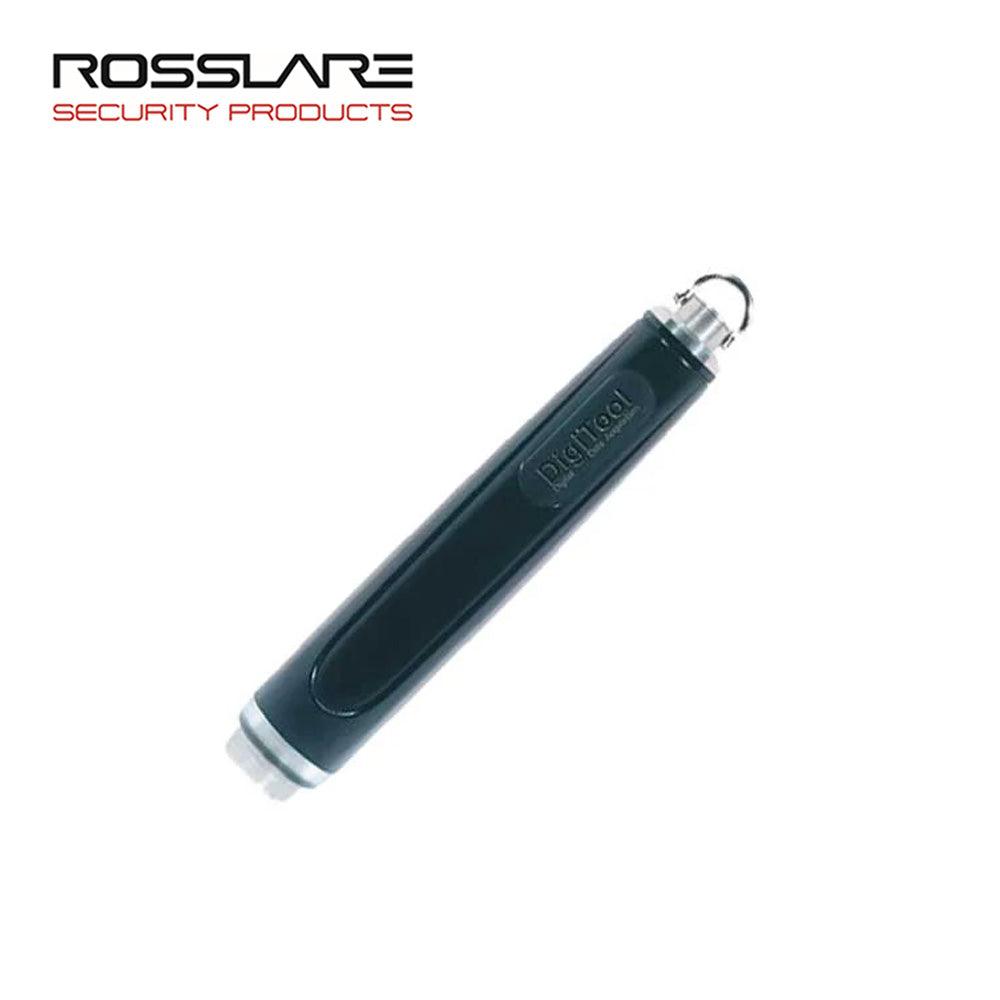

The GC-01 DigiTool Data Acquisition Reader is a handheld iButton data reader. Use this Reader during a guard patrol tour to conveniently read and store information from iButton location tags and event wallets. The reader can store up to 8000 time stamped readings. Using the GC-02 DigiTool base unit, information from the reader can then be downloaded to a server computer running Rosslare's GS-01 DigiTool Reports Lite software.
Features:
- Low battery and memory full alerts by means of vibration, visual, and audio beeps.
- Three modes of notification: 1. Built-in 360 LED array for increased visibility of valid iButton reads 2. Built-in vibrating motor for tactile read confirmation 3. Built-in buzzer for audio read confirmation.
- High capacity rechargeable internal 1800 mAh Lithium-ion battery.
- Highly-rugged and waterproof (meets IP-68 level tests).
- 9600 baud speed uploading/ downloading speed.
Specifications:
| Construction | Polycarbonate and stainless steel housing |
| Operating Voltage | 3.0 - 3.6 VDC |
| Input Current | Standby: 6 µA |
| Max Input Current | 21 µA |
| Uploading/Downloading Speed | 9600 baud speed |
| Number of Reads | Stores up to 8000 reads and time stamps |
| Battery | Internal Lithium-Ion 1800 mAh rechargeable battery for six month use or 300,000 readings |
| Battery Charging Time | Battery charges in three hours from empty to full |
| Buzz Sounder Indication | Internal sounder for audio verification |
| LED Indication | Four ultra-bright LEDs visual read validation 360 Degree LED viewing angle light-pipe |
| Data Read Speed | 0.1 seconds per read |
| International Safety and EMC | Complies with International Safety and Emissions Regulations |
| Operating Environment | Suitable for outdoor use (IP68 rated) |
| Dimensions | 175 x 33 mm (6.9 x 1.3 in.) |
| Weight | 225 g (0.5 lb) |
| Product Warranty | 2-Year Limited Warranty |
