Rosslare - GC-02 - Data Acquisition Reader Base - AC/DC Charger
Description
Description

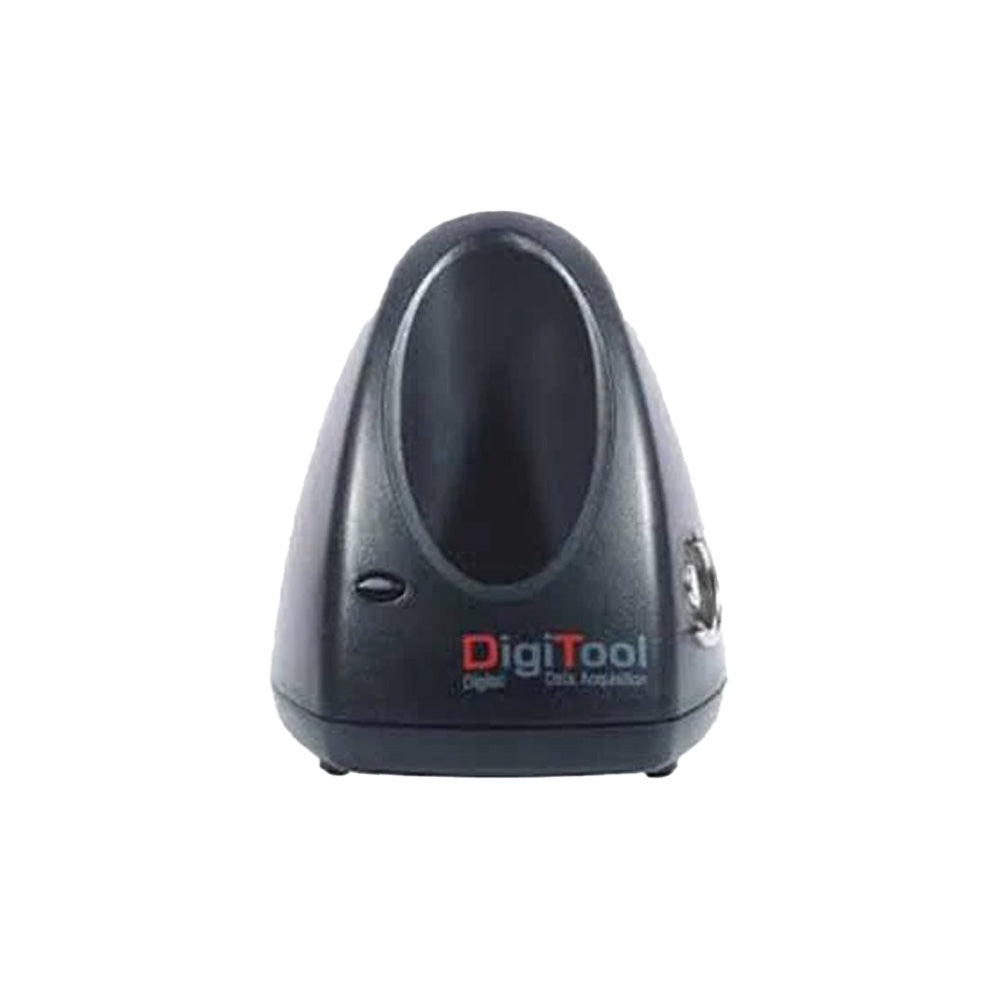

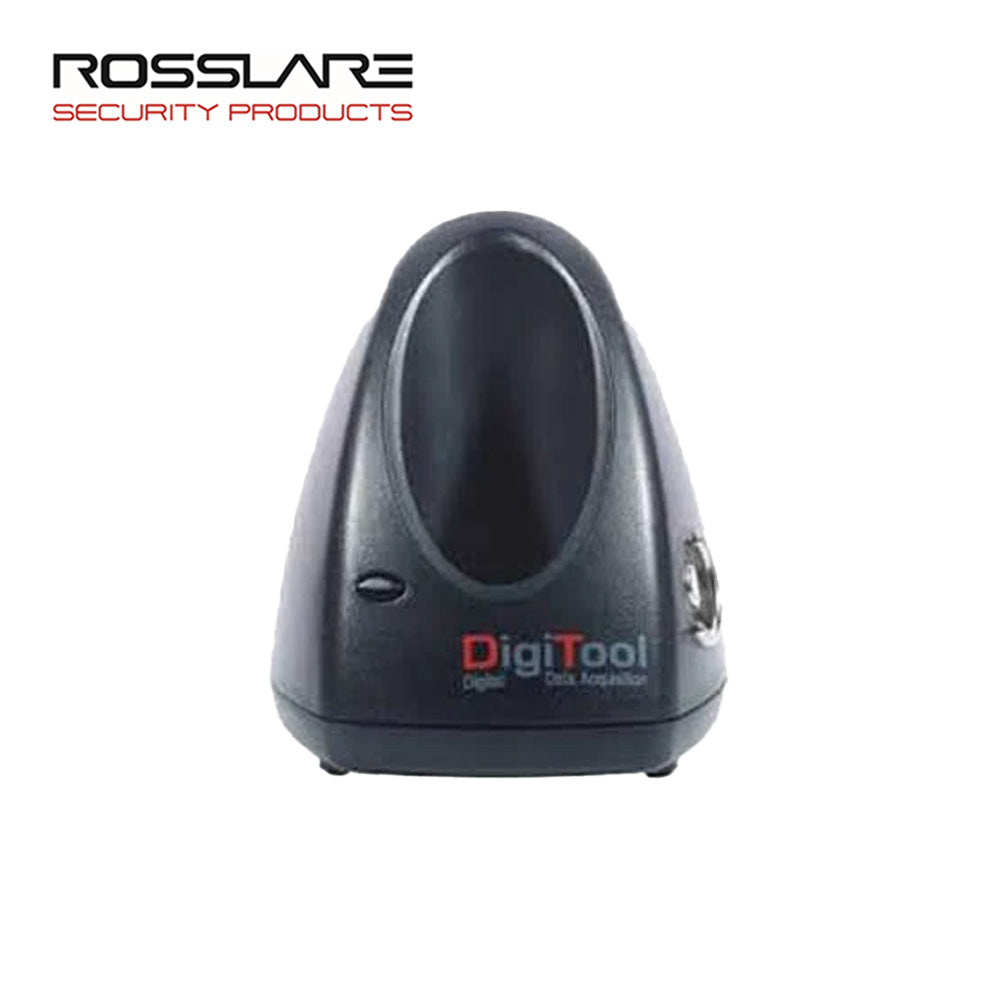

Rosslare - GC-02 - Data Acquisition Reader Base - AC/DC Charger
Rosslare's DigiTool GC-02 Base is designed with a focus on high quality and reliability as a top priority. The GC-02 Base docking-station is made of rugged ABS plastic. It contains a nickel-plated steel iButtonTM ID chip Reader, a built-in rapid charger with a unique swiveling DC power connection, and a rotating RS232 serial connector for wall or desktop mount. The GC-02 Base facilitates data transfer from the GC-01 Reader to a single PC for report generation and data analysis using DigiTool GS-01 Reports Light or GS-02 DCC DigiTool Call Center remote monitoring software.
Features:
- Low battery and memory full alerts by means of vibration, visual, and audio beeps.
- Spring-loaded contacts for easy docking of the GC-01.
- Built-in AC-DC adapter and fast charger for the GC-01's 1800 mAh lithium-ion battery.
- AC-DC wall transformer included.
- Built-in ID chip reader for enrollment and recording of locations, events, and user tag data.
- Ultra-low power consumption.
- 3-color LED battery-status indicator: Orange - GC-01 Reader not docked. Red - GC-01 is docked and charging. Green - GC-01 battery is fully charged.
- Contains no parts that requires user servicing.
- Attractive, efficient, and rugged dust and water resistant design.
Specifications:
| Operating Voltage | 9-12 VDC |
| Input Current | Standby: 6 µA |
| Max Input Current | Maximum: 21 µA |
| Battery Charging Time | Fully charges the GC-01 battery in 3 hours |
| Battery LED indicators | Orange: reader is not docked Red: battery is being charged Green: battery is full |
| ID Chip Reader | Reads location, event, and user tags Automatically "learns" location ID number when PC software is in learn mode |
| RS-232 Connector to PC | 9-pin serial port, 9600 baud rate |
| Product Models | Dallas iButtonTM: GC-02 Generic numeric ID: GC-02F |
| Dimensions | 100 x 82 x 80 mm (3.94 x 3.23 x 3.15 in.) |
| Weight | 180 g (0.40 lbs) |
