Autel MaxiCheck MX900TS All System and Service Diagnostic Scanner with Bi-Directional Control and Full TPMS Functions

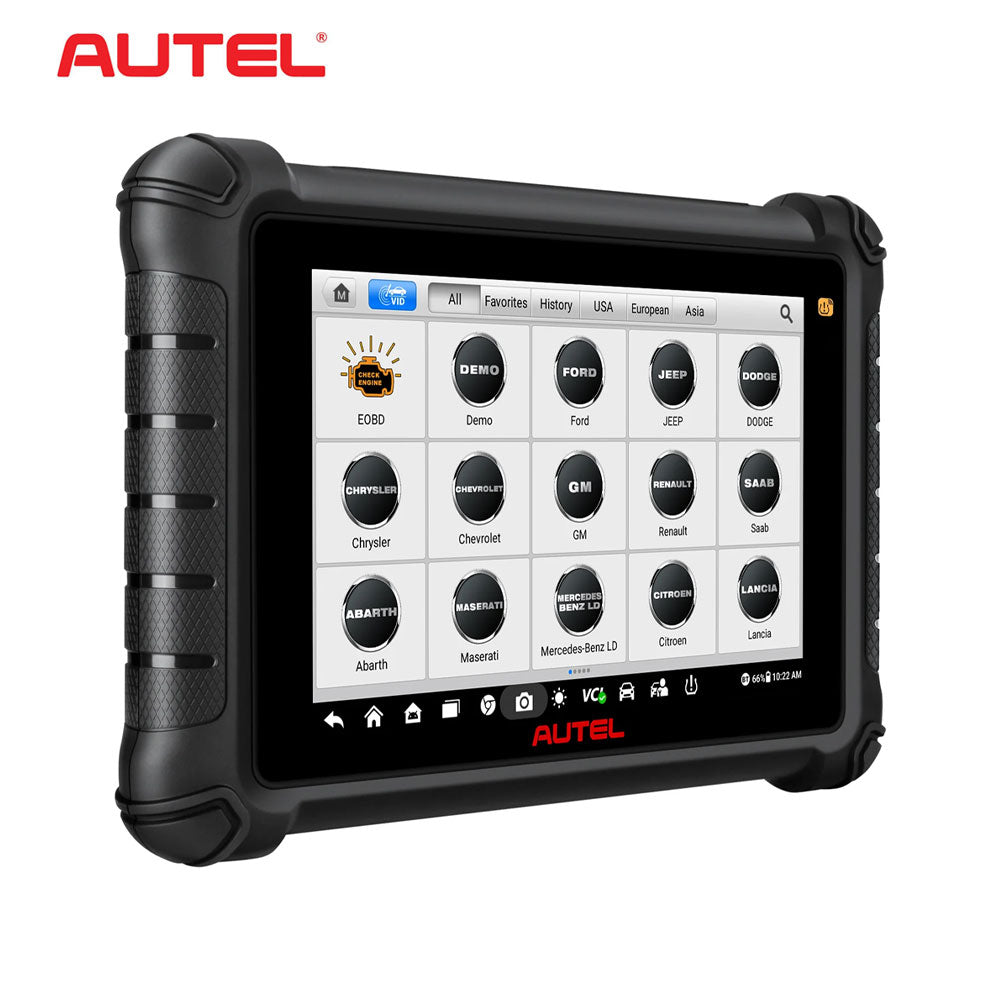

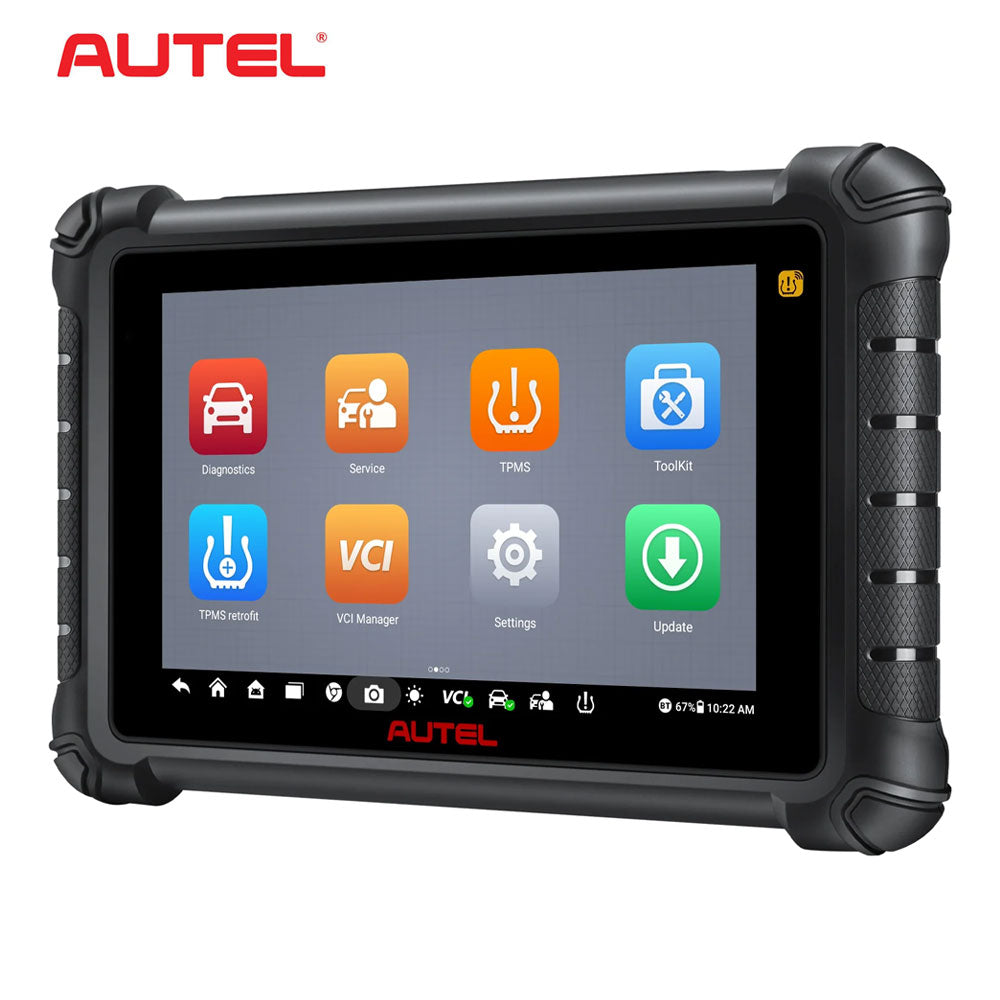

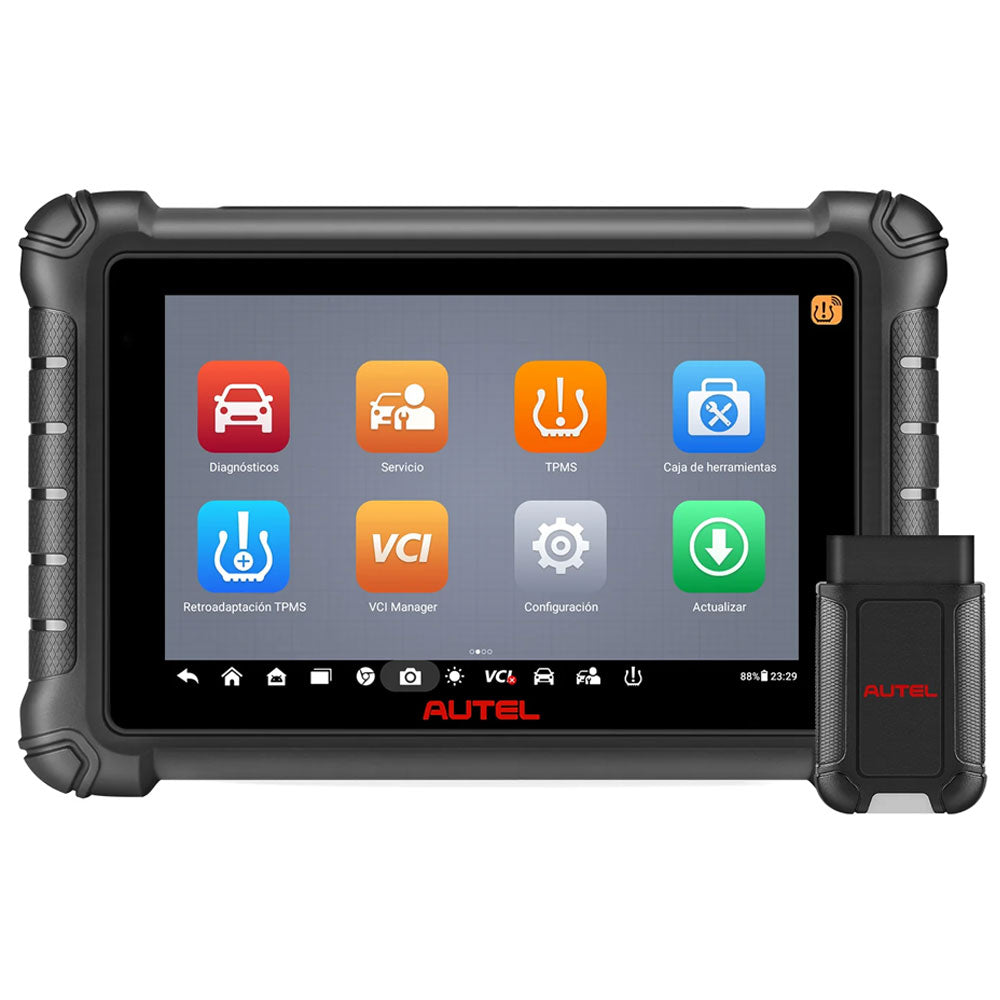

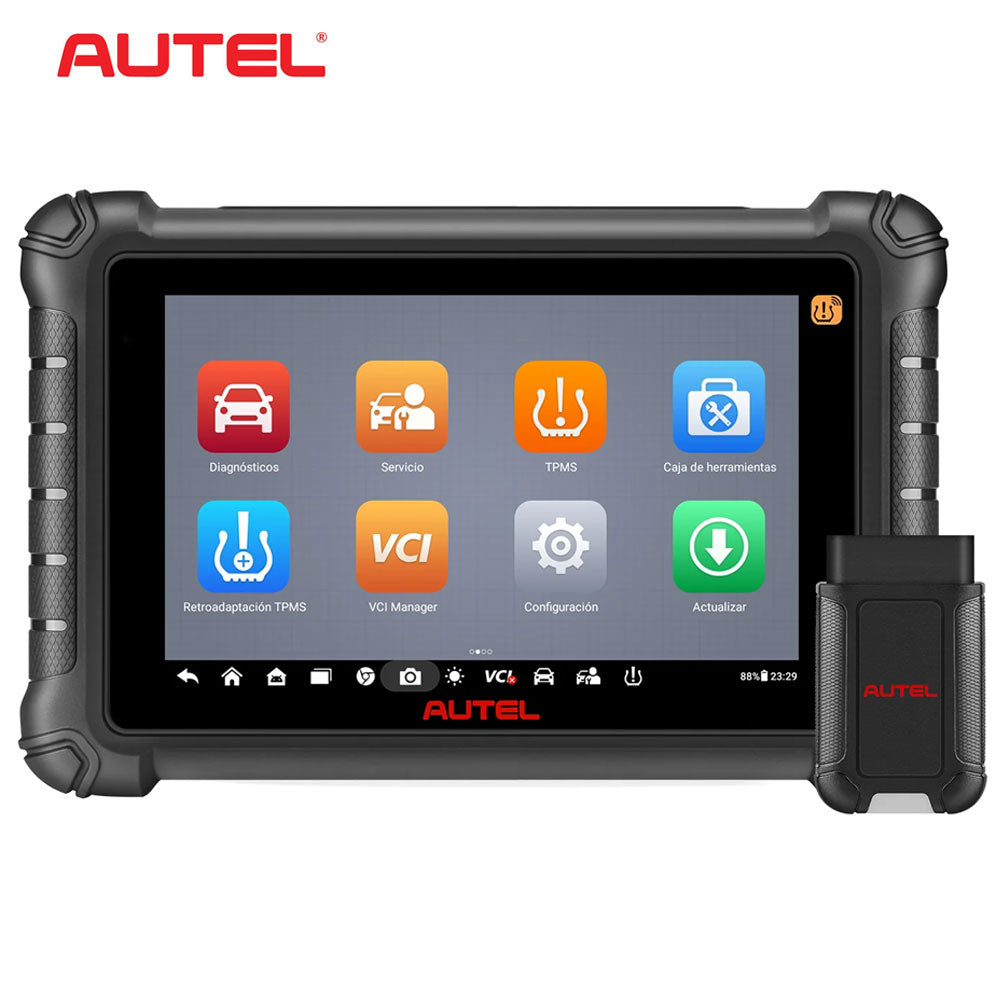

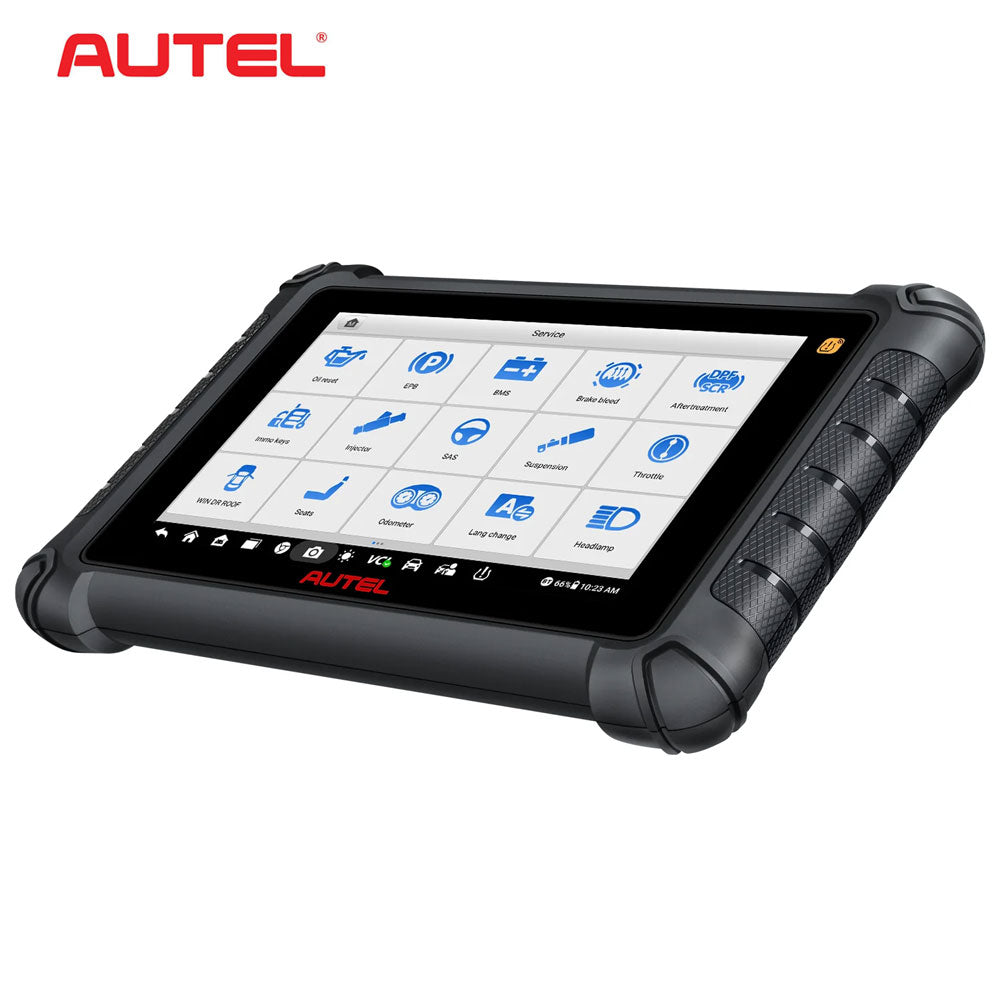

The new MaxiCheck MX900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The MaxiVCI V150 for wireless communication with the test vehicle and its advanced wireless technologies make it truly portable and Internet accessible.
Features:
- Extensive vehicle coverage for U.S., Asian, and European vehicle makes
- Exceptional OE-Level system for all electronic systems
- Excellent functions for reading codes, live data, ECU information and performing active test, adaptation, and matching, etc.
- Features DoIP and CAN FD protocols
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push notifications through the Internet
- Instant remote control tech support anytime and anywhere
- Advanced TPMS diagnostics with DTC description
- TPMS status, one step for complete TPMS health check
- Activate all known TPMS sensors
- Program AUTEL MX-Sensor
- Comprehensive OBD relearn coverage
- On-screen relearn procedure
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Supports Pre & Post Scan
Specifications:
| Operating System: | Android 11 |
| Processor: | Quad core Processor(1.8GHz) |
| Memory: | 4GB RAM & 64GB ROM |
| Display: | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera: | 8 MP |
| Connectivity: | USB Type-C USB 2.0 Wi-Fi Bluetooth Mini SD card (supports up to 64GB) |
| Audio Input / Output: | Input: N/A Output: buzzer |
| Power and Battery: | 3.7 V/7700mAh lithium-polymer battery Charges via 5 VDC power supply |
| Battery Charging Input: | 5 V/3 A |
| Operating Temperature: | 0 to 50°C (32 to 122°F) |
| Storage Temperature: | -10 to 60°C (14 to 140°F) |
| Protocols: | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |

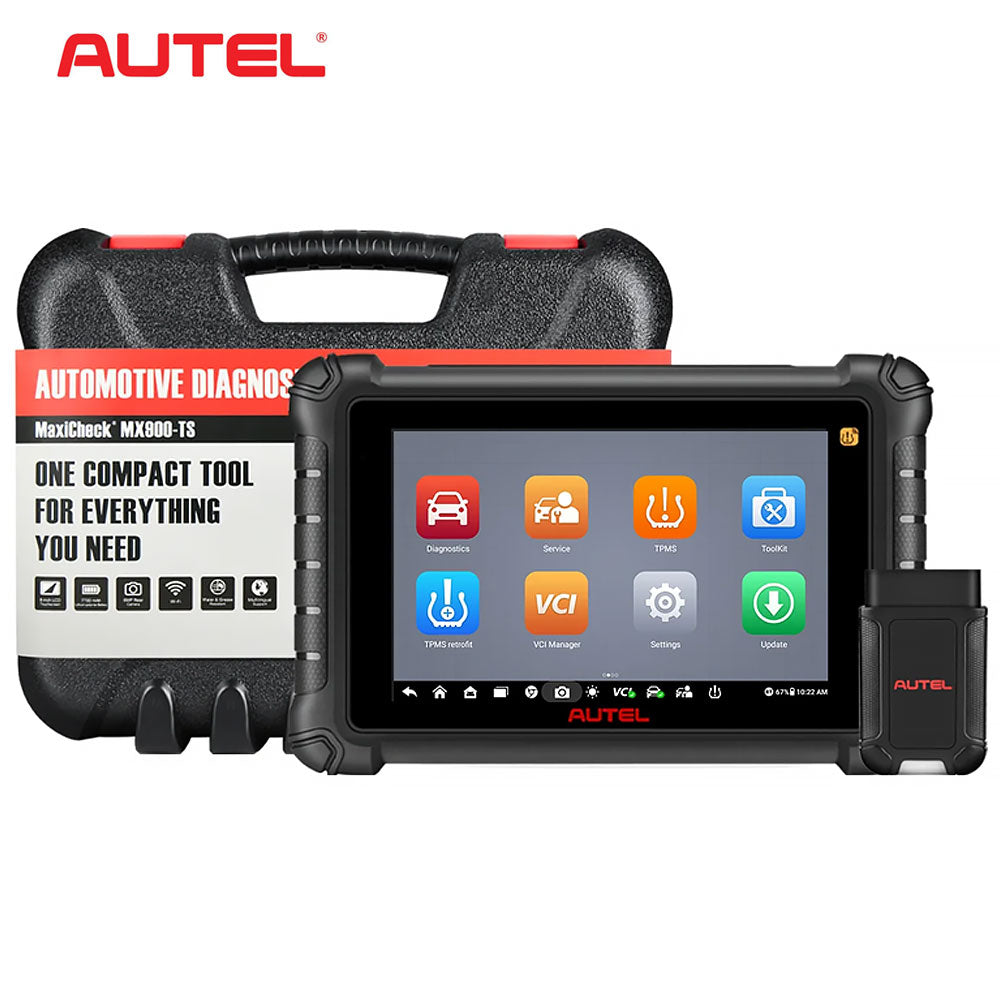

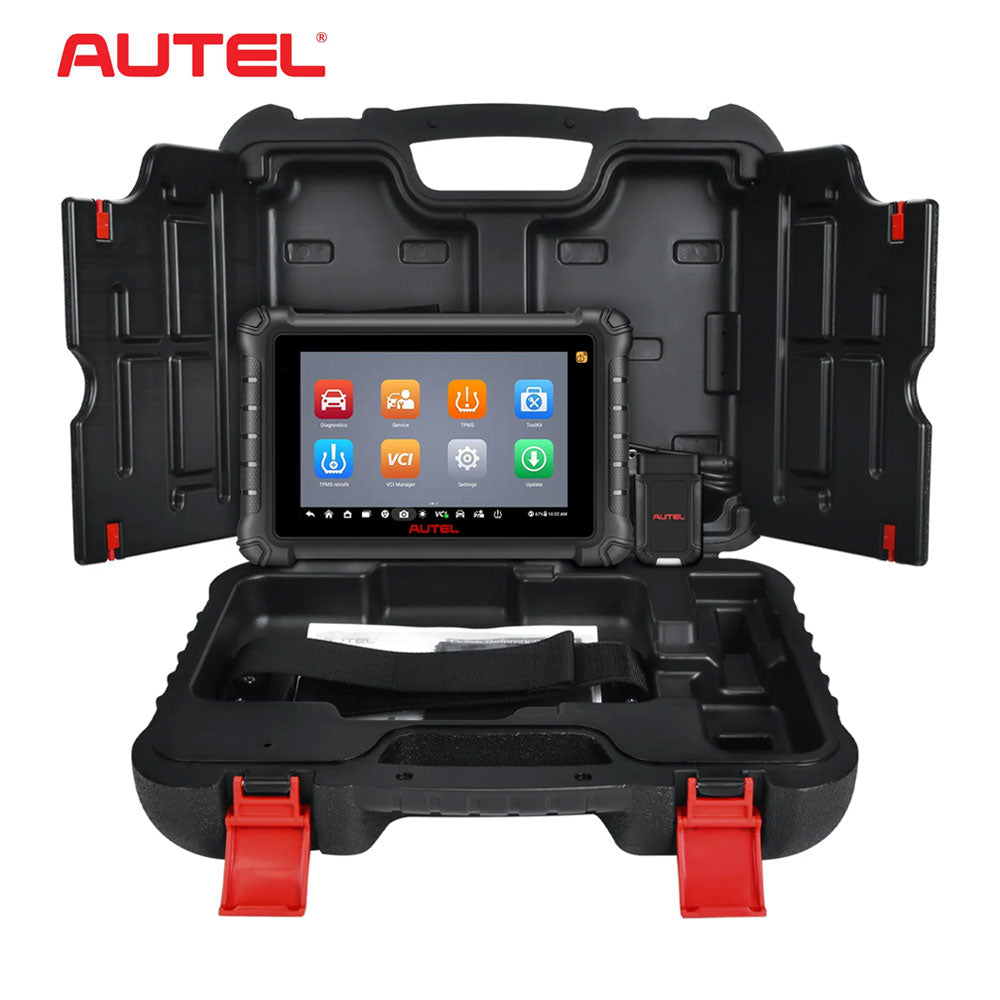

Packing List:
- Main Unit
- MaxVCL V150
- Type C USB Cable
- Power Adapter
- Soft Cloth
- Quick Preference Guide, Packing List
- Carrying Case
