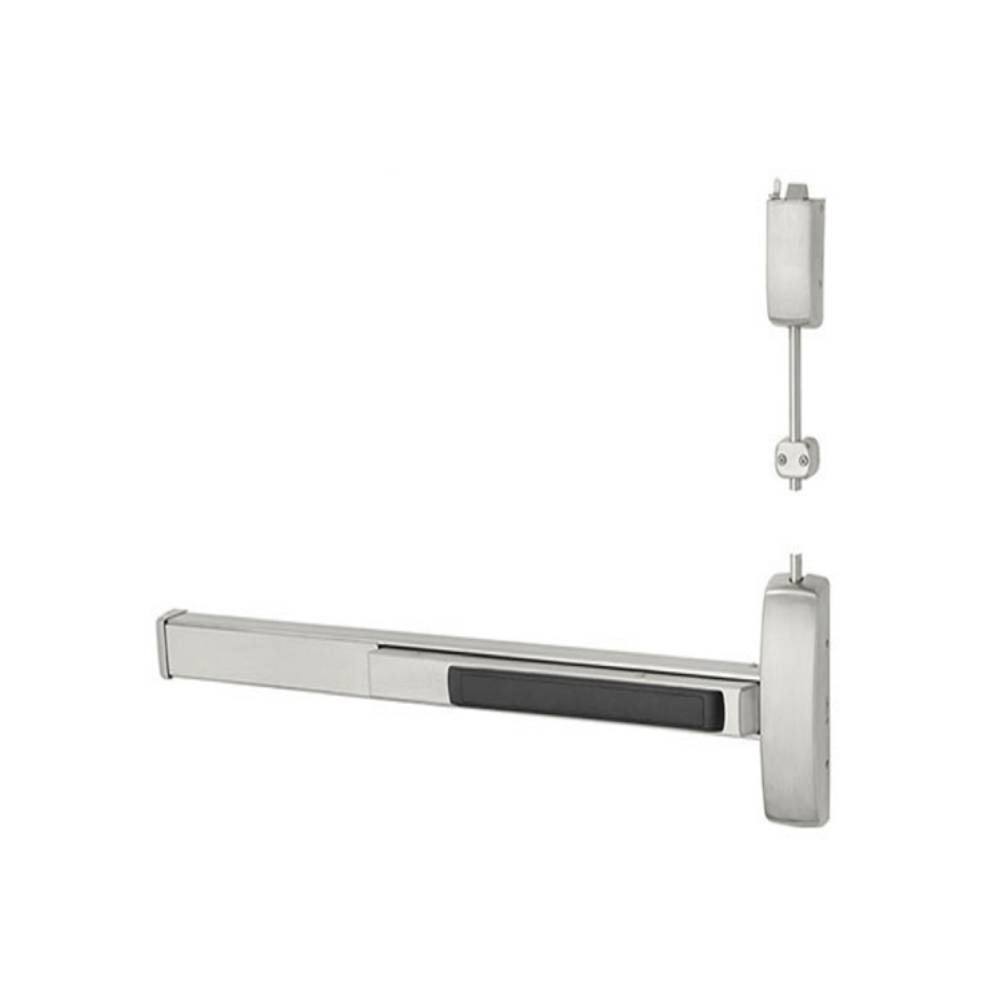

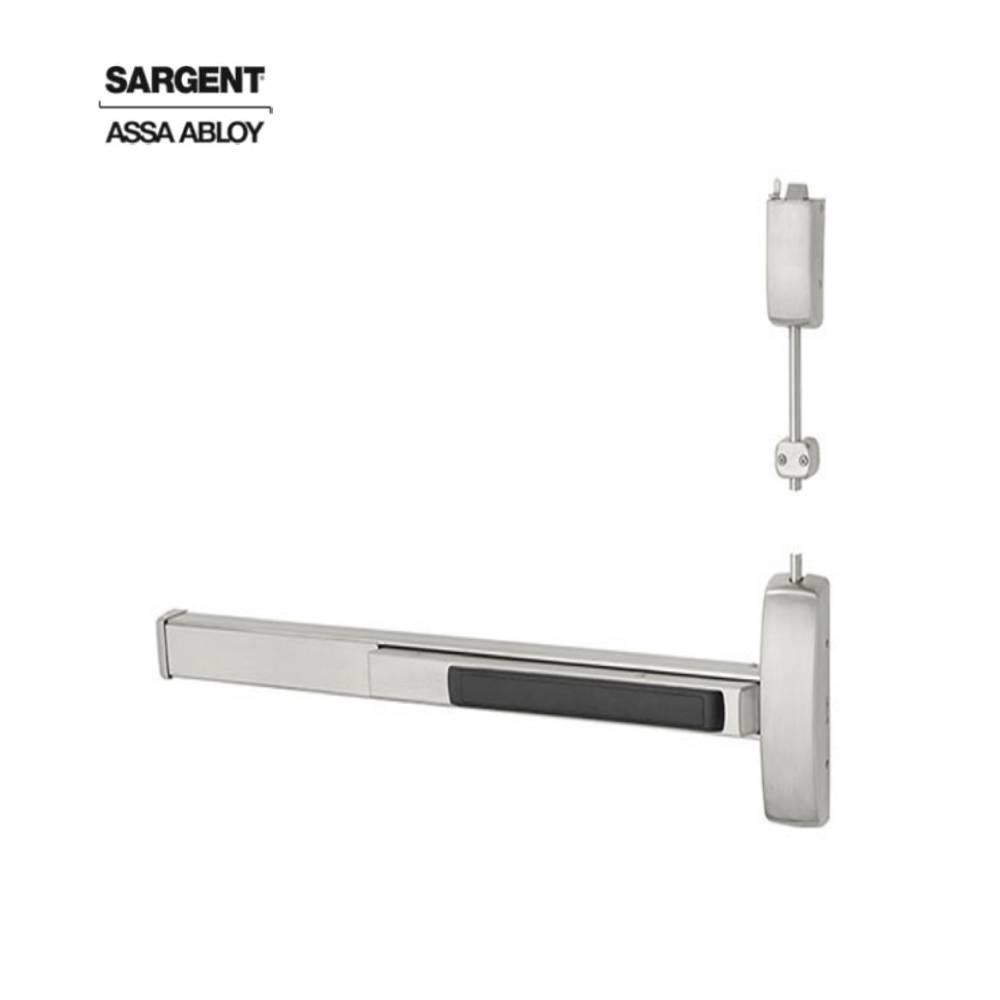

Sargent - 12-NB8715F - Surface Vertical Rod Exit Device Passage Function - Wide Stile Pushpad - 36 Inch Fire-Rated Device - J Lever with Escutcheon- Optional Handed - US32D (Satin Stainless Steel)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Description
Description
Sargent - 12-NB8715F - Surface Vertical Rod Exit Device Passage Function - Wide Stile Pushpad - 36" Fire-Rated Device - J Lever with Escutcheon- Optional Handed - US32D (Satin Stainless Steel)
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
Feature:
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Sargent |
| SKU | 12-NB8715F ETJ RHR 32D 12-NB8715F ETJ LHR 32D |
| UID | SAR12NB8715FETJRHR32D SAR12NB8715FETJLHR32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | US32D |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Passage |
| Device Length | 36" |
| Hand | Right Hand Reverse Left Hand Reverse |
| Mechanical Options | Less Bottom Rod |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 715-8 ETJ RHRB 26D |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Height | 120" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
