Sargent - 8205 - Entry Mortise Lock - LN Rose / L Lever - LA Keyway - ASA Strike - Grade 1 - Optional Color

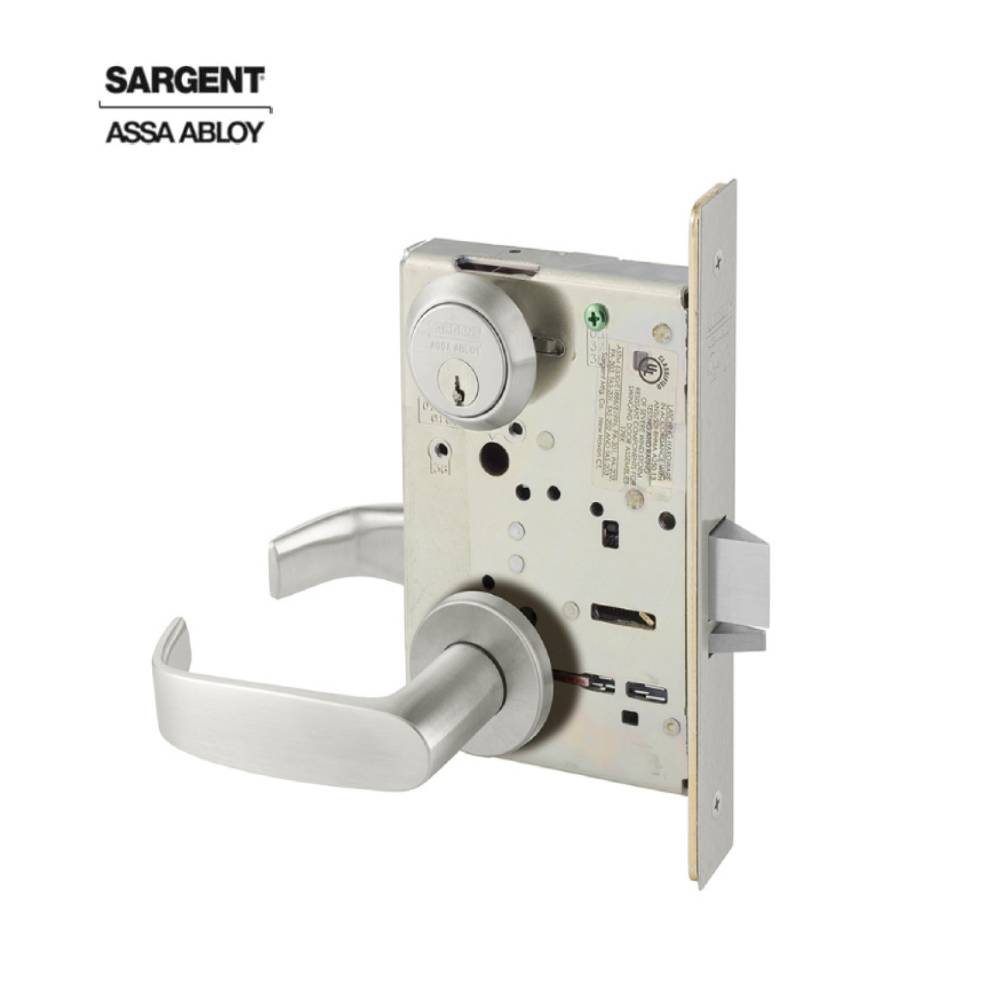

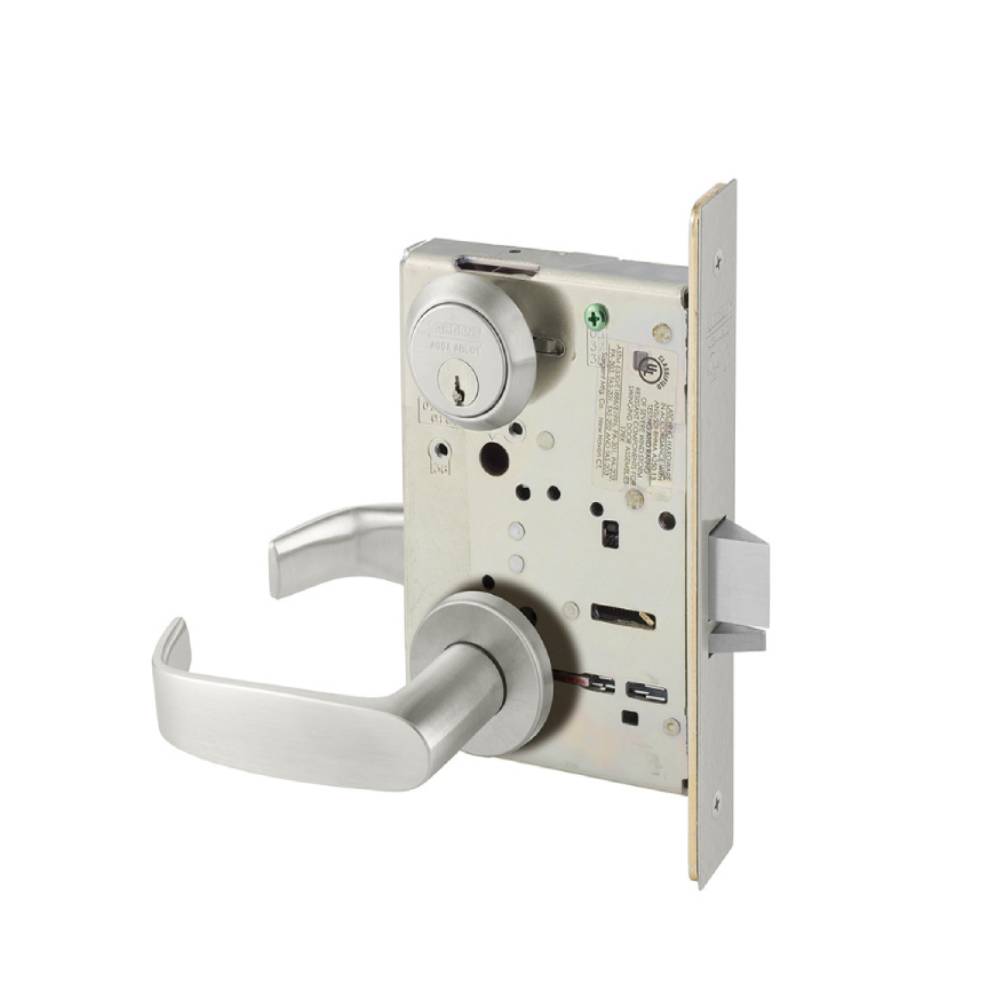

The Sargent 8205-LNL-LA Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Feature:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3 hour fire fdoors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- Patented design and construction
Product Specifications:
| Manufacturer | Sargent |
| SKU | 8205 LNL 32D 8205 LNL 26D |
| UID | SAR1008205LNL32D SAR1008205LNL26D |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Fire Rated | 2 Hours {B} |
| Finish | US32D US26D |
Technical Specifications:
| Function | 05-Office or Entry |
| ANSI Function | F04 - Entry/Office |
| Lever/Knob Design | L - Lever |
| Rose/Escutcheon Design | LN - Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
