Description
Description

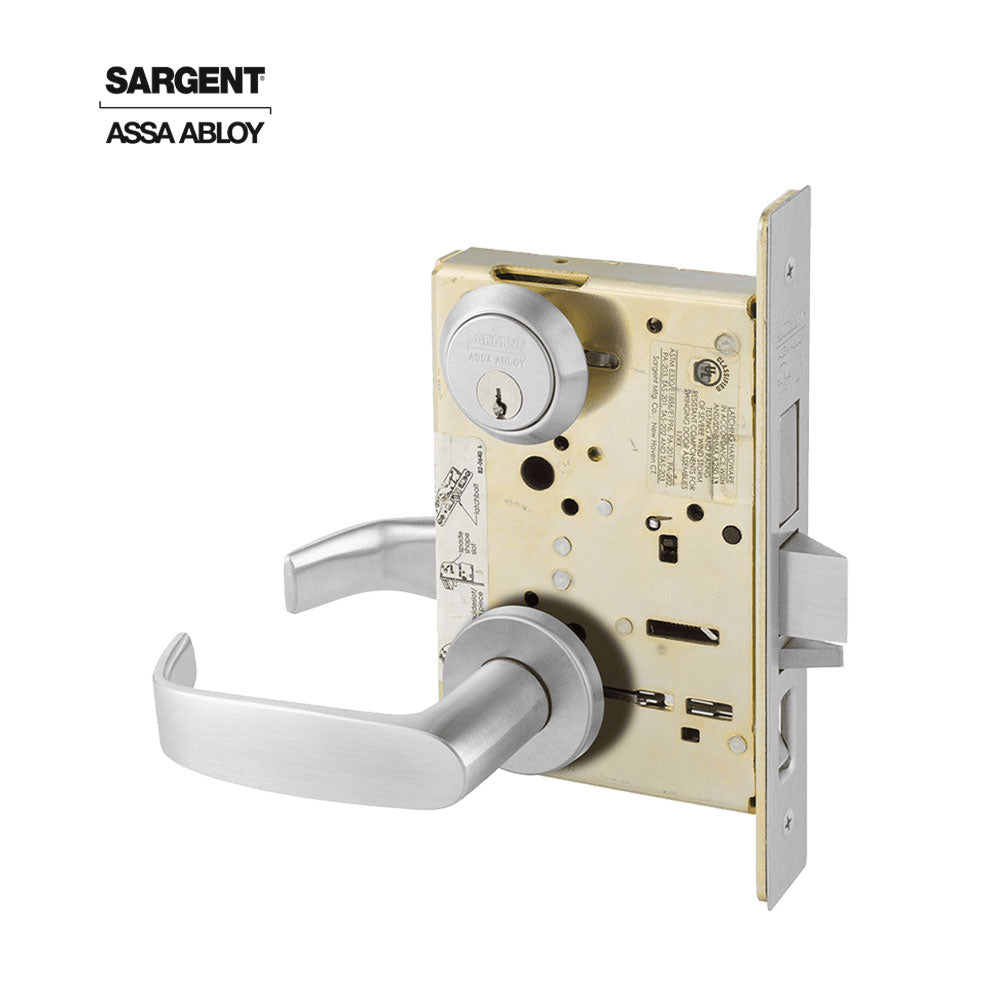

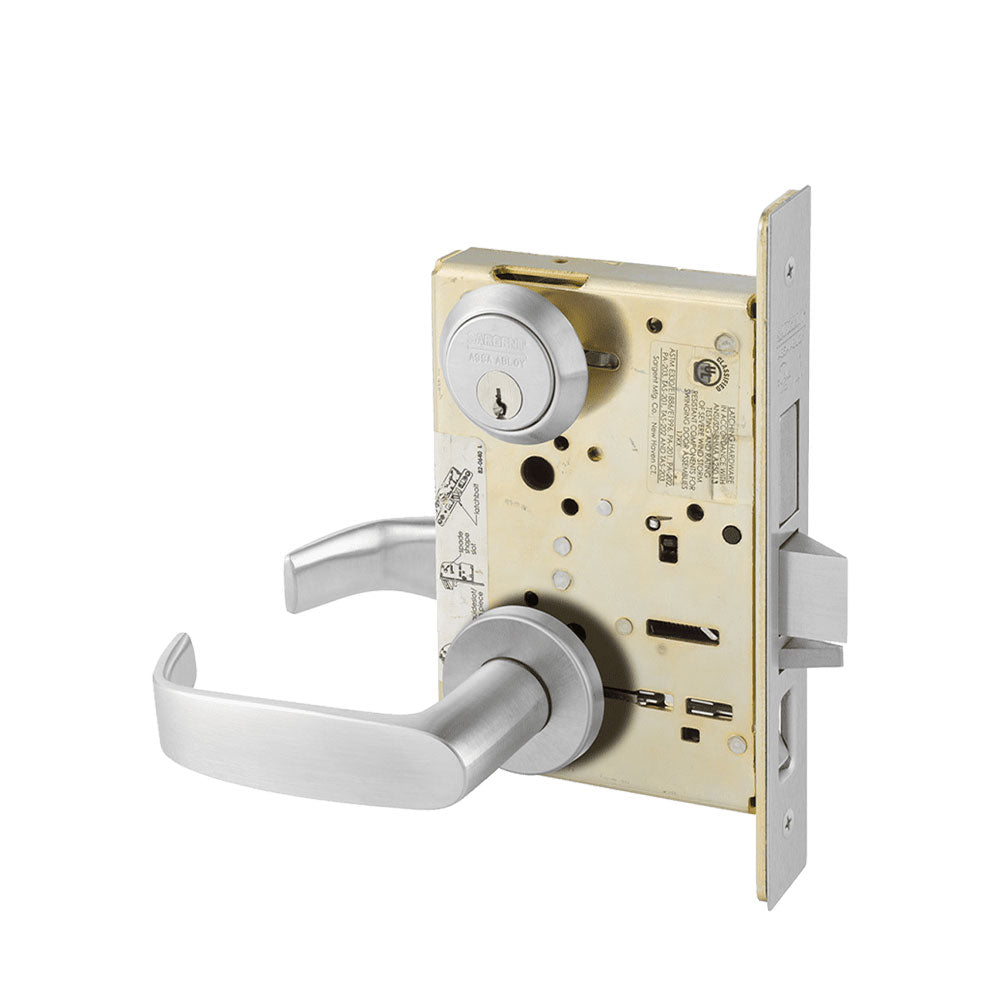

Sargent - 8243 - Apartment Corridor Door Mortise Lock - Conventional Cylinder - Patented Degree DG2 - Grade 1
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block.
Features:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements.
- UL-cUL listed for 3 hour fire doors and windstorm applications.
- Thru-bolted lever trim and strengthened cylinder retainer.
- Available with security key systems (Degree, Signature, KESO, and XC).
- Available with behavioral health trim.
- Patented design and construction.
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Manufacturer Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specifications:
| Function | 43-Apartment Corridor Door |
| ANSI Function | F20 - Entry/Office |
| Lever/Knob Design | F - Lever |
| Rose/Escutcheon Design | O - Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Combination Latch and Bolt |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch, 1 in. Deadbolt |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
