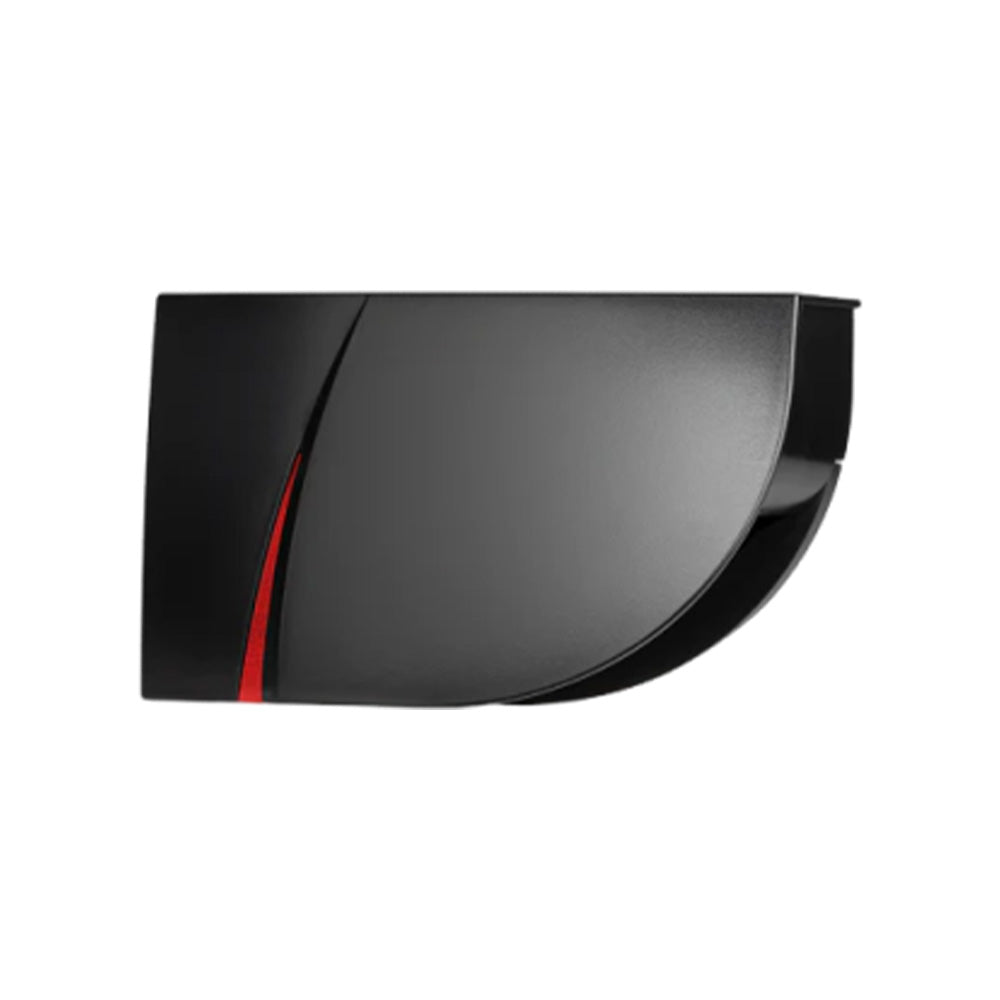

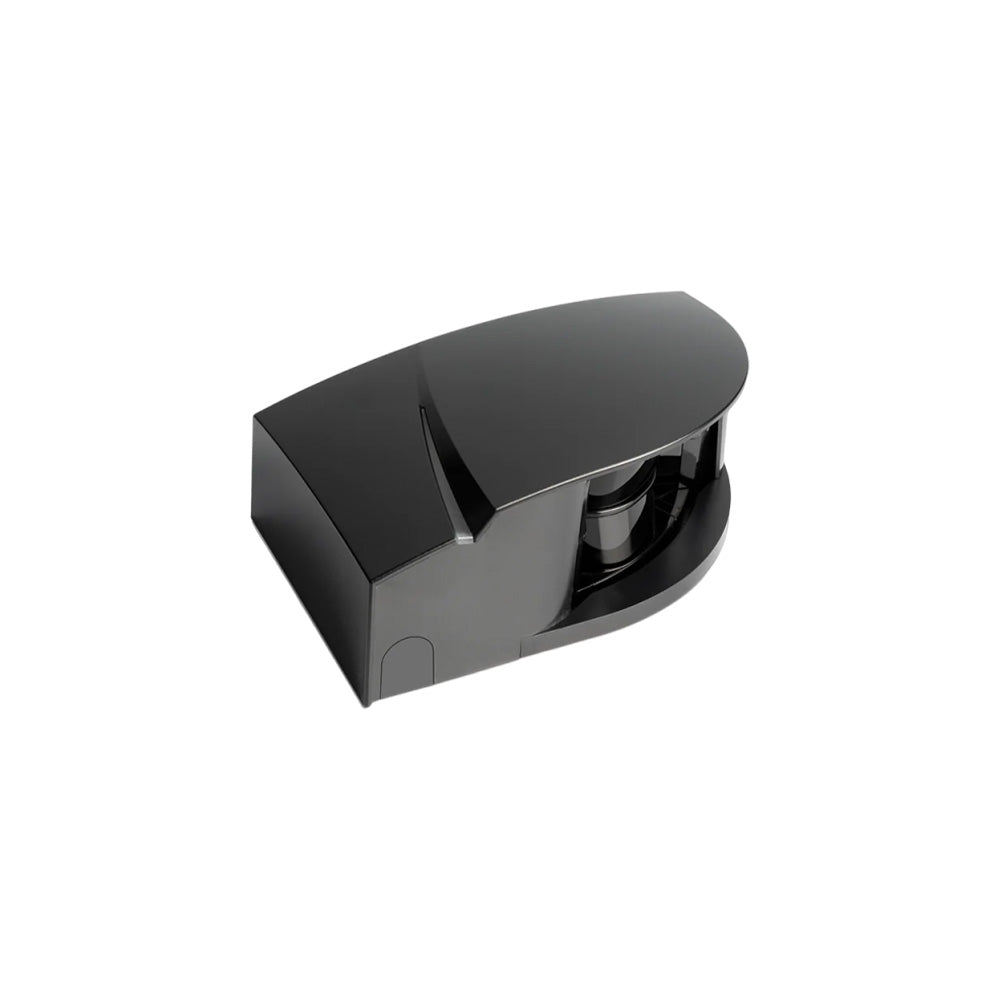

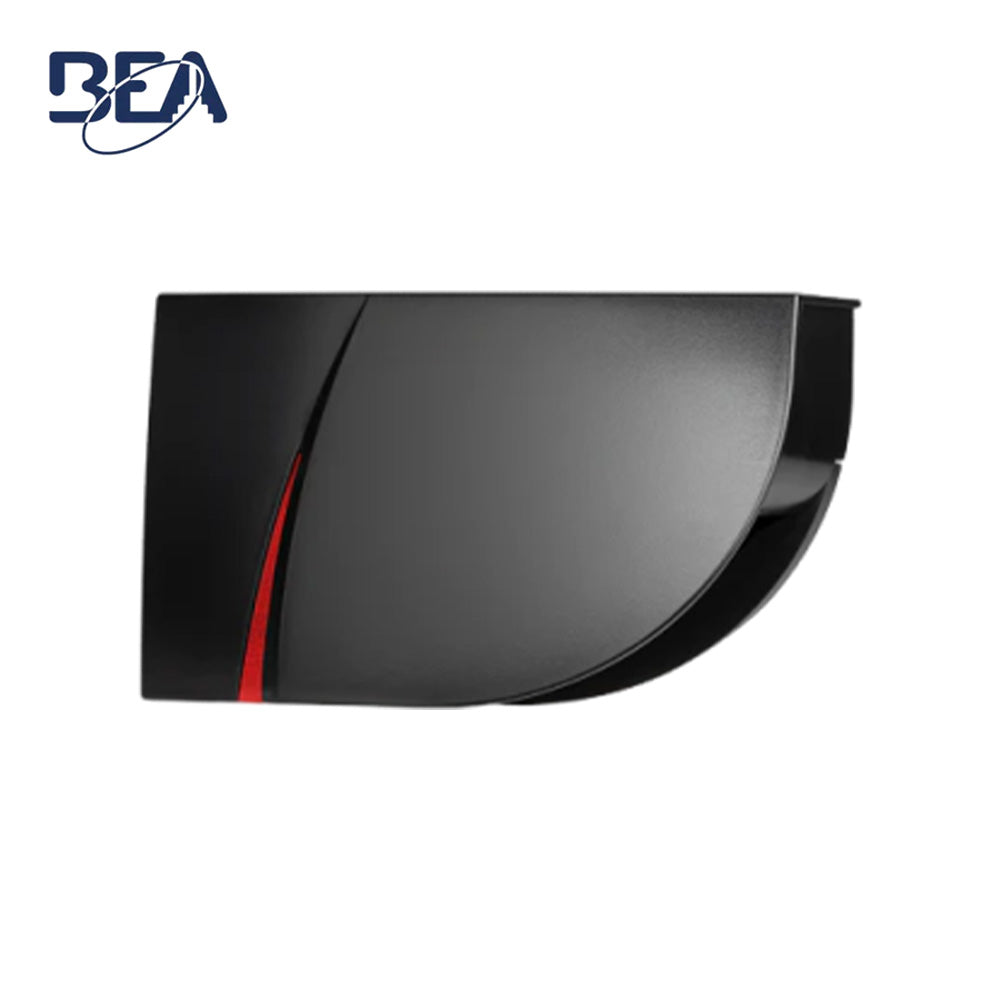

BEA-10LZR-FLATSCAN3D-SW Four Curtain Stand Alone Door Mounted Safety System with Virtual Push Button
The BEA LZR-FLATSCAN 3D SW is a four-curtain, door-mounted safety system designed for automatic swing doors. Its 3D LASER Time-of-Flight detection provides full safety coverage, reduces unexpected door movements, and enhances protection for users, including those with limited mobility. Featuring Leading Edge Safety, Finger Detection Technology, Hand Gesture Setup, and Virtual Push Buttons, it delivers fast installation and hygienic, touch-free activation-ideal for healthcare, education, and commercial environments.
Features:
- Easy Setup with hub-less design and Hand Gesture Setup
- Advanced Safety with four detection curtains for full door coverage
- UL10B/C Listed and fire-rated for up to one hour
- Built-in Knowing Act Device with two virtual push buttons for touch-free activation
- Adaptive Sensing and background-independent LASER technology for reliable performance
Specifications:
| Technology | LASER scanner, time-of-flight measurement |
| Detection Mode | Presence |
| Max. Detection Range | 13' diagonal with 2% reflectivity |
| Recommended Mounting Height | 75 - 98" |
| Opening Angle | Door leaf safety: 80° Pinch zone safety: 20° |
| Angular Resolution | Curtain 1: 0.2° Curtain 2: 1.1° Curtain 3: 1.7° Curtain 4: 2.5° |
| Power Supply | 12-24 VDC ±15% (SELV-compatible power supply only) |
| Power Consumption | < 2 W |
| Response Time | Typ.<120 ms (max. 220 ms) |
| Dimensions | 5 ¾" (L) x 3 ¼" (H) x 2 ⅛" (D) |
| Supply Voltage | 12-24 VDC ±15% (SELV-compatible power supplies only) |
| Power Consumption | < 2 W |
| Response Time | Typical<120 ms (max. 220 ms) |
| Output | 3 electronic relays (galvanic isolation, polarity-free) |
| Max. Switching Voltage | 42 VAC/VDC |
| Max. Switching Current | 100 mA |
| Dimensions | 5 ¾" (L) x 3 ¼" (H) x 2 ⅛" (D) |
| Material / Color | PC/ASA - Black |
| Protection Degree | IP44 (IEC 60529) |
| LED Signals | 1 RGB LED (detection/output status) |
| Temperature Range | -13 to 140 °F |
| Humidity | 0-95% non-condensing |
| Vibrations | < 2 G |
