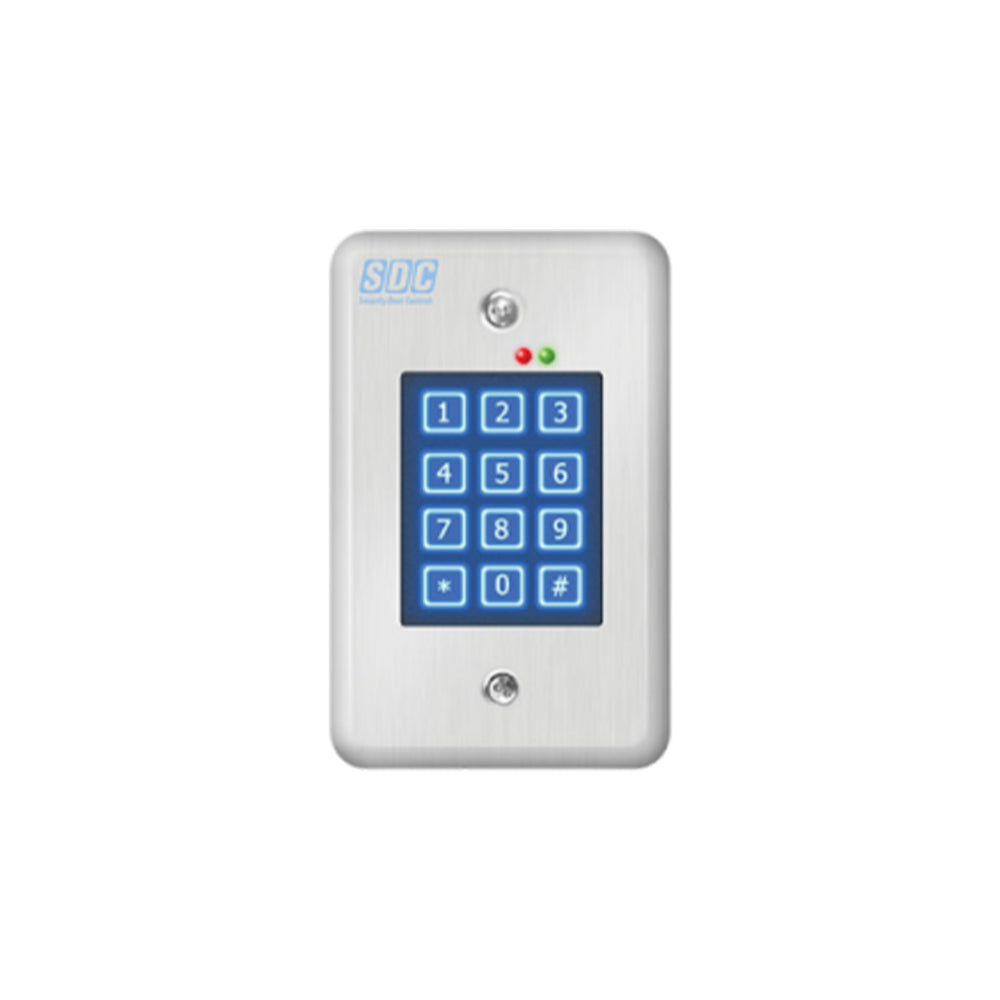

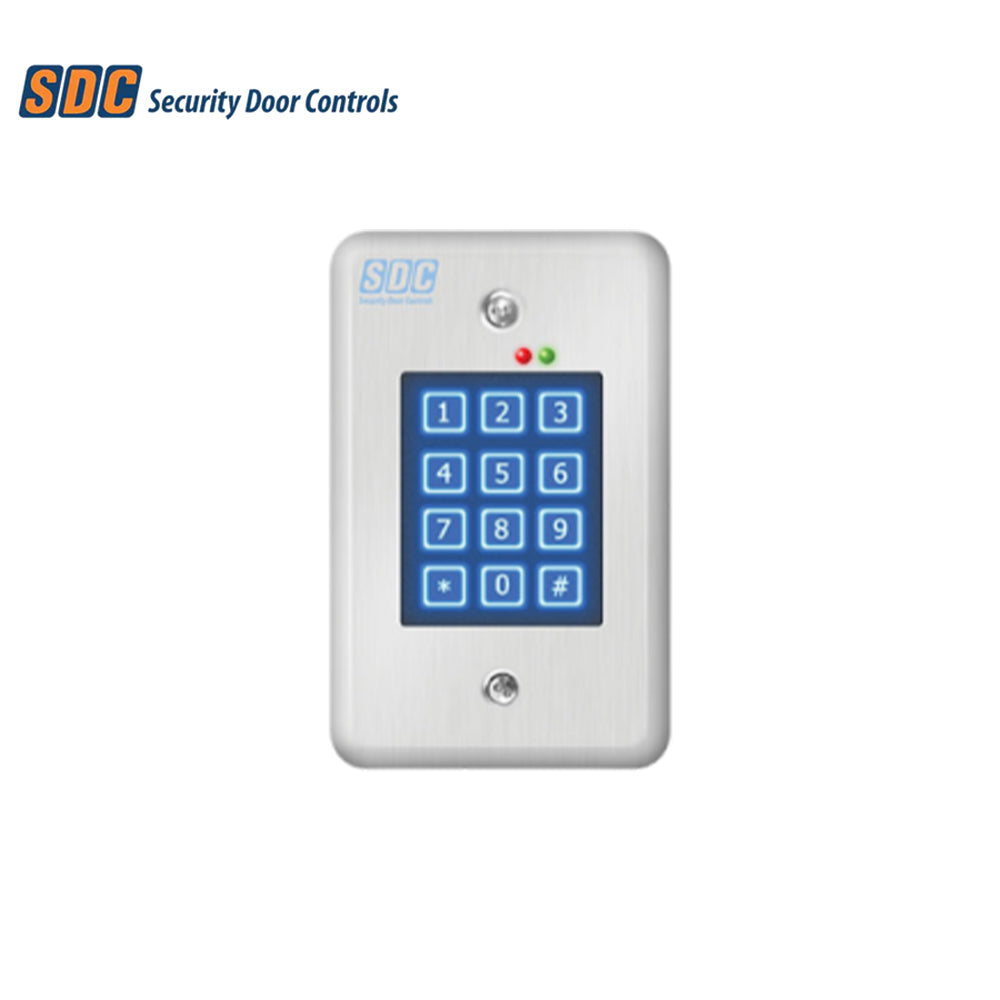

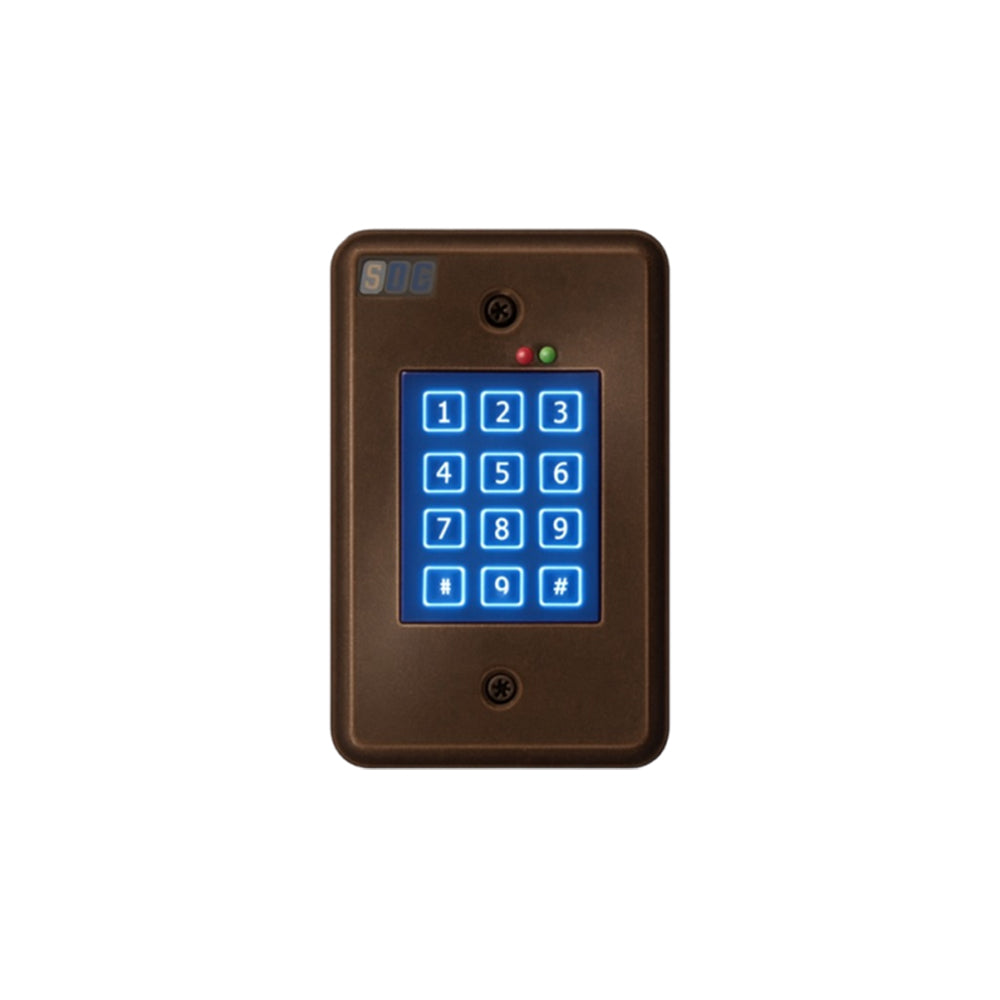

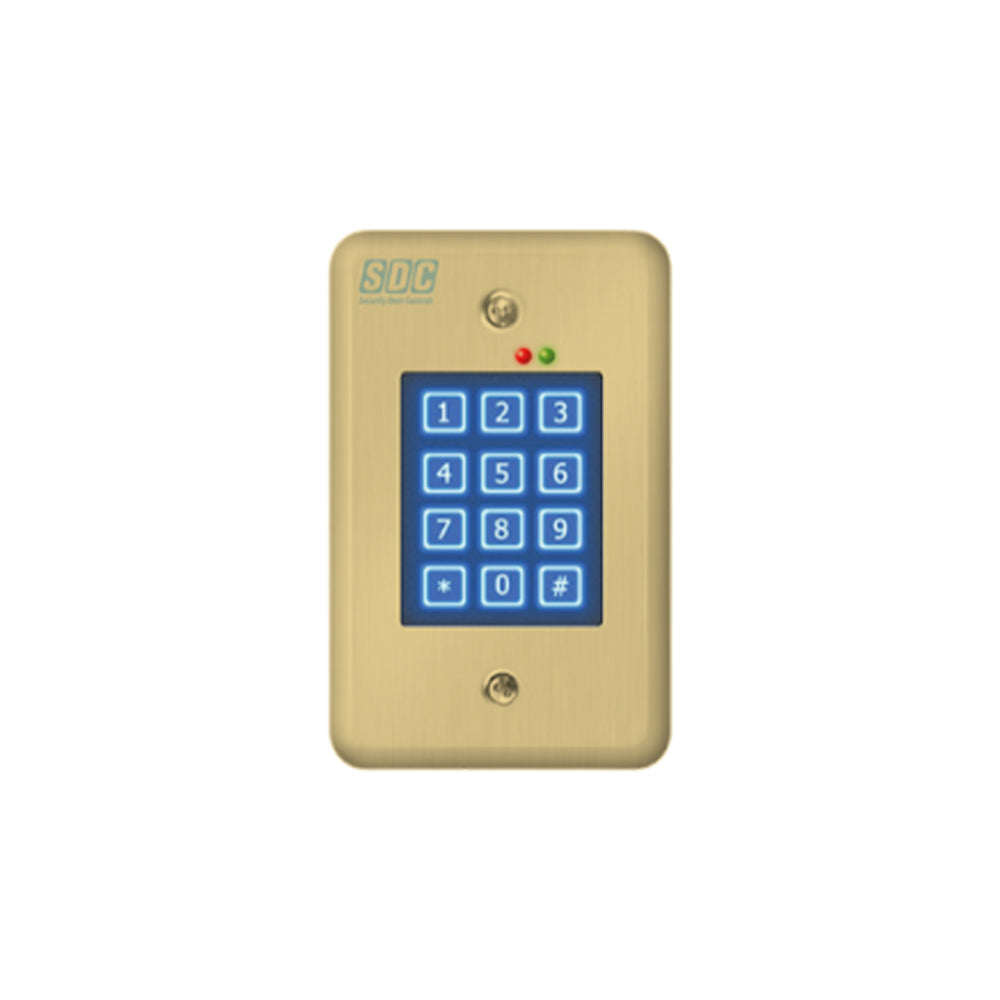

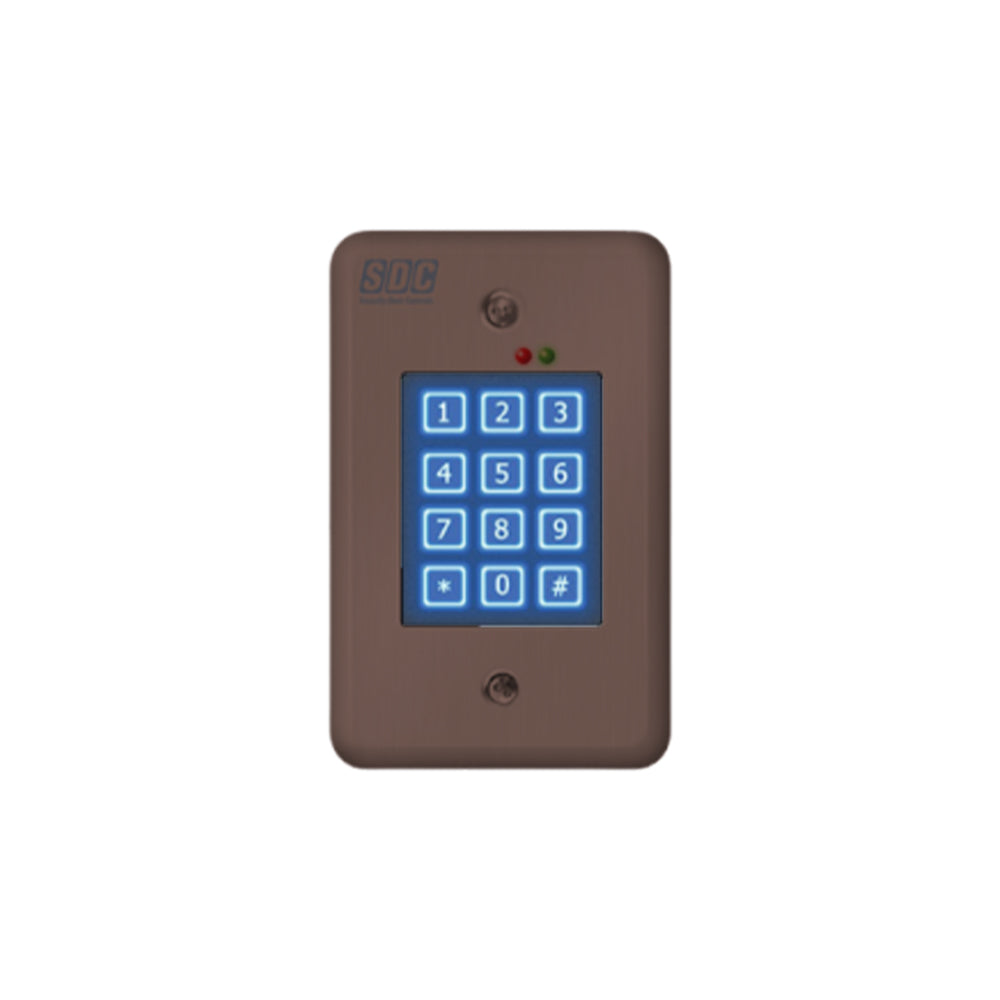

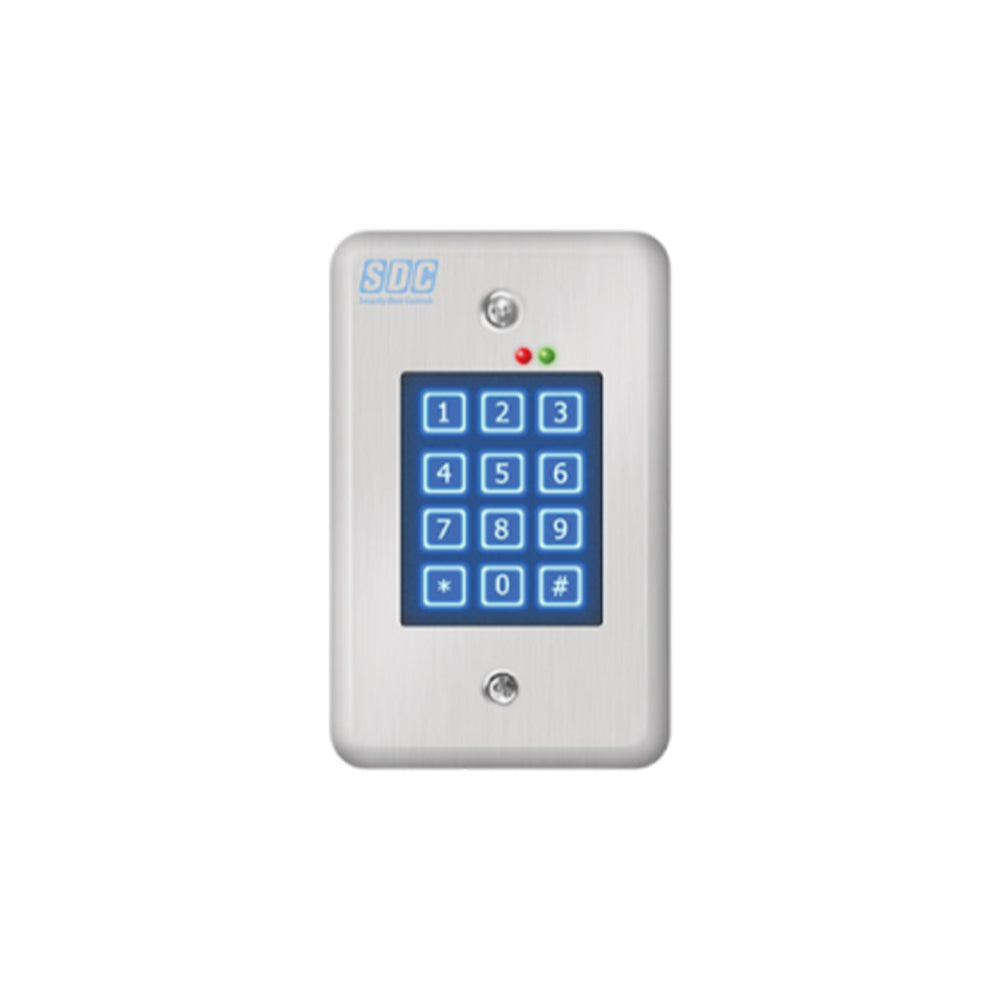

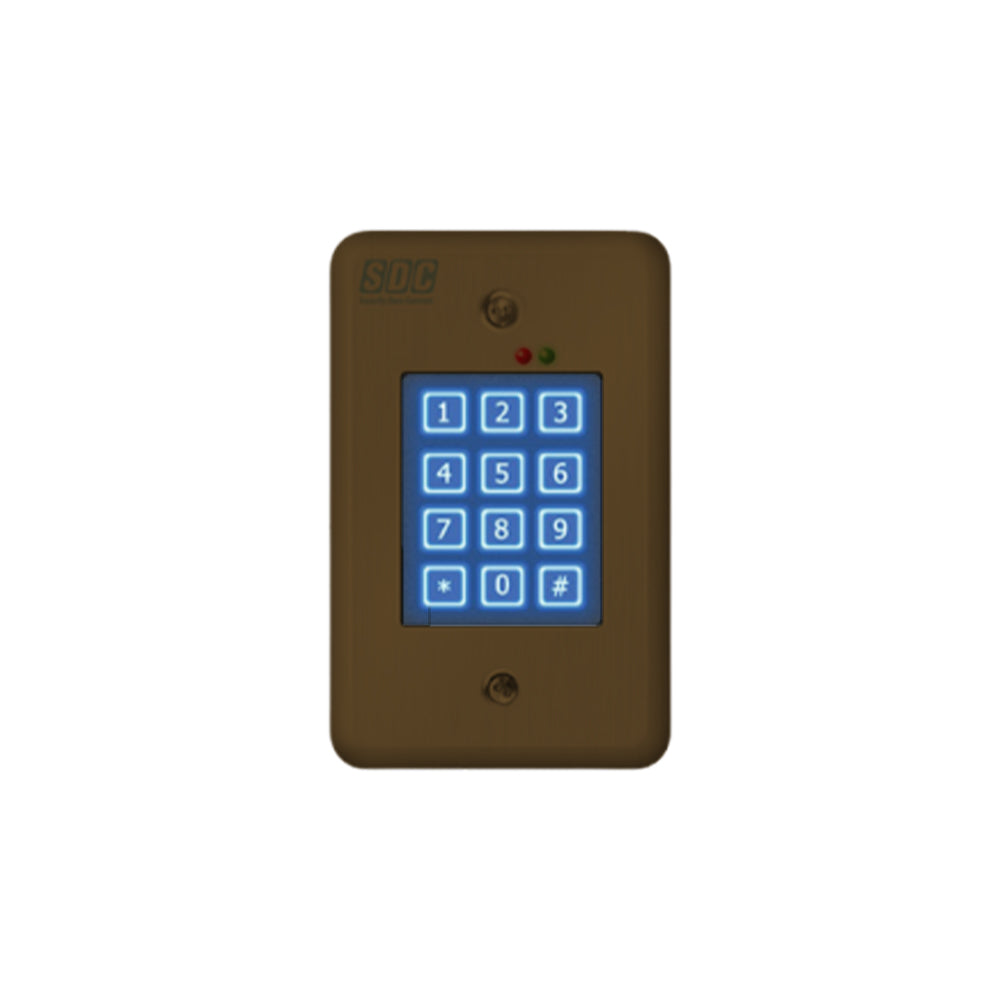

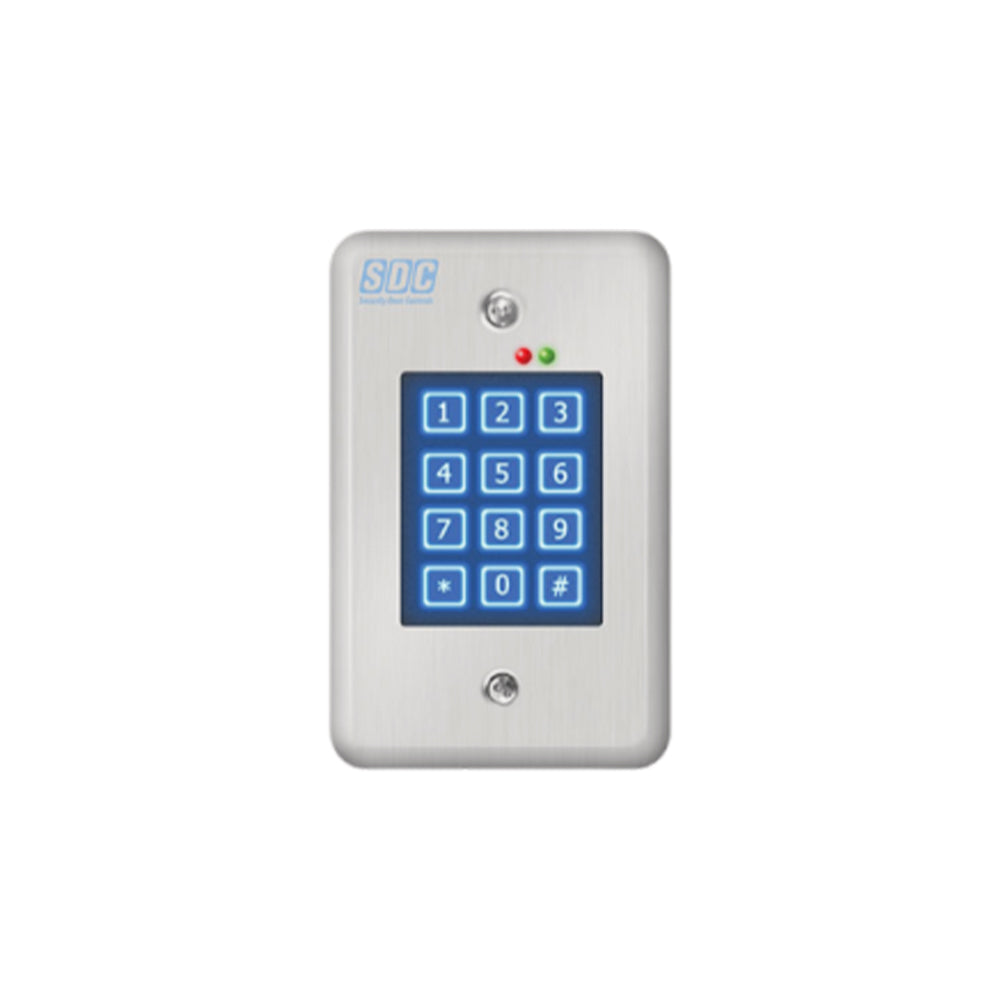

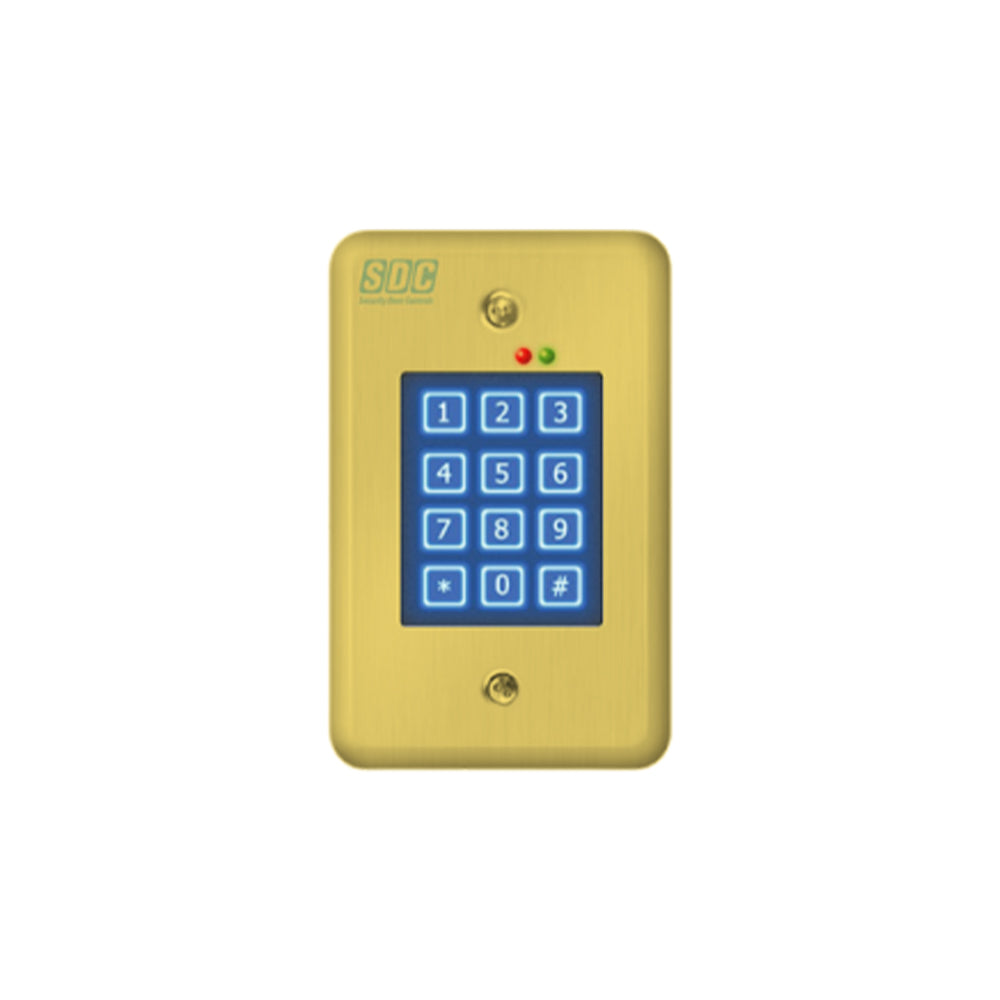

SDC - 918 - Indoor Self-Contained Digital Keypad with Single Entry Facilities Upto 500 Users - 12/24 VAC/DC
The SDC 918 Series is a compact indoor keypad system built for single-door access control, supporting up to 500 users with unique PIN codes and relay outputs to operate electric door locks securely and efficiently.
Features:
- Illuminated 12-key, moisture-resistant keypad (3" x 4")
- Secure, tamper-resistant mounting screws
- Fits standard single-gang installations
- Dual LED indicators showing access and lockout status
- Customizable audible alerts
- Adjustable keypad illumination: On, Off, or Timed
- Four outputs: 2 relay and 2 solid-state
- PIN codes can be assigned to Relay 1 and/or 2
- Anti-passback and anti-tailgate features with timing control
- Built-in keypad tamper lockout
- Request-to-exit/enter input for enhanced control
- Durable 3/32" thick stainless steel faceplate
Specifications:
| Construction | Heavy cast metal body and keypad |
| Voltage | 12/24 VAC/DC |
| Current | 30mA Typical, 150mA Maximum |
| Outputs | Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
| Temperature | -4°F to +140°F (-20°C to +60°C) |
| Humidity | 5% to 95% Non-Condensing |
| Finish | Satin Stainless Steel - 630 |
| Mount | Single-Gang Mount |
| Dimensions | 3" W x 4-3/4" H x 1-1/2" D (1/4" Wall Projection) |
| Warranty | 5-Year Manufacturer Warranty |
