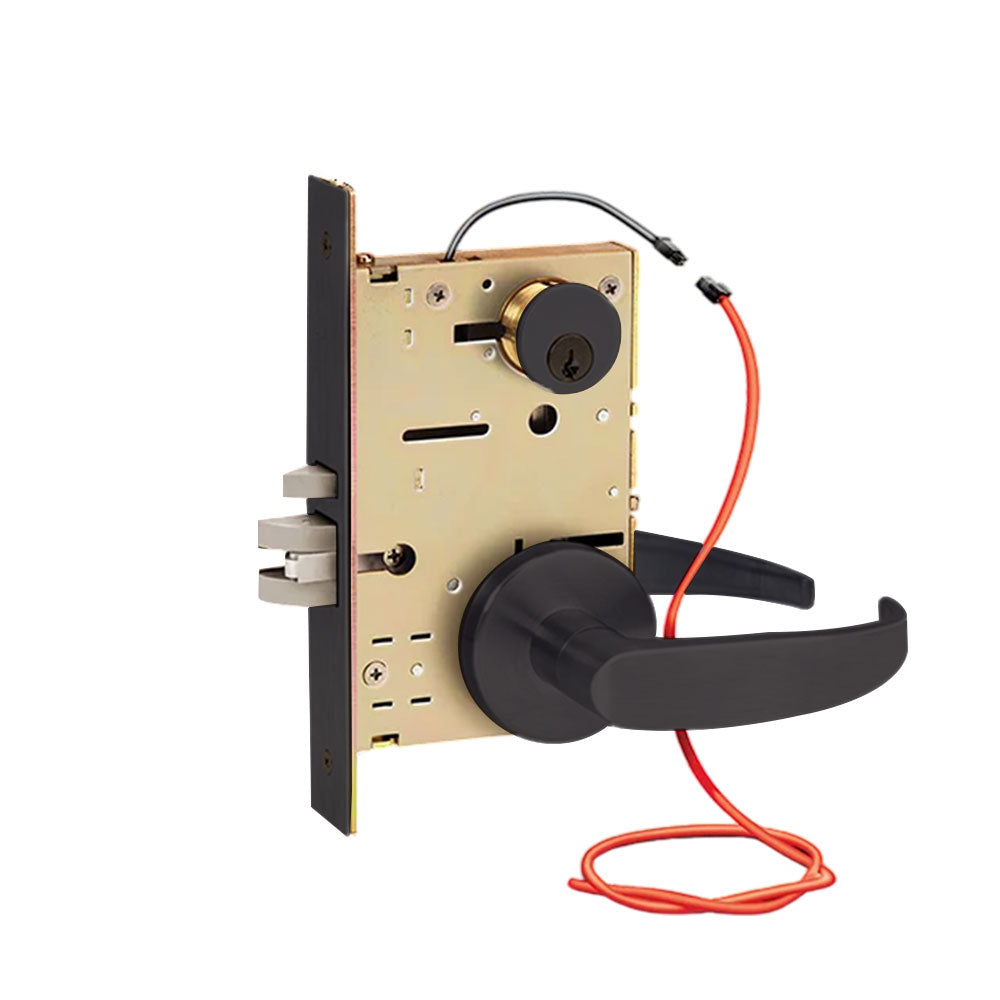

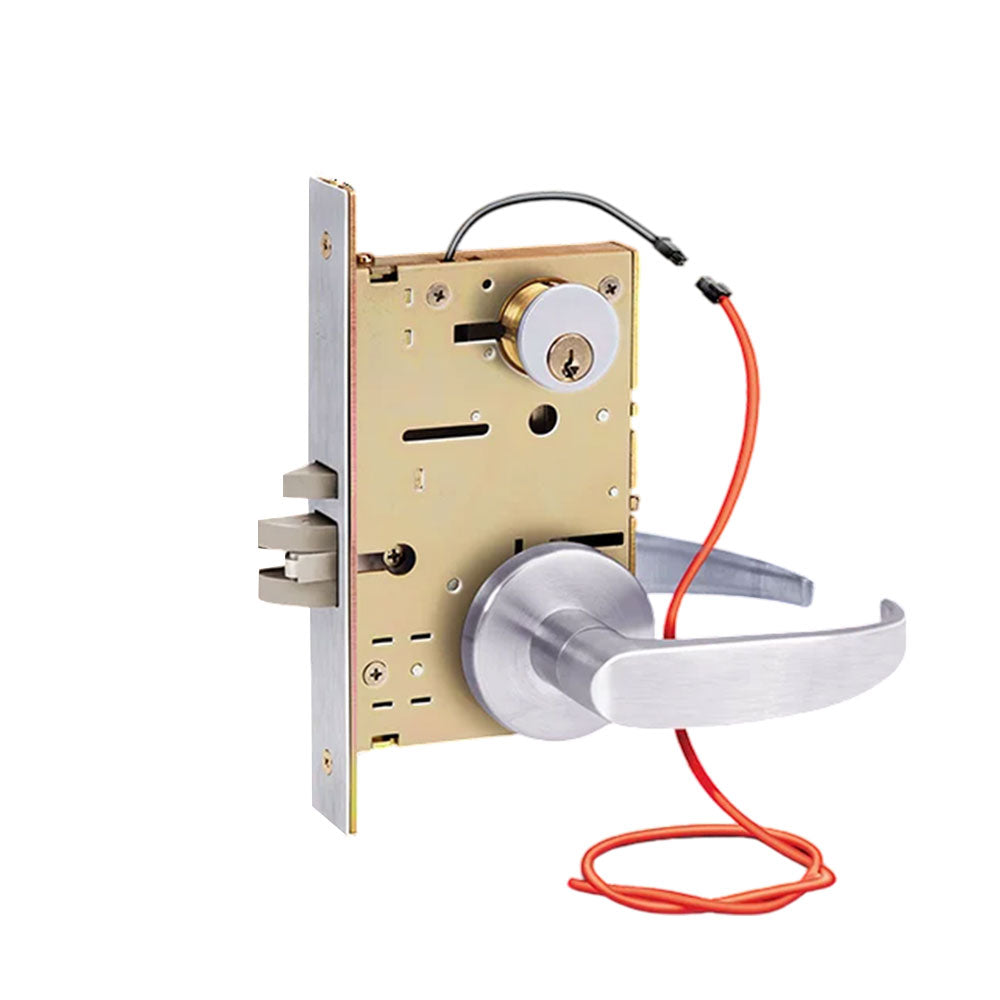

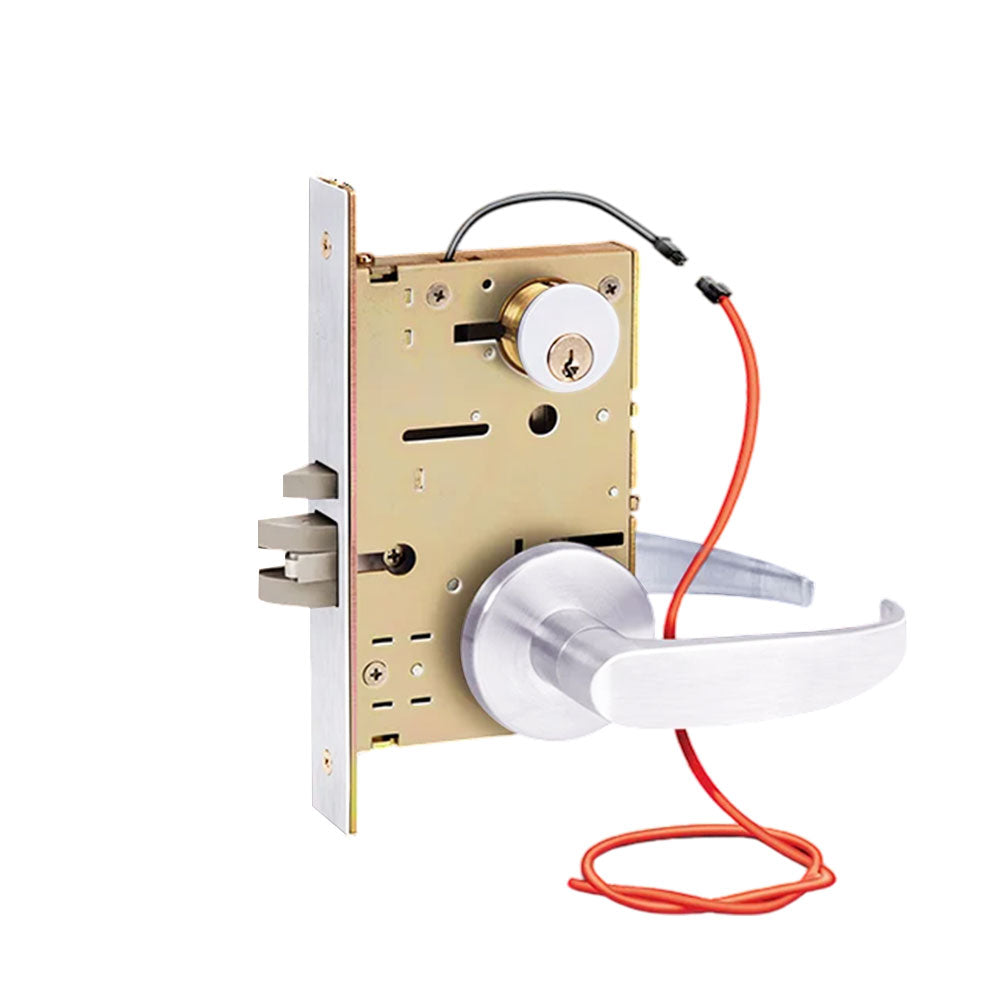

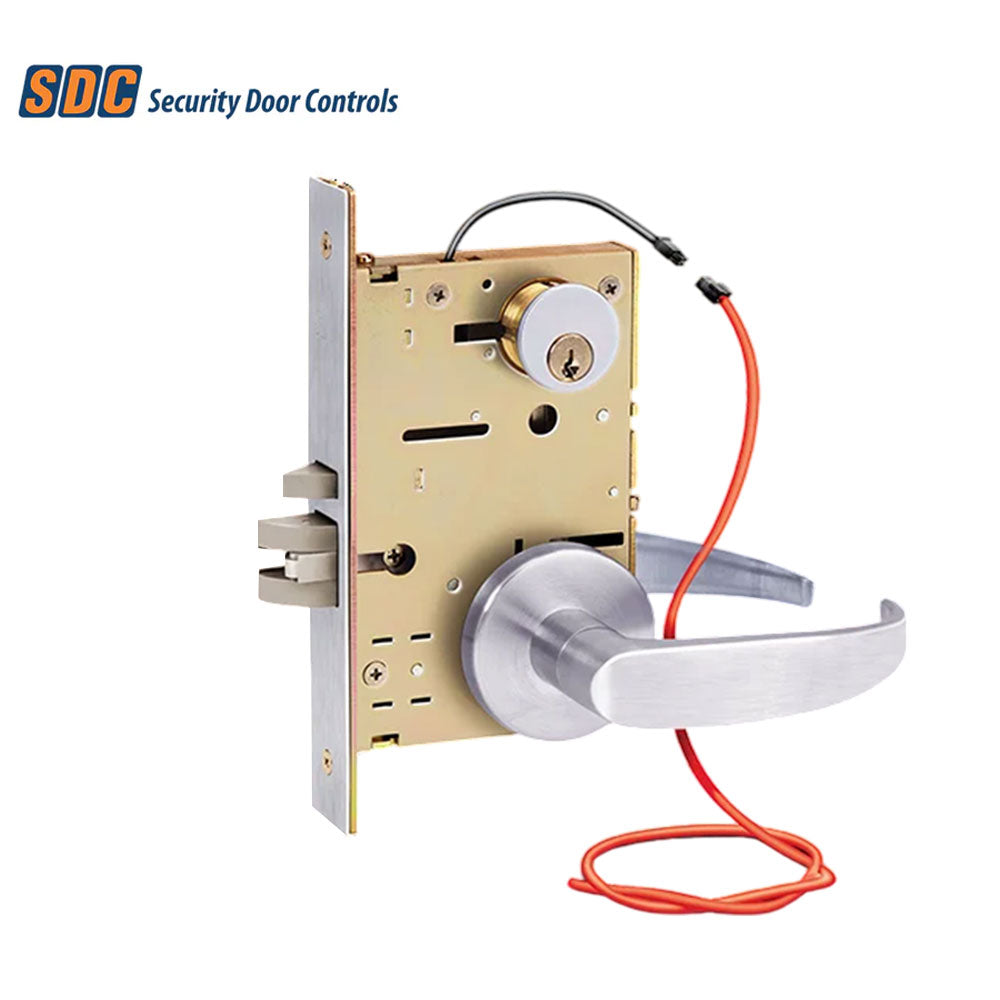

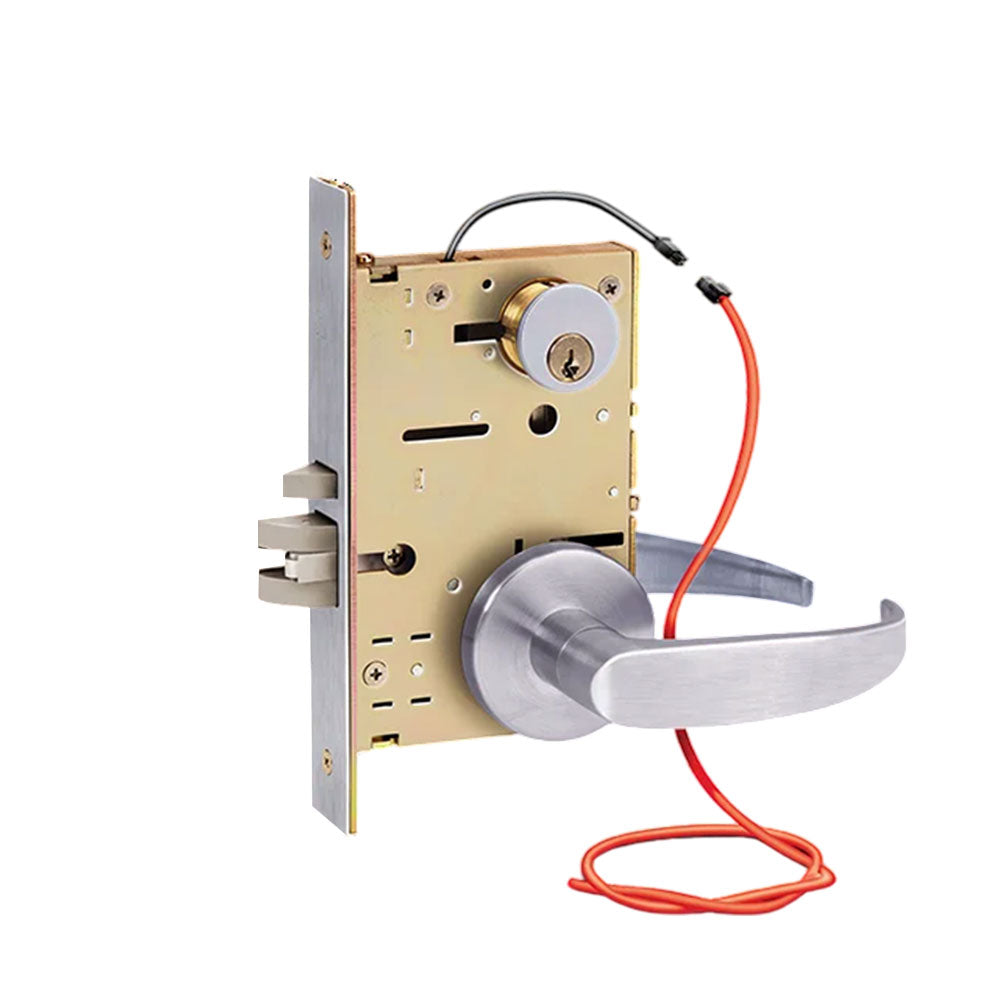

SDC - Z7832 - Solenoid Controlled Mortise Lock with Both Sides Locked Function - Fail Secure - Right Hand Reverse - Request-To-Exit - Grade 1
7800 series models incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch - proprietary to all SDC locksets. They replace most brands of mechanical locksets making them fully compatible with new and retrofit applications and provide field selectability of all operational attributes.
Features:
- Heavy duty mortise design
- New or retrofit construction
- Vandal resistant clutch
- Solenoid control
- Key latch retraction
- Field reversible operation
- Field selectable function
- Field selectable dual voltage
- Field reversible handing
- Schlage trim compatible
Specifications:
| Type | Mortise, Solenoid Control |
| Door Thickness | 1-3/4" |
| Door Prep | ANSI A156.13 |
| Backset | 2-3/4" |
| Faceplate | 8-1/32" x 15/16" x 7/32" |
| Case | 6" x 4" x 1" |
| Latchbolt | 3/4" Throw, Stainless Steel, Anti-Friction |
| Deadlatch | Above Latchbolt |
| Strike | Standard ANSI 4 7/8" |
| Weight | 7 lbs |
| Input | 12/24 VDC ± 10% |
| Current Draw | 600 mA @ 12 VDC, 300 mA @ 24 VDC |
| Monitoring Contacts | SPDT, 5 Amps @ 30 VDC Resistive |
Download:
