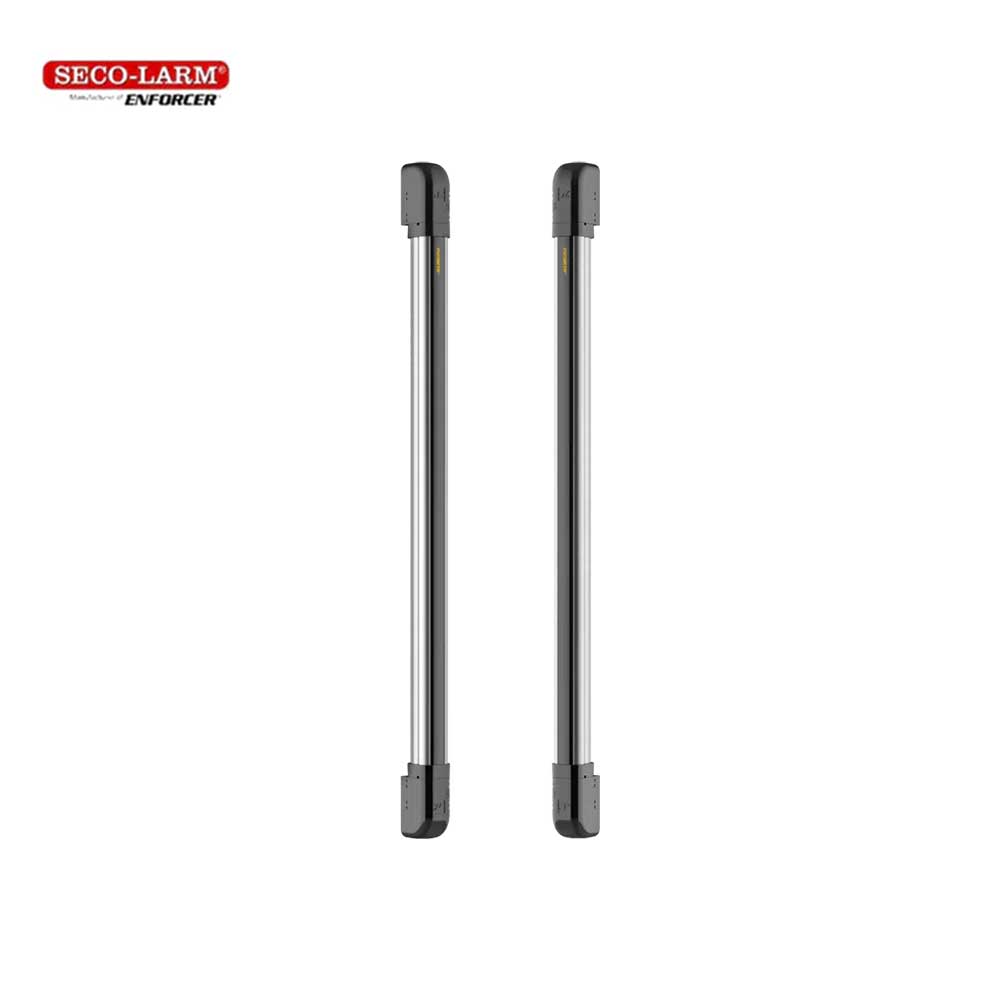

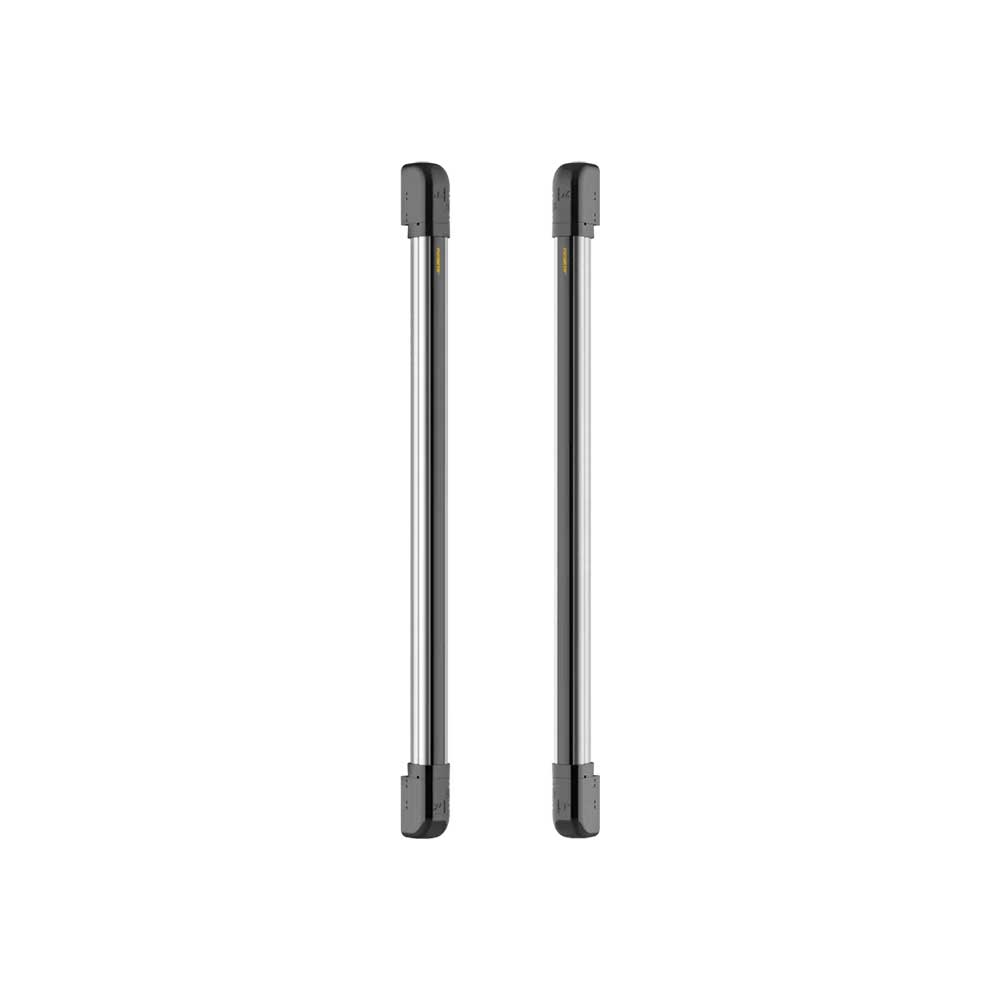

SECO-LARM Curtain Barrier Sensors or Invisible Security Fence (1 Pair)
ENFORCER Curtain Barrier Sensors are available with 4, 6, or 8 beams, allowing you to choose the right option indoors or outdoors for windows, skylights, entryways, fence tops, and perimeters covering distances up to 328 ft (100m)
Features:

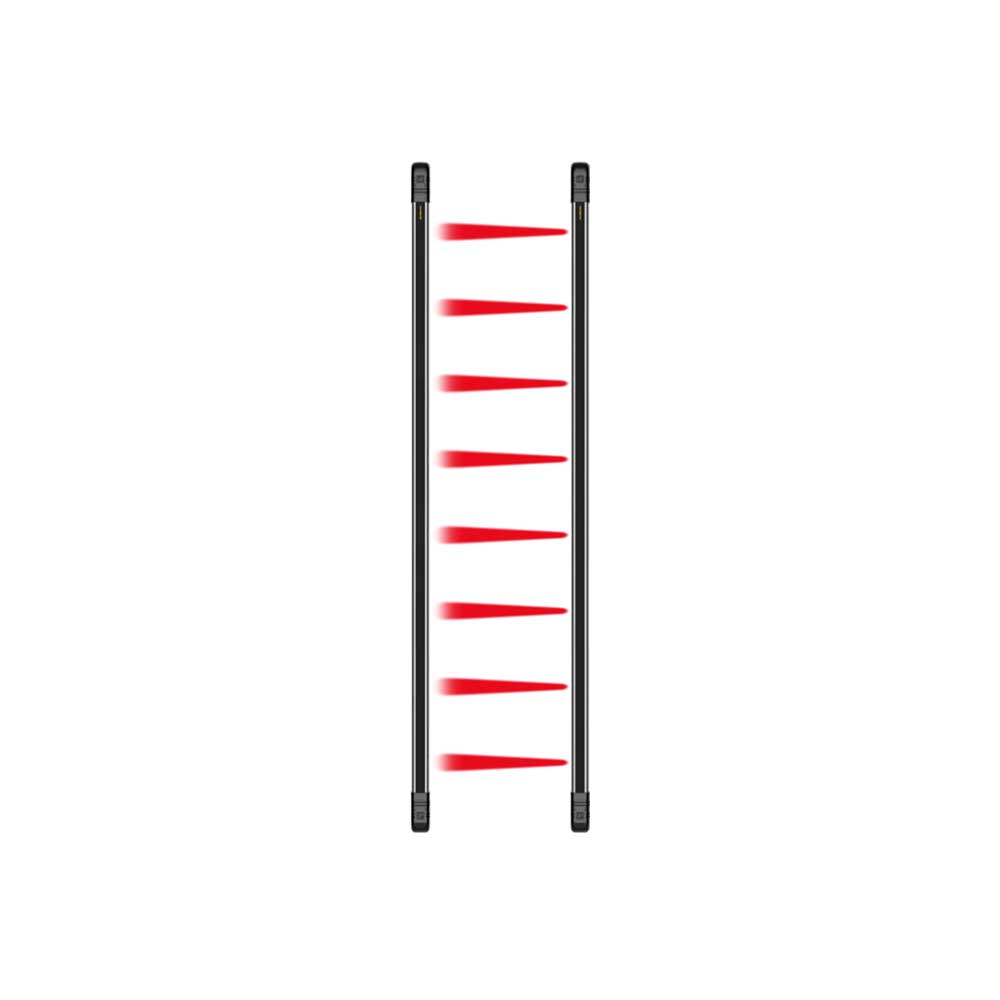

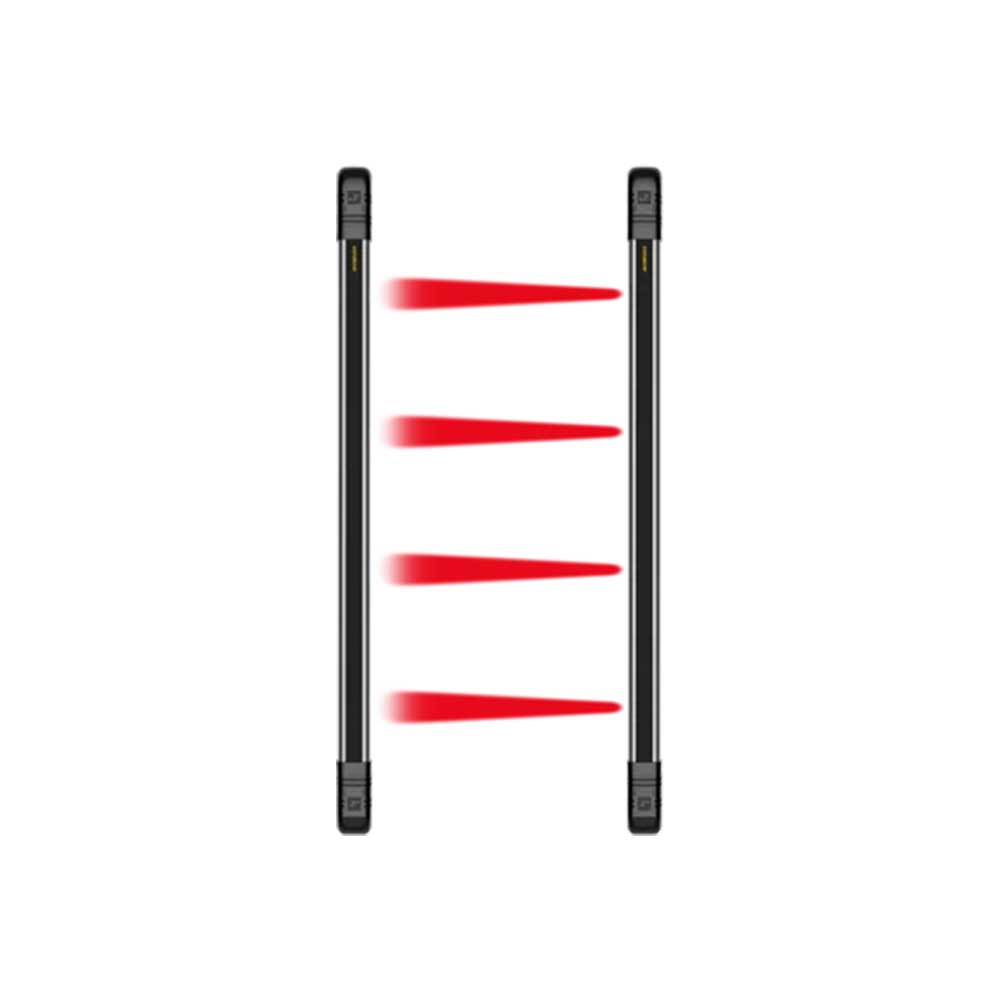

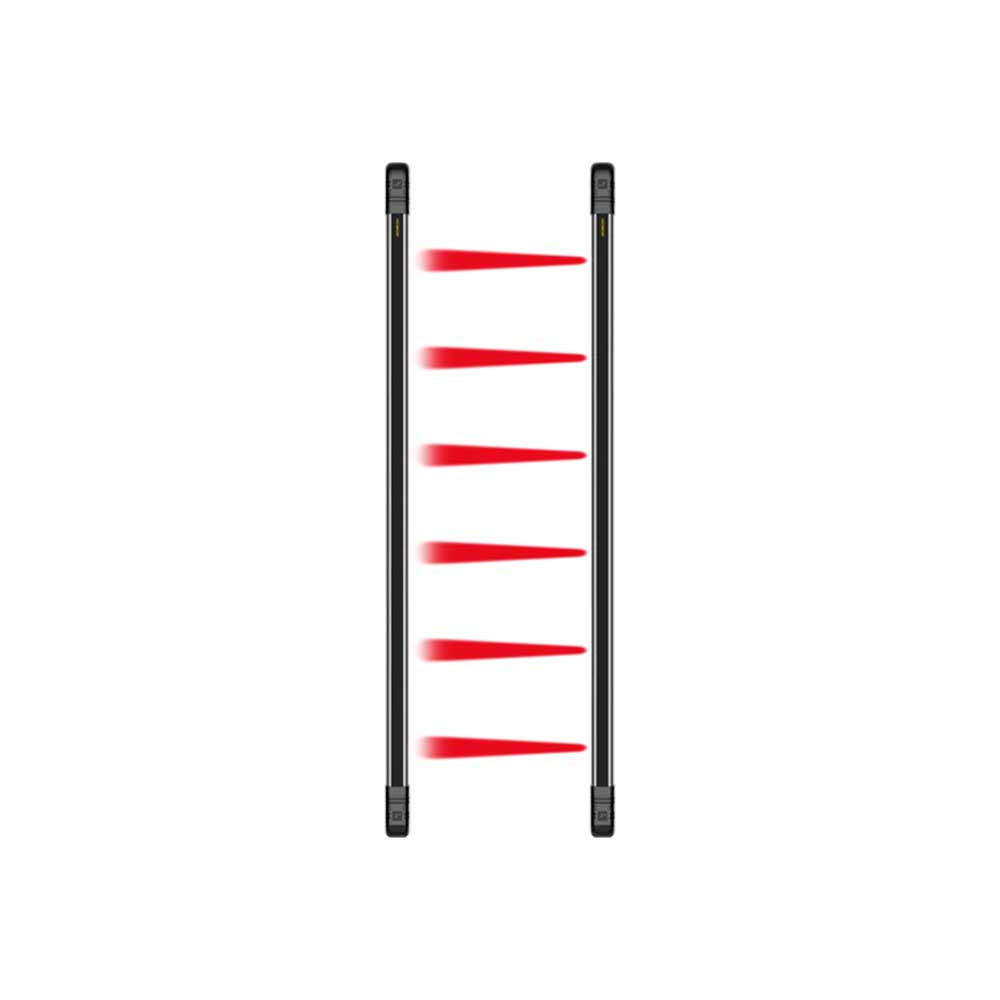

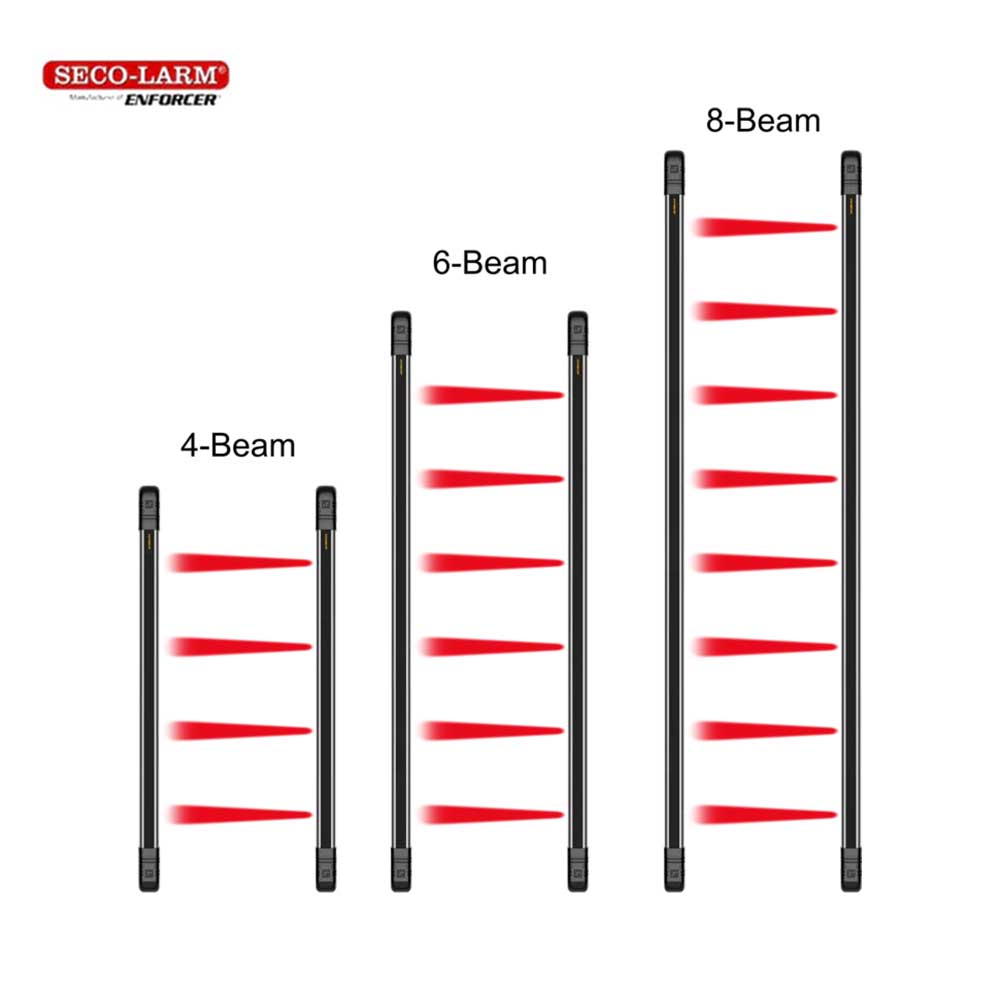

- Available with 4, 6 or 8 separate photobeam sensors
- Wide operating voltage range - 9~30 VDC
- 2 Programmable trigger options - either breaking of any single beam or simultaneous breaking of any two adjacent beams (default)
- 2 Selectable frequencies to avoid interference from other nearby sensors
- Includes a 180° horizontal swivel housing for more flexible installation in various situations
- Supports synchronous or asynchronous operating modes
- 4 Adjustable sensitivity levels

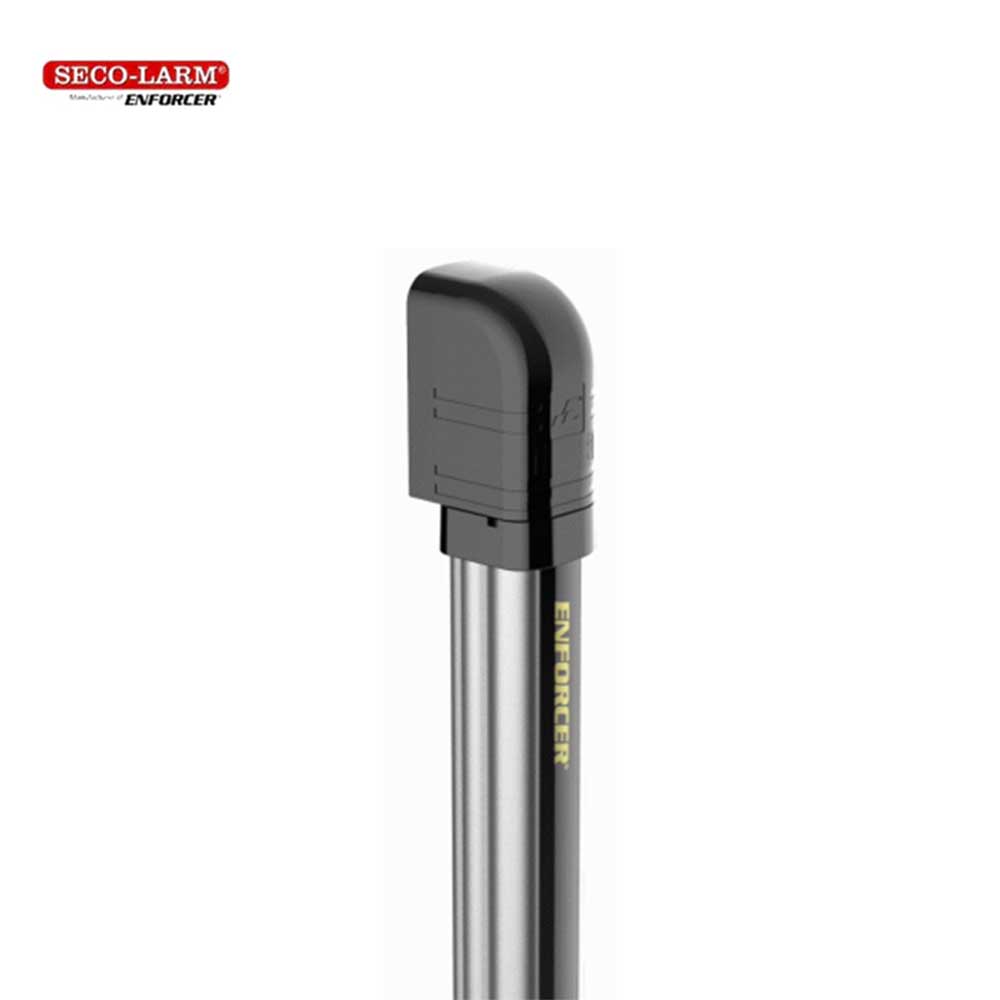

- Rugged aluminum construction
- Tamper alarm output (N.C.) for use when housing is disturbed
- NO/NC relay output
- IP65 Weatherproof
- Buzzer alignment indicator for easier alignment
Specifications:
| Type | Curtain barrier |
| Beams | E-9630-4S328DA - 4 Beams E-9643-6S328DA - 6 Beams E-9655-8S328DA - 8 Neams |
| Length | E-9630-4S328DA - 30" (76cm) E-9643-6S328DA - 43" (108cm) E-9655-8S328DA - 55" (140cm) |
| Range, Synchronous | E-9630-4S328DA - Up to 328ft (100m) E-9643-6S328DA - Up to 328ft (100m) E-9655-8S328DA - Up to 328ft (100m) |
| Range, Asynchronous | 33~262ft (10~80m) |
| Color | Silver |
| No. of beam frequencies | 2 |
| Detection method | Selectable, single beam or simultaneous breaking 2 adjacent beams (default) |
| Sensing range | Synchronous: Up to 328ft (100m) Asynchronous: 33~262ft (10~80m) |
| Response time | ≤40ms |
| Operating voltage | 9~30 VDC |
| Current draw (max.) | 12VDC TX: 22mA 12VDC RX: 24mA 24VDC TX: 11mA 24VDC RX: 12mA |
| Outputs | Trigger: Selectable NO/NC (default, N.C.) 2A@30VDC Tamper: 1A@125VAC/VDC |
| Tamper sensor | N.C. switch |
| Triggered time | ≥1s (or instant alarm, 0.1s) |
| Light source | IR LED |
| Alignment indicator | Buzzer |
| Alignment angle | Horizontal: 180° Vertical: None |
| IP Rating | IP65 Weatherproof |
| Operating temperature | -22°~158° F (-30°~70° C) |
| Material | Aluminum body, polycarbonate lens cover and end caps |
| Dimensions | E-9630-4S328DA - 30"x1-7/8"x1-9/16" (76x4.8x3.9 cm)) E-9643-6S328DA - 43"x1-7/8"x1-9/16" (108x4.8x3.9 cm) E-9655-8S328DA - 55"x1-7/8"x1-9/16" (140x4.8x3.9 cm) |
