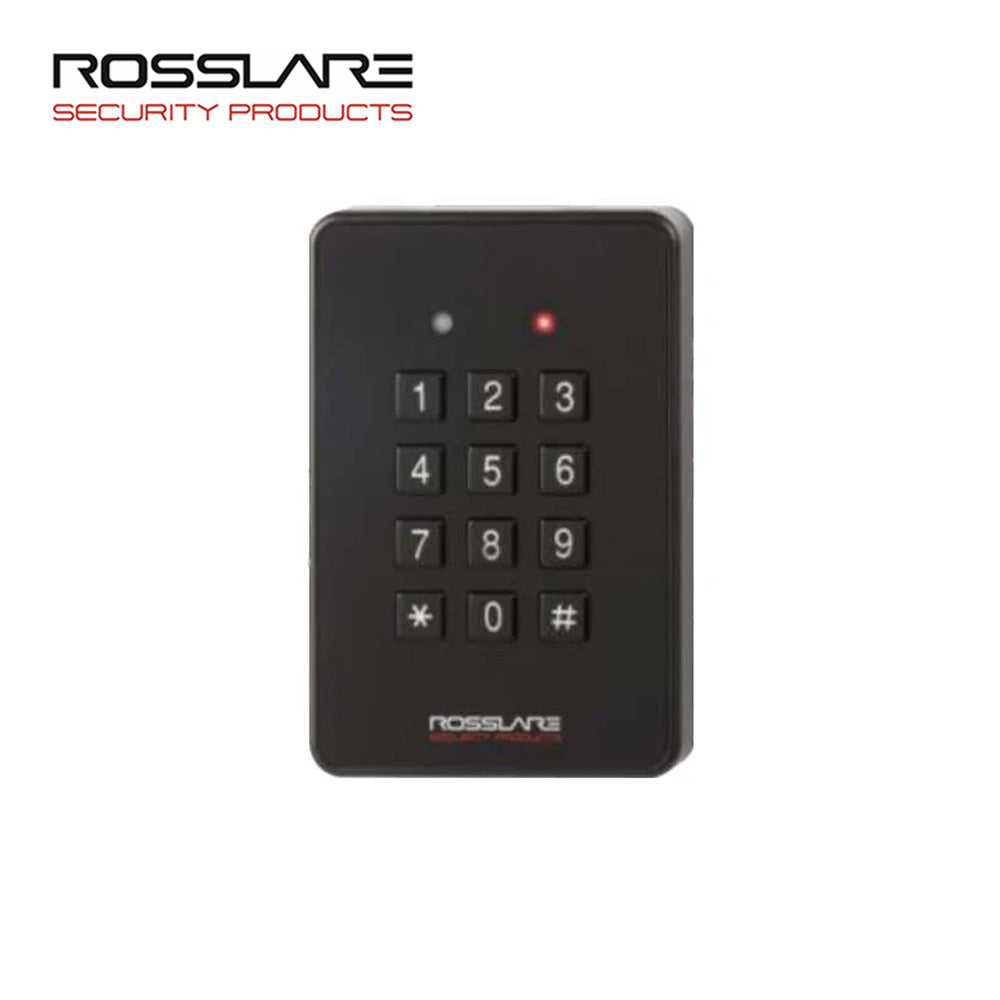

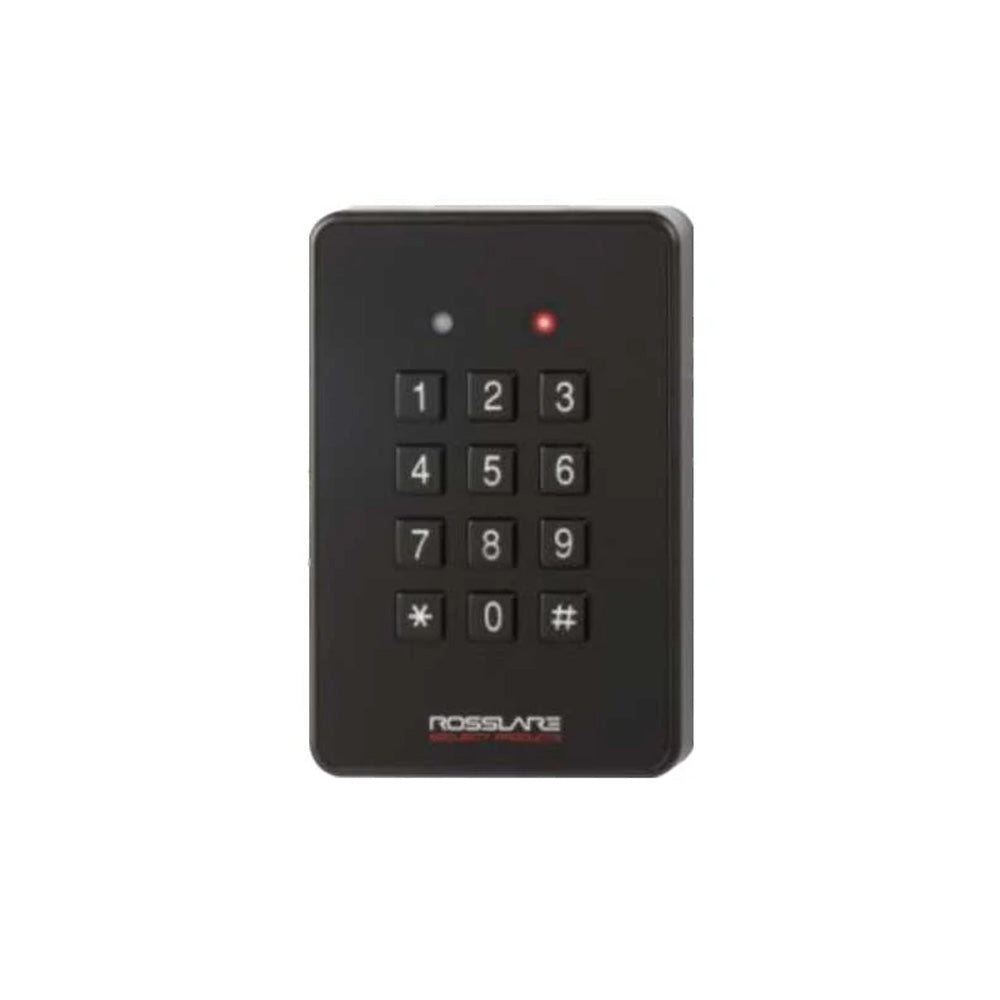

Rosslare - AYC-H6355 - CSN SELECT Convertible Smart Card Readers with 13.56 MHz and IP65
The CSN SELECT AYC-H6355 is a series of multi-credential technology contactless smart card (13.56 MHz) readers with backlit keypad for use in access control system solutions and includes Rosslare's convertible technology. They support access by an NFC compatible Android smartphone app*. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors.
Features:
- Selectable Wiegand output formats.
- Eight keypad transmission formats are available and can be locally selected via keypad programming.
- Mounting options include US gangbox.
- NFC Android Smartphone is supported with the Android App for Host Card Emulation (HCE).
- Sleek and modern design.
- Addressable OSDP connectivity, up to 32 addresses using DIP switches.
- Two tri-colored LED operation.
- Optical wall tamper detection.
- Blue backlit keypad with power saving options (On, Off, Dimming).
- IP65 rated and made of tough polycarbonate UV-resistant plastic.
- Comes with mounting template and installation kit for easy installation.
Specifications:
| Operating Voltage Range | 8 to 16 VDC from a regulated power supply |
| Current at 12 VDC | Standby 120 mA, Maximum 160 mA |
| Read Range | 9 cm (3.5 in.) |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Control Inputs | Dry Contact, N.O. |
| Keypad | 3x4 matrix backlit keypad (used also for local programming) |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30 mA) |
| Reader Data Output Formats | CSN Wiegand 26-Bit and keypad with eight common output formats RS485 – OSDP |
| Dimensions | 110.7 × 75 × 18.2 mm (4.4 x 3 x 0.7 in.) |
| ISO14443A Smart Card | MIFARE Ultralight Nano/Ultralight EV1/ Ultralight C MIFARE Classic/ Classic EV1 MIFARE Plus S / SE / x / EV1 MIFARE DESFire EV1 / EV2 NFC N-TAG / Card Emulation |
| ISO14443B Smart Card | China National ID |
| ISO15693 Smart Card | HID iClass, PicoPass, iCode, LEGIC |
| ISO18092 Smart Card | SONY FeliCa (Hong Kong Octopus) |
| Weight | 169 g (5.9 oz.) |
| Device Certifications | IP65 |
