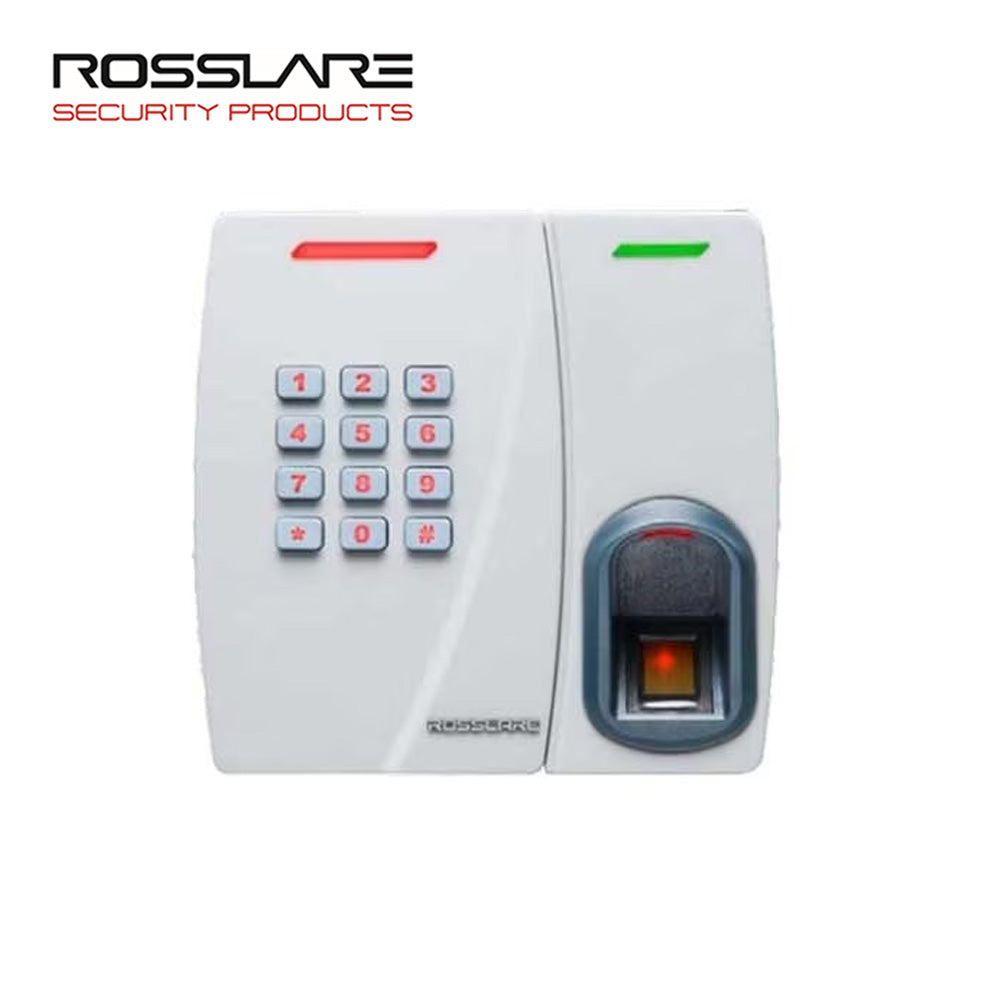

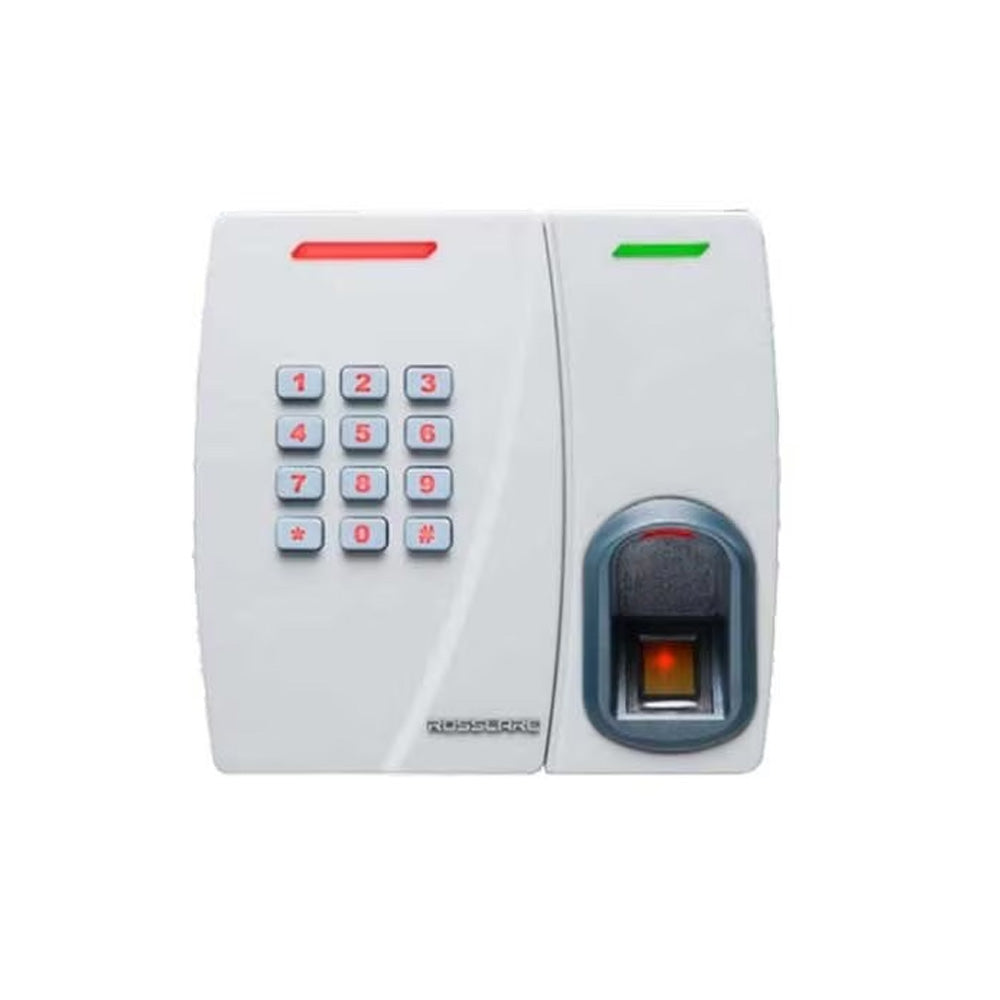

Rosslare - AYC-W6500 - Biometric Convertible PIN and Prox Reader/Controller - Fingerprint Recognition - 500 Users
The dual-application AYC-W6500 is a highly reliable biometric reader that aside from the traditional PIN code and proximity card reading, it also utilizes a fingerprint verification module that is second to none. As a member of the Convertible family, it can convert into a secure 500-user access controller using the PS-x25 Intelligent Secure Power Supply units (automatically recognized). Simple to install and use, the AYC-W6500 offers a modern design including a backlit keypad, convenient finger placement and small footprint. A host of additional standard Rosslare features round out the package, such as extra inputs, friendly setup menus, and straightforward configuration and management of the fingerprint database using easy to use PC software.
Features:
- Programmable PIN transmission modes including options for key stream, binary, and parity.
- LED control input.
- Supports Wiegand 26-Bit, or Clock & Data transmission formats.
- Programmable PIN code length.
- Capacity of 500 users.
- Programmable Auxiliary input mode.
- Programmable PIN code length, from 4 to 8 digits.
- Programmable Lock Strike Release, Siren, and alarm delay timers.
- Two User Levels: Normal User, Secure User.
Specifications:
| Operating Voltage Range | Reader mode: 10 to 16VDC from a standard controller Controller: From power supply |
| Input Current | Standby: 140 mA at 12 VDC, Max: 330 mA at 16 VDC |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| Sensor ESD Rating | ±15KV (Fingerprint Sensor) |
| Operation Modes | Normal: PIN or Proximity Card + Fingerprint Verification Secure: PIN + Proximity Card + Fingerprint Verification |
| Fingerprint Verification | Verification Time: Less than 1 second Verification Method: 1:1 |
| Read Range | 75 mm (2.95 in.), ASK at 125 kHz |
| Keypad | 3x4 Backlit keys for local programming, 4-8 digit PIN code |
| Reader Output Formats | Wiegand 26-Bit, Clock & Data, RS-232 (Host Only) |
| Reader PIN Code Format | 4 selectable transmission formats: - Multiple keys, Wiegand 26 bits - Single key, 6 bits, Rosslare format - Single key, 6 and 8 bits Wiegand |
| Controller Capacity | 500 Users. Dual template, PIN code and proximity card each |
| Weight | 320 g (0.7lbs) |
| Dimensions | 144mm H x 104mm L x 34mm W (5.7 in. x 4.1 in. x 1.4 in.) |
