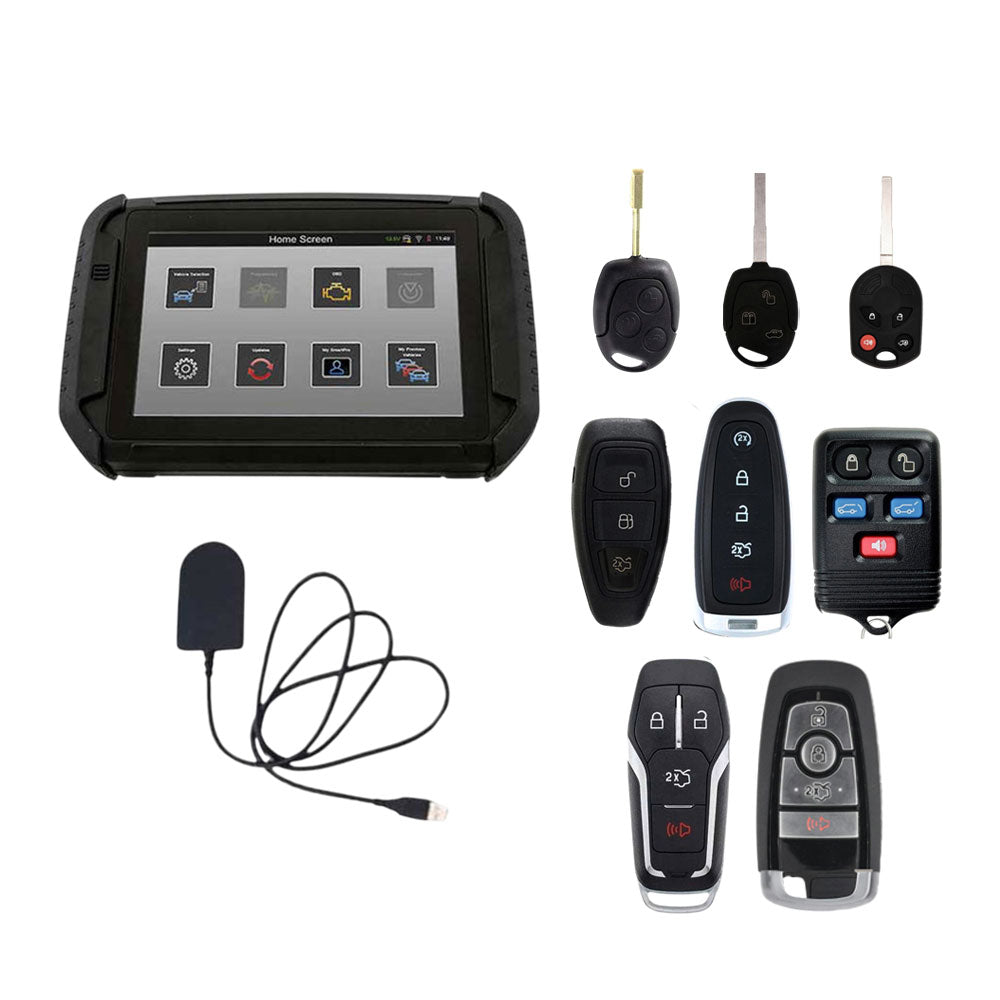

Advanced Diagnostics ITT0481XXXX Smart Pro 6 Months UTP with 8 Ford Remotes and ADC2020 Emulator Package

Advanced Diagnostics ITT0481XXXX Smart Pro 6 Months UTP with 8 Ford Remotes and ADC2020 Emulator Package

Smart Pro is a state-of-the-art vehicle key programmer that provides fast, easy and intuitive programming via the graphical user interface. Software is driven by Info Quest, the Advanced Diagnostics online key programming database with information for over 5000 vehicles; covering most makes and models worldwide. Expertly engineered with high-quality components ensures you of high-security standards and outstanding performance. The customized operating system has been designed and developed by Advanced Diagnostics; the foremost authority in vehicle key programming.

Features:

• All-in-one hybrid solution means you can Pay-As-You-Go, Use Unlimited Token Plan and/or Purchase Software
• Program transponder keys, proximity and remote keyless entry
• Integrated security - no dongles or smart card required
• Compatible with the Smart Aerial
• Fast programming
• Fast updates for software modules individually via Wifi or PC
• Highly secure and customized operating system
• Info Quest vehicle database integrated (over 5000 vehicles)
• Icon driven user interface with easy to use vehicle menu search
• Intuitive touch screen user interface
• WiFi and Bluetooth connectivity
• Multiple language support
• Internal battery with 2 hrs stand-alone use
• Battery backup in the event of a power disruption
• EOBD read and clear faults (manufacturer dependent)
• Advanced Diagnostics released a free ADS2326 update enabling proximity key programming for 2022-2024 Nissan, Infinity, and Mitsubishi models using Smart Pro and the new ADC2017 cable.

Specifications:

• Power 120v main plug for charging
• Weight 2.9kg / 6.4 lbs
• Dimensions 12.7" W x 2.6" D x 8" H (322mm x 203mm x 68mm)
• Battery Lithium-ion Battery, 2 hrs standalone use - chargeable via vehicle or main connection
• Memory 2GB RAM
• Storage 32GB SSD
• Processor Quad core processor
• User Interface Graphic driven touch screen
• Screen 10.1" (256.5mm) full color (LCD 1280 x 800) PCAP touch panel
• Vehicle Support 12 V
• Ports USB Type A and B, Expansion port, Headphone jack, 50 way vehicle connector, - DC Power
• Wifi 802.11a / b / g /n
• Bluetooth 4.1 Compliance
• Storage Temperature -4°F to 122°F (-20°c to 50°c)
• Operating Temperature 23°F to 104°F (- 5°c to 40°c)

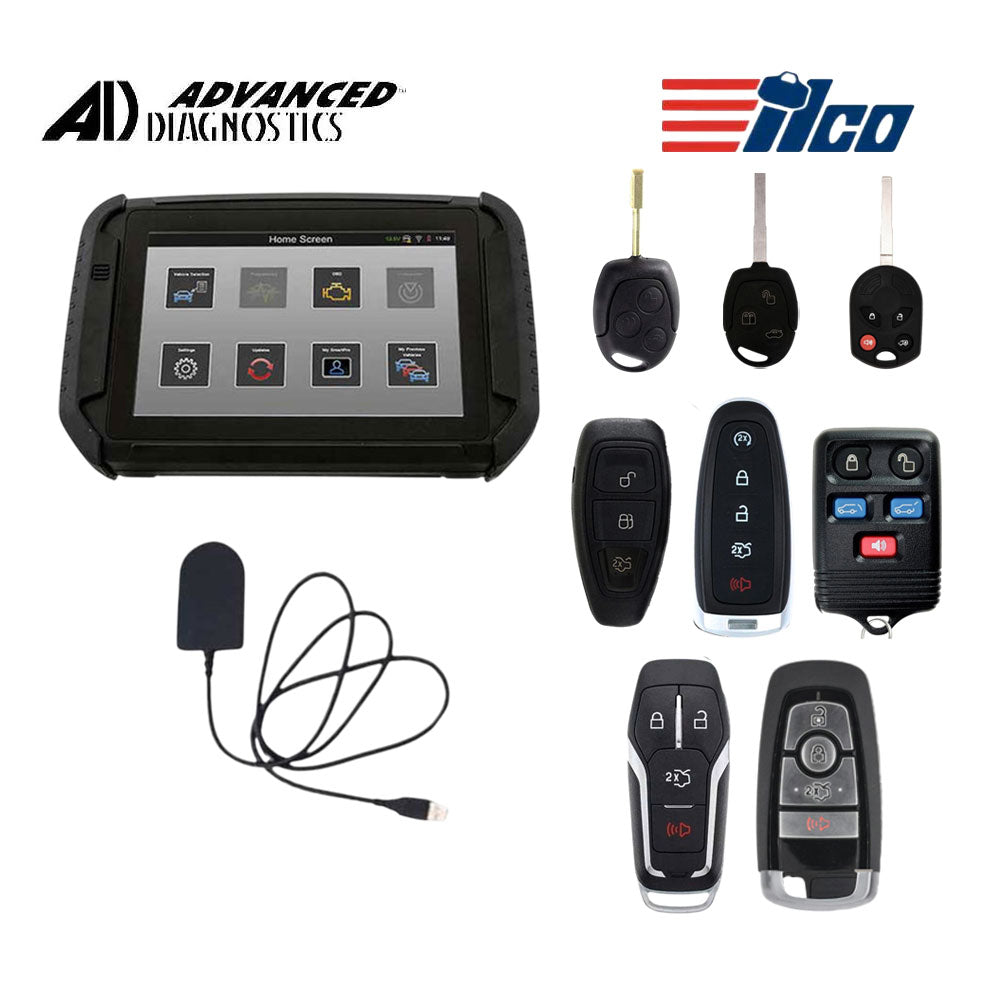

Includes:

• AD-D757554AD: Advanced Diagnostics Smart Pro 6 Months UTP
• RC-FORD-94-ILC: 2007 - 2010 Ford Lincoln Keyless Entry 5 Buttons Fob
• RC-FORD-66-ILC: 2015 - 2017 Ford Smart Key PEPS FOB 1 Way 4 Buttons
• RC-FORD-54-ILC: 2011 - 2019 Ford Smart Key 5 Buttons
• RC-FORD-83-ILC: 2017 - 2022 Ford Smart Key 4 Buttons
• RC-FORD-01-ILC: 2010 - 2013 Ford Transit Connect Key Fob 3 Button
• RC-FORD-56-ILC: 2011 - 2019 Ford Smart Key 3 Button
• RC-FORD-65-ILC: 2015 - 2020 Ford Key Fob 4 Buttons
• RC-FORD-50-ILC: 2011 - 2019 Ford Fiesta Key Fob 3 Buttons
• AD-ADC2020: ADC2020 Emulator Cable for Ford

Advanced Diagnostics Smart Pro 6 Months UTP

Smart Pro is a state-of-the-art vehicle key programmer that provides fast, easy and intuitive programming via the graphical user interface. Software is driven by Info Quest, the Advanced Diagnostics online key programming database with information for over 5000 vehicles; covering most makes and models worldwide.
Expertly engineered with high-quality components ensures you of high-security standards and outstanding performance. The customized operating system has been designed and developed by Advanced Diagnostics; the foremost authority in vehicle key programming.

Features:

• All-in-one hybrid solution means you can Pay-As-You-Go, Use Unlimited Token Plan and/or Purchase Software
• Program transponder keys, proximity and remote keyless entry
• Integrated security - no dongles or smart card required
• Compatible with the Smart Aerial
• Fast programming
• Fast updates for software modules individually via Wifi or PC
• Highly secure and customized operating system
• Info Quest vehicle database integrated (over 5000 vehicles)
• Icon driven user interface with easy to use vehicle menu search
• Intuitive touch screen user interface
• WiFi and Bluetooth connectivity
• Multiple language support
• Internal battery with 2 hrs stand-alone use
• Battery backup in the event of a power disruption
• EOBD read & clear faults (manufacturer dependent)
• Advanced Diagnostics released a free ADS2326 update enabling proximity key programming for 2022–2024 Nissan, Infinity, and Mitsubishi models using Smart Pro and the new ADC2017 cable.

Specifications:

• Power 120v main plug for charging
• Weight 2.9kg / 6.4 lbs
• Dimensions 12.7" W x 2.6" D x 8" H (322mm x 203mm x 68mm)
• Battery Lithium-ion Battery, 2 hrs standalone use – chargeable via vehicle or main connection
• Memory 2GB RAM
• Storage 32GB SSD
• Processor Quad core processor
• User Interface Graphic driven touch screen
• Screen 10.1" (256.5mm) full color (LCD 1280 x 800) PCAP touch panel
• Vehicle Support 12 V
• Ports USB Type A & B, Expansion port, Headphone jack, 50 way vehicle connector, - DC Power
• Wifi 802.11a / b / g /n
• Bluetooth 4.1 Compliance
• Storage Temperature -4°F to 122°F (-20c to 50c)
• Operating Temperature 23°F to 104°F (- 5c to 40c)

Payment Option for 36-Month Commitment:

This payment option gets you the Smart Pro device for free when you to commit to 36 months of paid unlimited token pack (UTP) subscriptions (with a guarantee to lock you in at the UTP price you start at for your required 36 months).
Here's how it works, you simply pay for your first 6 months upfront, and then continue to pay the monthly fee for the remaining 30 months. Once your 36 months are up, you’re free to use whatever token packs or software you prefer.
Failure to renew your subscription will result in Advanced Diagnostics deactivating/canceling any active UTPs, as well as preventing token use on your device. If you choose this Smart Pro payment option, your required UTP subscriptions may NOT be shared with, loaded onto, or transferred to another device.
If you spend most of your days programming vehicle keys, this payment option is perfect for you.

Payment Option for 3-Year Commitment:

This payment option gets you the Smart Pro device for free when you to commit to 3 paid, year-long unlimited token pack (UTP) subscriptions (with a guarantee to lock you in at the UTP price you start at for your required 3 years).
Here's how it works, you simply pay for year 1, and then renew the subscription for years 2 & 3 before or on the expiration date. Once your 3 years are up, you’re free to use whatever token packs or software you prefer.
Failure to renew your subscription will result in Advanced Diagnostics deactivating/canceling any active UTPs, as well as preventing token use on your device. If you choose this Smart Pro payment option, your required UTP subscriptions may NOT be shared with, loaded onto, or transferred to another device.
If you spend most of your days programming vehicle keys, this payment option is perfect for you.

2007 - 2010 Ford Lincoln Keyless Entry 5 Buttons Fob FCC# CWTWB1U551 - 315 MHz

This Key Fob fits for:

FORD: EXPEDITION 2007 2008 2009 2010
LINCOLN: NAVIGATOR 2008 2009 2010

More Information

• FCC ID: CWTWB1U551
• Frequency: 315 MHz
• Part #: 7L1Z-15K601-AA / 3L7T-15K601-AB
• ILCO C/R: AX00011640 (RKE-FORD-5B1)
• Battery: CR2032
• Reusable: Yes

2015 - 2017 Ford Smart Key PEPS FOB 1 Way 4 Buttons FCC# M3N-A2C31243800 - 315 MHZ

This Key Fob fits for:

• FORD FUSION 2015 2016
• FORD EDGE 2015 2016 2017
• FORD EXPLORER 2016 2017

More Information

• FCC ID: M3N-A2C31243800
• Frequency: 315 MHz
• Part #: 164-R8109
• ILCO C/R: IAX00018990 (PRX-FORD-4B7)
• Strattec C/R: 5926060
• Emergency Key: Included (HU101)
• Battery: CR2025 X 2
• Reusable: Yes

2011 - 2019 Ford Smart Key 5 Buttons Fob FCC# M3N5WY8609 - H75 - 315 MHz

This Key Fob fits for:

• FORD: EDGE 2012 2013 2014 2015
• FORD: EXPEDITION 2015 2016 2017
• FORD: EXPLORER 2011 2012 2013 2014 2015
• FORD: FLEX 2013 2014 2015 2016 2017 2018 2019
• FORD: FOCUS 2012 2013 2014 2015 2016 2017 2018 2019
• FORD TAURUS 2013 2014 2015 2016 2017 2018 2019

More Information

• FCC ID: M3N5WY8609
• Frequency: 315 Mhz
• Strattec C/R: 5921286
• Part #: 164-R8092 / BT4T-15K601-Hx
• ILCO C/R: IAX00019480 (PRX-FORD-5B10), AX00010190 (PRX-FORD-5B2)
• Emergency Key: Included (H75)
• Battery: CR2032
• Reusable: Yes

2017 - 2022 Ford Smart Key 4 Buttons FCC# M3N-A2C93142300 - 315 MHz

This Key Fob fits for:

• FORD EDGE 2017 2018 2019 2020 2021 2022
• FORD EXPLORER 2018 2019 2020 2021 2022
• FORD FUSION 2017 2018 2019 2020
• FORD MUSTANG 2018 2019 2020 2021 2022

More Information

• FCC ID: M3N-A2C93142300
• Frequency: 315 MHz
• Strattec C/R: 5929506
• ILCO C/R: IAX00018060 (PRX-FORD-4B5)
• Part #: 164-R8150
• Emergency Key: Included
• Battery: CR2450
• Reusable: Yes

2010 - 2013 Ford Transit Connect Key Fob 3 Buttons FCC# KR55WK47899 - 315 MHz

This Key Fob fits for:

• FORD TRANSIT CONNECT 2010 2011 2012 2013

More Information

• FCC ID: KR55WK47899
• Chip ID: Texas ID 4D63 (80 Bits)
• Frequency: 315 MHz
• Part #: 2S6T15K601AB
• ILCO C/R: AX00011930 (RHK-FORD-3B4)
• Keyway: Tibbe
• Battery: CR2032
• Reusable: Yes

2011 - 2019 Ford Smart Key 3 Buttons FCC# KR55WK48801 - 434 MHz

This Key Fob fits for:

• FORD FIESTA 2011 2012 2013 2014 2015 2016 2017 2018 2019
• FORD FOCUS 2012 2013 2014 2015 2016 2017
• FORD C-MAX 2013 2014 2015 2016 2017 2018 2019

More Information

• FCC ID: KR55WK48801
• Frequency: 434 MHz
• Strattec C/R: 5919918
• Part #: 164-R8048
• ILCO C/R: IAX00019590 (PRX-FORD-3B6), AX00011480 (PRX-FORD-3B3), AX00015130 (PRX-FORD-3B3)
• Emergency Key Included
• Battery CR2032
• Reusable: Yes

2015 - 2020 Ford Key Fob 4 Buttons FCC# OUCD6000022- 315 MHz

This Key Fob fits for:

• FORD TRANSIT 2015 2016 2017 2018 2019 2020
• FORD TRANSIT CONNECT 2020


More Information:

• Chip ID: Texas 4D63 - 80 Bits
• FCC ID: OUCD6000022
• Frequency: 315 MHz
• Strattec C/R: 5925981 (Discontinued) - Replacement 5922964
• OE Part #: 164-R8126
• ILCO C/R: IAX00019770 (RHK-FORD-4B9HS), IAX00015720 (RHK-FORD-4B7HS)
• Keyway: HU101
• Battery CR2032
• Reusable: Yes

2011 - 2019 Ford Fiesta Key Fob 3 Buttons FCC# KR55WK47899 - HU101 - 315 MHz

This Key Fob fits for:

FORD FIESTA 2011 2012 2013 2014 2015 2016 2017 2018 2019

More Information

• FCC ID: KR55WK47899
• Chip ID: Texas ID 4D - 63 (80 BIT)
• Frequency: 315 MHz
• OE Part #: 164- R8043 (key Section)
• OE Part #: 164- R8042 (Remote)
• STRATTEC C/R: 5913139
• ILCO C/R: IAX00011920 (RHK-FORD-3B3HS)
• Keyway: HU101
• Battery CR2032
• Reusable: Yes

Advanced Diagnostics ADC2020 Emulator Cable for Ford - D756922AD

ADC2020 Emulator cable works together with the Smart Pro and Advanced Diagnostics ADS2269 Ford software to emulate a working key in All Keys Lost situations and with an active alarm. Key data is read from the vehicle using the Smart Pro software and then written to the emulator which is connected directly to the Smart Pro via a USB cable. The emulator then mimics a working key for the vehicle, shutting down the active alarm, allowing additional keys to be programmed, all without the need of an existing, working key.

Features:

• Improves previous procedure for silencing active alarm
• Eliminates time wait after reading data
• No need to cover ultrasonic sensors to silence alarm

Emulator Cable Application Chart:

• Ford Edge (Proximity Key) 2015-2020
• Ford Expedition (Proximity Key) 2018-2019
• Ford Explorer (Proximity Key) 2016-2019
• Ford Explorer (Bladed Key) 2016-2019
• Ford F-150 (Bladed Key) 2015-2020
• Ford F-150 (Proximity Key) 2015-2020
• Ford F-250 (Bladed Key) 2015-2019
• Ford F-250 (Proximity Key) 2015-2019
• Ford Fusion (Proximity Key) 2016-2019
• Ford F-350 (Bladed Key) 2017-2019
• Ford F-350 (Proximity Key) 2017-2019
• Ford F-550 (Bladed Key) 2017-2019
• Ford Fusion (Bladed Key) 2016-2020
• Ford Mustang (Proximity Key) 2015-2019
• Ford Ranger (Bladed Key) 2019-2023
• Ford Ranger (Proximity Key) 2019-2023
• Lincoln MKC (Proximity Key) 2018-2019
• Lincoln MKT (Proximity Key) 2020
• Lincoln MKX (Proximity Key) 2016-2019
• Lincoln MKZ (Proximity Key) 2016-2020
• Lincoln Nautilus (Proximity Key) 2018-2024
• Lincoln Navigator (Proximity Key) 2018-2019

Part Number: D756922AD

Download:

• Product Flyer

Notes:

• Replacement Keyless Entry Remotes and Key fobs for Cars and Trucks(picture might show FRONT and BACK of the same key remote).
• AllKeyless Remotes and Smart, Proxy Keys and Locksmith Toolsinclude a brand new battery.
• All NewKeyless Entry Remote Key Fob, Refurbished Remote Key Fob and Locksmith Toolsare tested before we ship.
• Refurbished Remoteshave an OEM board. The case may have been replaced with or without the logo.
• Aftermarket Remotesdo not include logo.
• We do not cut or program keys at our warehouse. Please contact your local locksmith here for pricing.

Compatibility Replacement Remotes: These remotes work with car models listed in the compatibility section.
**Our compatibility section is researched to the best of our knowledge - it is to be used as a suggested guide. Please confirm part number and FCC ID to ensure proper fitment.
In general there is no onboard programming procedure for newer replacement remote keys. Key fobs must be programmed by a professional locksmith. Please contact an automotive locksmith to get an accurate quote so they can program this key fob once you receive it.
Many keyless entry remote fob and smart key programming procedures allow you to do the programming yourself for free. Programming Instructions for Replacement Key Fobs are available here.
