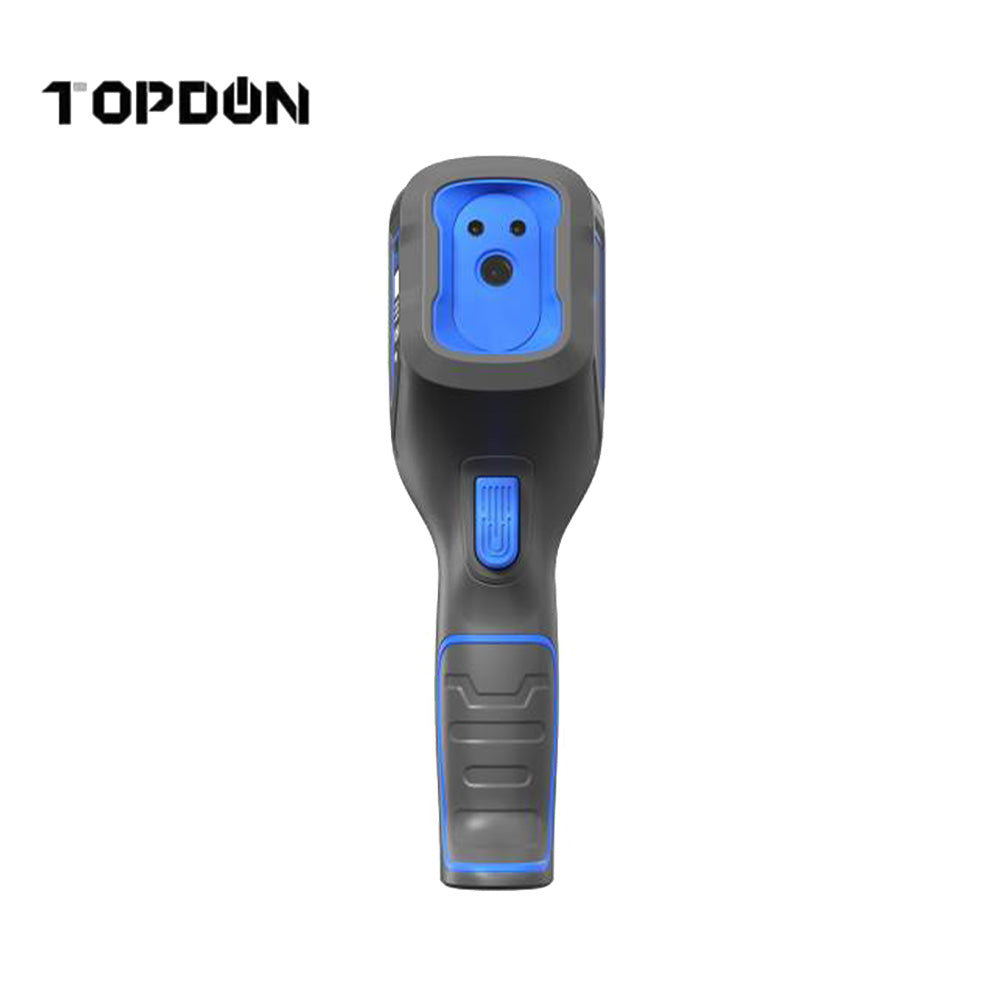

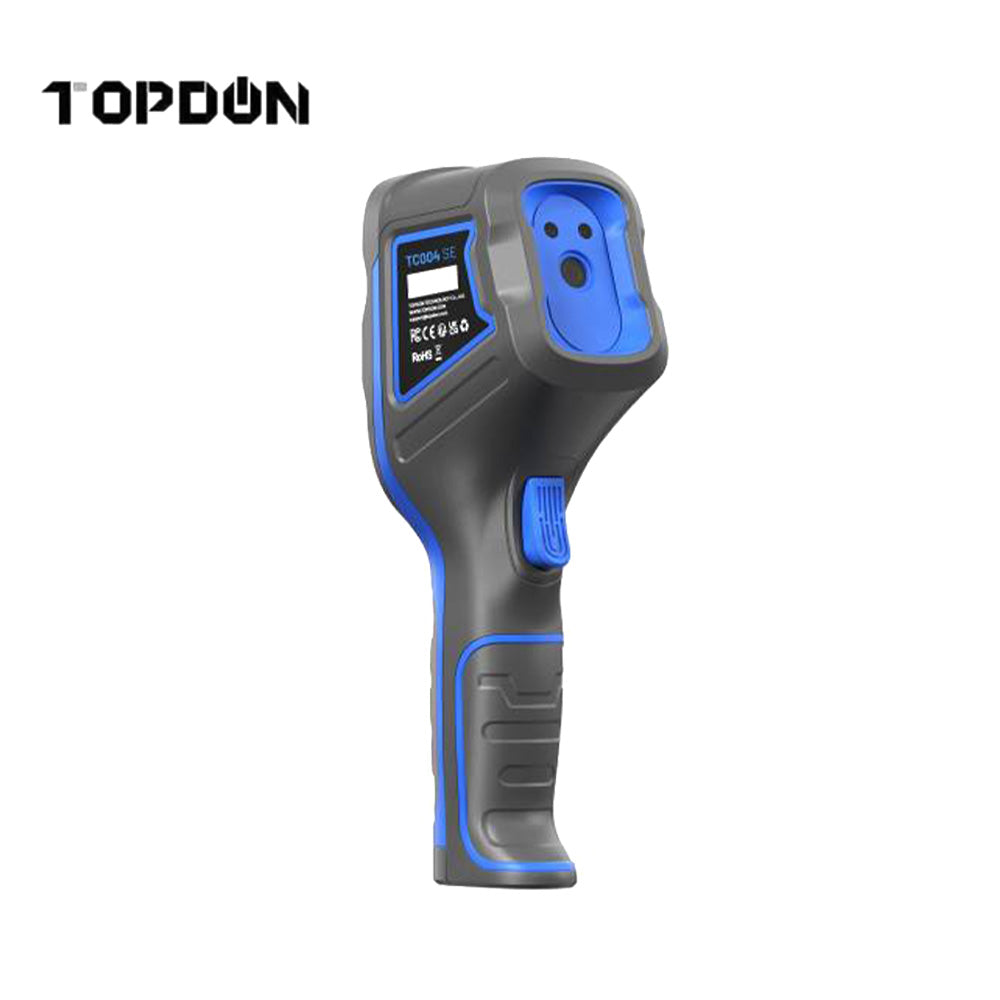

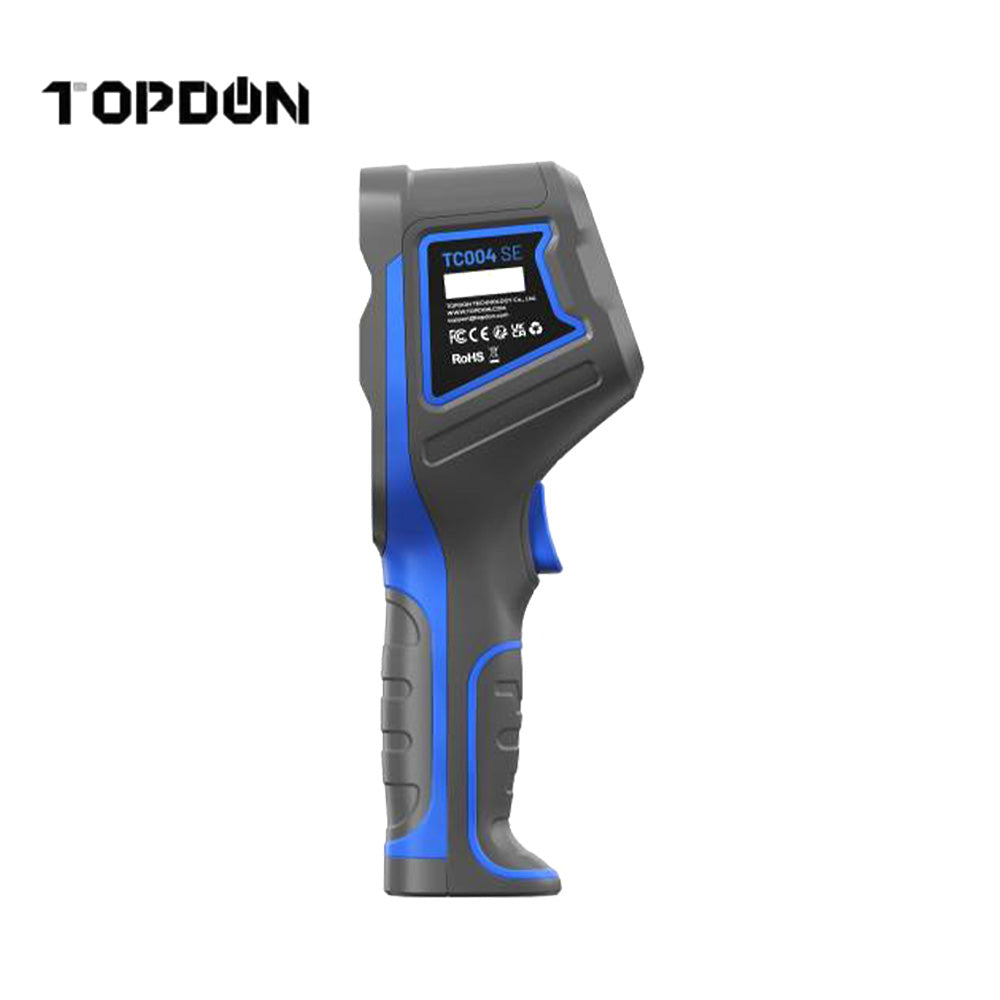

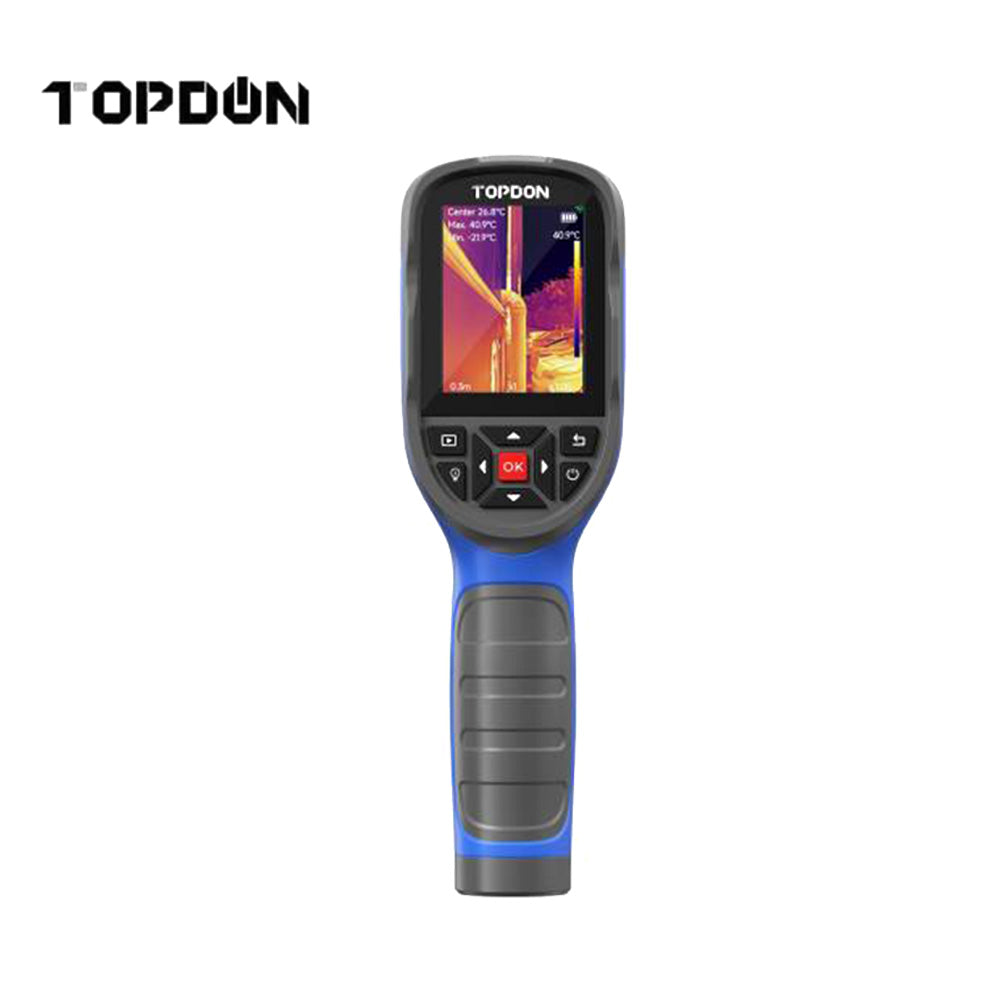

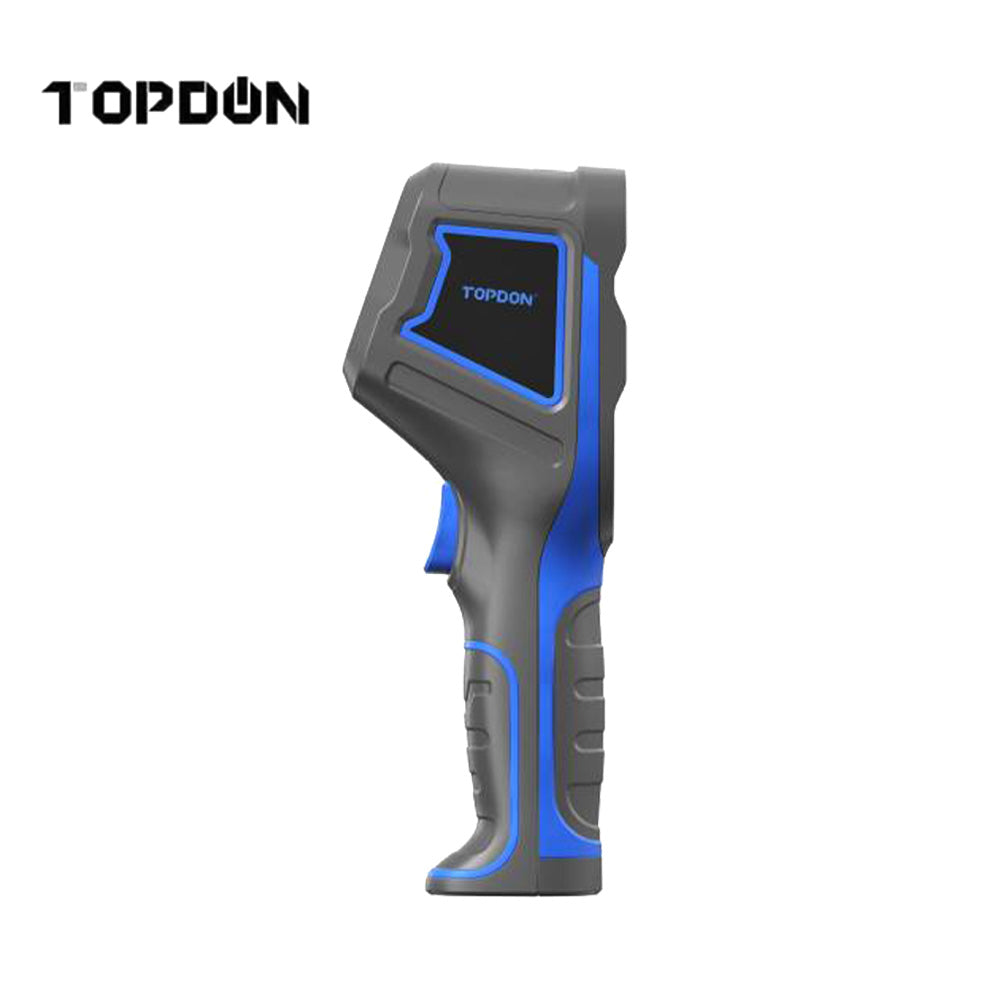

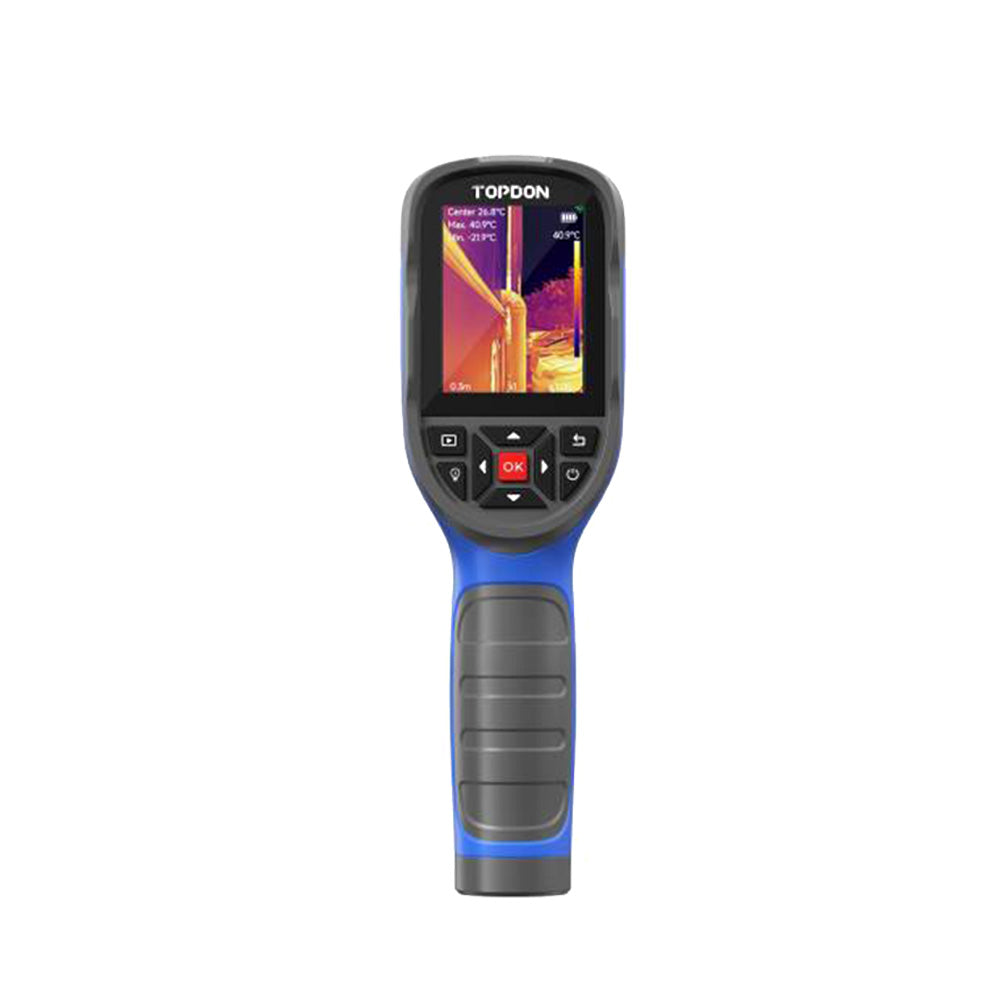

TOPDON TC004SE DIY Thermal Imaging Camera (All Day Battery Life)

TOPDON TC004SE DIY Thermal Imaging Camera (All Day Battery Life)

TOPDON TC004 SE Thermal Camera is perfecrtly designed for industrial, electrical, HVAC, building, and automotive use. With up to 21 hours of battery life and video recording capabilities, it's built for all-day inspections and reliable performance. Capture issues fast, document maintenance history, and give the users peace of mind.

Features:

• Extended Battery Life: Enjoy up to 21 hours of use on low brightness and 16 hours on high, making it perfect for long tasks. With just 3 hours of use per day, it can last an entire week on a single charge.
• Video Capture: Effortlessly capture videos during inspections for accurate documentation and easy review
• Built-In 32GB Internal Storage: With 32GB of built-in storage, you can save up to 160,000 thermal images-perfect for storing and reviewing data on long-term projects.
• Zoom In Up to 4x: Easily toggle between 1x, 2x, and 4x digital zoom to capture fine details up close or scan wider areas with clarity.
• Detailed PC Image Analysis: Easily transfer thermal images to your PC for advanced analysis-compare temperatures, highlight hot/cold spots, and review using dot, line, or area tools.
• 256x192 Resolution, 25Hz Refresh Rate: A 256x192 IR resolution and 25Hz refresh rate provide fluid and clear thermal visuals to help you quickly spot and analyze issues in power, electrical, or building inspections.
• 1/4-20 Screw Mount: Built-in 1/4-20 screw hole lets you mount the device on a tripod for stable, hands-free monitoring-perfect for lab tests and equipment inspections.
• Built-in LED Light: The dual LED flashlight lets you work in low-light conditions and inspect hard-to-reach areas without carrying additional equipment.

Specifications:

• Hardware
• System: Linux
• Operating System: Standalone use/Windows devices
• Battery Capacity: 5300mAh
• Display Screen: 2.8 inch, 320x240 screen
• Operating Voltage: 5V
• Charging Time: 4h
• Battery Life: 16h (High brightness) 21h (Low brightness)
• Storage: 32 GB

• Imaging
• Calibration Temperature Measurement Distance: 0.2m-4m
• Identification Distance: 0.1-40m
• Recognition Distance: 40-80m
• Detection Distance: 80-320m
• Measurement Accuracy: ±2°C or ±2%
• Infrared Light Resolution: 256x192
• Focal Range: 3.2mm
• FOV: 56°×42°
• Spectral Range: 8 - 14μm
• NETD: 40mK
• Temperature Resolution: 0.1°C
• Frame Rate: 25Hz

• Functions
• Measurement Range: -20 to 450 °C
• Image Modes: Thermal Imaging
• Measuring Modes: Center spot/hot spot/cold spot
• PC-Based Analysis Software: Supports image analysis with PC
• Pseudo Color Bar: 10 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, aureate)
• Automatic Power-off Time: 5 mins, 10 mins, 20 mins, Off
• Temperature Units: Celsius, Fahrenheit, Kelvin

• Other
• Operating Temperature: -10°C to +50°C
• Drop, Impact, and Vibration: 2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
• IP Rating: IP54
• Languages Supported: 13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)

Inside the Box:

• TC004 SE Thermal Camera
• USB Cable
• Carrying Bag
• User Manual
• Power Adapter

Warranty and Updates:

• 1 Year Warranty
• Connect to PC for updates
