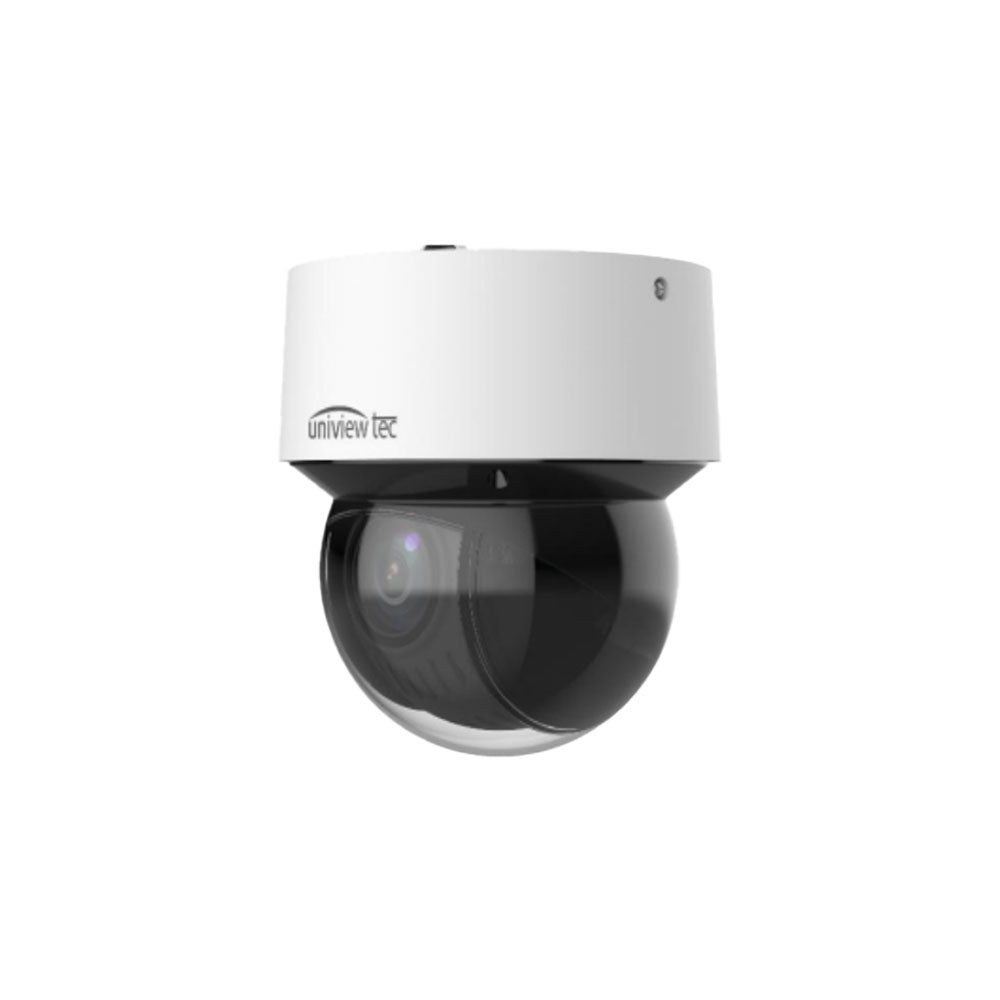

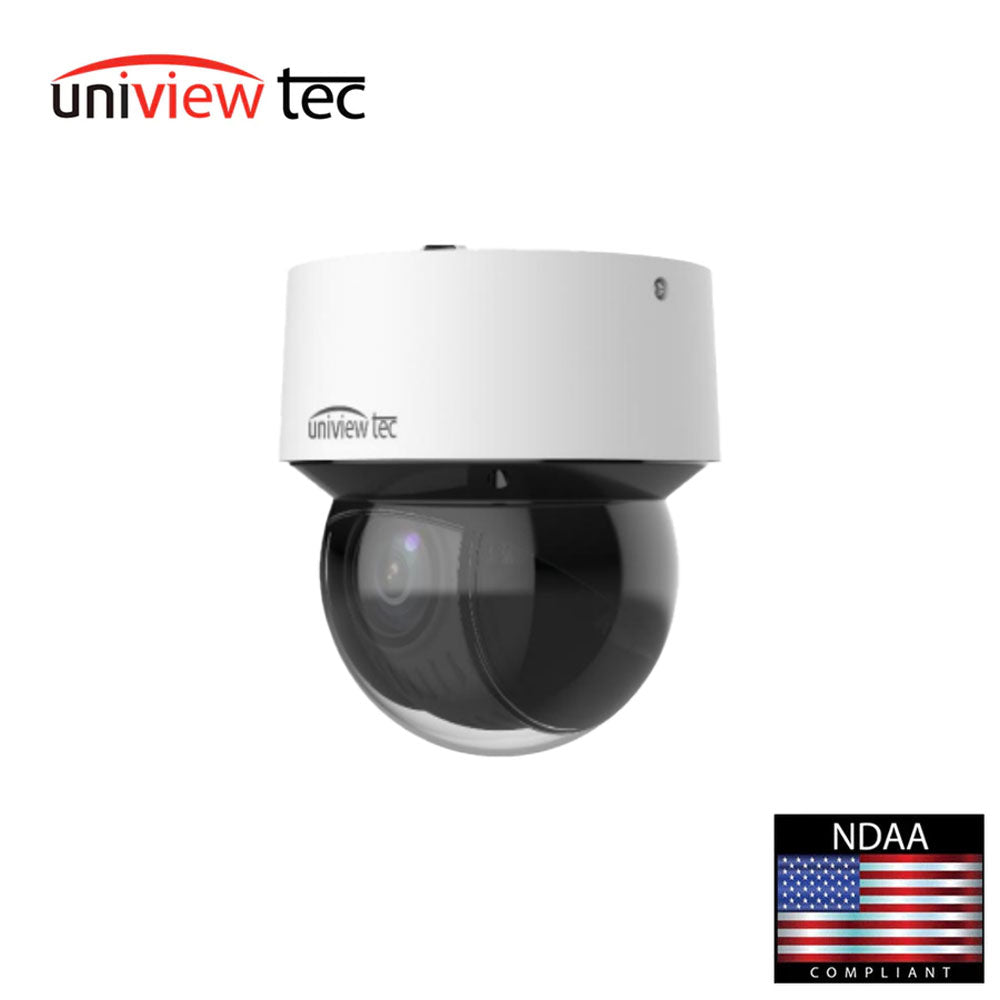

Uniview Tec IPCSD416X 4MP 16x WDR Light Hunter PTZ Dome Camera - High-Zoom - Smart Night Vision - Smart AI Security
$1,17900
$1,53117
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Description
Description
Uniview Tec IPCSD416X 4MP 16x WDR Light Hunter PTZ Dome Camera - High-Zoom - Smart Night Vision - Smart AI Security
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Light Hunter illumination technology ensures ultra-high quality with 4MP, 2688 x 1520 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Nighttime Operation up to 328 Feet
- 5.5 ~ 88mm, 16x Optical motorized zoom and focus lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 240°/sec and up to 1024 Preset Positions
- Dual Video Streams; ONVIF Profile Series Compliant; with Motion Detection
- IP66 / IK10 Weather / Vandal Resistant Housing and PoE & 12VDC Power Options
- Wall, Pole & Corner Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- Supported by Uniview tec Guard Station Software and Guard Live or Guard Viewer Mobile App's for iPhone and Android Device
Specifications:
| Sensor | 1/2.9" 4MP CMOS |
| Minimum Illumination | Color: 0.005 lux (F1.78, AGC ON); 0 lux with IR on |
| True Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens | 5.5 ~ 88 mm |
| Optical / Digital Zoom | 16x |
| Iris | F1.78-F3.73 |
| Field of View (H) | 50.85° ~ 3.47° |
| Field of View (V) | 29.94° ~ 1.95° |
| Field of View (D) | 62.55° ~ 4.09° |
| DORI (5.5 mm) | Detect: 127.6m (418.6 ft) Observe: 51.1m (167.4 ft) Recognize: 25.5m (83.7 ft) Identify: 12.8m (41.9 ft) |
| DORI (88 mm) | Detect: 2048m (6720.5 ft) Observe: 819.4m (2688.2 ft) Recognize: 409.7m (1344.1 ft) Identify: 204.8m (672 ft) |
| IR Range | Up to 100m (328 ft) |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main: 4MP (2688x1520) @30fps; Sub: 720P @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code / ROI | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 areas, up to 4 per scene |
| Video Stream | Dual streams |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction | 2D / 3D DNR |
| Smart IR | Support |
| Flip | Normal / Vertical / Horizontal / 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Smart Intrusion Prevention | Cross line, intrusion detection with false alarm filtering |
| Basic Detection | Motion, Audio, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Filtering, Alarm Input, Access Policy, ARP Protection, RTSP/HTTP Authentication |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Sampling Rate | 16 KHz |
| Edge Storage | Micro SD, up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4/IPv6, IGMP, RTP/RTSP/RTMP, ICMP, ARP, TCP/UDP, DHCP, PPPoE, DNS/DDNS, NTP, FTP, UPnP, HTTP/HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF S/G/T, API, SDK |
| User/Host | Up to 32 users; 3 levels |
| Security | Password Protection, Strong Password, HTTPS, TLS1.2, Logs, Digest RTSP/HTTP Auth, WSSE |
| Client | Guard Station, Guard Viewer, Guard Live |
| Web Browser | IE10+, Chrome 45+/Plug-in free 57+, Firefox 52+/58+, Edge 79+ |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 x RS485 |
| Network | 1 x RJ45 10/100M Ethernet |
| Pan Range | 360° endless |
| Pan Speed | 0.1°/s ~ 240°/s |
| Tilt Range | -5° ~ 90° (auto flip) |
| Tilt Speed | 0.1°/s ~ 120°/s |
| Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets each |
| Route Patrol | 16 patrols, up to 32 actions each |
| Recorded Patrol | 16 patrols, up to 128 actions each |
| Patrol Stay Time | 15s ~ 1800s |
| Home Position | Support |
| Power | DC 12V (±10%, 3A), PoE+ (802.3at), Max 23W |
| Power Interface | Ø 5.5 mm coaxial plug |
| Dimensions | Ø167 x 181 mm (Ø6.6" x 7.1") |
| Weight | 2.3 kg (5.07 lb) |
| Environment | -40°C ~ 70°C (-40°F ~ 158°F), ≤95% RH |
| Surge Protection | 6KV |
| Certifications | IP66, IK10, CE, FCC |
