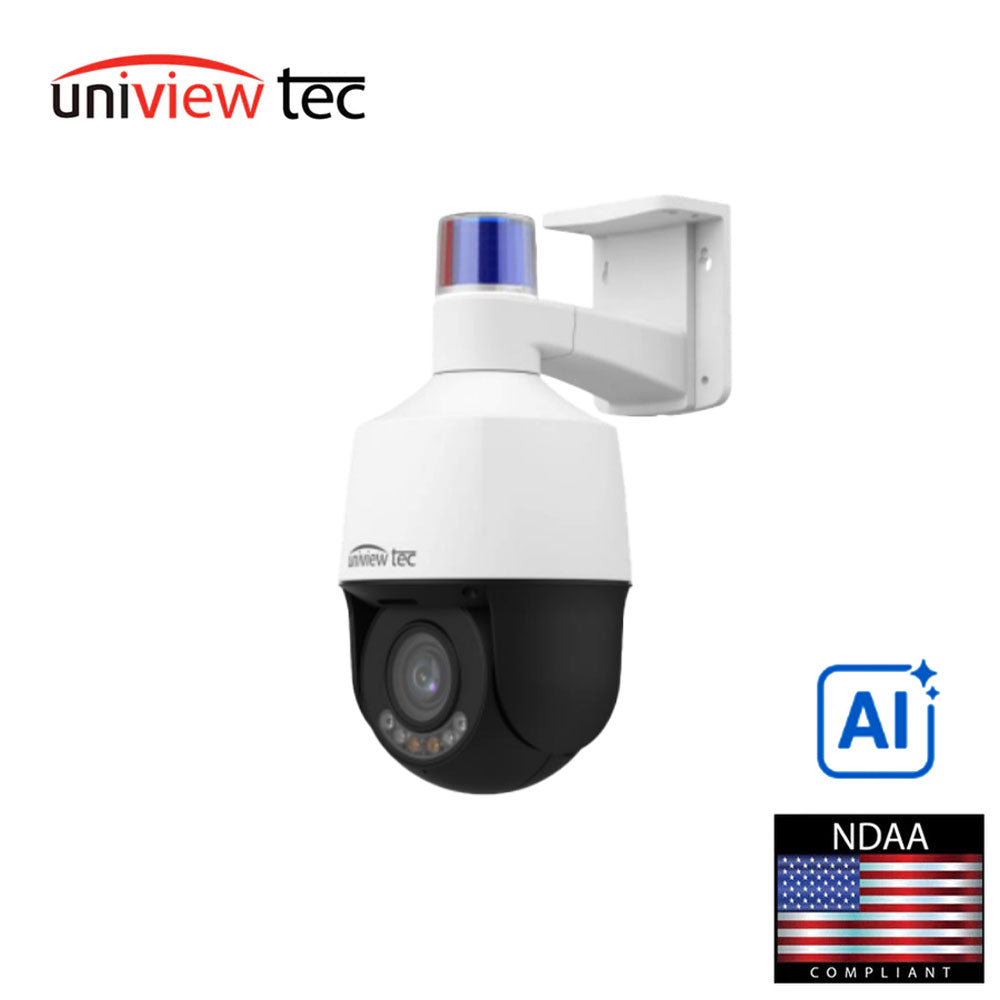

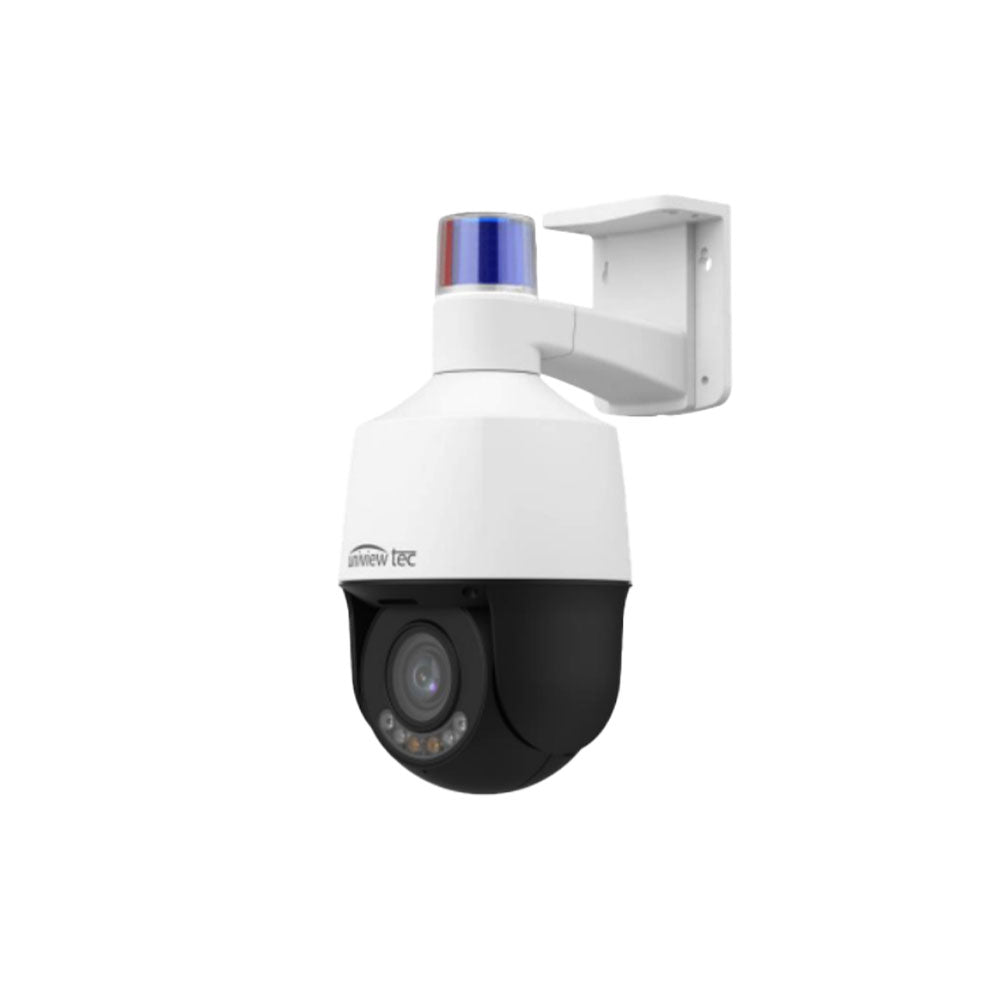

Uniview Tec IPCSDC55X 5MP Active Deterrence PTZ Dome Security Camera with IR Night Vision and 5x Optical Zoom
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Description
Description
Uniview Tec IPCSDC55x 5MP Active Deterrence PTZ Dome Security Camera with IR Night Vision and 5x Optical Zoom
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high quality with 2880 x 1620 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet, or 49 feet with Warm Light color night mode.
- 2.7 ~ 13.5mm, 5x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Digital Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- 50°/sec Pan speed and up to 1024 Preset Positions
- Triple Video Streams; ONVIF Profile Series Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- Built-in Micro-SD Card Slot enables local storage up to 512GB and ANR
- IP66 Weather Resistant Housing and Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications:
| Camera Sensor | 1/2.7" 5MP CMOS |
| Minimum Illumination | Color: 0.005 lux (F1.2, AGC ON); 0 lux with IR on |
| True Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N Ratio | >56dB |
| Lens | 2.7 ~ 13.5mm, 5x Optical Zoom, F1.2 |
| Field of View (H) | 106.9° ~ 30.6° |
| Field of View (V) | 56° ~ 17.7° |
| Field of View (D) | 131.5° ~ 36.1° |
| DORI Distance |
Detect: 70.9m (2.7mm), 247.5m (13.5mm) Observe: 28.4m (2.7mm), 99m (13.5mm) Recognize: 14.2m (2.7mm), 46.5m (13.5mm) Identify: 7.1m (2.7mm), 24.8m (13.5mm) |
| IR Light Range | Up to 50m (164ft) |
| Warm Light Range | Up to 15m (49.3ft) |
| Wavelength | 850nm |
| IR Control | Auto / Manual |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main: 5MP (2880x1620) @ 30fps Sub: 720P (1280x720) @ 30fps Third: D1 (720x576) @ 30fps |
| Video Bitrate | 128 Kbps ~ 16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| DNR | 2D / 3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| Intelligent Functions | Cross Line, Intrusion, Enter/Leave Area, Object Removal/Left Behind, Scene Change, Defocus Detection, People Counting, Crowd Monitoring |
| Auto Tracking | Support (Human only) |
| Basic Detection | Motion, Audio, Tampering Alarm |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Supported |
| Edge Storage | MicroSD up to 512GB |
| Network Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, IPv4/IPv6, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, HTTPS, FTP, UPnP, 802.1x, SNMP |
| ONVIF Compatibility | Profile S, G, T, M |
| Users | Up to 32 users (Admin / Operator / User) |
| Pan Range | 0° ~ 345° |
| Tilt Range | -10° ~ 100° |
| Pan Speed | 1°/s ~ 50°/s |
| Tilt Speed | 1°/s ~ 40°/s |
| Presets | 1024 presets |
| Preset Patrol | 16 patrols (up to 64 presets each) |
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 1 / 1 |
| Power | DC 12V (3A), PoE+ (IEEE 802.3at), Max 18W |
| Dimensions | 185 x 133 x 286mm (7.3" x 5.2" x 11.3") |
| Weight | 1.32kg (5.07 lb) |
| Operating Environment | -30°C ~ 60°C, Humidity ≤95% RH |
| Storage Environment | -40°C ~ 70°C, Humidity ≤95% RH |
| Surge Protection | 2KV |
| Certifications | IP66, CE, UL |
