Uniview Tec | SKU:
UVT-IPT4KES28X
23% off

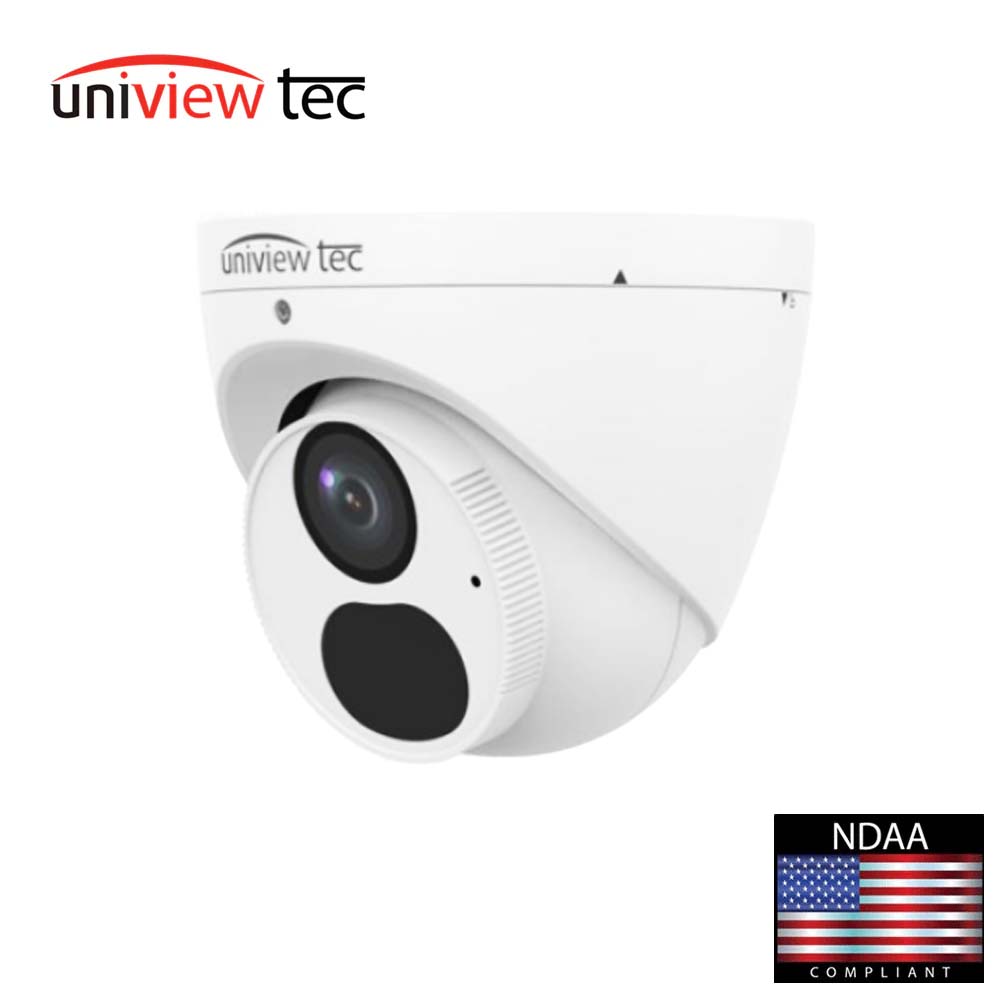

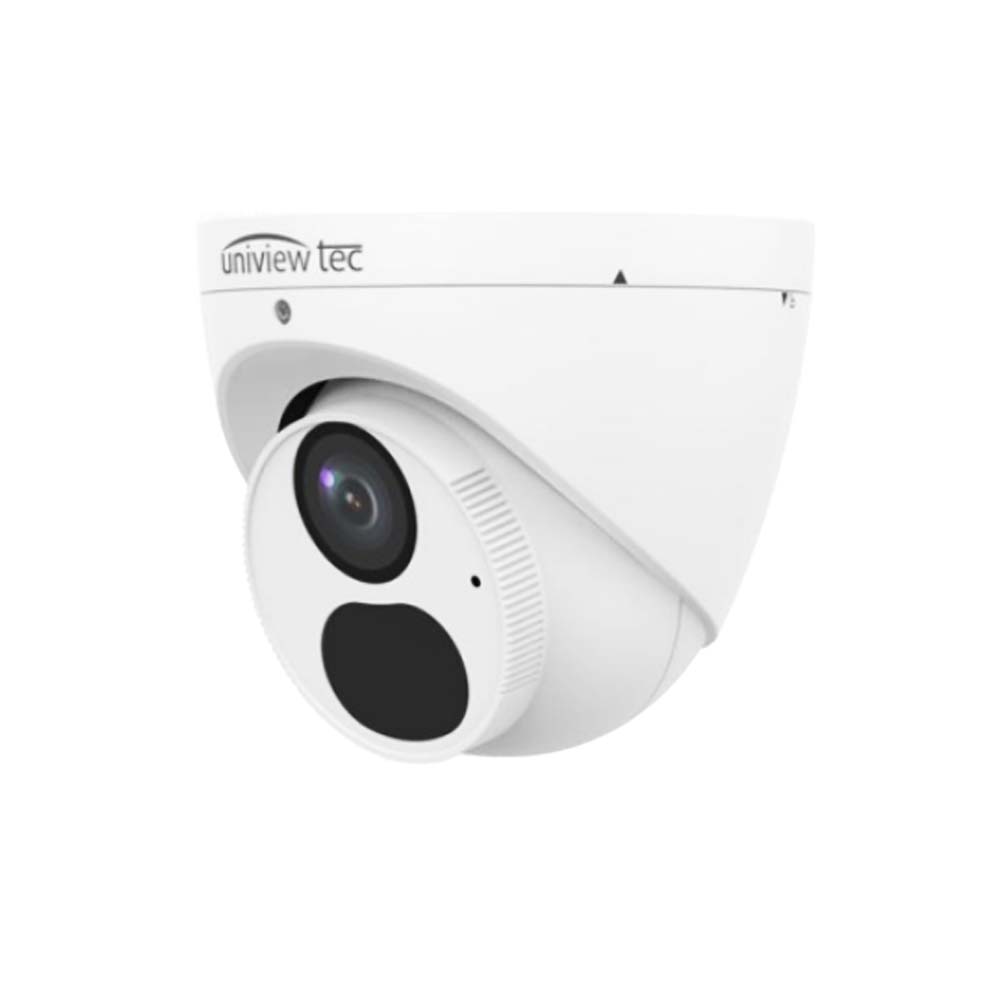

Uniview Tec IPT4KES28X 8MP Ultra HD NDAA-Compliant IR Turret IP Camera
$42900
$55714
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Uniview Tec IPT4KES28X 8MP Ultra HD NDAA-Compliant IR Turret IP Camera
$42900
$55714
Unit price
/
Unavailable
Description
Description
Uniview Tec IPT4KES28X 8MP Ultra HD NDAA-Compliant IR Turret IP Camera
Features:
- Fully adheres to National Defense Authorization Act (NDAA) guidelines.
- Easy Star illumination technology ensures color imaging up to 0.005 Lux (F1.6, AGC ON).
- Exceptional video quality with 8MP, 3840 x 2160 Ultra HD resolution.
- Super-efficient H.265 video compression significantly reduces bandwidth and storage requirements.
- Powerful Smart IR LED lights provide 0 Lux nighttime operation up to 98 feet.
- 2.8mm fixed lens with ONVIF Profile S compliance for flexible system integration.
- True Day/Night and WDR functionality deliver reliable performance in all lighting conditions.
- Dual video streams, built-in microphone, Corridor Mode, Backlight Compensation, and 3D DNR.
- Intelligent smart intrusion prevention technology reduces false alarms by focusing on humans and motor vehicles.
- PoE and 12VDC power options with optional wall and pendant mounts available.
- Built-in Micro-SD card slot supports local storage up to 512GB.
- 3-way axis adjustment and IP67 weather-resistant construction for indoor and outdoor use.
- Supported by Uniview Guard Station software, Guard Live, and Guard Viewer mobile apps for iPhone and Android devices.
Specifications:
| Camera | |
|---|---|
| Max Resolution | 8MP |
| Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.005 lux ( F1.6, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 98.7° |
| Field of View (V) | 53.9° |
| Field of View (D) | 103.6° |
| DORI | |
| DORI Distance(Lens) | 2.8mm |
| DORI Distance(Detect) | 86.9m(285.1t) |
| DORI Distance(Observe) | 34.8m(114.0ft |
| DORI Distance(Recognize) | 17.4m(57.0ft) |
| DORI Distance(Identify) | 8.7m(28.5ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance(IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main: 8MP (3840*2160) @30fps; 5MP (3072*1728) @30fps;4MP (2560*1440) @30fps; 1080P (1920*1080) @30fps; 720P (1280*720) @30fps Sub: 1080P @30fps; 720P @30fps; D1 (720*576) @30fps; 640*360 @30fps; 2CIF (704*288) @30fps; CIF (352*288) @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD, Privacy Mask | Up to 4 |
| ROI | Support |
| Video Stream | Dual Streams |
| Image | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| De-warping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | Guard Live, Guard Viewer, Guard Station |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Max 5.0W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 118 x 95mm (4.6” x 3.8”) (x H) |
| Weight | 0.32kg (0.71lb) |
| Material | Metal + Plastic |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
