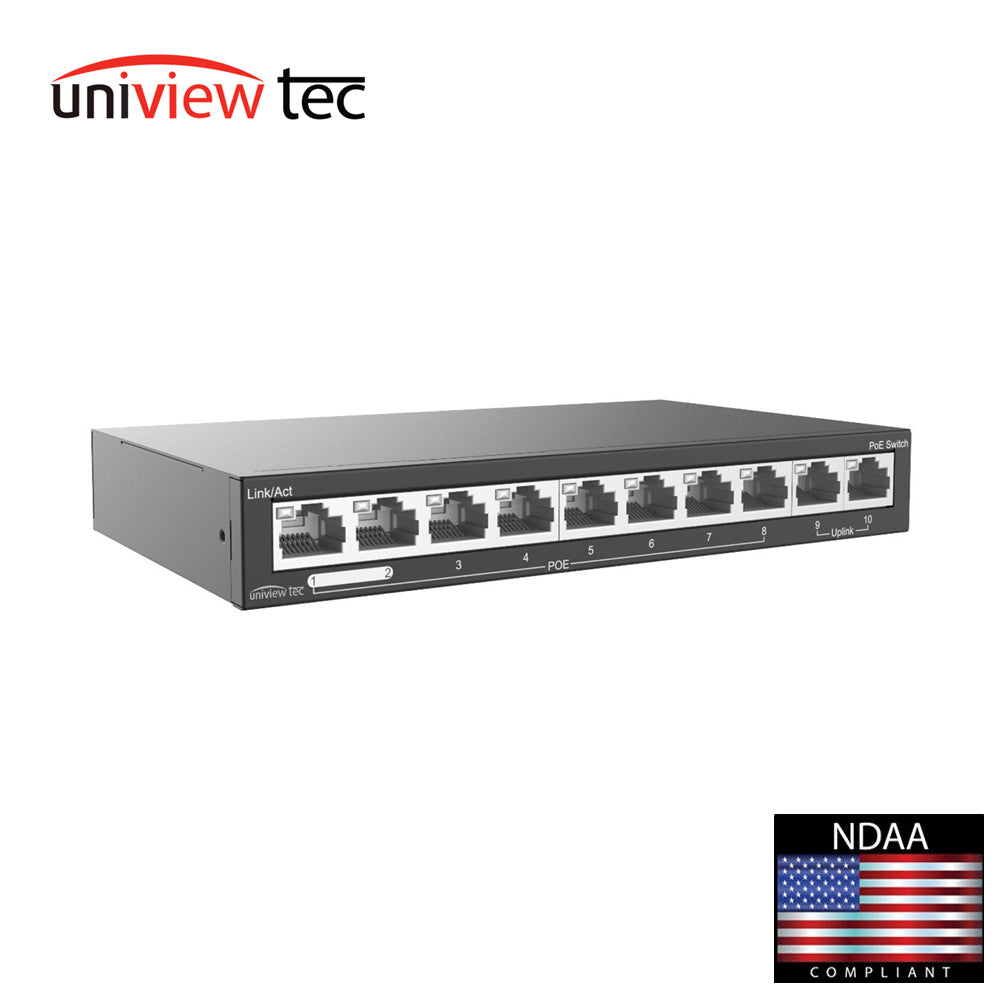

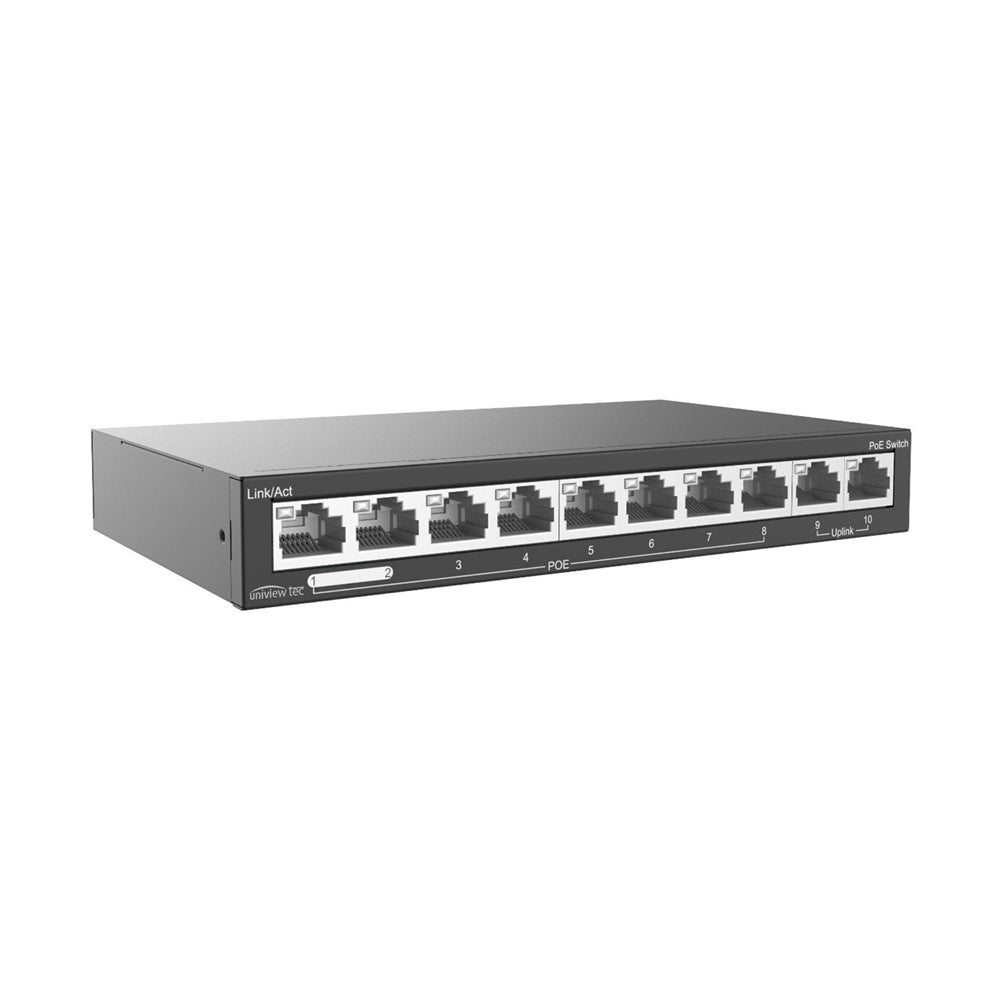

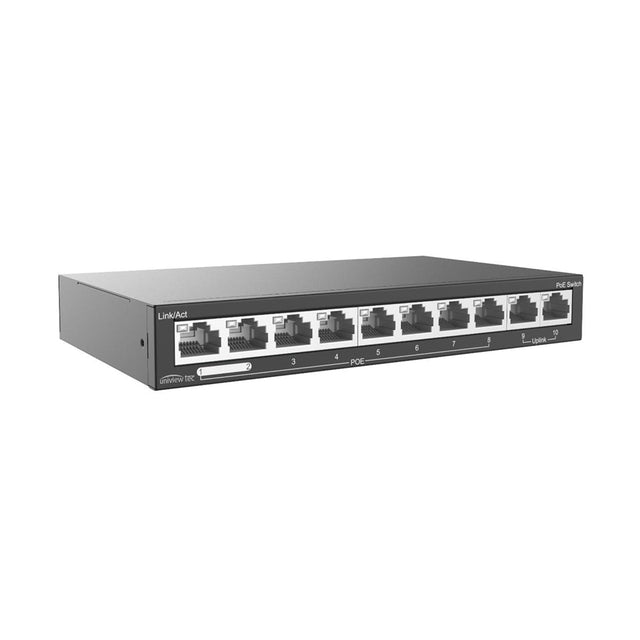

Uniview Tec NSW08PX 8-Port PoE Network Switch
Description
Description
Uniview Tec NSW08PX 8-Port PoE Network Switch
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 8 x 100Mbps RJ45 PoE ports with 120W Total Capacity
- 2 x 100Mbps RJ45 Network ports
- Support PoE power up to 30W for single port
- Supports port power supply prioritization, guarantees the continuous power supply of key nodes
- Support buffer optimization and port traffic control
- Line-speed forwarding, intelligent identification
- Supports IEEE802.3 x full duplex flow control and backpressure half duplex flow control
- Multiple working modes to address all applications: Normal, Secure and Surveillance
- PoE complies with IEEE802.3af/at, up to 30W for single port
- Up to 825ft (250m) transmission distance on EXTEND (Surveillance) mode
- High quality, metal housing and built-in cooling fan
Specifications:
PoE Network Switch:
| Ports | 8 x 1000Mbps PoE ports (RJ45) 2 x 1000Mbps ports (RJ45) |
| Standards |
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 20Gbps |
| Forwarding Performance | 14.88Mpps |
| Packet Buffer | 2Mbit |
| MAC | 2K |
| Dimensions (W x D x H) | 220 x 150 x 44mm (8.7 x 5.9 x 1.7") |
| Weight | 1.24kg (2.73lb) |
| Input Voltage | AC: 100-240V, 50/60Hz |
| Maximum Power | 130W |
| PoE | 802.3at/af |
| Maximum PoE Power | Max capacity: 120W ; Max capacity for single port: 30W |
| Cooling Fans | 1 |
| Operating Temperature | 0° ~ 40°C (32° ~ 104°F) |
| Storage Temperature | -40° ~ 70°C (104° ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) |
| working Mode | Default (Normal mode) : All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. EXTEND (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
