Uniview Tec NSW162GPX 16 Port Cloud Managed Smart PoE Network Switch
Description
Description

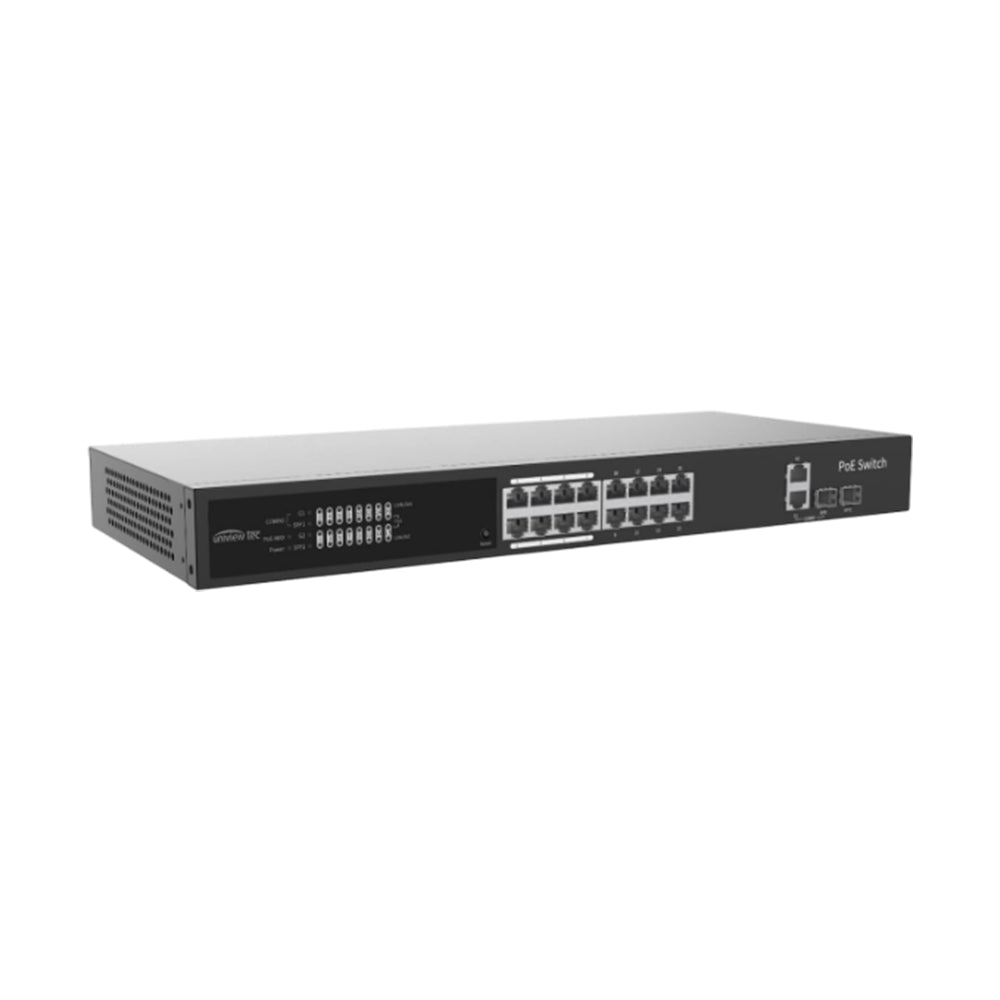

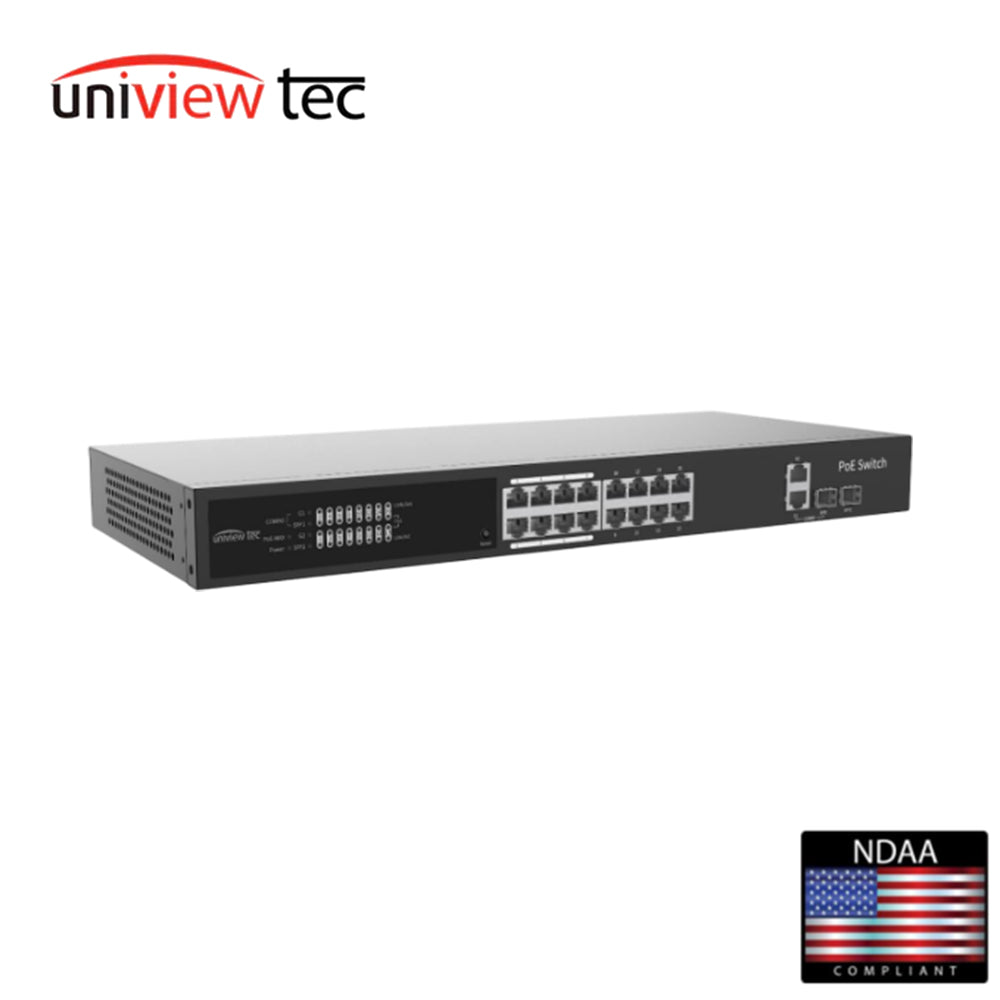

Uniview Tec NSW162GPX 16 Port Cloud Managed Smart PoE Network Switch
The Uniview Technology NSW162GPX is a high-performance 16-Port Gigabit PoE Switch, ideal for powering IP cameras and network devices. Featuring smart management, robust power output, and reliable performance, it`s perfect for surveillance and enterprise network applications.
Features:
- Meets NDAA Compliance Standards
- 16 X 1000Mbps RJ45 PoE ports with 250W Total Capacity
- 1 X 1000Mbps RJ45 Network ports; 1 X 1000Mbps SFP; 1 X 1000Mbps Combo
- Support PoE power up to 30W for single port
- Supports web login or cloud access by QR with remote restart of PoE ports
- Supports port power and data prioritization, power toggle on each port, and extended mode for up to 250m power delivery on standard network cable
- Auto detect power device with real-time monitoring and abnormal alarms
- Supports IEEE802.3x full duplex flow control and backpressure half duplex flow control
- Line-speed forwarding, intelligent identification, and topology
- Allows reporting of port abnormal alarms to the software for real-time monitoring
Specifications:
| PoE Network Switch | |
|---|---|
| Ports | 16 X 1000Mbps PoE ports (RJ45); 1 X 1000Mbps RJ45 ; 1 X 1000Mbps SFP ;1 X 1000Mbps Combo |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching Capacity | 38Gbps |
| Forwarding Performance | 28.272Mpps |
| Packet Buffer | 4Mbit |
| MAC | 8K |
| Dimensions (W X D X H) | 440 X 189.8 X 44mm; (17.3 X 7.4 X 1.7") |
| Weight | 4.8lb |
| Input Voltage/Max Power | 100-240VAC, 50/60Hz |
| Max Power | 265W |
| Maximum PoE Power | Max capacity: 250W ; Max capacity for single port: 30W; Mode A, 1/2+, 3/6-; Mode B, 4/5+, 7/8 |
| Prior Ports | Up to 8 |
| Cooling Fan(s) | 1 |
| Operating Temperature | 0° ~ 40° C (32° ~ 104° F); 10% ~ 90% non-condensing |
| Storage Environment | -40° ~ 70° C (104° ~ 158° F); 5% ~ 90% non-condensing |
| Indicator | POWER: OFF: No AC input; ON (Green): Normal power input; ON (Yellow): PoE power is 85% of the total; PoE: OFF: No PoE power supply; ON: PoE power supply is normal; LINK/ACT: OFF: No link; Steady ON: Linked; FLASHING: Transmitting data; PoE-MAX: OFF: The POE power draw is less than 80%; ON: The POE power draw is greater than 85% |
| Software Specification | |
| Ethernet | Supports Full, Half, and Auto-negotiated Duplex; Auto-negotiation rate, Priority flow control, Link aggregation group, Port flow statistics, Enable/disable ports |
| VLAN | Supports access and trunk modes; allows up to 32 VLANS with IDs from 1 to 4094 |
| MAC | Supports up to 8K, Clearing the dynamic MAC address |
| POE | Allows viewing PoE status and power, enabling and disabling of ports |
| Loop Detection | Loop Detection |
| QoS | Supports port rate limit and broadcast storm control |
| System | Allows viewing of device name, model, serail, version, IP address, MAC address, DNS, operation time, etc; Edit and manage IP address and device name; Single user management, user authentication, password modification; Manual and NTP time configuration; Up to 32 switch and 64 device topology information |
| Security | Support port isolation; Locking login IP address, up to 64 addresses |
| Maintenance | Supports 1 port mirroring; unified software configuration, management, and search; Device discovery and network topology; Device upgrade, default, import/export configuration, export logs, and restart |
