Uniview Tec | SKU:
UVT-KNR164T8TX
23% off

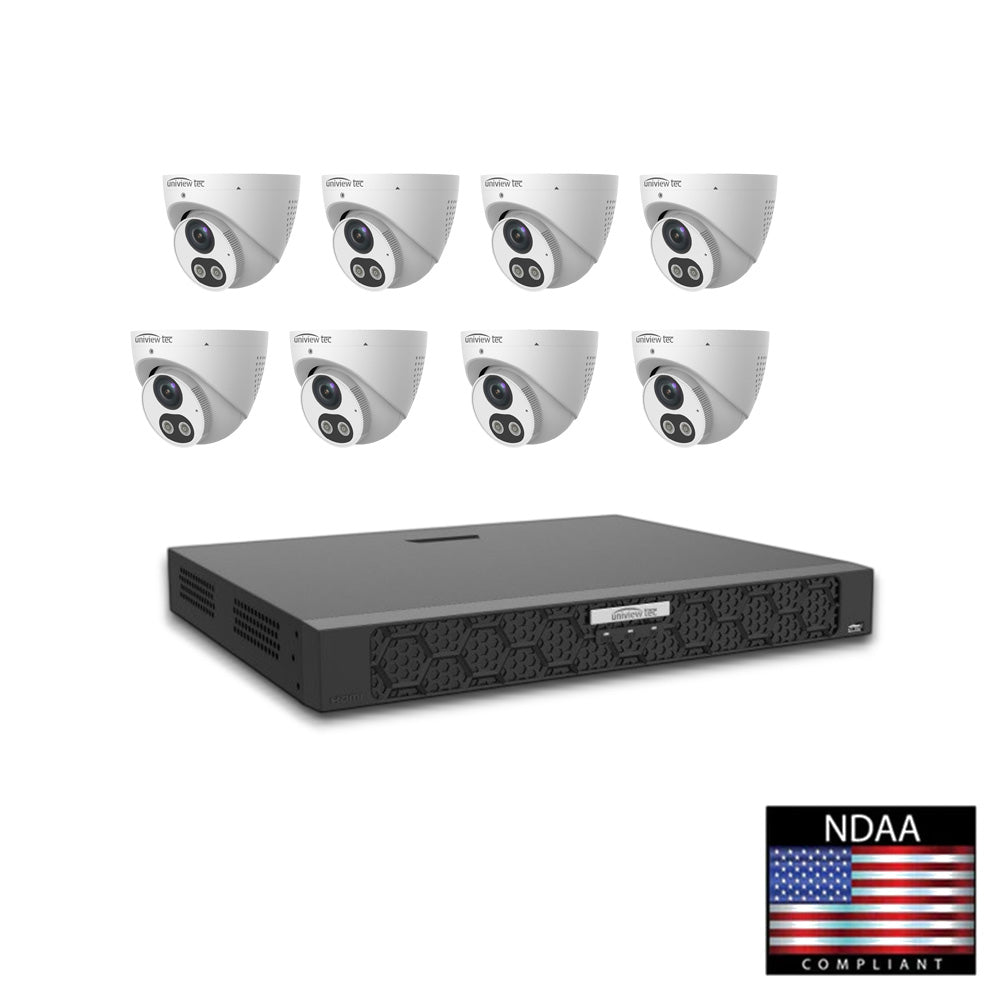

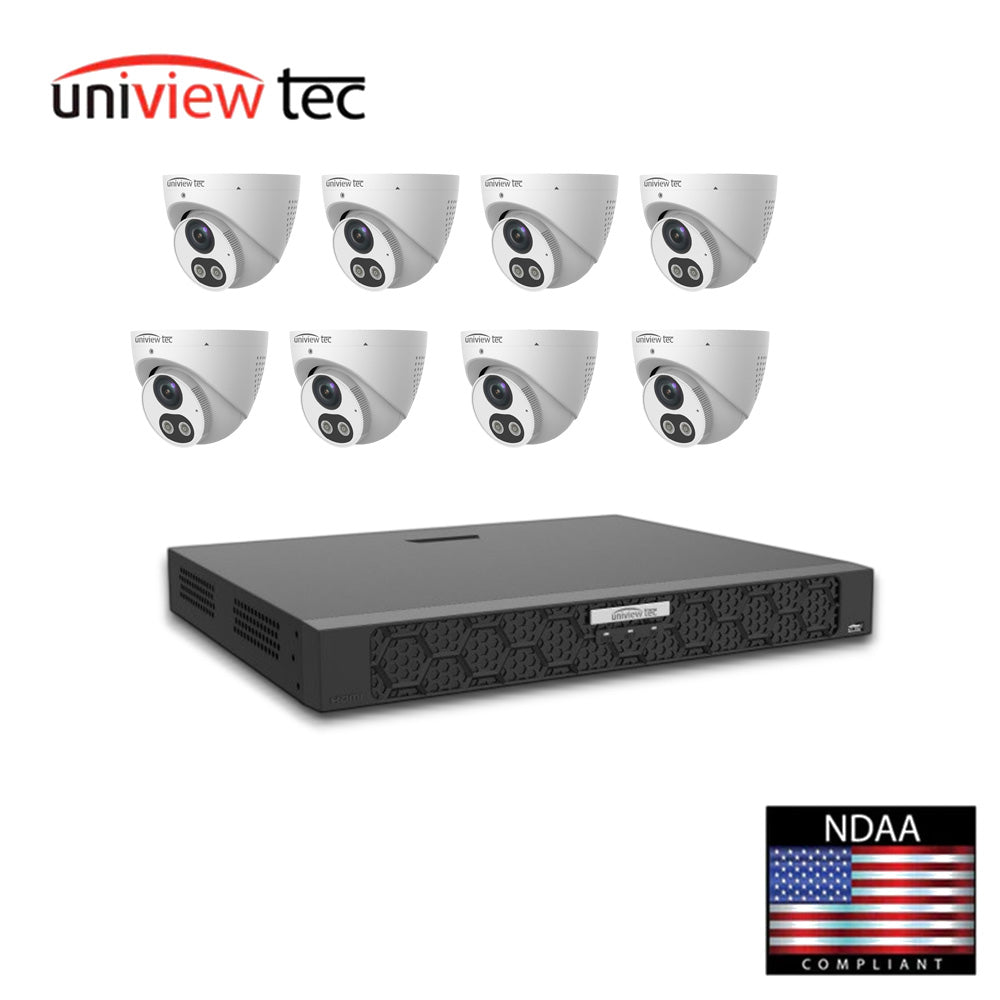

Uniview Technology KNR164T8TX 5MP DWDR IR Turret Dome IP Camera Kit with 16-Channel 4K H.265 NVR, 16 PoE Ports and 4TB HDD
$2,96700
$3,85325
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Uniview Technology KNR164T8TX 5MP DWDR IR Turret Dome IP Camera Kit...
$2,96700
$3,85325
Unit price
/
Unavailable
Description
Description
Uniview Technology KNR164T8TX 5MP DWDR IR Turret Dome IP Camera Kit with 16-Channel 4K H.265 NVR, 16 PoE Ports and 4TB HDD
Features:
- Includes 8x ANT528CAIX 5MP cameras for reliable surveillance coverage
- 5MP resolution (2880 x 1620) delivers sharp and detailed video quality
- Smart IR for 0 Lux nighttime operation up to 98 ft for clear low-light monitoring
- 2.8mm fixed lens provides wide-angle coverage for monitoring larger areas
- 16-channel NVR with H.265 compression for efficient recording and storage
- Supports up to 16MP recording with 4K HDMI output and mirrored HDMI/VGA display
- Supports 2 SATA HDDs up to 10TB with built-in PoE switch for single-cable camera installation
- Built-in microphone and speaker enable two-way audio communication
- Smart image processing with BLC and 2D/3D Digital Noise Reduction (DNR)
- ONVIF Profile S compliant for broad system compatibility
- Automatic Network Recovery (ANR) improves recording reliability during network interruptions
- Compatible with Guard Station (PC) and Guard Live / Guard Viewer mobile apps for remote access
Specifications:
| NVR - Video & Audio Inputs | |
| IP Video Input | 16-ch |
| Audio Input | 1-ch, RCA |
| Video & Audio Outputs | |
| VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
| HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16 |
| Live View Display | 1 / 4 / 6 / 8 / 9 / 16 |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; RTSP; IPv4 |
| Supported Browsers | IE (IE10/11) for Windows; Firefox (52.0+) for Windows; Chrome (45+) for Windows; Edge (79+) for Windows |
| Decoding | |
| Decoding Format | H.265 / H.264 |
| Live View / Playback | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Capability | H.265: 2 x 16MP @30, 2 x 12MP @30, 4 x 4K @30, 6 x 5MP @30, 8 x 4MP @30, 10 x 3MP @30, 16 x 1080P @30 H.264: 2 x 16MP (4800 x 2688) @30, 2 x 12MP @30, 2 x 4K @30, 4 x 5MP @30, 6 x 4MP @30, 8 x 3MP @30, 14 x 1080P @30 |
| Hard Disk Drives | |
| SATA | 2 SATA Interface |
| Capacity | Up to 10TB |
| Smart Features | |
| VCA Detection by Camera | Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD (Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) | Face Detection, Face Comparison, Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera (8-ch) |
| External Interface | |
| Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear Panel: 2 x USB 2.0 |
| PoE | |
| Interface | 8 x RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for Single Port, Max 75W Total |
| Supported Standard | IEEE 802.3af/at |
| NVR - General | |
| Power Supply | 100~240V AC; Power Consumption: ≤20W (without HDD) |
| Working Environment | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤90% RH (non-condensing) |
| Rack Ears | Included |
| Dimensions (W x D x H) | 380 x 322 x 53mm (15.0 x 12.7 x 2.1") |
| Weight (without HDD) | ≤2.6kg (5.73lb) |
| Certifications | FCC, CE (UL - Power Supply Only) |
| Camera | |
| Sensor | 5MP 1/2.7" CMOS |
| Minimum Illumination | Color: 0.02 lux (F1.6, AGC ON); 0 lux with IR |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360° |
| WDR | DWDR |
| S/N | >52dB |
| Lens | |
| Lens | 2.8 mm |
| Iris | F1.6 |
| Field of View (H) | 110.0° |
| Field of View (V) | 58.7° |
| Field of View (O) | 130.0° |
| DORI | |
| Detect | 63.0m (206.7ft) |
| Observe | 25.2m (82.7ft) |
| Recognize | 12.6m (41.3ft) |
| Identify | 6.3m (20.7ft) |
| Illuminator | |
| IR Illumination Distance | 30m (98.4ft) |
| IR On / Off Control | Auto / Manual |
| Wavelength | 850nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline, Main, High |
| Frame Rate | Main: 5MP (2880x1620) up to 30fps; 4MP (2560x1440) up to 30fps; 3MP (2304x1296) up to 30fps; 1080P up to 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Supported |
| Video Stream | Triple Streams |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart Illumination | Supported |
| Flip | Normal; Vertical; Horizontal; 180°, 90° Clockwise, 90° Anti-Clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHz |
| Storage | |
| Edge Storage | MicroSD, up to 512GB |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| User / Host | Up to 32 users; 3 user levels (administrator, operator, common user) |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, RTSP / HTTP Authentication, TLS 1.2, WSSE Authentication |
| Client | Guard Station, Guard Live, Guard Viewer |
| Web Browser | IE10+, Chrome45+, Firefox52+, Edge79+ |
| Interface | |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Conformity Certifications | |
| EMC | CE-EMC, FCC |
| Safety | CE LVD, UL / CUL |
| Environment | CE-RoHS, WEEE |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af), Max 7.5W |
| Power Interface | ø5.5mm Coaxial Power Plug |
| Dimensions | ø111mm x 95mm (ø4.4" x 3.7") |
| Weight | 0.44kg (0.97lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
