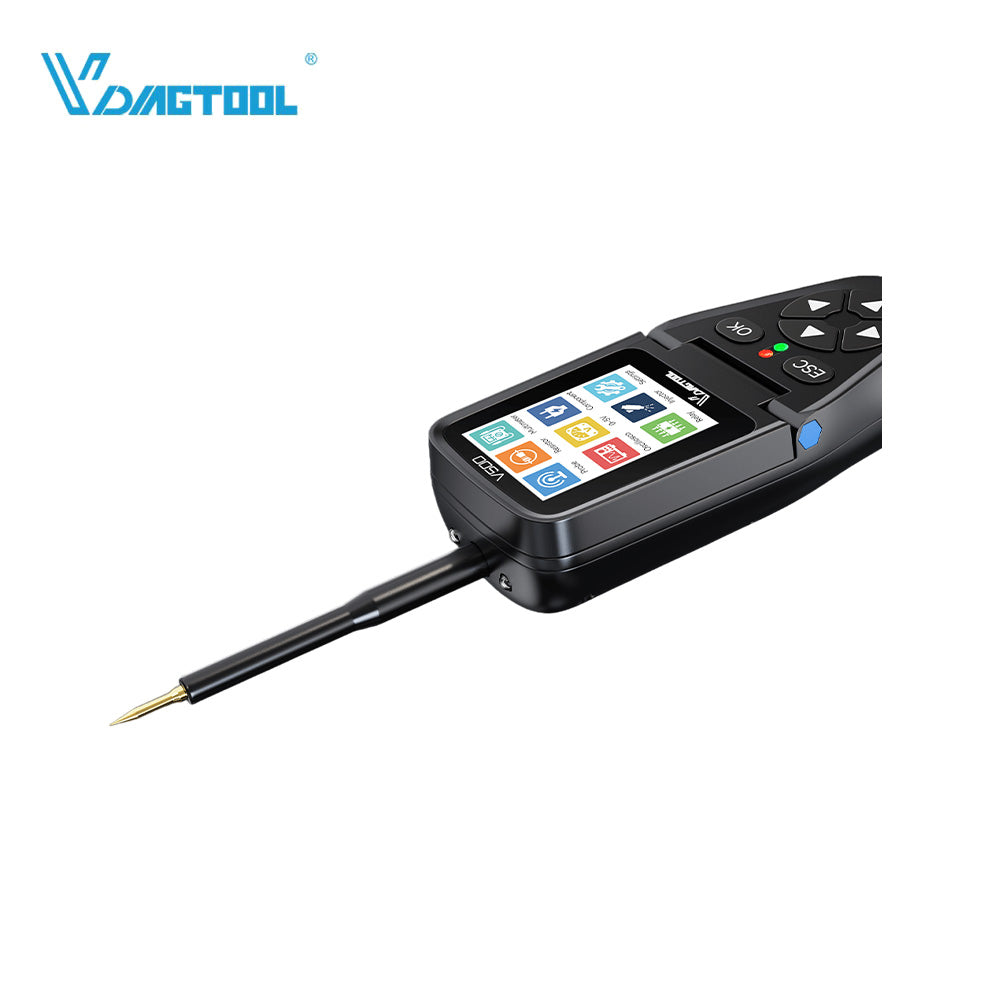

VDIAGTOOL V500 Automotive Power Circuit Tester with Oscilloscope, Multimeter, Injector & Relay Test

VDIAGTOOL V500 Automotive Power Circuit Tester with Oscilloscope, Multimeter, Injector & Relay Test

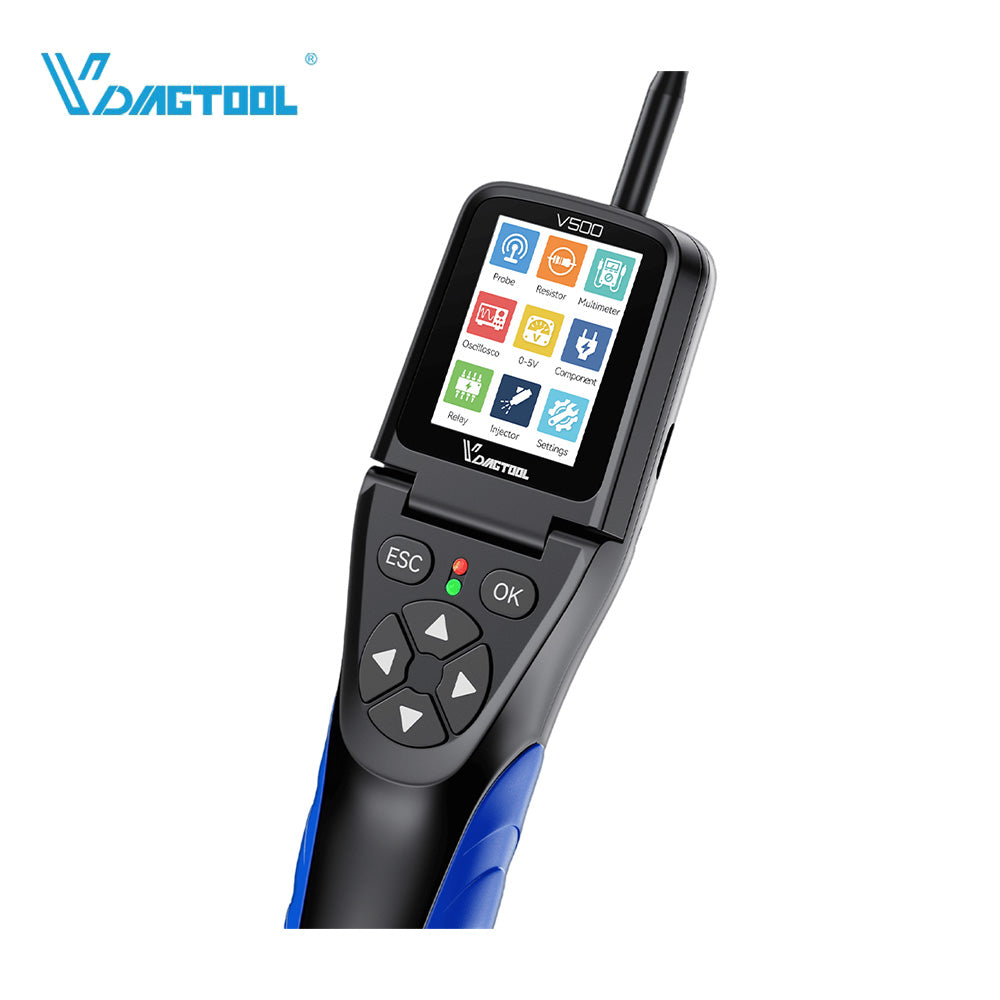

The VDIAGTOOL V500 Automotive Intelligent Electrical System Circuit Tester features a 2.36-inch LCD display and is designed for fast, accurate testing of 9V-30V vehicle electrical systems. This newest-generation tool delivers convenient, intelligent, and efficient diagnostics, making it ideal for professional technicians and automotive troubleshooting.

Features:

• All-in-One Electrical Diagnostic Tool: Combines circuit tester, power probe, multimeter, oscilloscope, relay tester, and fuel injector tester in one intelligent device.
• Wide Voltage Testing Range (2mV-100V / DC 9-30V): Accurately diagnoses low-voltage signals and high-voltage automotive electrical systems.
• Smart Auto Detection: Automatically detects voltage and resistance for faster and safer testing.
• Advanced Multimeter Functions: Measures voltage, resistance, current, frequency, and supports diode, continuity, and short-circuit testing.
• Built-In Oscilloscope Mode: Displays real-time signal waveforms for analyzing sensors, actuators, and circuit performance.
• Relay & Fuel Injector Testing: Tests relays and fuel injectors quickly without removing components.
• Component Activation Capability: Sends positive or negative signals to activate components for functional testing.
• Positive & Negative Power Testing: Easily switches between power and ground to trace wiring faults.
• 0-5V Power Supply Output: Ideal for sensor testing and low-voltage component diagnostics.
• Parts Testing Mode: Supports testing of various automotive electrical parts and circuits.
• 20FT Extra-Long Test Cable: Provides extended reach for easy diagnostics throughout the vehicle.

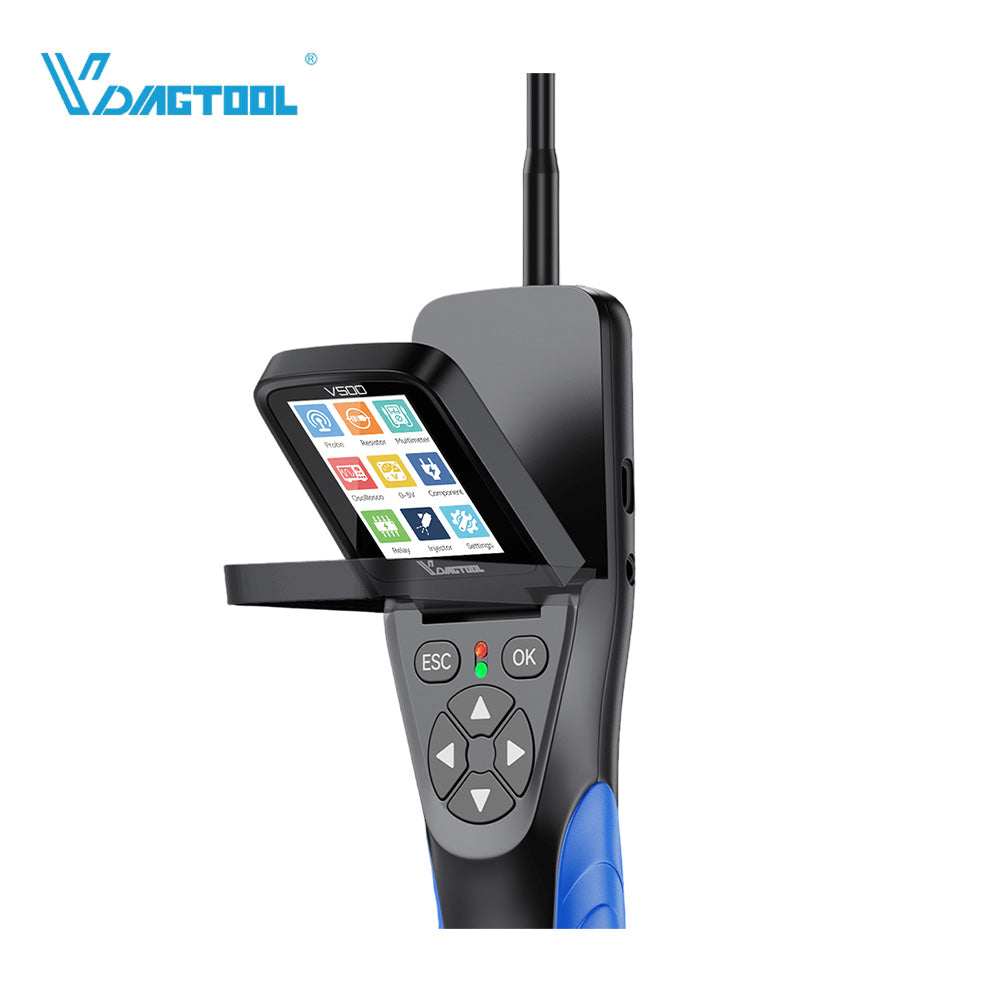

• Foldable 90 Degree Probe Design: Adjustable probe angle for improved access in tight or hard-to-reach areas.
• Multi-Language Support: Supports 9 languages for global usability.
• Portable & Durable Carry Case: Rugged storage case keeps the tool organized and protected for workshop or mobile use.

Specifications:

Compatibility:

• Support cars and SUVs
• Support trucks
• Support motorcycles
• Support ships
• Buses

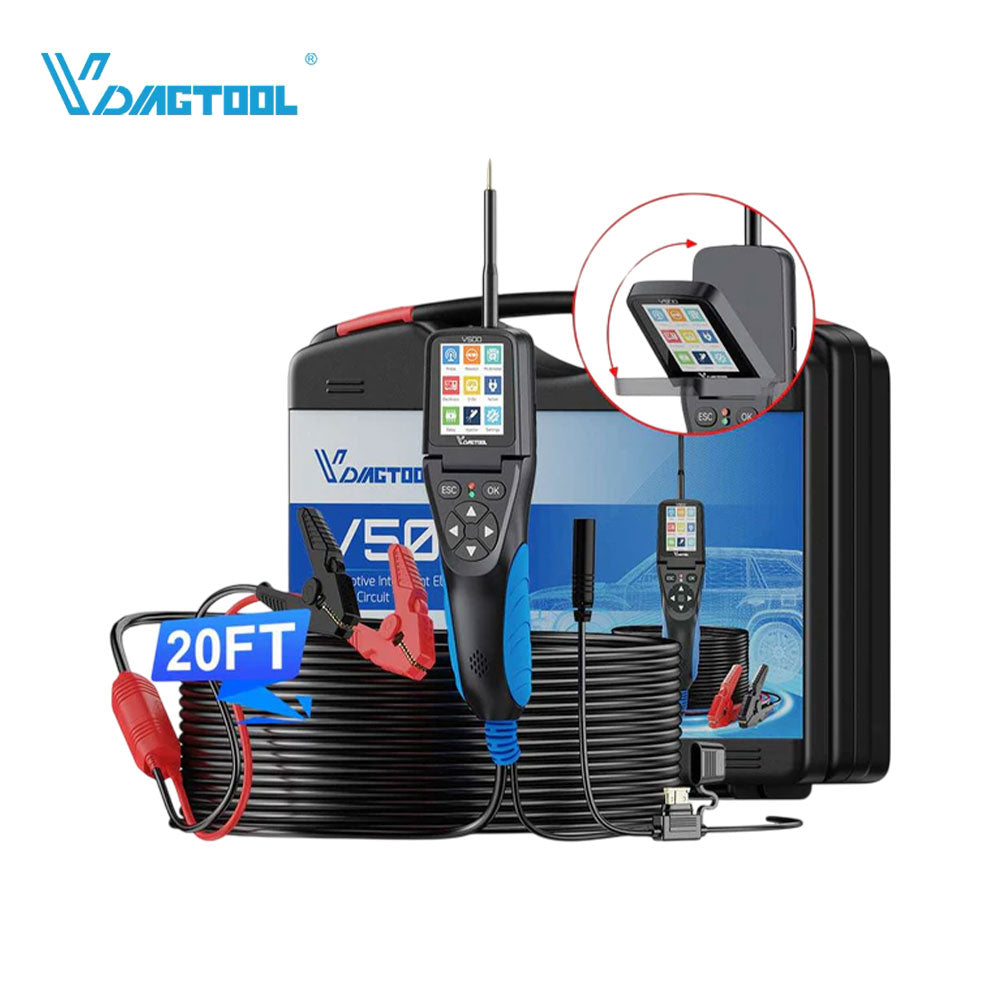

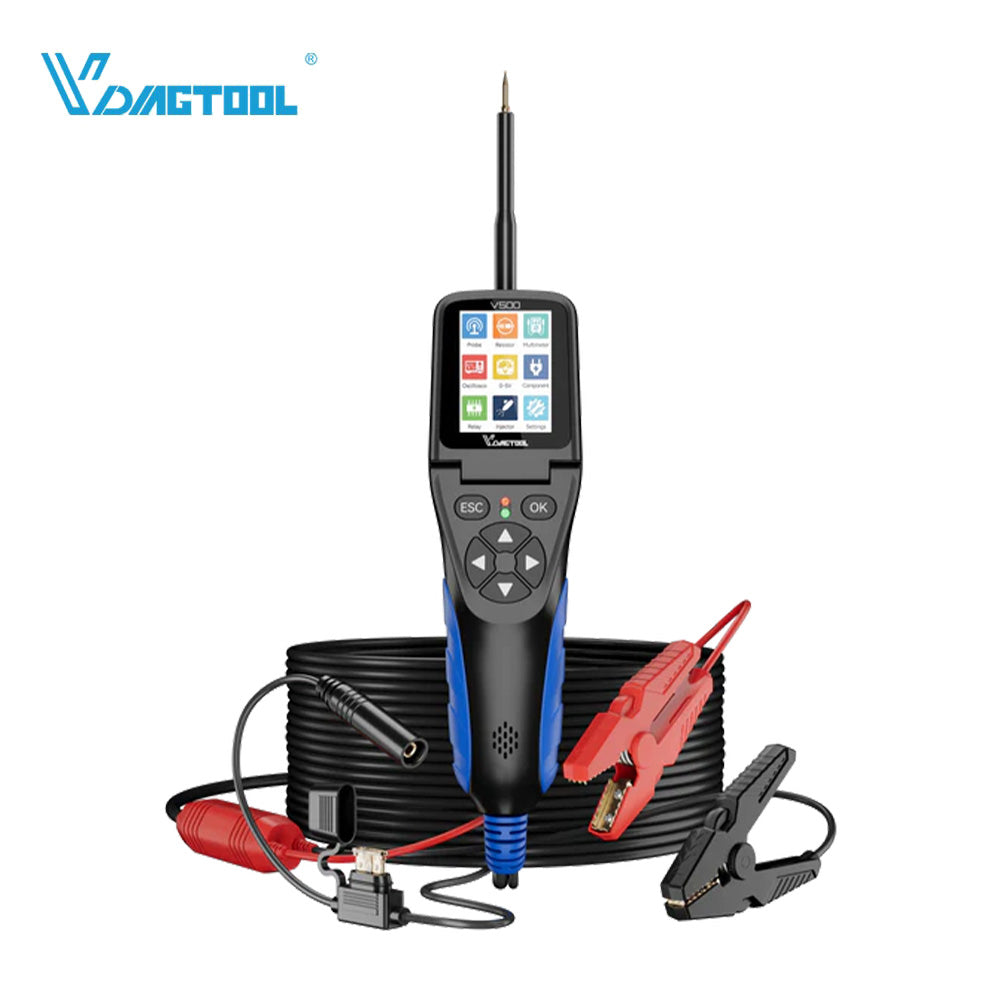

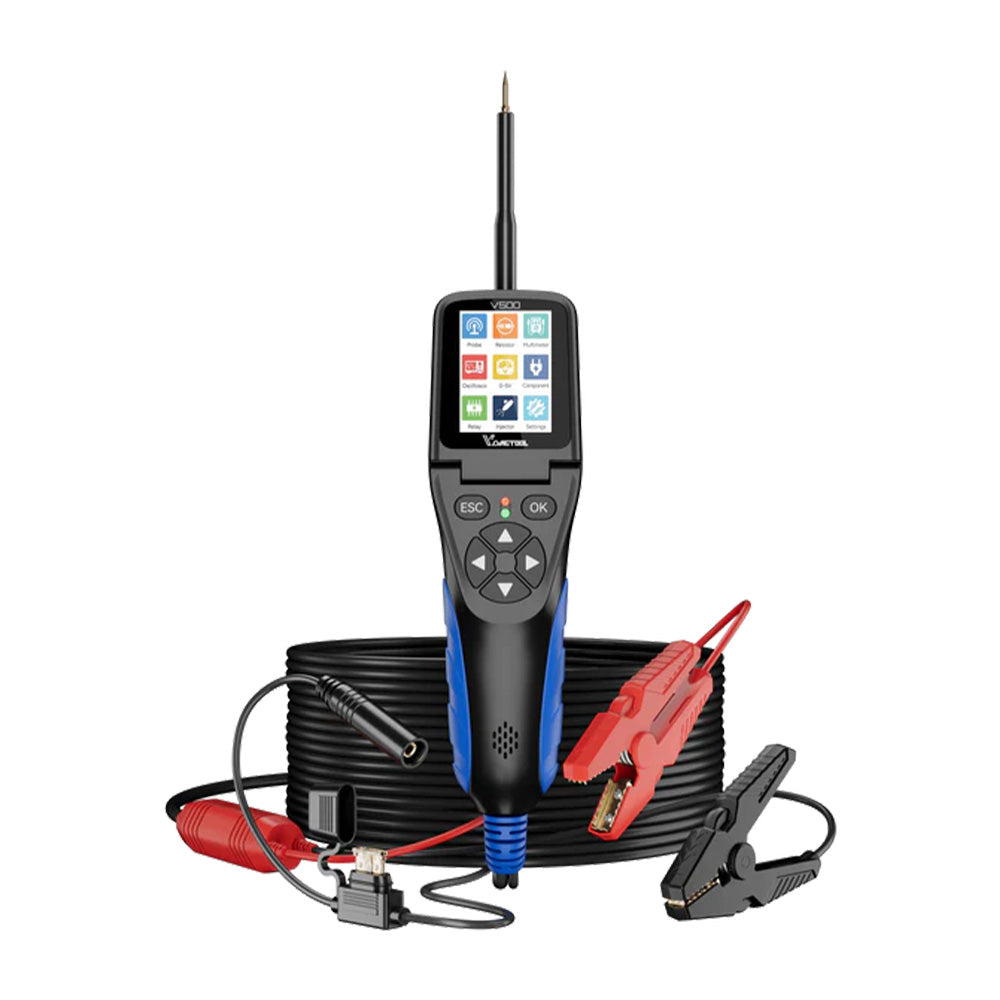

Package Content:

• V500 x 1
• Relay test lead x 1
• Probe tip x 1
• Alligator clip x 1
• Fine probe tip x 1
• Type-C data cable x 1
• Probe tip extension cable x 1
• User manual x 1
• Wire piercing probe x 2
• Banana to banana plug test lead x 2
• Fuse x 3

Downloads:

• V500 User Manual
• V500 Quick Start
