Von Duprin - 9975 - Series Mortise Exit Device - 36 Device - Night ...
Description
Description

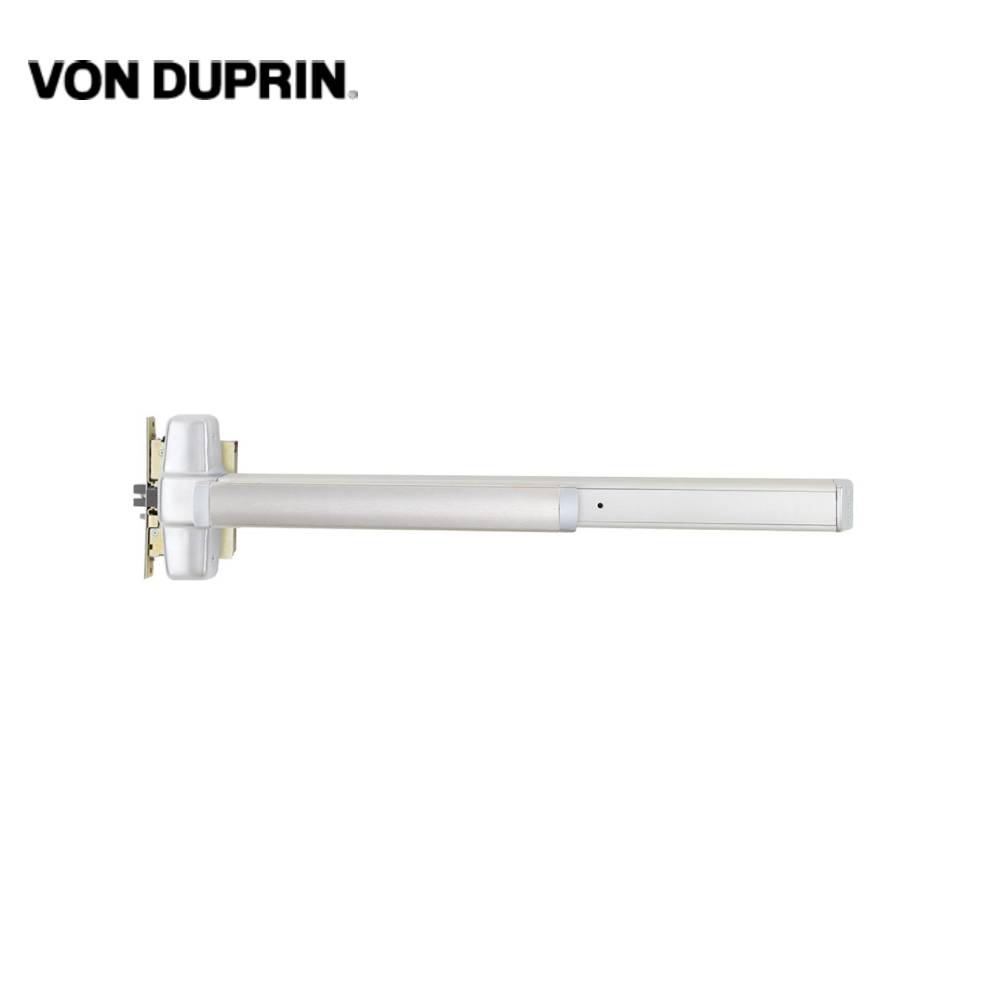

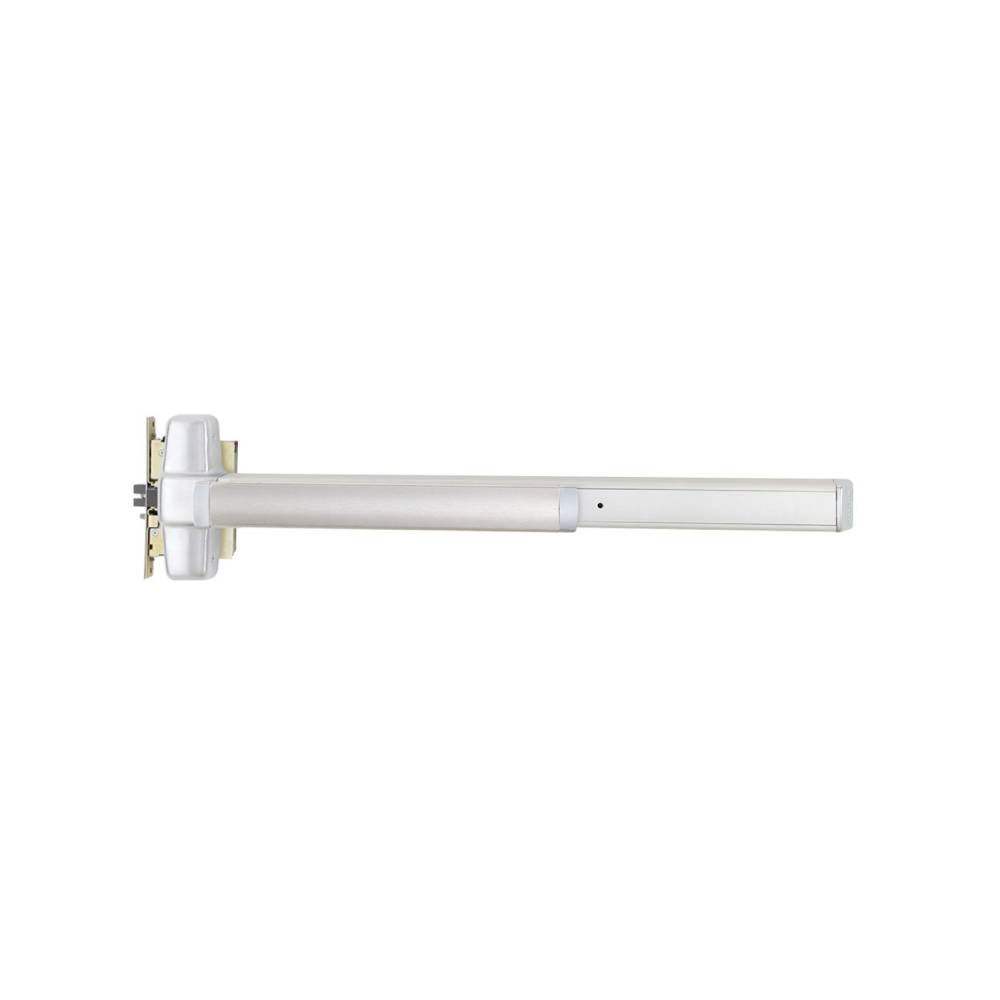

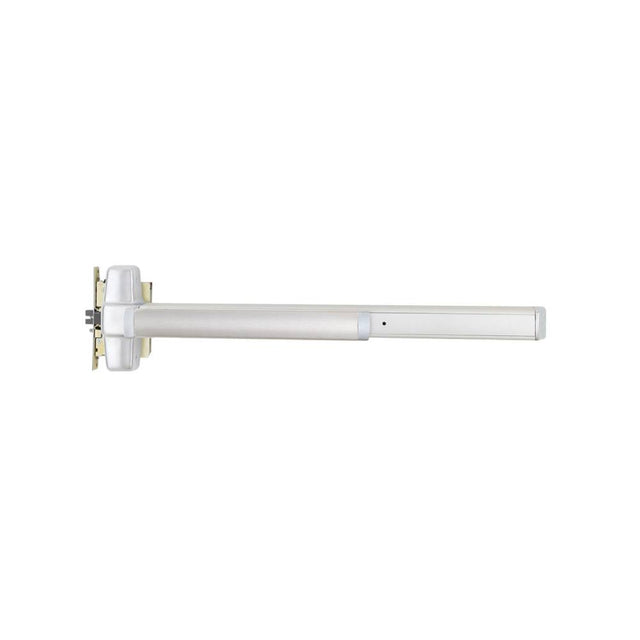

Von Duprin - 9975 - Series Mortise Exit Device - 36" Device - Night Latch Function - 06 Lever with Escutcheon Trim - Satin Chrome Finish - Grade 1
The 9975 Series is for all types of single or double doors and is UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3 /4" (121mm).
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood do
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 9975L-NL-06 3 26D LHR |
| UID | VON1009975LNL06326DLHR |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 2014 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Mortise |
| Mechanical Function | Night Latch |
| Device Length | 36" |
| Hand | Field Reversible |
| Dogging Options | Hex Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | 06 Lever |
| Trim Part No. | 996L-NL-06-M 26D LHR |
| Minimum Stile Size | 4-3/4" |
| Door Material | Hollow Metal, Wood, and Aluminum Storefront Doors |
| Door Width | 28" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Reversible | Yes |
| Product Type | Mortise Exit Devices |
Installation Instructions:
