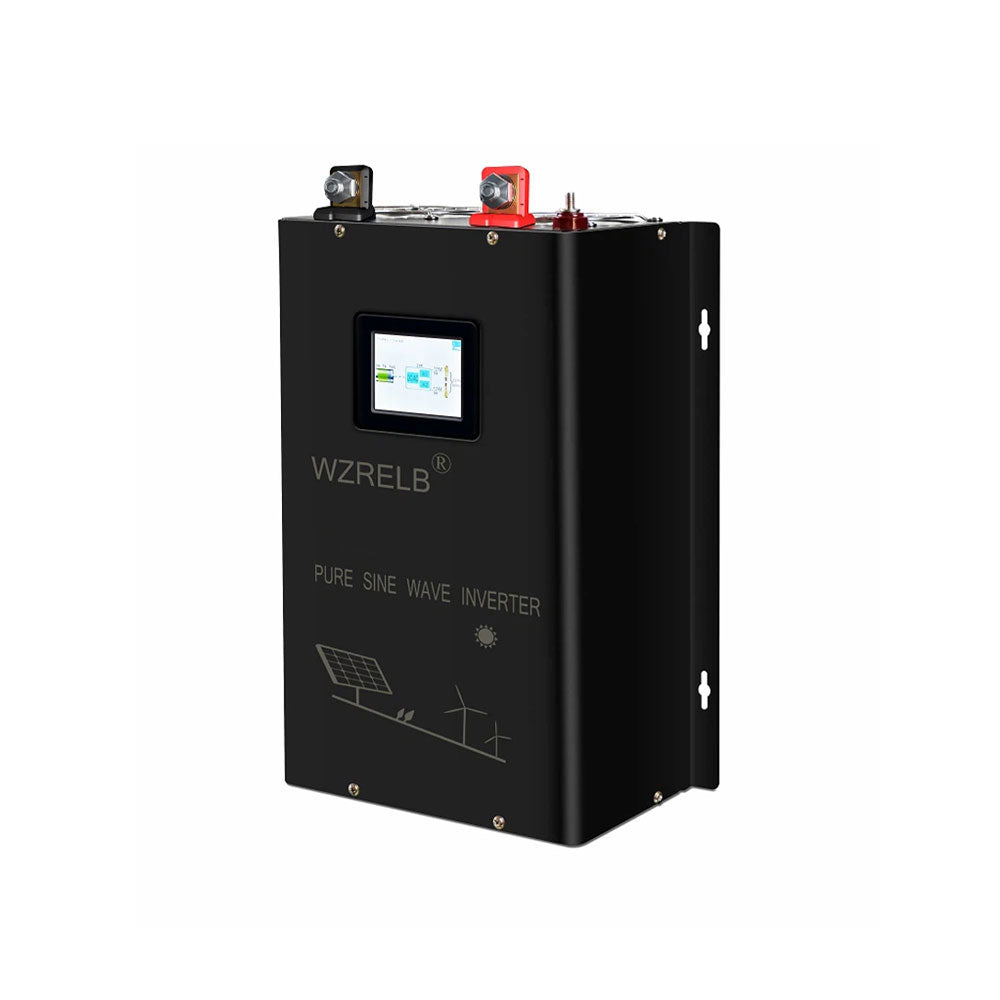

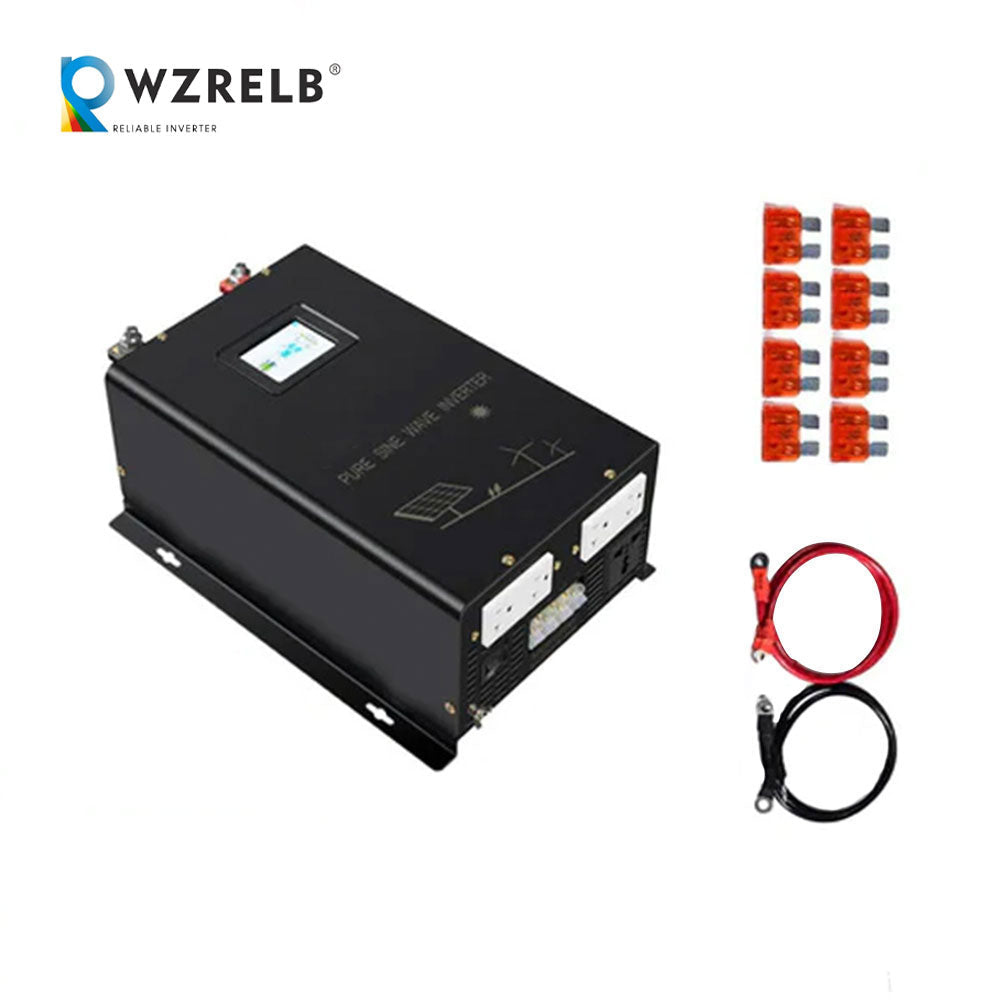

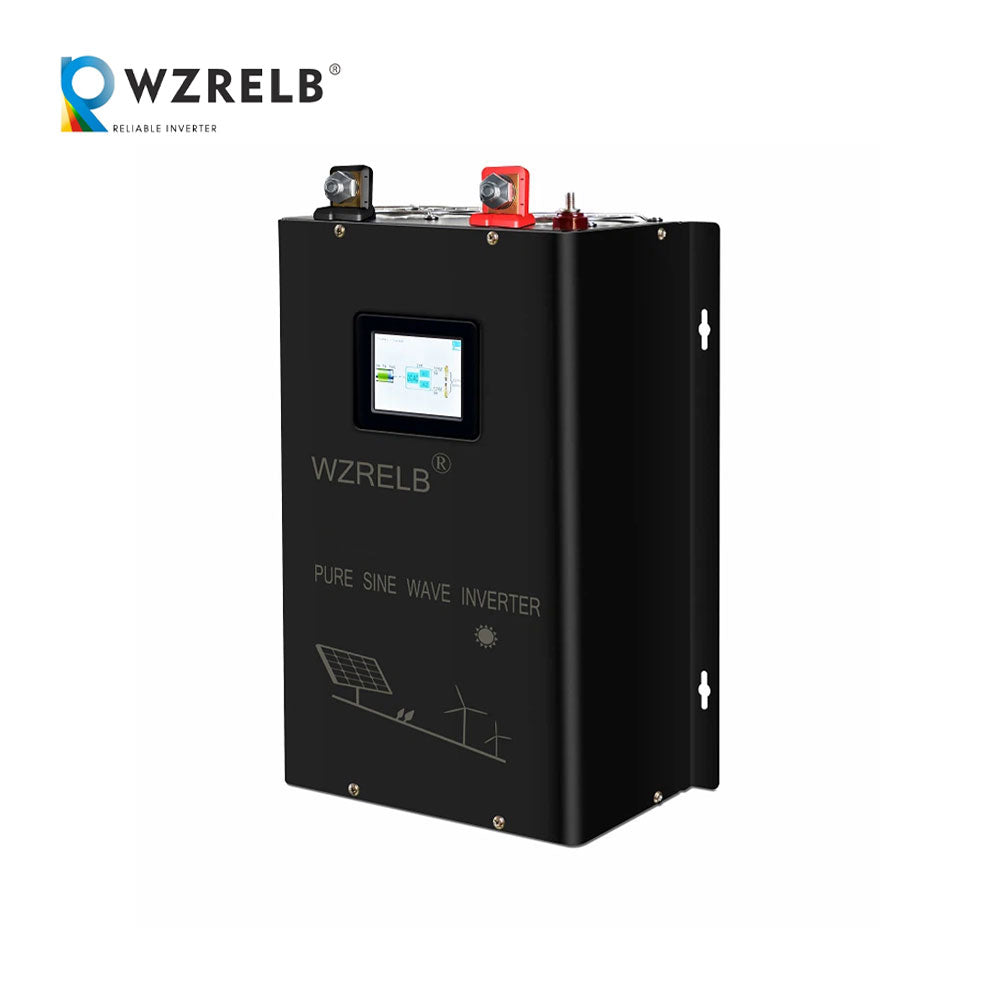

SPT - 3500W Power Inverter with LCD Display 12VDC, 24VDC, 48VDC and 120VAC, 240 VAC Split Phase Pure Sine Wave Inverter
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
SPT - 3500W Power Inverter with LCD Display 12VDC, 24VDC, 48VDC and...
Description
Description
SPT - 3500W Power Inverter with LCD Display 12VDC, 24VDC, 48VDC and 120VAC, 240 VAC Split Phase Pure Sine Wave Inverter
The SPT series is a split-phase inverter with both 120v and 240v outputs, up to 91.6% efficiency, 3000w for example, with maximum 12.5A current output in the 240v circuit, perfectly adapted to high power 240VAC appliances, dual 120v 12.vAmp output circuits: AC1 and AC2, can support the 1500w output at the same time. Support in portable size. It’s comprehensive LCD display offers full system condition monitoring in real time, such as battery volt and capacity. Output amps based on different applications.
Features:
- Rated Power: 3500W
- Pure sine wave solar inverter.
- 120V/240V AC split phase.
- LCD Display for tracking battery volt and capacity, both amper of 120VAC mode and 240VAC mode.
- Multi-outlets and hardwire terminal
- Spark-proof design.
- Built in soft starter
- 9 Kinds of protections.
- 50hz or 60hz (optional)
- Compatible with various batteries on the market
Product Specifications:
| Model | SPT |
| Waveform | Split Phase Pure Sine Wave |
| Wattage | 3500W |
| DC Input Voltage | 24V / 36V / 48V |
| DC Input Voltage Range | 21-30VDC / 30-45VDC / 42-60VDC |
| No Load Input Current Draw | <40W |
| Efficiency | >90% |
| AC Output Voltage | 120v / 240v / |
| AC Regulation | 3% |
| DC Input Voltage Range | 20-30VDC (24V) / 30-45VDC (36V) / 40-60VDC (48V) |
| Frequency | 50Hz or 60Hz |
| Low Voltage Shut Down | 19.5VDC (24V) / 29.5VD (36V) / 42VDC (48V) |
| Over Load | Shut Off Output |
| Over Voltage Shut Down | 30VDC (24V) / 45VDC (36V) / 60VDC (48V) |
| Over Thermal | Shut Off Output Automatically |
| Fuses | Short Circuit |
| Working Temperature | Between -10C and +50C |
| Storage Temperature | Between -30℃ and +70℃ |
| Working Humidity | 20% TO 91% RH Non-condensing |
| Start | Soft Start |
| Total Harmonic Distortion | THD <5% |
| Cooling Ways | Cooling Fan |
| Inverter Size | 15*10*5.3 |
