BEA - 10LZRH100 - LASER Scanner with Highly Precise Detection Zone
Description
Description

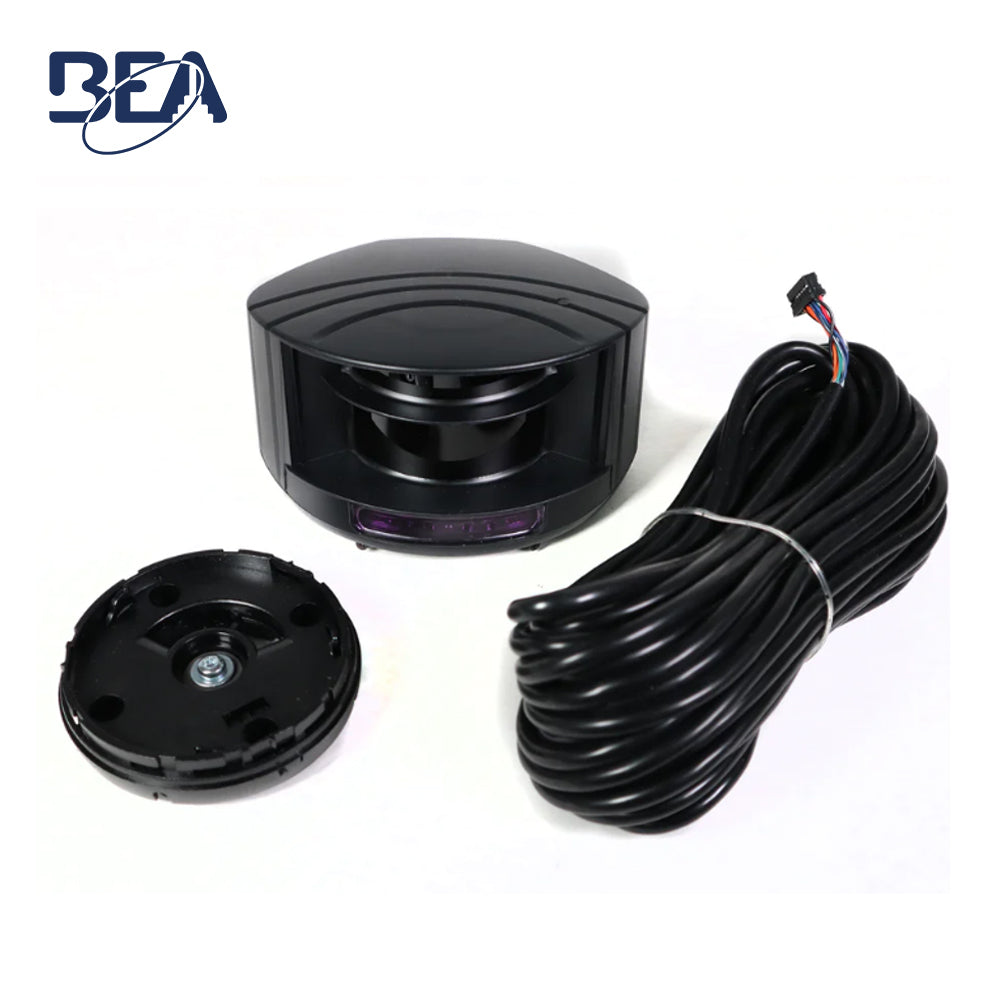

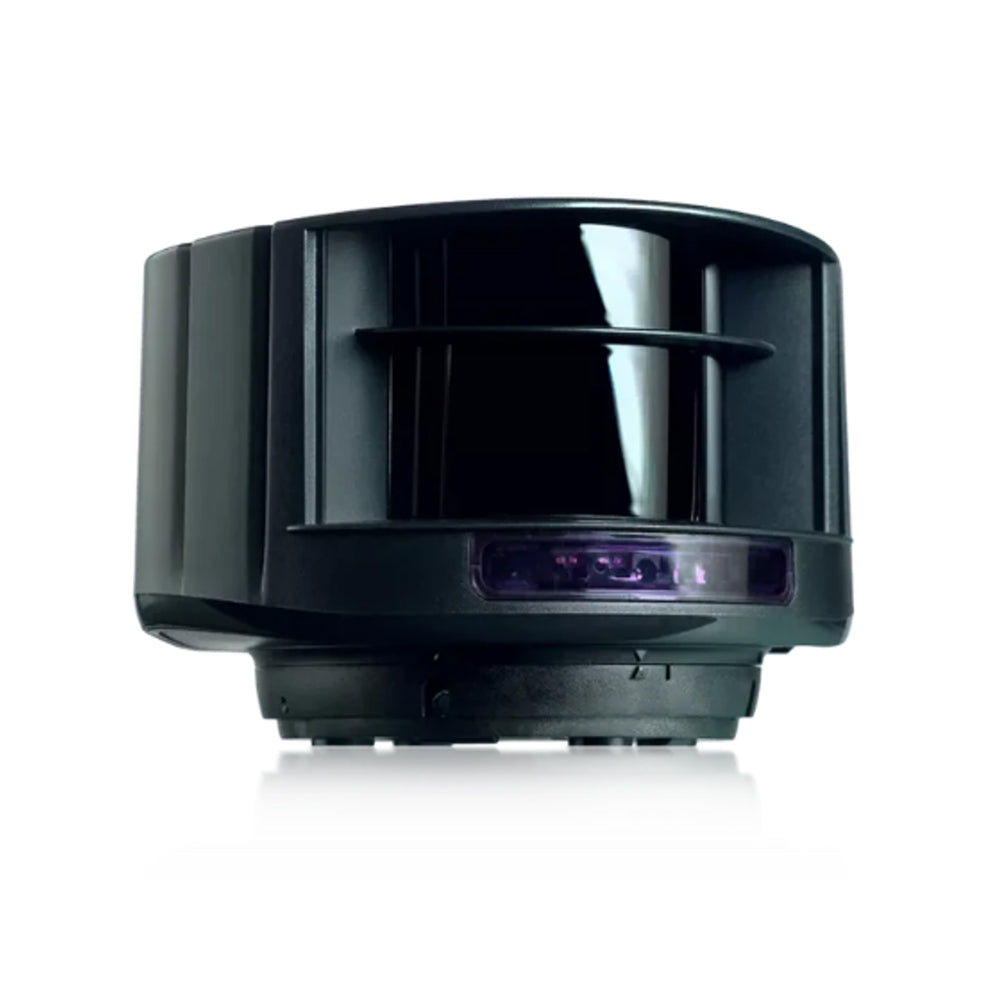

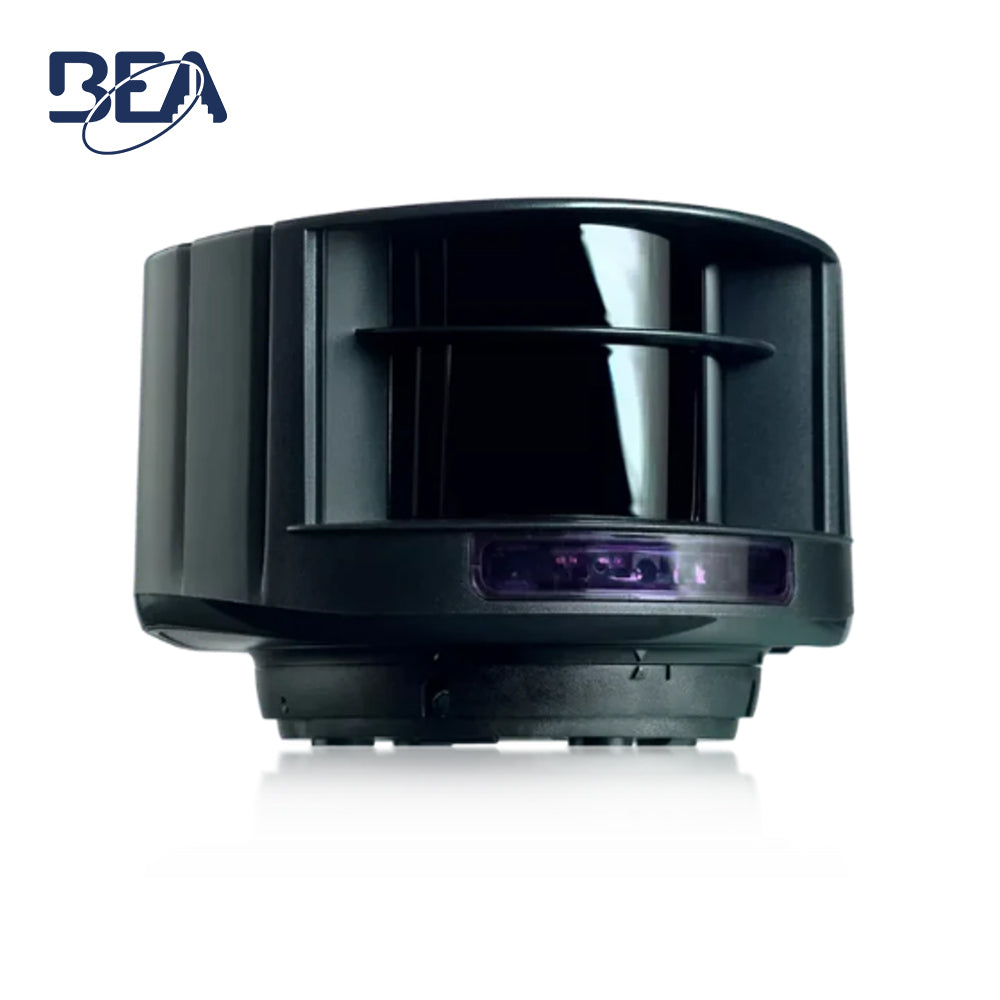

BEA - 10LZRH100 - LASER Scanner with Highly Precise Detection Zone
BEA's LZR-H100 is a LASER-based Time-of-Flight sensor designed for gate and barrier applications. This solution provides four LASER-based curtains, offering a three-dimensional detection zone for accurate object detection. Its detection curtains are highly configurable and can be set up for activation and presence detection in vehicle sensing applications. The LZR-H100 is an effective alternative to induction loops and is housed in an IP65 rated enclosure, further ensuring its performance in outdoor environments.
Feature:
- Dual relay activation: Two relays allow for activation via motion or presence
- Reliable and constant detection: Time-of-Flight presence-based opto-electronic sensor ensures accurate and immediate detection
- Effective alternative to loop detectors: Ideal for applications where cutting ground for loops is prohibited, impossible or expensive
- Trajectory Detection: Ability to detect vehicle trajectory during approach and departure
Specifications:
| Technology | LASER scanner, Time-of-Flight measurement |
| Detection Mode | Motion & Presence |
| MAX. Detection Range | 32' x 32' (9 3/4 m) |
| Remission Factor | > 2% |
| Angular Resolution | 0.3516° |
|
Emission Characteristics IR Laser Red Visible Laser |
Wavelength 905 nm; max. output pulse power 75 W (CLASS 1) Wavelength 650 nm; max. output CW power 3 mW (CLASS 3R) |
| Supply Voltage | 10 - 35 VDC @ Sensor Terminal |
| Peak Current at Power-on | 1.8 A (Max. 80 ms @ 35 V) |
| Power Consumption | < 5 W |
| Response Time Motion Detection Presence Detection | typ. 200 ms (adjustable) typ. 20 ms (max. 80 ms) |
|
Output Max. Switching Voltage Max. Switching Current Switching Time Output Resistance Voltage Drop On Output |
2 electronic relays (galvanic isolated - polarity free) 35 VDC / 24 VAC 80 mA (resistive) tON = 5 ms; tOFF = 5 ms typ 30 Ω < 0.7 V @ 20 mA |
| Led-Signal | 1 Blue LED: Power-on 1 Orange LED: Error status 2 Bi-colored LEDS: Detection / Output Status (Green = no detection, Red = detection) |
| Dimensions | 3 5/8" (W) x 2 3/4" (H) x 5" (D) mounting bracket: + 1/2" |
| Cable Length | 33' |
| Material | PC / ASA |
| Color | Black |
| Rotation Angle On Bracket | ±5° (lockable) |
| Tilt Angle On Bracket | ±3° |
| Degree Of Protection | NEMA 4 / IP65 |
| Temperature Range | -22 - 140°F powered (-30 - 60°C powered); 14 - 140°F unpowered (-10 - 60°C unpowered); |
| Humidity | 0 - 95% non-condensing |
| Vibrations | < 2 G |
| Pollution On Front Screens | Max. 30% ; Homogenous |
| Norm Conformance | 2006 / 95 / EC: LVD; 2004 / 108 / EC: EMC; IEC 60825- 1:2007; IEC 61000-6-2:2005; 2002 / 95 / EC: RoHS; IEC 60529:2001; IEC 60950-1:2005; IEC 61000-6-3:2006 |
