BEA - Falcon Family Motion Sensor for Industrial Doors, Gates, and Warning Indication - 12 to 24V AC/DC
The BEA Falcon Motion detector utilizes microwave technology that operates at 24.125 GHz (K-band frequency), meaning it can differentiate between vehicular traffic and pedestrians. The sensor is housed in a NEMA-4 rated plastic casing and features and a crimp style connector to prevent water intrusion through the feed cable. Even after it's installed, it's fully adjustable by remote control and sports a unidirectional sensing capability to acknowledge approaching or departing traffic.
Features:
- Energy Savings Bidirectional + unidirectional approach and unidirectional depart microwave detection options
- Adjustable Detection Settings Six modes of detection filtering for pedestrian and parallel traffic rejection.
- Adjustable Angle Tilt angle from zero to 180°
- Remote Control Adjustments Remote control programming enables user to quickly and safely make changes from the ground
- Rated For Harsh Environments IP65-rated enclosure
Specifications:
| Technology | Microwave Doppler radar Radiated Frequency (24.150 GHz) Transmitter Radiated Frequency (< 20 dBm EIRP) Radiated Power Density (< 5 mW / cm²) |
| Detection Mode | Motion |
| Detection Zone | FALCON (13' x 16' at 16') FALCON XL (13' x 6 1/2' at 8 1/5') FALCON WIDE (30' x 11' at 21') Typical at 30° and field size 9 |
| Tilt Angles | 0 - 180° |
| Output | Relay (free of potential change-over contact) Max. Contact Voltage (42 VAC/VDC) Max. Contact Current (1 A resistive) Max. Switching Power (30 W DC; 60 VA AC) |
| Minimum Detection Speed | 2 in/s |
| Mains Frequency | 50 - 60 Hz |
| Supply Voltage | 12 - 24 VAC; ±10% 12 - 24 VDC; 30% / -10% |
| Power Consumption | < 2 W |
| Mounting Height | FALCON (11 1/2 - 23') FALCON XL (6 1/2 - 11 1/2') FALCON WIDE (11 1/2 - 21') |

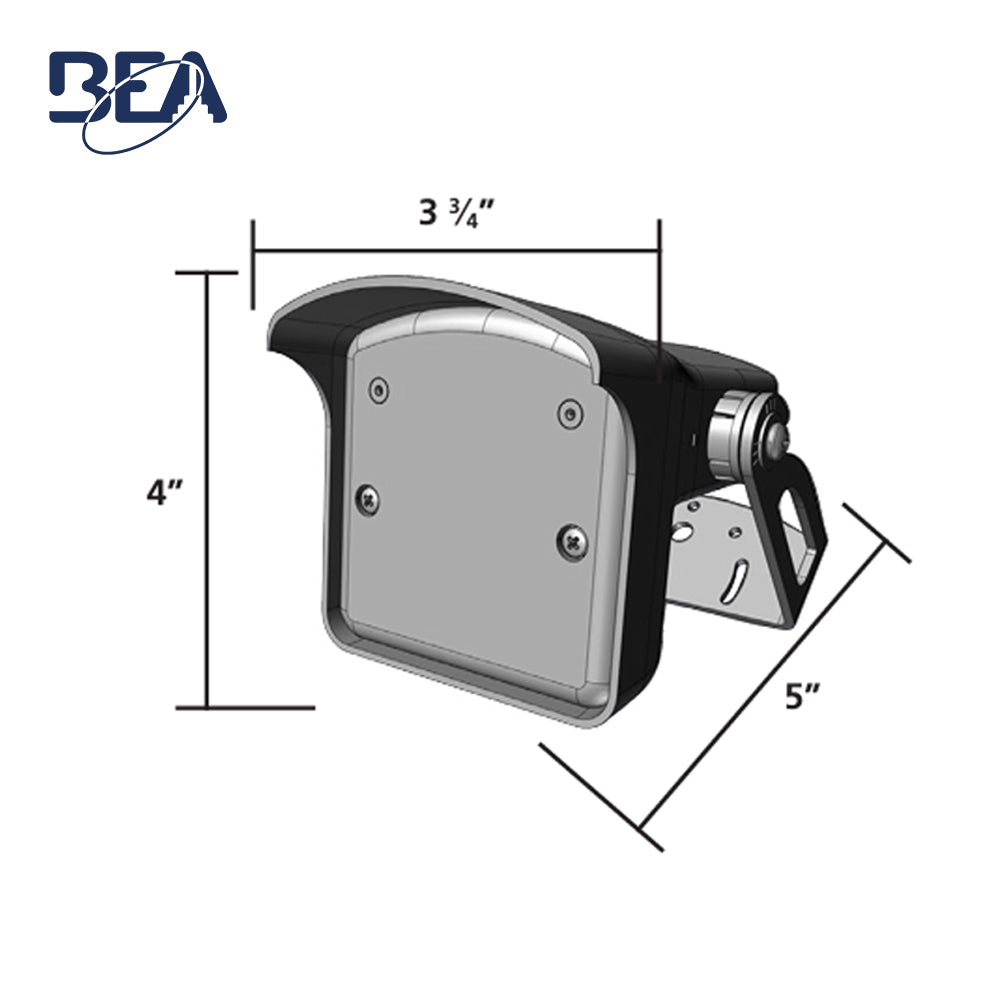

| Dimensions | 3 3/4" (W) x 4" (H) x 5" (L) |
| Materials | ABS, PC |
| Temperature Range | -22 - 140°F |
| Degree of Protection | IP65 |
| Norm Conformity | EMC: 2004 / 108 / EC, R and TTE: 1999 / 5 / EC |
