BEA - Fly Kit Compact with Passive Infrared Request-To-Exit Sensor ...
Description
Description

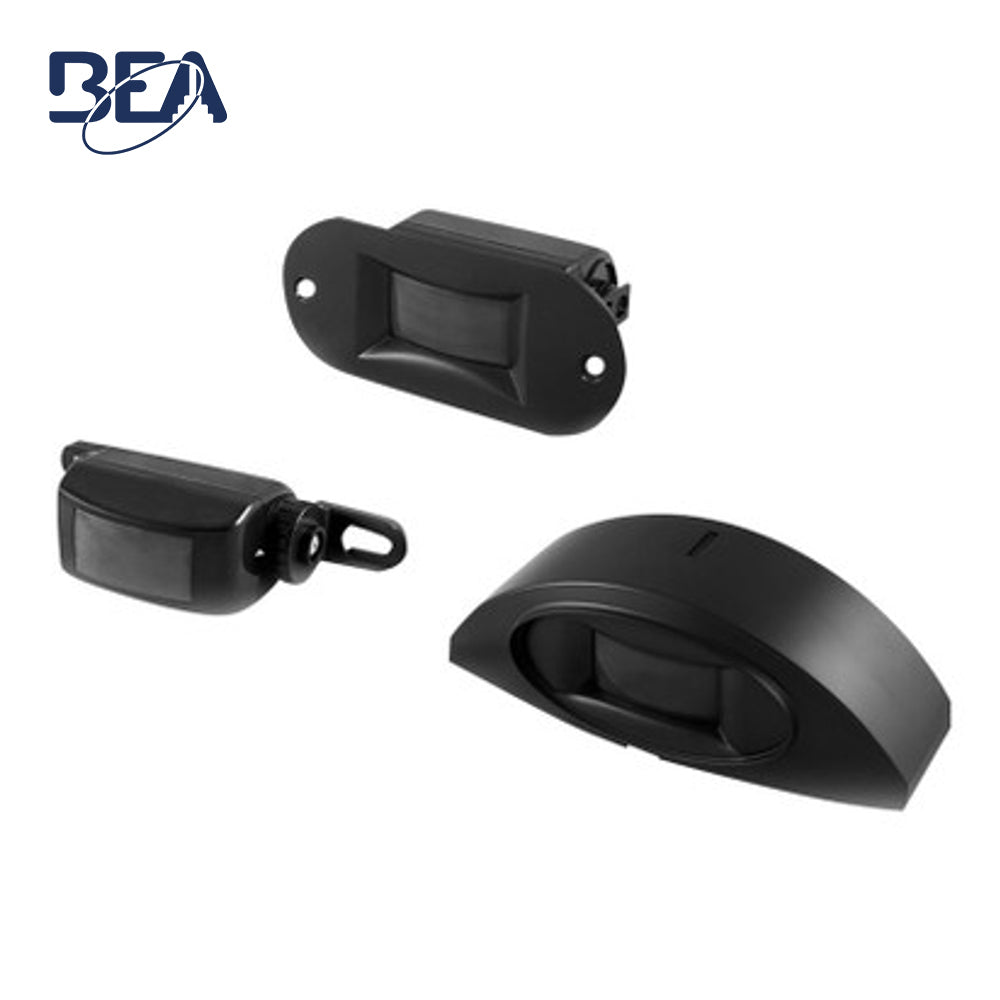

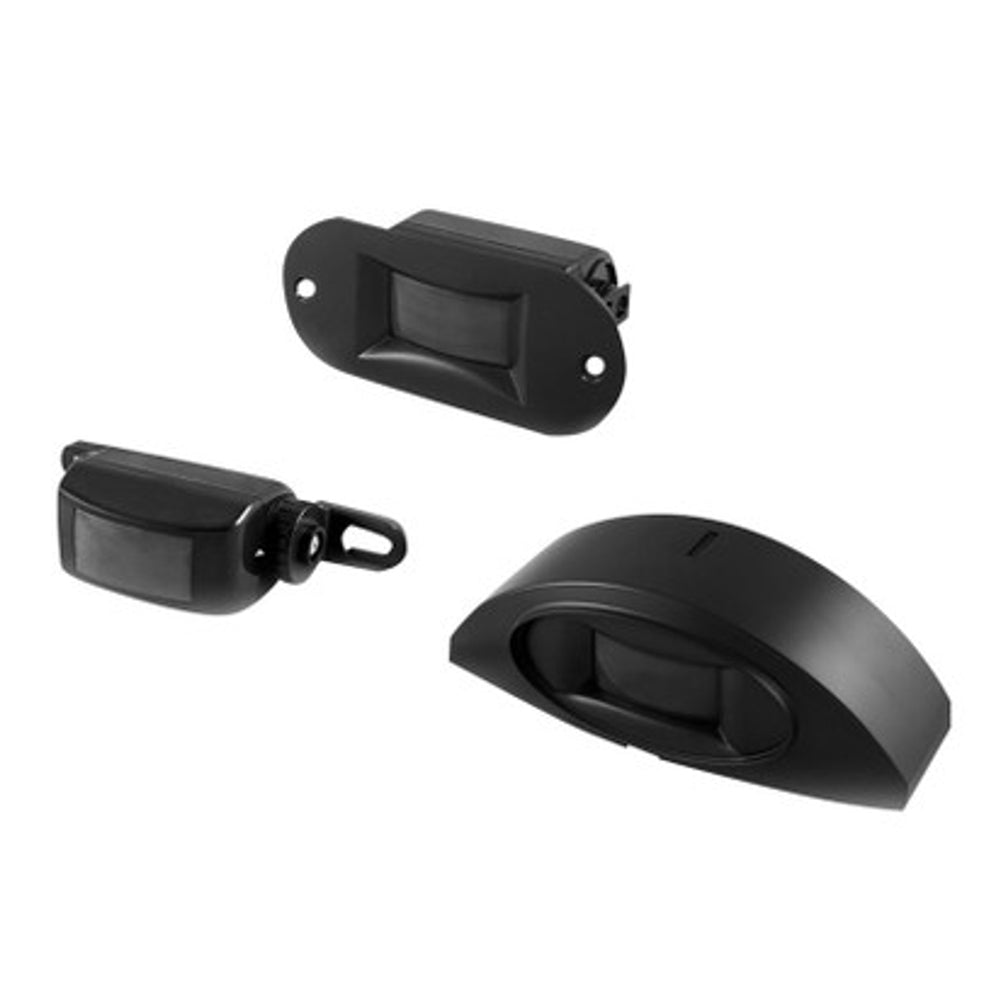

BEA - 10FLYKITB - Fly Kit Compact with Passive Infrared Request-To-Exit Sensor - 12 to 24V AC/DC
BEA's Fly Kit is now available from North Shore Commercial Door. The Fly Kit is the industry's most compact passive infrared (PIR) sensor, ideal for request-to-exit (REX) applications. The Fly is a low-cost, versatile sensor that can be flush or surface mounted above any door, as well as on the ceiling or wall. The Fly Kit includes an optional flush mount housing. Its flexibility and low-profile design make it an effective sensor for managing building security and traffic flow. Sensing field adjustment masks provide accurate detection zones. DIP switches for user-defined settings. Compact, aesthetically pleasing design.
Features:
- Precise Infrared Detection Sensing field adjustment masks provide accurate detection zones (two included)
- Customizable DIP switches for user-defined settings
- Adjustable Access Settings Extended Relay Time (ERT) version is available for hold times of 15 or 30 seconds
- Low-Profile Design Compact, aesthetically pleasing design; packages include both ceiling- and surface-mount adapters
- Optical Characteristics Passive infrared with four elements 15 Fresnel lenses with full independent masking possibilities
Specifications:
| Model No | 10FLYKITB |
| Technology | Passive infrared with microprocessor |
| Mounting Height | 6 1/2 - 8' (max. 10') |
| Mounting Angles | 0 - 180° |
| Power Supply | 12 - 24 VAC ±10% 50/60 Hz 12 - 24 VDC -10% / 30% |
| Current Consumption | < 10 mA (20 mA if the relay output is activated) |
| Contact Rating | 1 A / 75 VDC or 50 VAC potential free contact NO / NC |
| Warm-up Time | 10s |
| Response Time | 200ms (max) |
| Operating Temperature | -22 - 140°F (-30 - 55°C) |
| Cable | 9' 4-conductor cable with 5-pin connector. |
| Sensor Dimensions | 4" (W) x 1 4⁄5" (H) x 1" (D) |
